Product Overview

Description



Product Description


The Raymond Roller Mill is an air-swept vertical ring-roll mill with an integral classification system that simultaneously dries,pulverizes and classifies a number of different types of products including limestone, clay, minerals and others.




Raymond mills can be used to process more than 280 non-flammable and explosive materials with a Mohs hardness of less than 9.3 and a humidity of less than 6%, such as barite, calcite, and potassium feldspar, talc, marble, limestone, dolomite, fluorite, lime, activated clay, activated carbon, bentonite, kaolin, cement, phosphate rock, gypsum, glass, insulation, etc.


Product Paramenters


Model
Roller qty
Feeding Size(mm)
Output Size(mm)
Power(kw)
Capacity(t/h)
YGM-65
3
≤15
0.613-0.033
15
0.4-1.8
YGM-75
3
≤15
0.613-0.033
18.5
1-3
YGM-85
3
≤20
0.613-0.033
22
1.2-4
YGM-95
4
≤25
0.613-0.033
37
2.1-5.6
YGM-130
5
≤40
0.613-0.033
75
2.5-9.5
YGM-160
6
≤50
0.613-0.033
132
5-18.5


Details Images

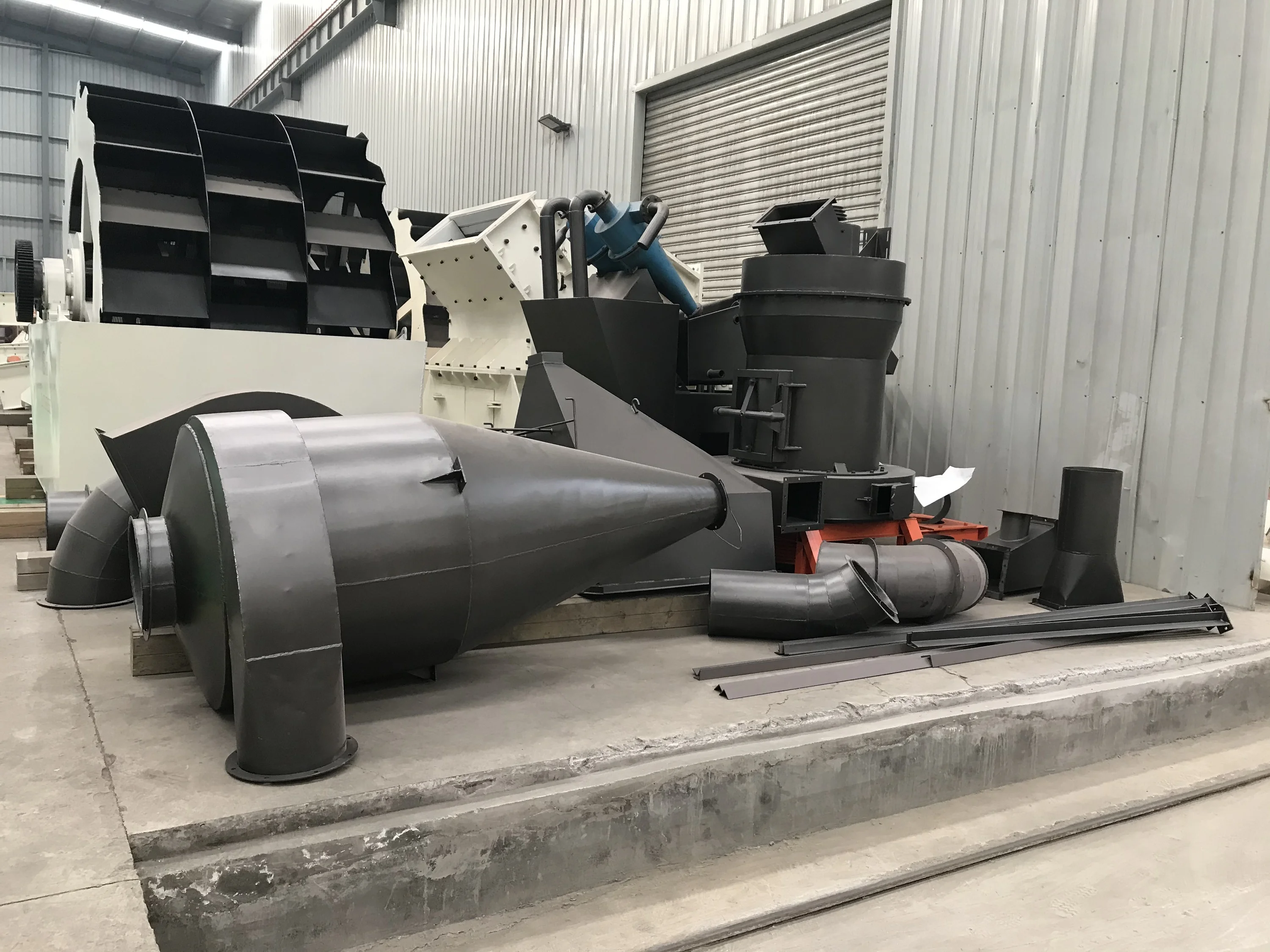

The complete set powder grinding plant normally including the following part :


Jaw crusher / Hammer crusher

Used to crush the raw material into 0-25mm, so that it  can grinding by the raymond mill

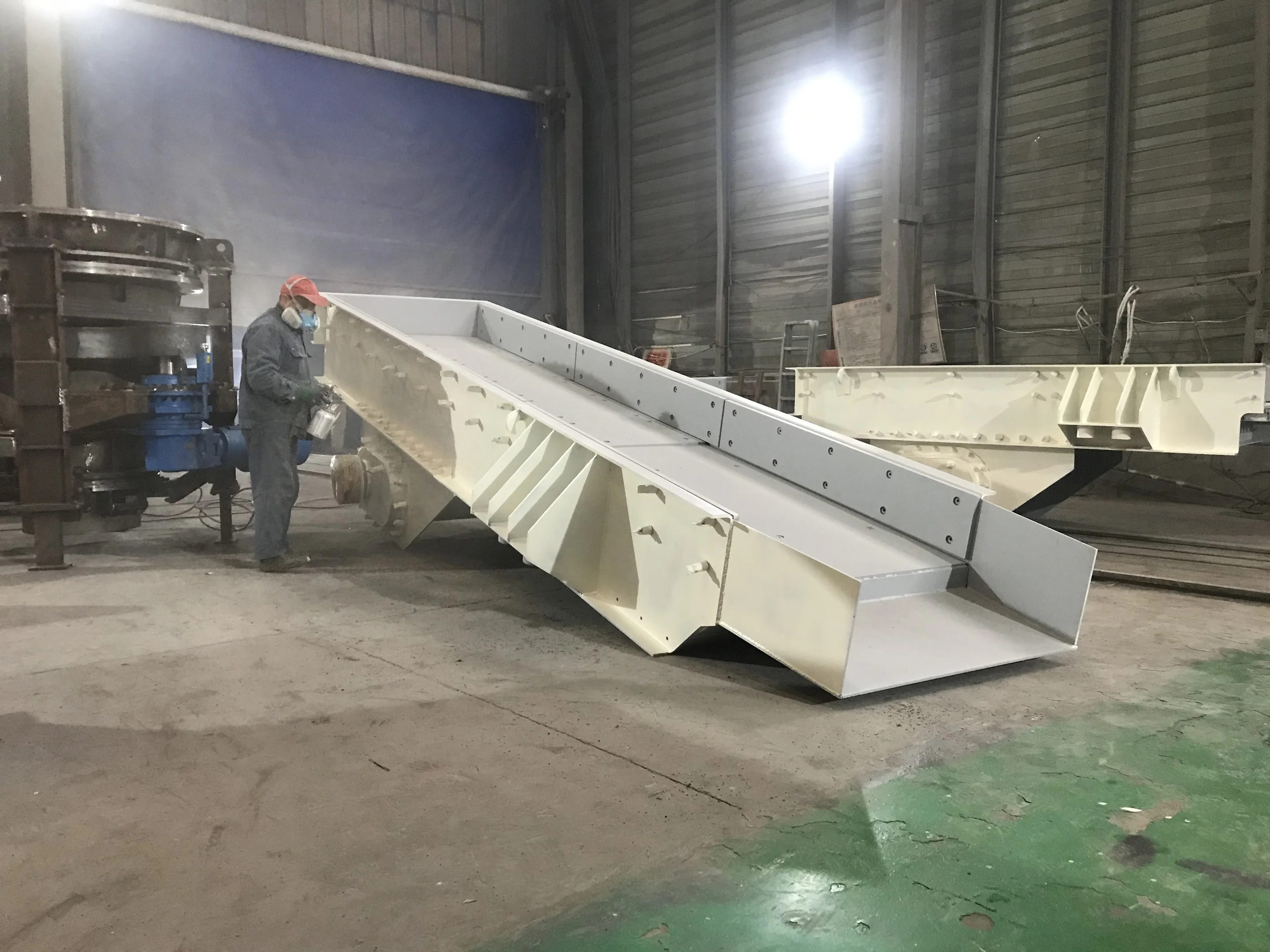

Electromagnetic vibrating feeder

Used to feed the crushed material into raymond mill evenly

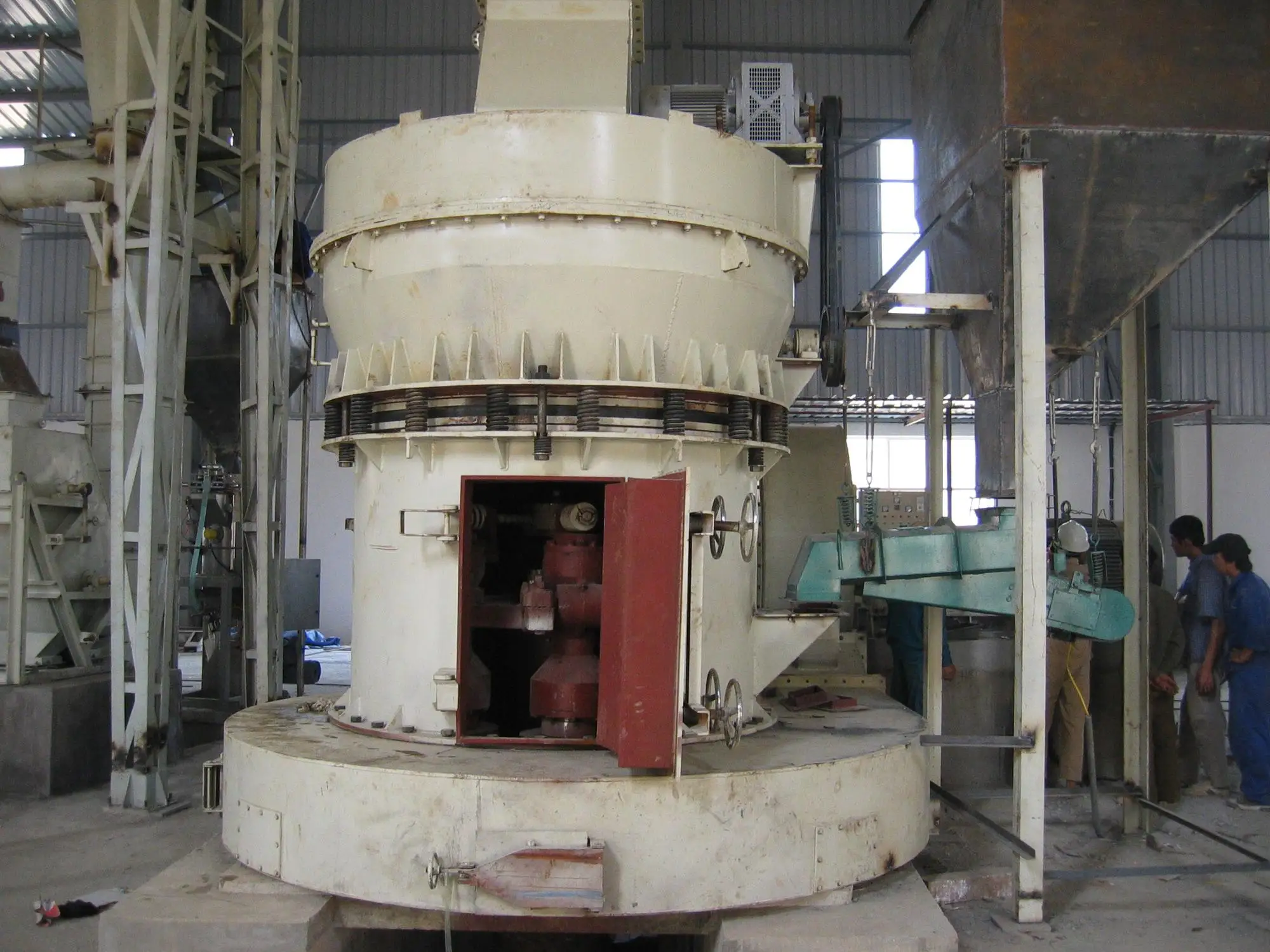

When entering grinding chamber, the raw materials are shoveled up by the shovels and grinded between the rollers and ring




Feeding inlet of raymond mill
Grinding ring and grinding roller .



Blower
Grinded materials are blown into separator by blower for classification. With the function of impellers in the separator, materials without meeting the requirements of the fineness are fallen into grinding chamber for grinding again; materials meeting the requirements of the fineness are blown into cyclone powder collector with airflow through pipelines for separation and collection.



Dust collector and pipe line

The required fine powder is transported through an air tube to a cyclone collector, separated and collected, and discharged as a finished product.

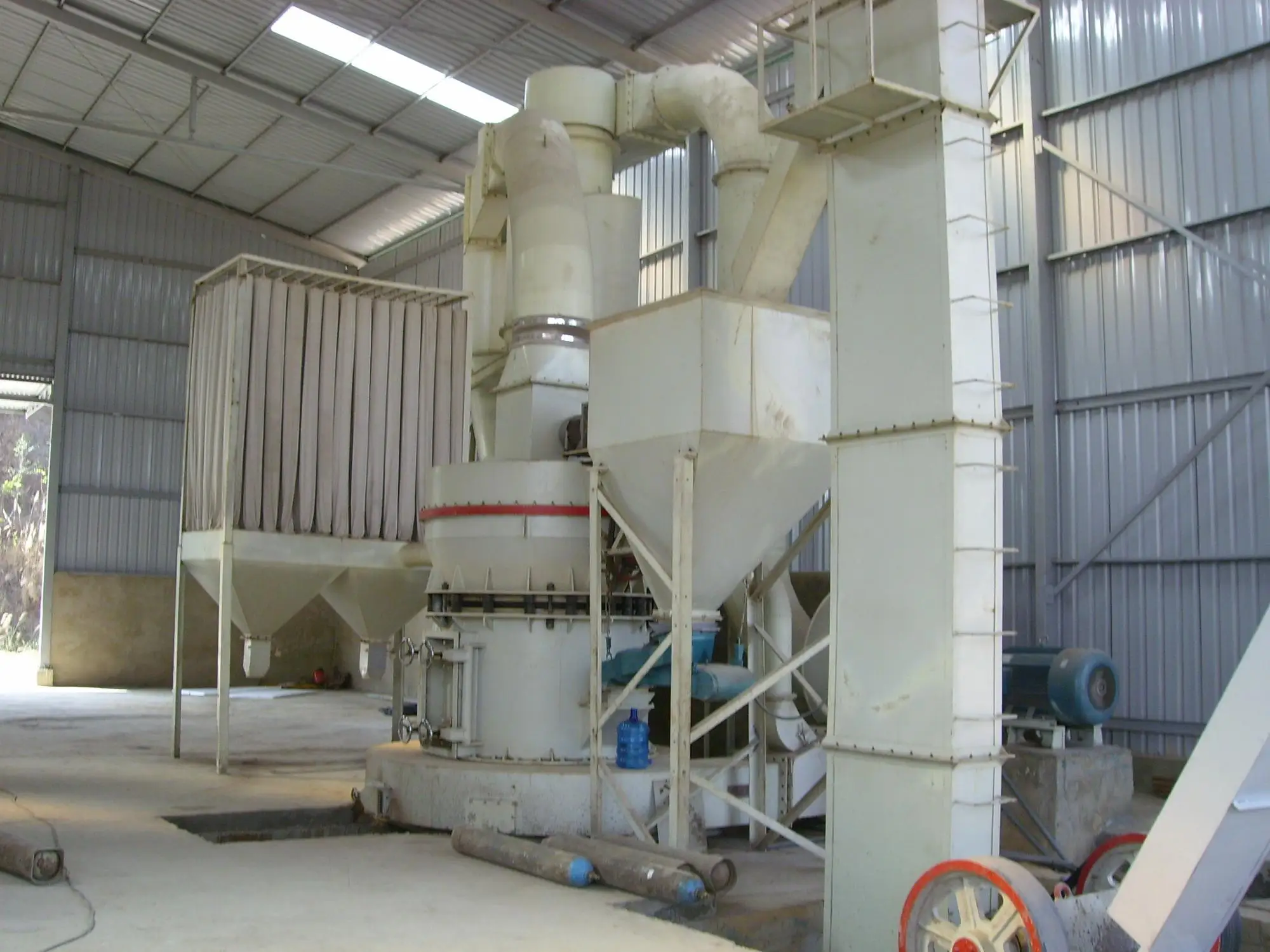

Complete powder grinding plant layout :

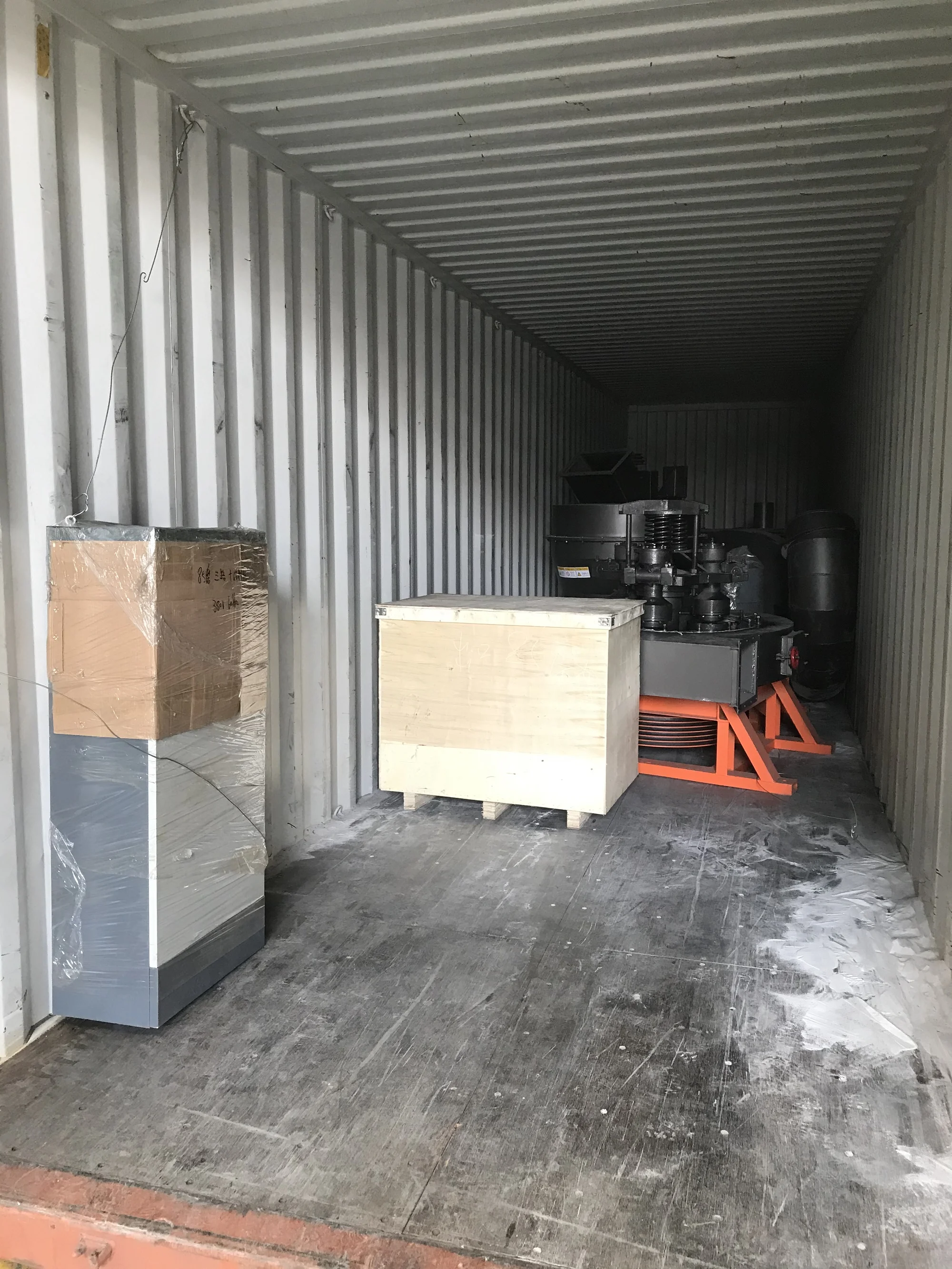

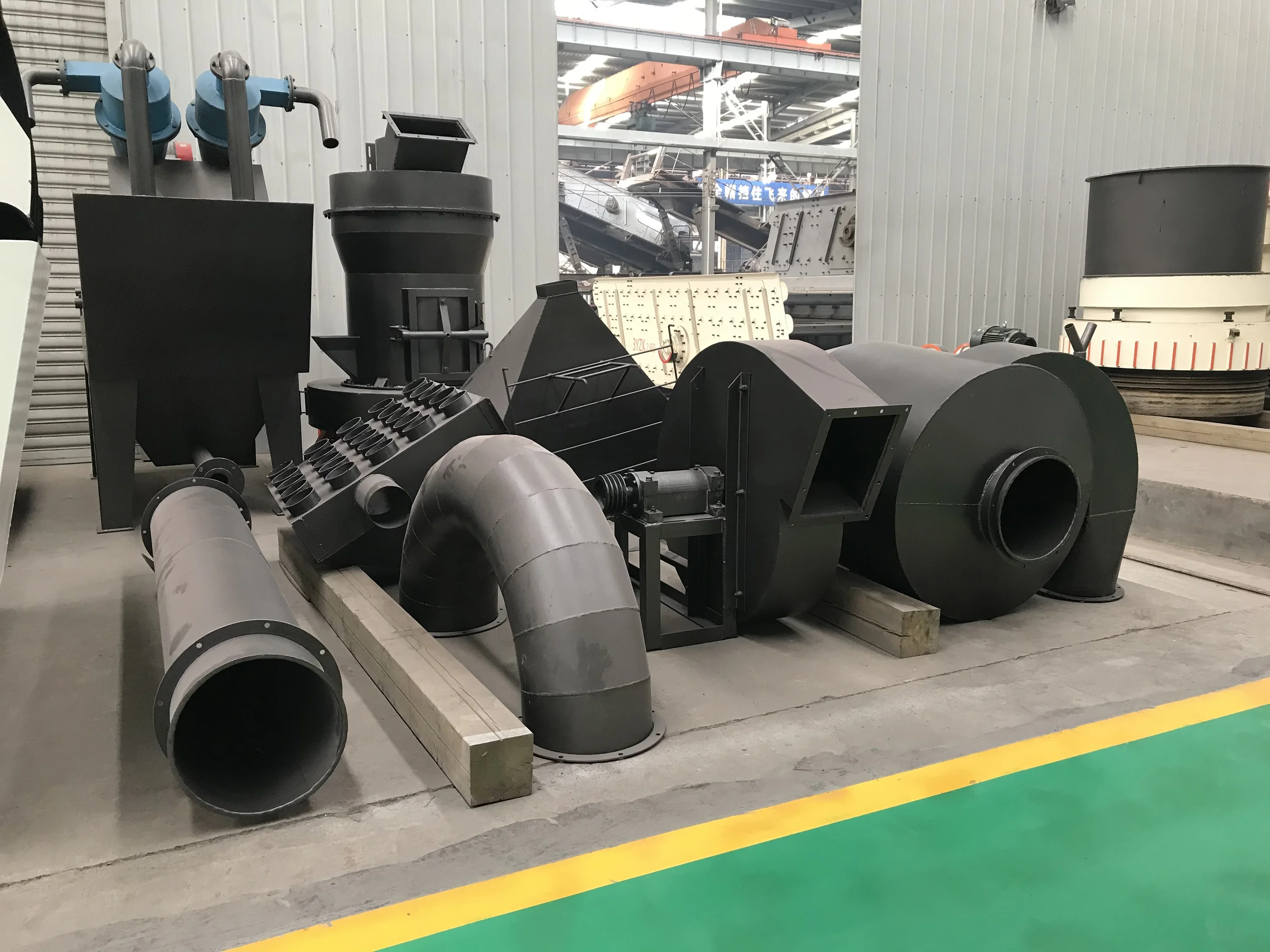

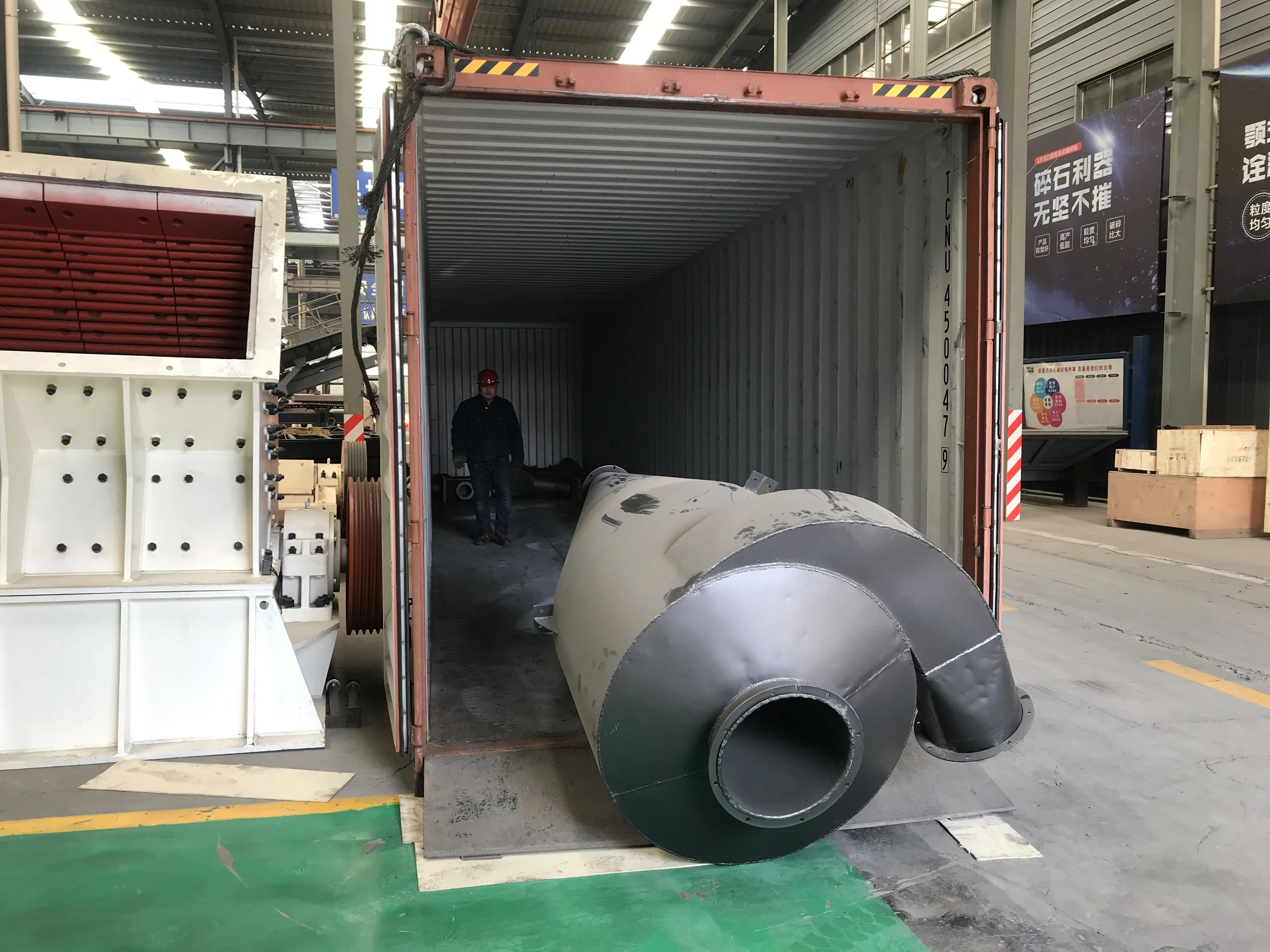

Packing and delivery


The machine is nude packing , motor and other accessories are packing in wooden box

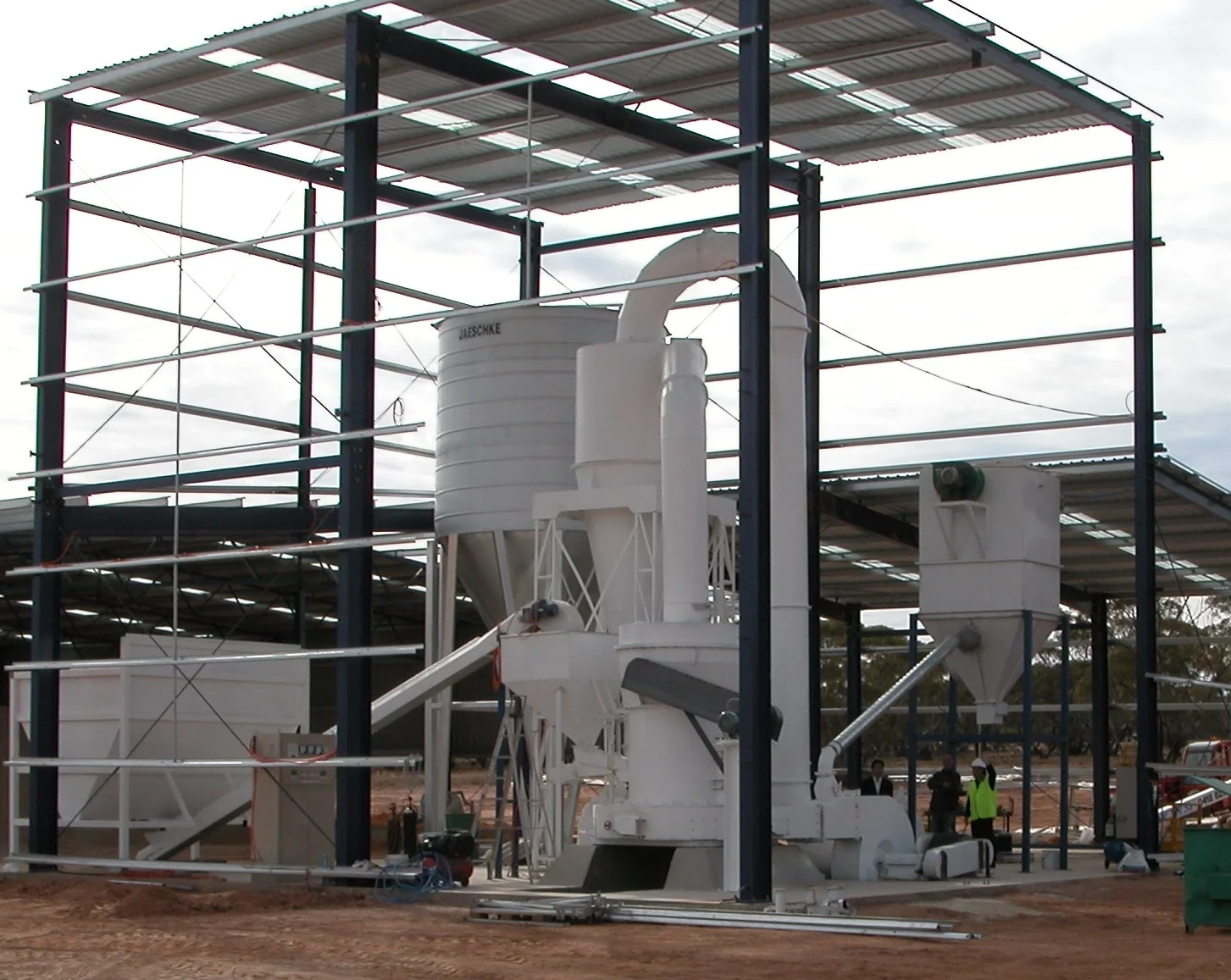

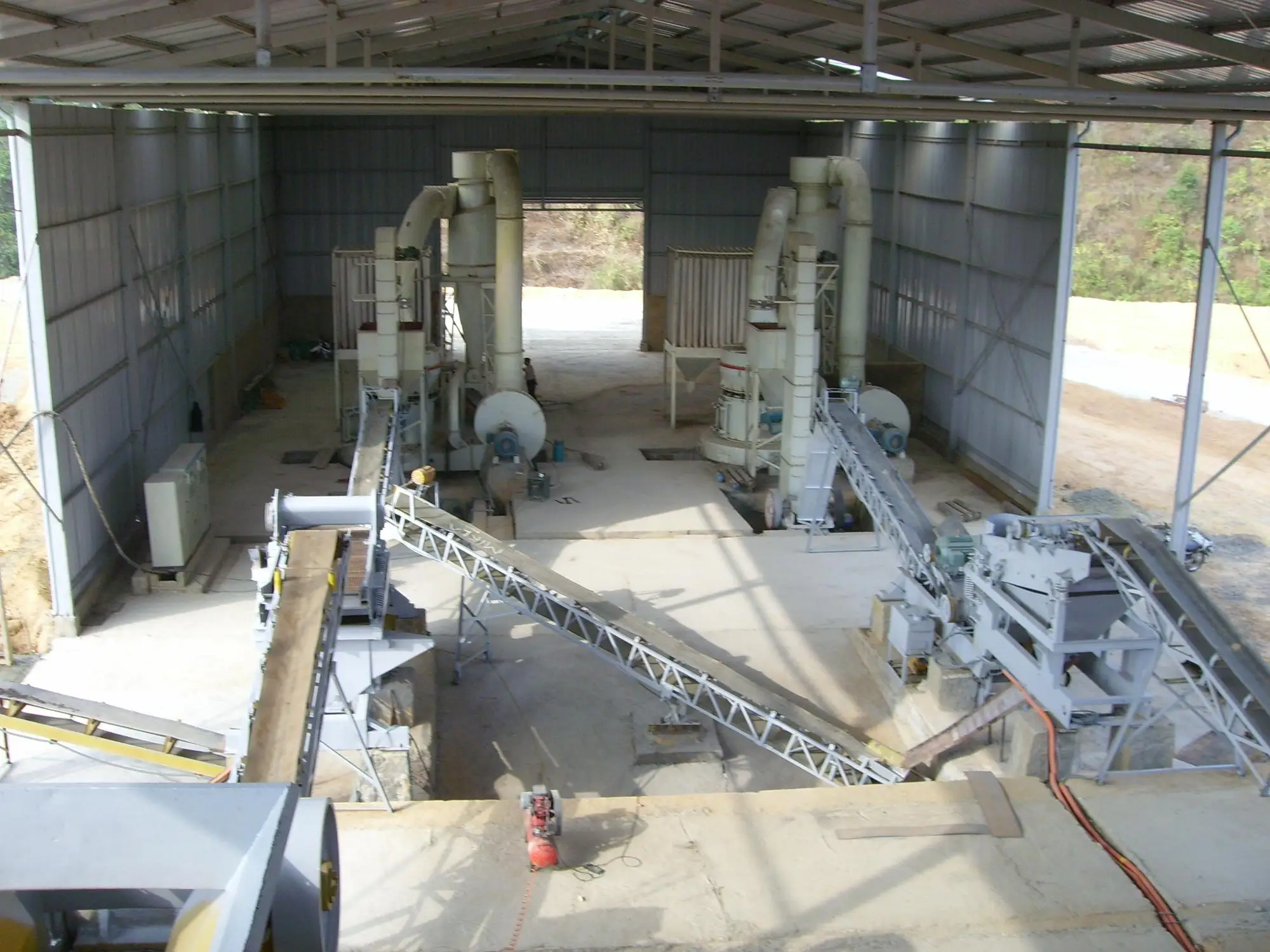

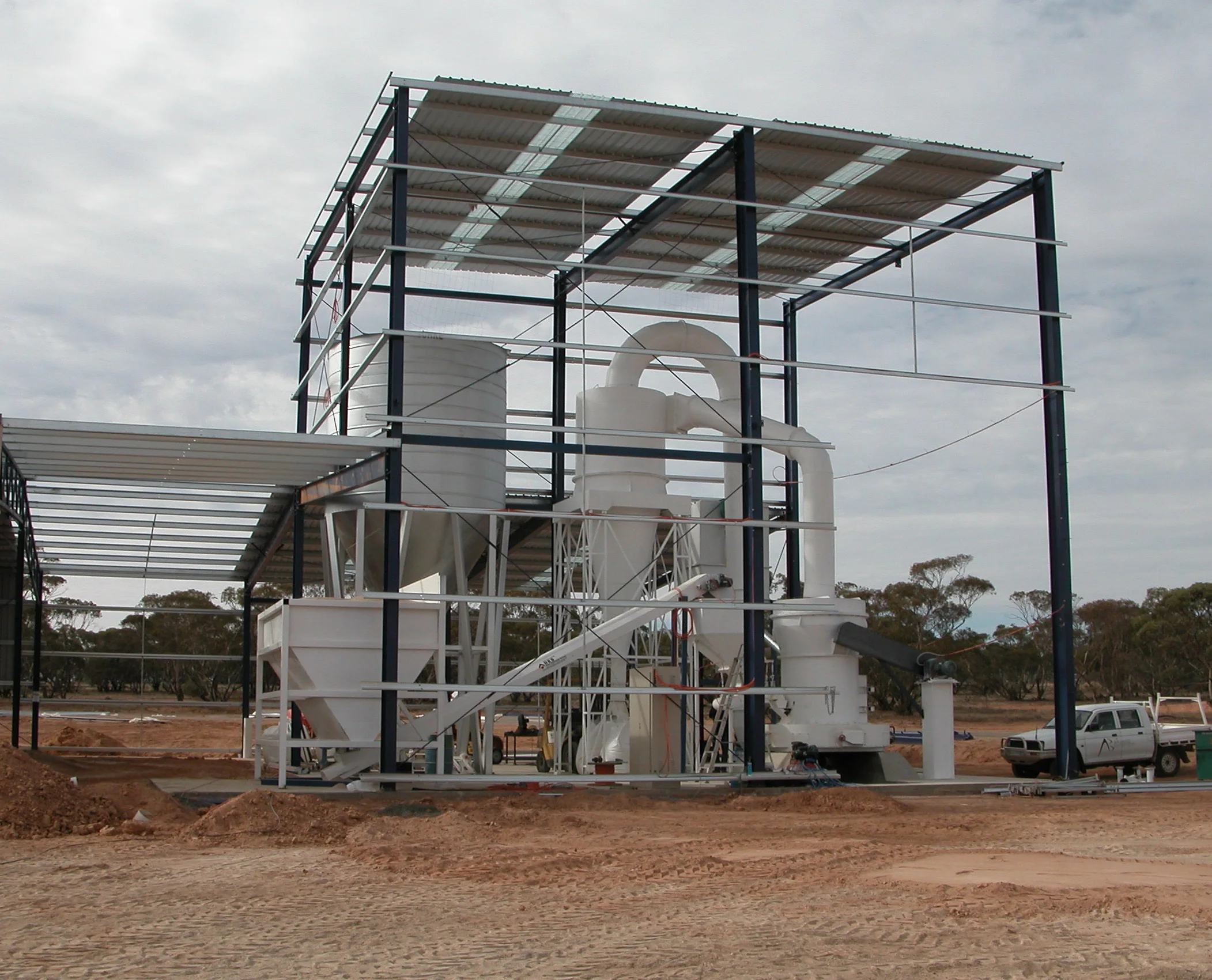

Working site

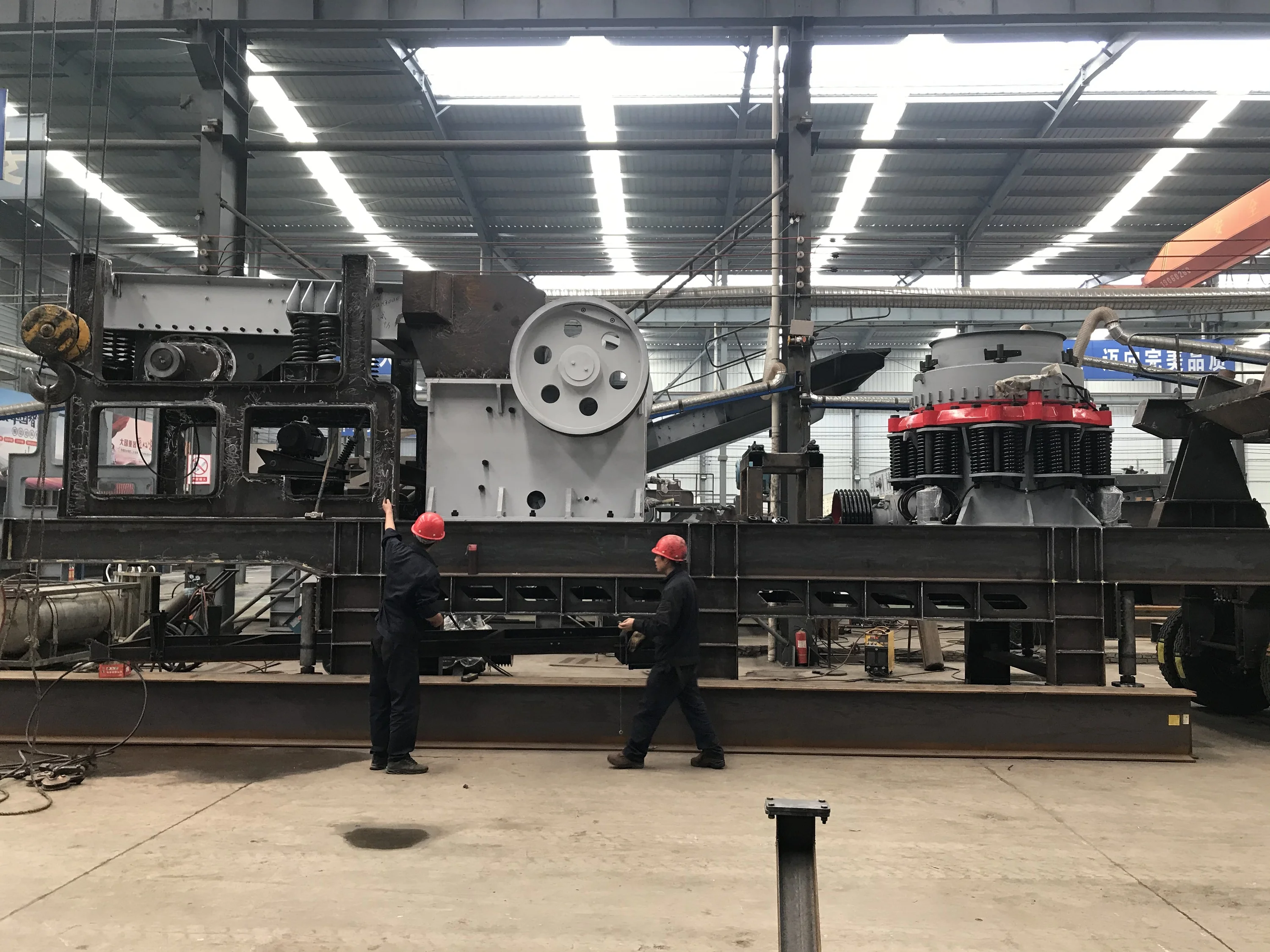

This is a complete stone crushing and grinding production line .

Main equipment : vibrating feeder , jaw crusher , cone crusher , vibrating screen , raymond mill , belt coneyor ect


Related products




Company Profile

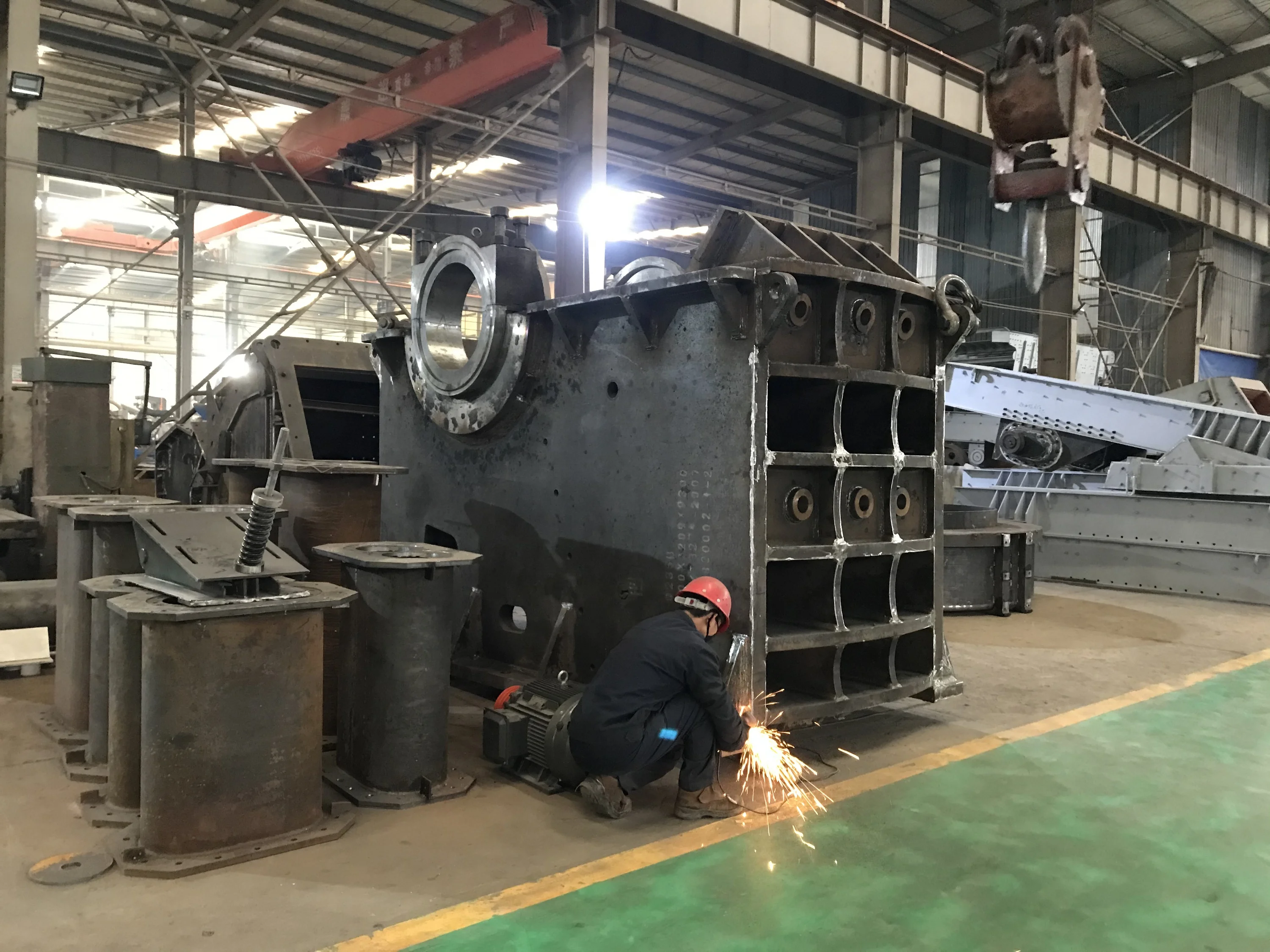

Our company is located in Wulong Industrial Park, Zhengzhou, China, It has a total area of approximately 350,000 square meters with professional cutting and welding workshop,a large spraying workshop, a high-standard assembly workshop, a variety of large and medium-sized metal processing, riveting,welding, assembly equipment, etc.






Customer Photos


After more than 30 years development , now we have more than 100 world markets and areas of Southeast Asia, East Europe, South America, the Middle East and Africa etc, and more foreign markets will be promoted in future.






FAQ


Q: what is the payment terms ?

A: 30% prepayment by T/T , after the seller finish the production process and buyer verify the machine , 70% balance should paid before delivery, L/C is also acceptable .

Q: How long do you need to produce the impact crusher?

A: Most model are in stock, can delivery within 10 days.

Q: Which airport and train station is near to the factory ?

A: Zhengzhou xinzheng international airport and Zhengzhou East Railway Station

Q: How to choose the suitable model ?

A: please confirm the following information :
1. what kind of stone do you want to grinding ? such as limestone ? gypsum ? or ?
2. what's the size of your stone before grinding ? how many inch or mm ?
3. what's your requirements of final powder size ? how many mesh ?
4. what's your requirements of production capacity ? how many ton per hour ?
