5KHz 10KHz M12 FSCH1202 P Inductive Proximity Sensor, High Speed High Speed Application, Speed Sensor Gear Sensor
- Category: >>>
- Supplier: F&C Sensing Technology(Hunan) Co. Ltd.
Share on (62396919044):
Product Overview
Description
Product Description
5KHz 10KHz M12 FSCH1202-P Inductive Proximity Sensor, High Speed High Speed Application, Speed Sensor Gear Sensor
Product details
| Brand Name | F&C |
| Detection mode | 3-wires |
| Voltage | 12-24VDC 10%; 5V customizable |
| Detection distance | 2mm |
| metal detector sensor | metal detector sensor |
| Certificate | CE,RoHS |
| Entry cable | dia4*2m/3 wires or M8/M12 connector |
| Material | PBT |
| Key words | inductive proximity switch |
| Product name | 3 wires 2mm metal detector sensor |
| Product Keywords | M12 inductive sensor |

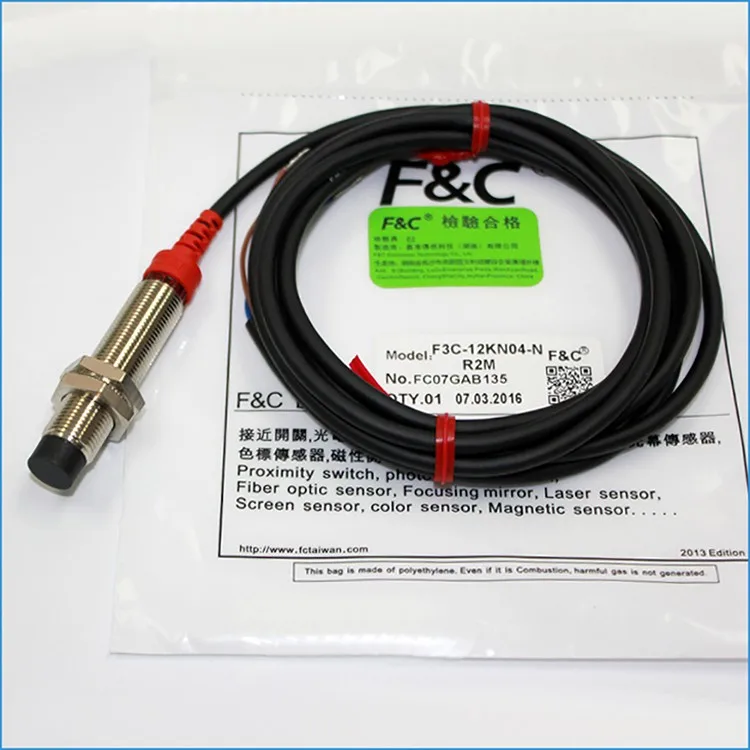

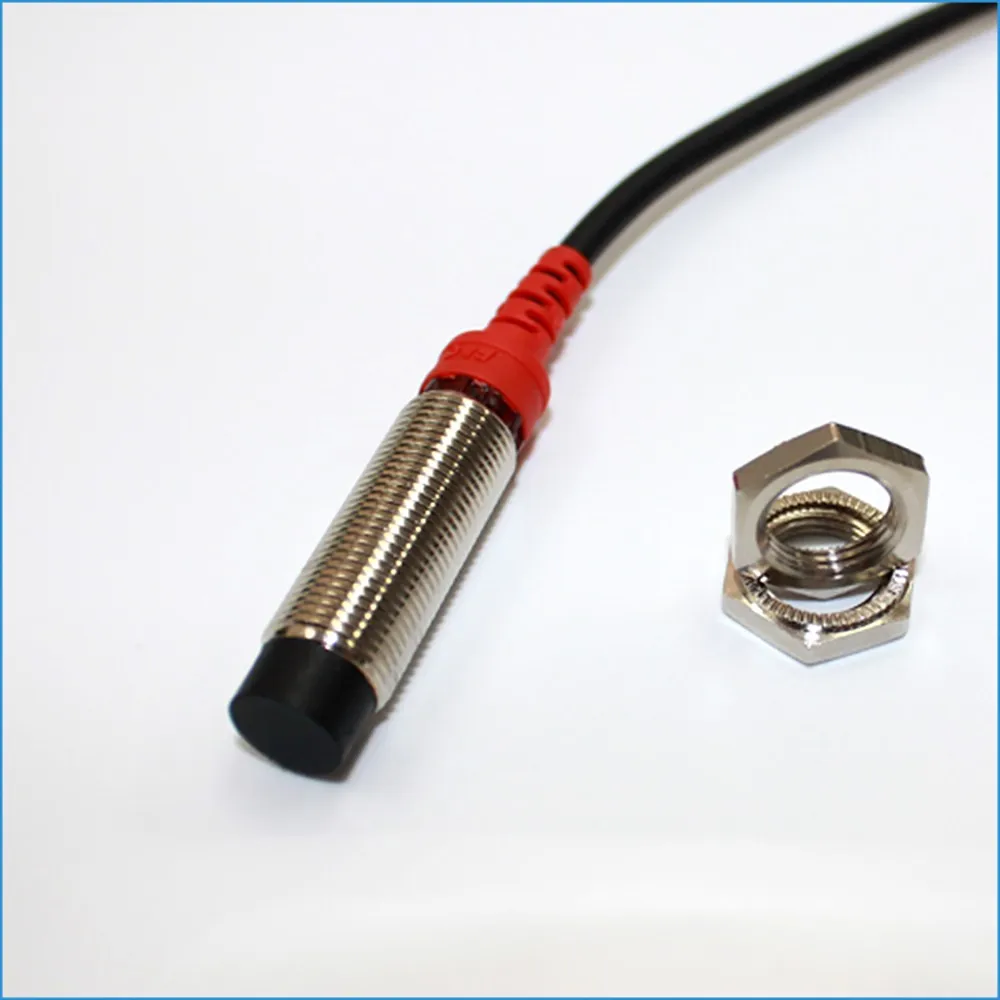

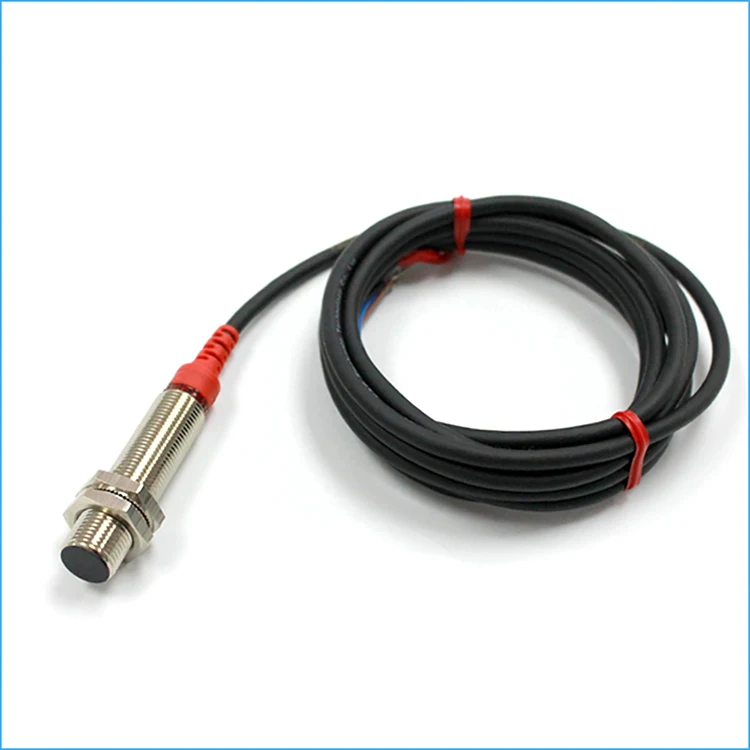

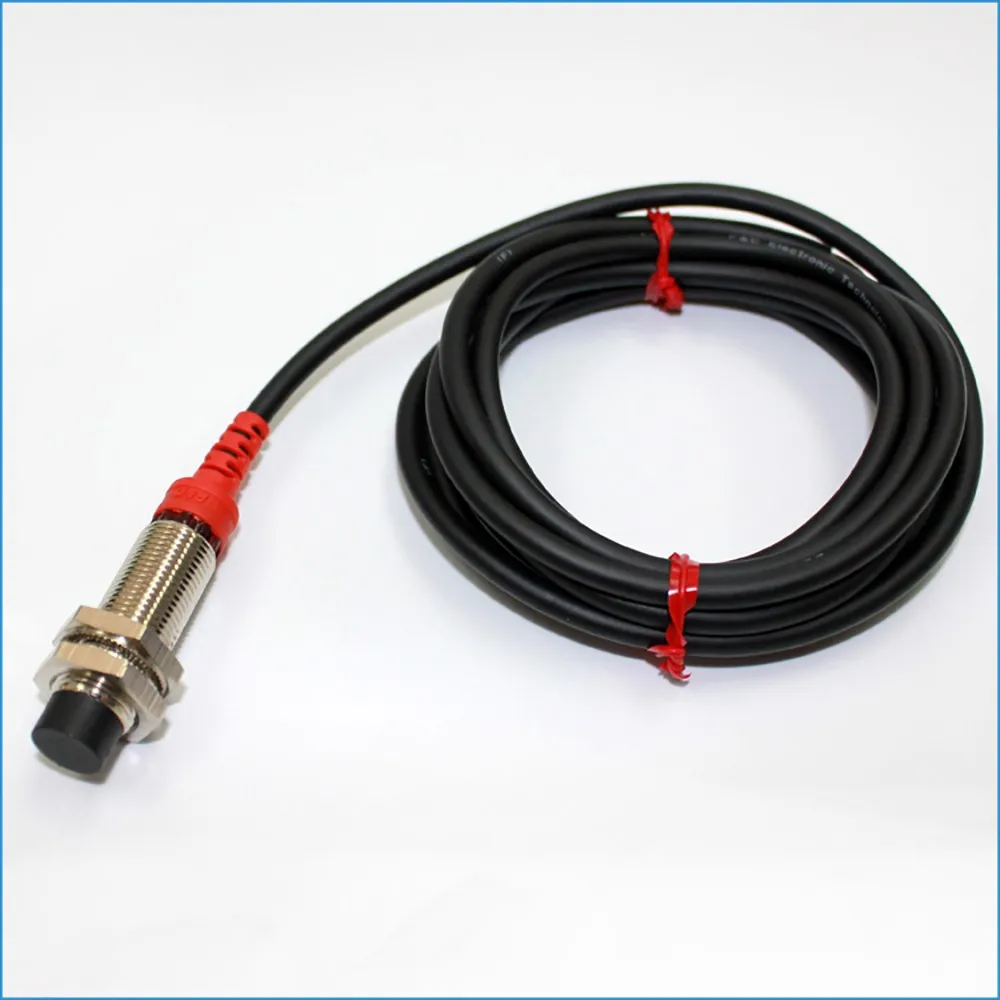

Product picture
Feature for;Long Distance Flush M12 Inductive Sensor 4mm Sensing NPN 12V Dc Proximity Sensor
1.Flexible cable,
2.360 degree view LED indicator,
3.Red protective sleeve,
4.imported world first class electronic components ;
All these make F&C inductive proximity sensor have stable quality ,durable and friendly to use.
F&C Also provide 18 month warranty.
Specifications
| High Speed 5KHz Non-Flush M18 Inductive Sensor, 8mm Sensing 12V Dc Proximity Sensor | |
| Model # | FSCH1202-P 5KHz or 10kHz |
| Output Method | 3-wires |
| Mounting Method | Flush |
| Detection Distance | 2mm |
| Hysteresis | Less than 10% of sensing distance |
| Standard Sensing Object | 6*6*1(Iron) |
| Operating Voltage | 12-24 VDC |
| Current Consumption | Less than 8mA (No Load) |
| Load current | 100mA Max at 24 VDC |
| Residual Voltage | Less than 1.5VDC (No Load) |
| Leakage Current | Less than 0.01mA |
| Protection Degree | IP67 |
| Operating Temperature | -25℃-70℃ (No Icing) |
| Reverse Polarity Protection | Yes |
| Short Circuit Protection | Yes |
| Material | PBT and Copper painted Nickel |
| Wire Method | Dia 4mm*2M/-3wires |
