1 E1 75/120(BNC/RJ45) Balun Converter Provide 1 channel G.703 75(BNC) to 120(RJ45) Converter ,not need power
- Category: >>>
- Supplier: Hangzhou Fctel Technology Co. Ltd.
Share on (62396969020):
Product Overview
Description
Product

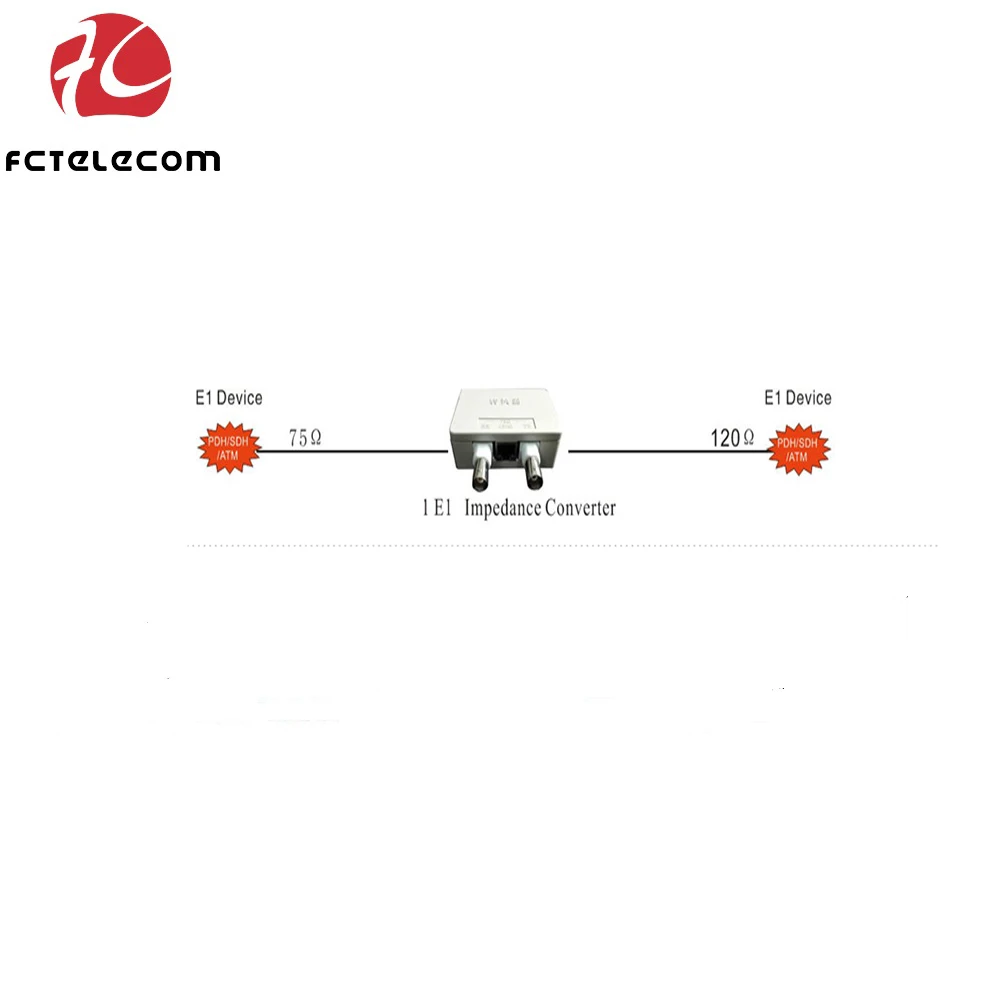

1 E1 Balun Converter Provide 1 channel G.703 75(BNC) to 120Ω(RJ45) Converter ,not need power.
feature
E1 75/120 Interface level conforms to the ITU-T G.703 level standard template;
75 and 120 ohm impedance two-way signal conversion, easy to use Without external power supply
Parameters
E1 Interface
E1 interface protocol: ITU-T G.703,
Interface Code: \t\tHDB3;
E1 Impedance: \t\t75Ω (unbalance L9), 120Ω (balance RJ45);
E1 interface protocol: ITU-T G.703,
Interface Code: \t\tHDB3;
E1 Impedance: \t\t75Ω (unbalance L9), 120Ω (balance RJ45);
Bit Rate | 2048±50ppm | ||||||
Impedance | 75 Non Balance | 120 Balance | |||||
The "mark" (pulse) nominal peak voltage | 2.37V | 3.0V | |||||
"Empty" (no pulse) nominal peak voltage | 0±0.237V | 0±0.3V | |||||
Nominal pulse width | 244ns | ||||||
Pulse width at the midpoint of the positive and negative pulse amplitude ratio | 0.95～1.05 | ||||||
Nominal pulse amplitude, pulse width ratio of positive and negative half | 0.95～1.05 | ||||||
Working Environment
Working temperature: \t-40°C ~ 80°C
Working Humidity:\t\t5%~95 % (no condensation)
Storage temperature: \t-40°C ~ 85°C
Storage Humidity:\t\t\t5%~95 % (no condensation)
MTBF：\t\t \t\t＞500,000 hours
Working temperature: \t-40°C ~ 80°C
Working Humidity:\t\t5%~95 % (no condensation)
Storage temperature: \t-40°C ~ 85°C
Storage Humidity:\t\t\t5%~95 % (no condensation)
MTBF：\t\t \t\t＞500,000 hours
Our Company
Certifications
Packing & Delivery
Order information
Model | FCCZ-E1-BNC |
Functional Description | E1 Impedance Converter Provide 16 channel G.703 75(BNC) to 120Ω(RJ45) Converter |
Port Description | *75ohm E1（BNC）+120 ohm E1(RJ45) |
Power | Not Need |
Dimension | ( Mini Type) |
Weight | 0.20Kg/Pcs |
