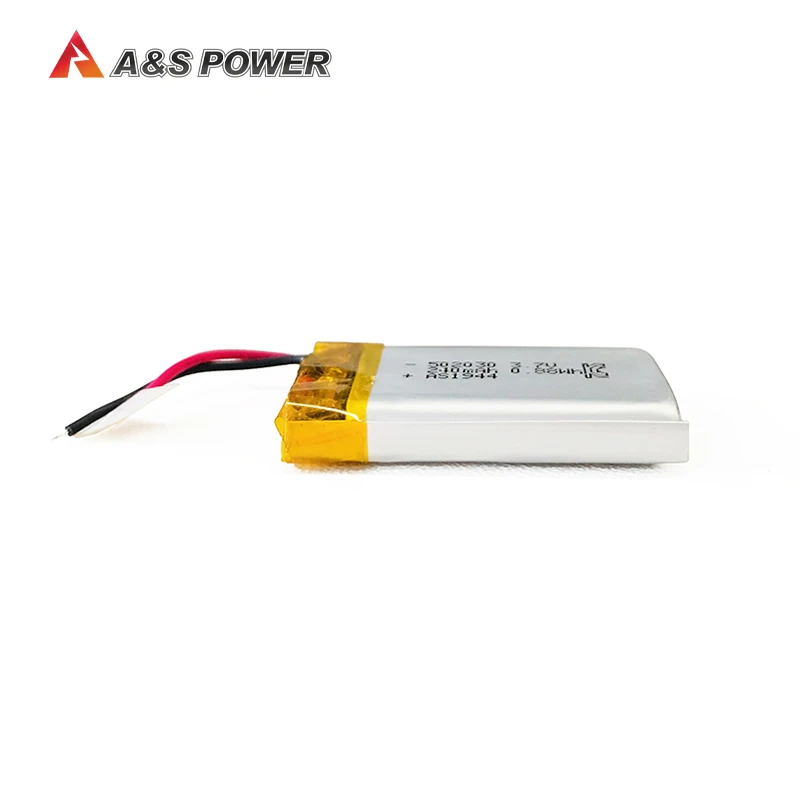

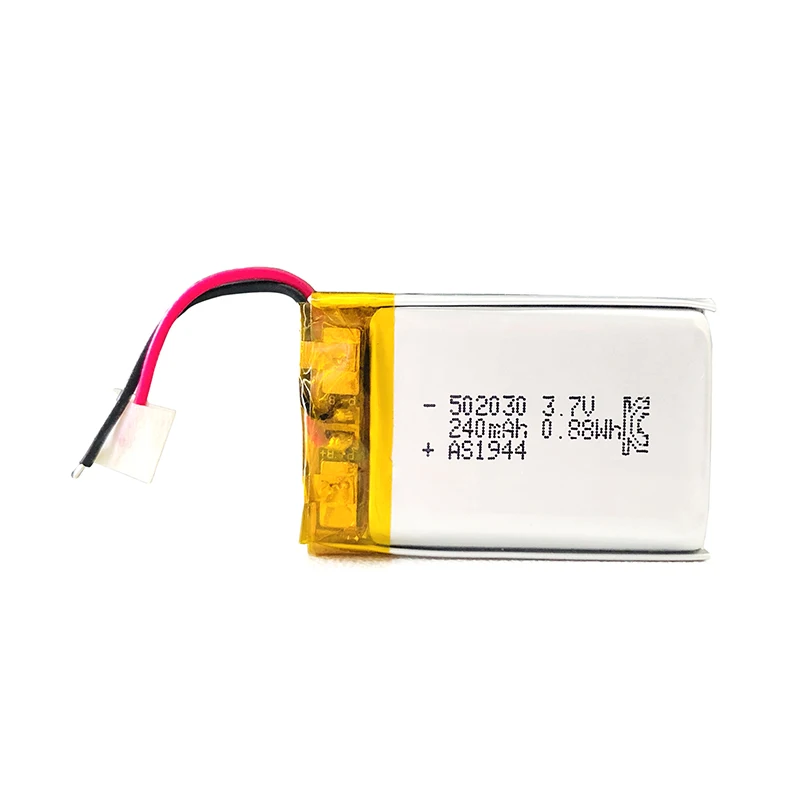

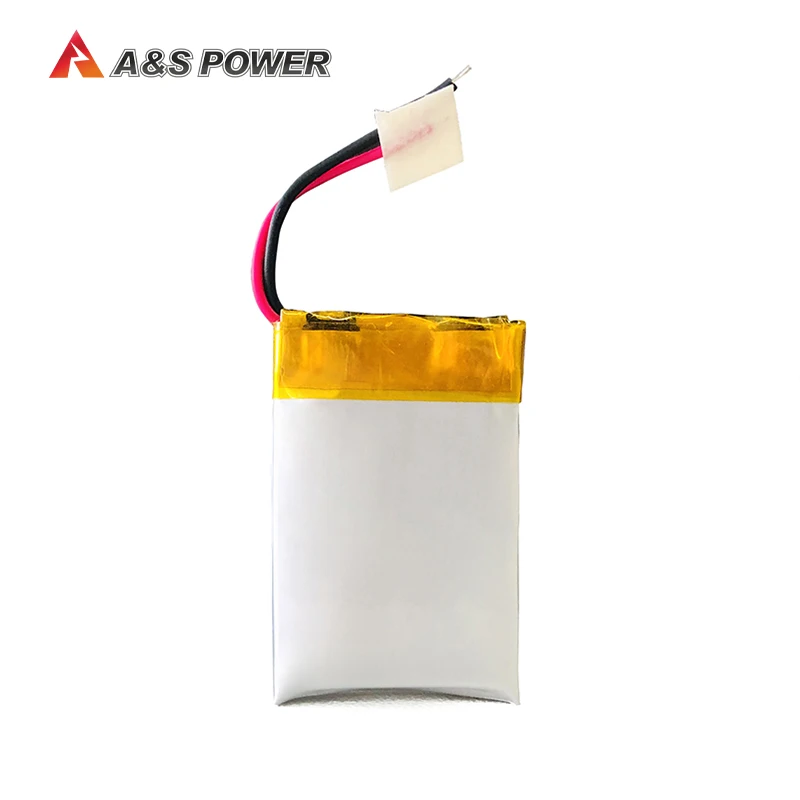

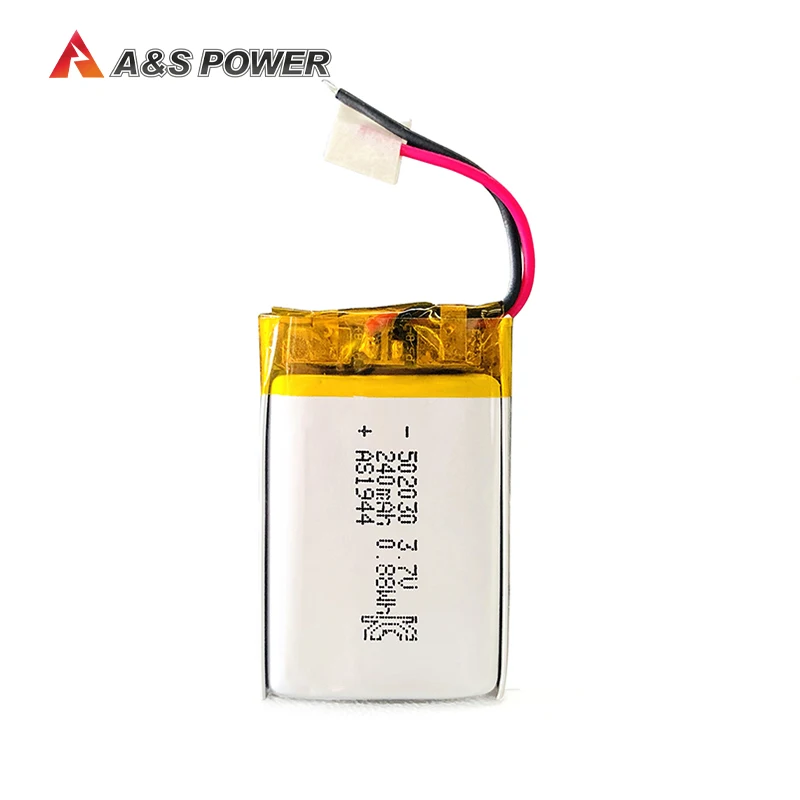

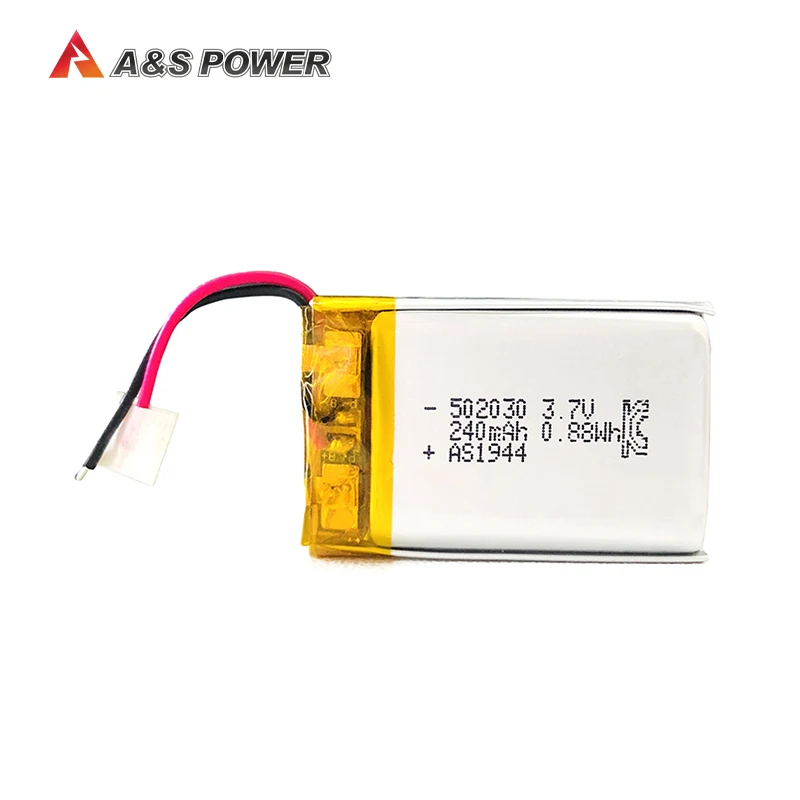

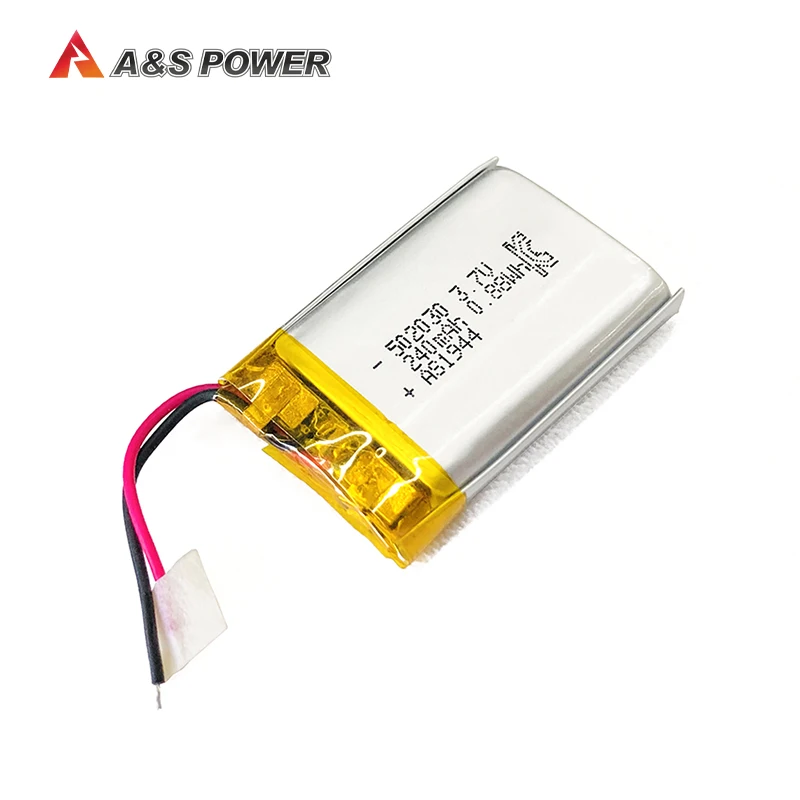

UL CB KC Rechargeable li ion lipo 502030 3.7V 250mAh Lithium Polymer Battery For IOT device/bluetooth earphone
- Category: >>>
- Supplier: Shenzhen A&S Power Technology Co. Ltd.
Share on (62396981092):
Product Overview
Description
UL CB KC Rechargeable li-ion lipo 502030 3.7V 250mAh Lithium Polymer Battery For IOT device/bluetooth earphone
Product Description
Product Description for UL CB KC Rechargeable li-ion lipo 502030 3.7V 250mAh Lithium Polymer Battery For IOT device/bluetooth earphone
1. Model: AS502030
2. Max Dimension with PCM: 5.2*21*32.5mm
3. For IOT device Or bluetooth earphone
Parameter Table:
|
Item |
Rating |
Note |
||
|
Capacity |
Typical |
250mAh |
Discharge:0.2CmA cut off Voltage:3.0V for cell |
|
|
Minimum |
230mAh |
|||
|
Nominal Voltage |
Average 3.7V |
Discharge:0.2CmA cut off Voltage:3.0V for cell |
||
|
AC Impedance Resistance |
≤30mΩ |
|
||
|
Discharge Cut-off Voltage |
3.00V |
|
||
|
Charge Current |
165mA |
Standard Charge |
||
|
Charge Voltage |
4.2V |
|
||
|
Max. Charge Voltage |
4.23V |
|
||
|
Charge Time |
Approx 2.5h |
Charge: 1.0CmA |
||
|
Max. Charge Current |
230mA |
1.0CmA |
||
|
Max. Discharge Current |
230mA |
|
||
|
Weight |
Approx 6g |
|
||
|
Operating Temperature |
Charge |
0~+45°C |
|
|
|
Discharge |
-20~+60°C |
|
||
|
Storage Temperature |
less than 1 month |
-20~+45°C |
Recommended storage temperature: 20°C,at the shipment state |
|
|
less than 3 months |
-20~+30℃
|
|||
| Send inquiry and get a sample >> |
Product show
Detail Display

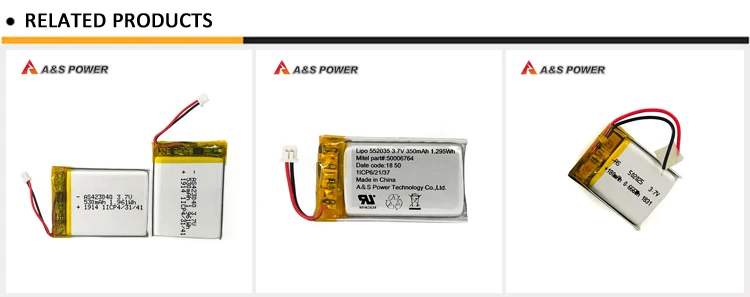

Related products
423040 3.7V 500mah lithium polymer battery 552035 3.7v 350mah lithium polymer battery 502025 3.7v 180mah lithium polymer battery
Other KC/UL approved lithium polymer battery model as below:
| Model | Dimension | With PCM Dimension | Capacity |
| 302025 | 3.0*20*25mm | 3.2*21*27.5mm | 3.7V 100mAh |
| 302530 | 3.0*25*30mm | 3.2*26*32.5mm | 3.7V 180mAh |
| 401824 | 4.0*18*24mm | 4.2*19*26.5mm | 3.7V 180mAh |
| 402525 | 4.0*25*25mm | 4.2*26*27.5mm | 3.7V 200mAh |
| 483450 |
4.8*34*50mm |
5.0*35*52.5mm | 3.7V 850mAh |
| 502030 | 5.0*20*30mm | 5.2*21*32.5mm | 3.7V 240mAh |
| 502525 | 5.0*25*25mm | 5.2*26*27.5mm | 3.7V 180mAh |
| 503030 | 5.0*30*30mm | 5.2*31*32.5mm | 3.7V 430mAh |
| 523450 | 5.2*34*50mm | 5.4*35*52.5mm | 3.7V 1000mAh |
| 553444 | 5.5*34*44mm | 5.7*35*46.5mm | 3.7V 850mAh |
| 553640 | 5.5*36*40mm | 5.7*37*42.5mm | 3.7V 850mAh |
| 553759 | 5.5*37*59mm | 5.7*38*61.5mm | 3.7V 1400mAh |
| 602030 | 6.0*20*30mm | 6.2*21*32.5mm | 3.7V 300mAh |
| 602240 | 6.0*22*40mm | 6.2*23*42.5mm | 3.7V 500mAh |
| 602535 | 6.0*25*35mm | 6.2*26*37.5mm | 3.7V 500mAh |
| 602663 | 6.0*26*63mm | 6.2*27*65.5mm | 3.7V 1000mAh |
| 603030 | 6.0*30*30mm | 6.2*31*32.5mm | 3.7V 520mAh |
| 603040 | 6.0*30*40mm | 6.2*31*42.5mm | 3.7V 750mAh |
| 603048 | 6.0*30*48mm | 6.2*31*50.5mm | 3.7V 900mAh |
| 603450 | 6.0*34*50mm | 6.2*35*52.5mm | 3.7v 1050mAh |
| 702040 | 7.0*21*40mm | 7.2*22*42.5mm | 3.7V 500mAh |
| 753048 | 7.5*30*48mm | 7.7*31*50.5mm | 3.7V 1200mAh |
| 803035 | 8.0*30*35mm | 8.2*31*37.5mm | 3.7V 800mAh |
| Send inquiry and get a sample >> |
Application
- Application Lithium polymer battery:
- Mobile phones, tablets, Bluetooth headsets, smart watches and other smart wearable devices, GPS, electric toys, beauty instruments, aromatherapy machines, LED lights, quadcopters, drones ,etc.
- Application Lithium polymer battery pack:
- E-bike, power tools, new energy vehicles, medical equipment, digital cameras, measuring instruments, robots, etc.
- Tips: If you see our products and have questions about the products, please contact our account manager to send your specific needs, such as voltage, capacity, shape, size, working current, etc. We can customize and meet your needs according to your needs. The best lithium battery matched by the equipment, we are very happy to provide you with test samples, and will reply you as soon as possible, thank you!
Company Information
A&S Power Technology Co., Ltd. was established in 2001, and specialize in manufacturing and exporting rechargeable lithium battery, like li-ion battery, li-polymer battery and LiFePO4 battery.
Company Overview
- Established : 2001
- Capital: 20,000,000.00 RMB
- Location: Dongguan,Shenzhen
- Employee: > 600
- Daily output: 100K Li-Poly, 50K LiFePO4, 80K Li-ion 18650
- OEM rechargeable battery manufacturer in China over 15 years
- Specialized in Lithium polymer battery, LiFePO4 battery and Li-ion Battery pack
- Our batteries got UL, KC, BIS,IEC62133, CB, CE, ROHS certifications
- We’re officially recognized by Philips, JVC, Skullcandy, Flex, Mitel etc. from 2013.
- We have succeeded in selling our batteries to the international markets of America, Canada, Europe, Africa, middle-east and South Asia.
- A&S Power has well presence in international fairs each year, such as CEBIT,Intersolar, KES, HK Electronic Fair
