Chinese roller frame welding rotator with good quality and cheap price
- Category: >>>
- Supplier: Jinan Huafei Cnc Machine Co. Ltd.
Share on (62397038511):
Product Overview
Description
Chinese roller frame pipe welding rotator with good quality and cheap price
Product Description
---------------------------Product Description ------------------------
Automatic welding manipulator can weld any kind of welding seam with any kind of way, applys widely to wind power equipment, pressure vessel, petrifaction, pipe, steel structure, boiler, ship-building, overlaying industries.
Features
1. Application
Automatic welding manipulator is a special welding equipment for pipe and tank. It is widely used in wind and electrical equipment, pressure vessel, petrochemical
2. Control System
Manipulator control system using digital control, easy operation, precise control, and other equipment to facilitate linkage control.
3. Customer-Oriented
According to customer requirements, it can be installed electrical extension unit inside telescopic arm operator's seat and safeguard ladders, but also supporting a variety of tracking and monitoring, arc oscillation, transmission devices of flux recovery.
4. Type
Welding manipulator is divided into small, medium, heavy three types; Four structural forms are fixed, fixed rotating, fixed mobile and mobile rotating, thus different working requirements can be well met.
Product Parameters
Model No. | HC-2*2 | HC-3*3 | HC-4*4 | HC-5*5 | HC-6*6 | HC-7*7 | HC-8*8 |
Up/down stroke of cross arm(m) | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
Optional retracting stroke of cross arm(m) | 2-4 | 2.5-5 | 3-7 | 3-8 | 4-8 | 4-8 | 4-8 |
Rotating angle of the stand column(°) | ±180° | ||||||
The up/down speed of cross arm(mm/min) | 850 | 1150 | |||||
Expansion speed of cross arm(mm/min) | 140-1400 | ||||||
Rotating speed of stand column(r/min) | 0.2 | ||||||
The total load of cross arm | 100 | 200 | 300 | 400 | 500 | 500 | 500 |
Center to center distance of the track(optional) | 2000/2500 | ||||||

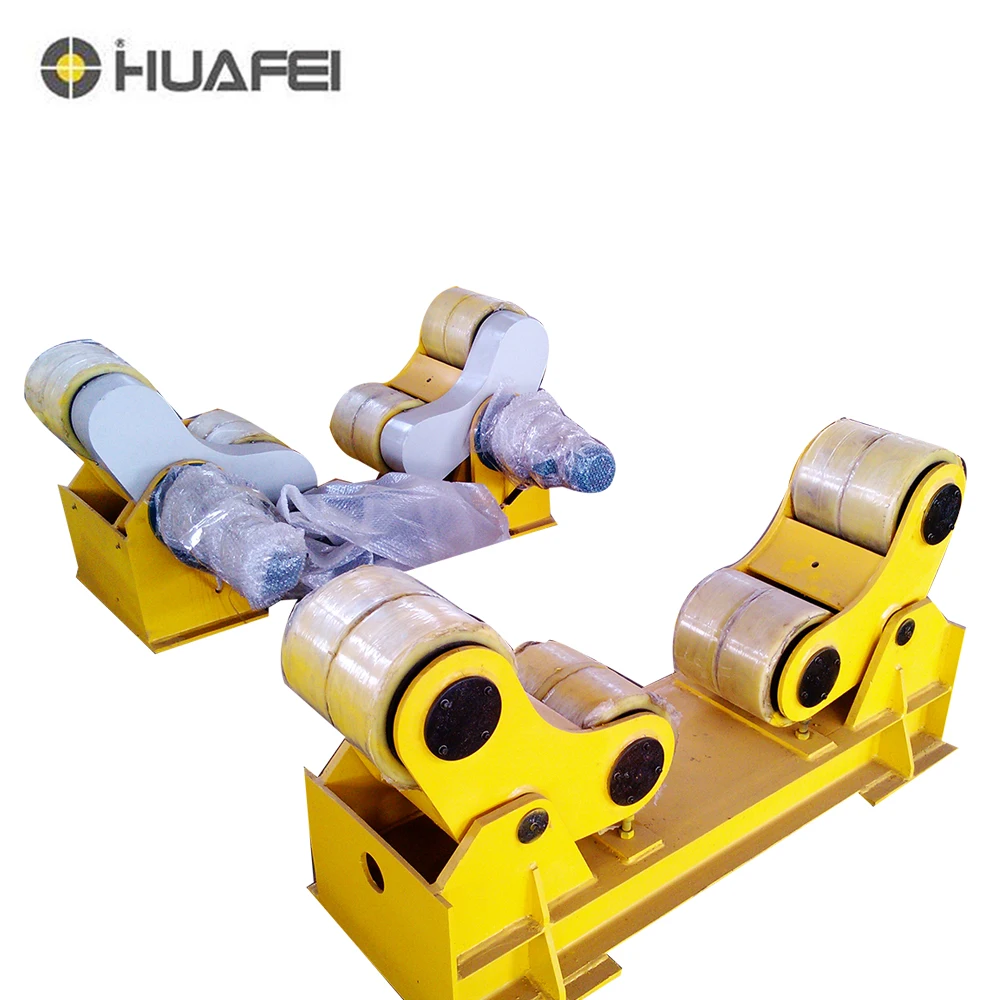

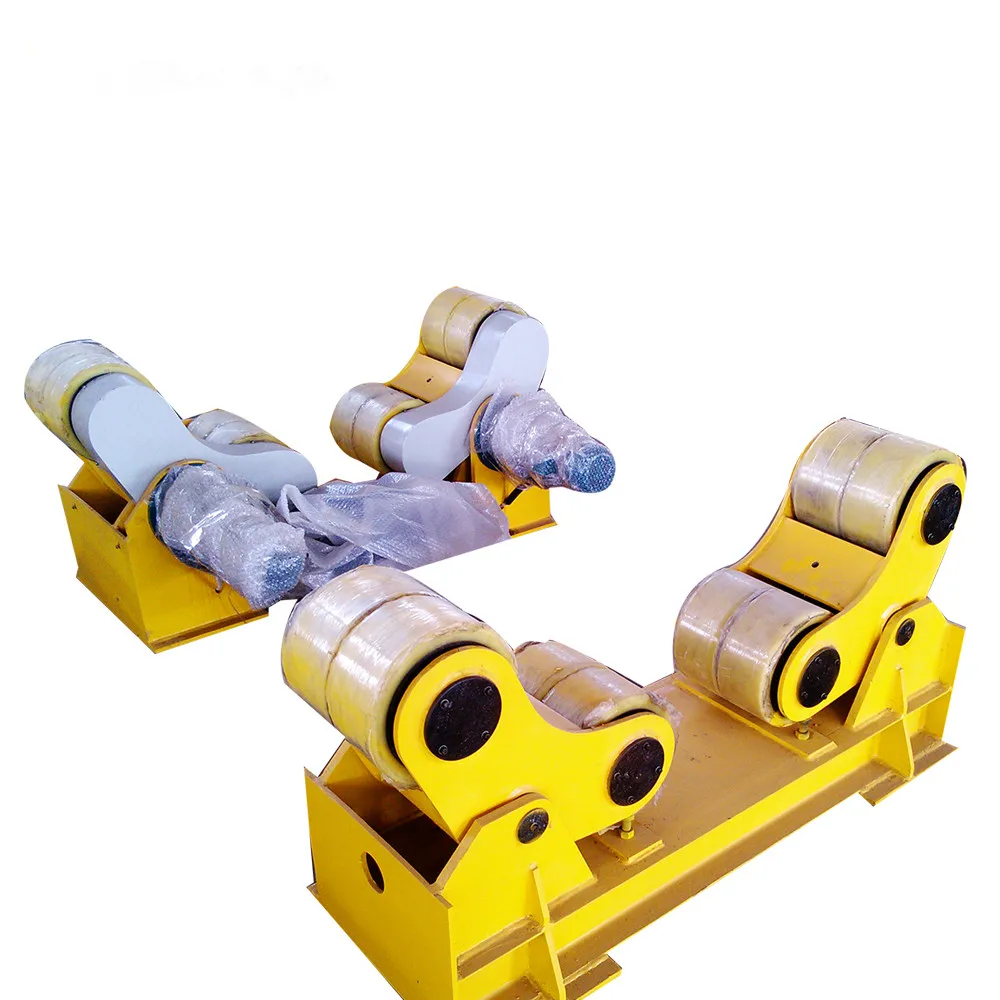

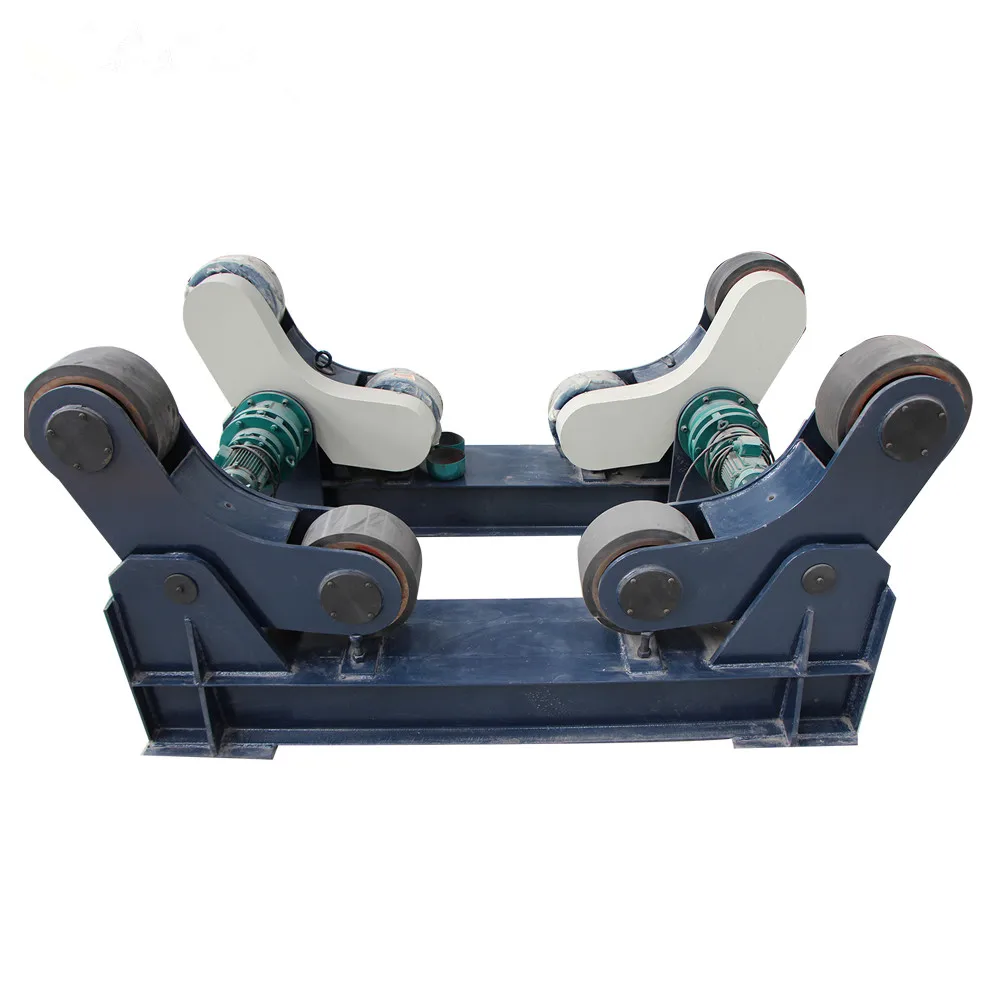

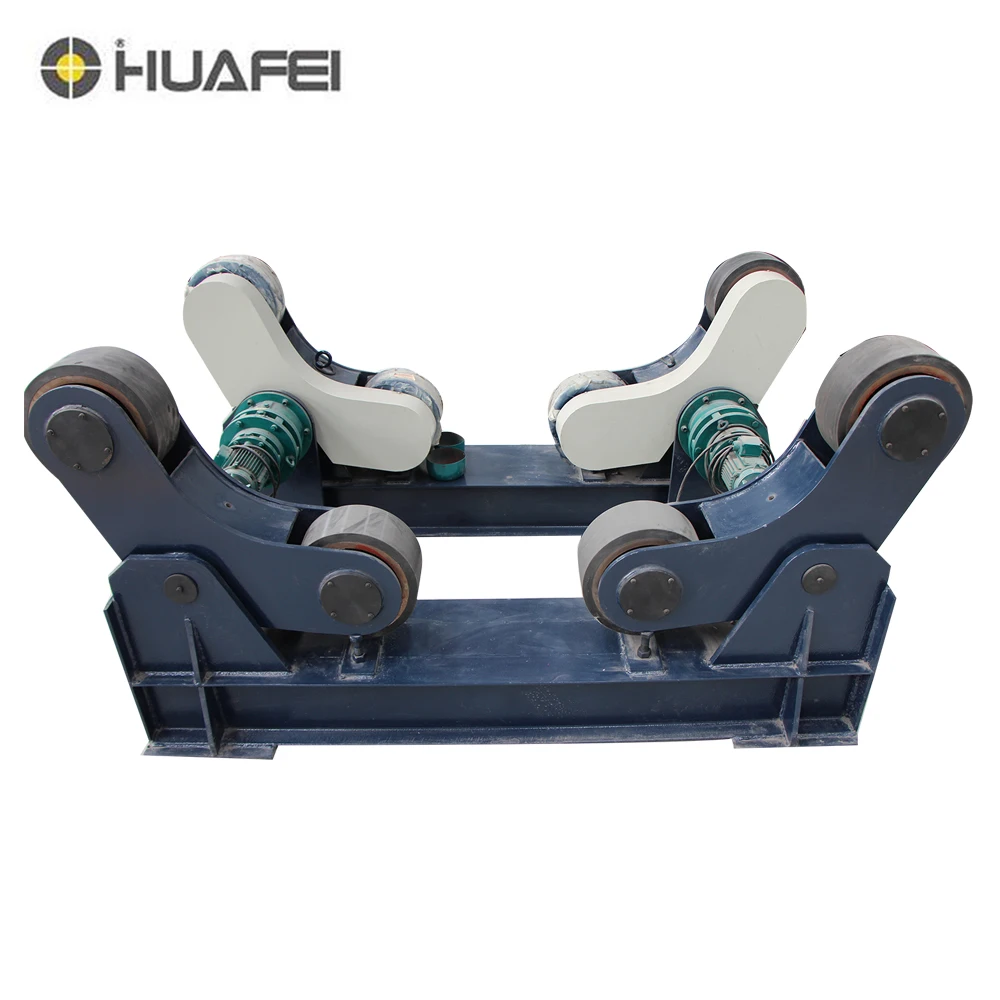

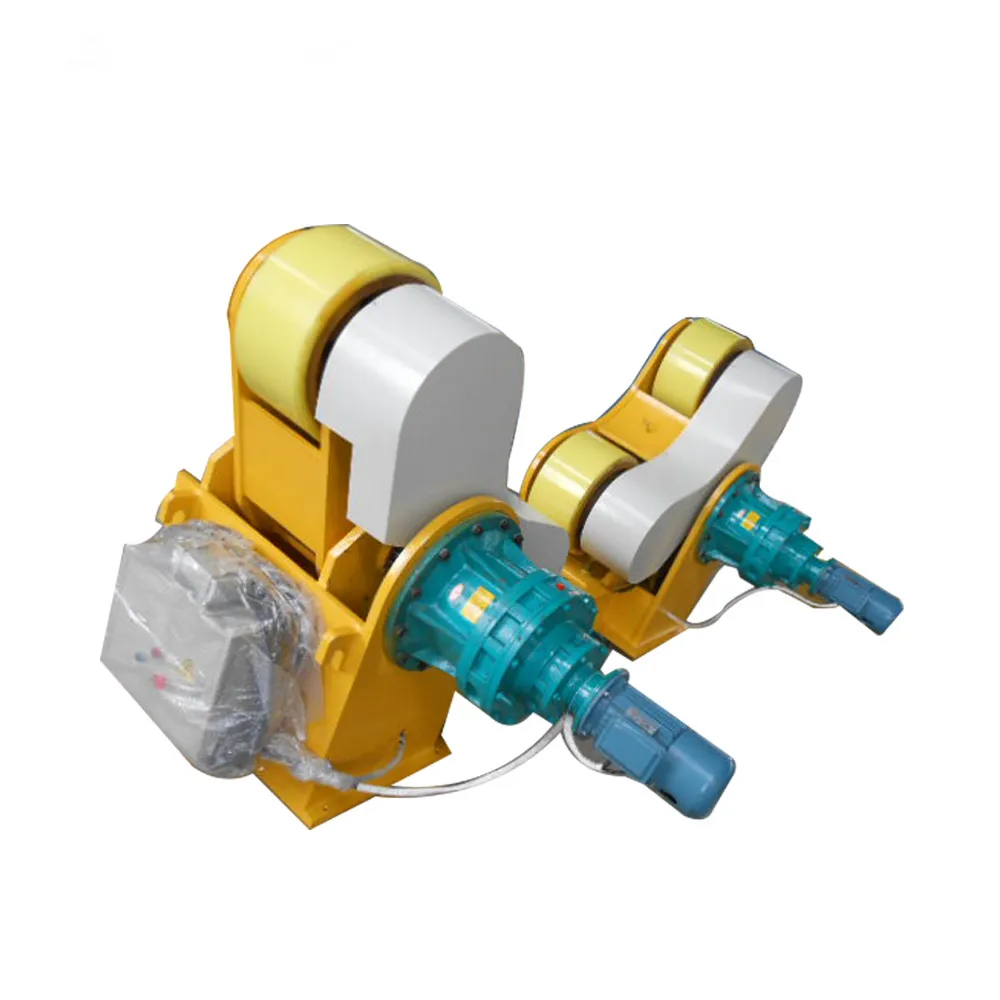

Self-adjusting roller is composed of primary frame and secondary frame.
 | The primary part is composed of foundation, motor, transmission gear, swing arm and wheels |
 | The secondary part is composed of foundation, swing arm and wheels |
 | 1.According to the customers requirements, the rollerhas three forms: sub-rubber tire roller steel wheelssteel and plastic combination wheel; it can jointcontrol with other equipments. |
| 2.The control of the whole machine isPLC, AC variable frequency speedregulation, ensures the equipmentreliability. | |
| 3.Double-motor driven, the roller driveradopt Planet-cycloid Reducer orworm reduction gear mode. | |
| 4.Self-aligned Welding turning roller can adjust the center distance by reserved screwholes or lead screw in order to adapt todiameter of work piece. | |
| 5.The roller is mainly used for the welding Polish rubber liningand assembly of cylindrical roller shell, but also can assem-bly and weld together with other tooling for the cone inequ-ality diameter rotary. |
The working way of Self-adjusting rollers is that active frame, two motors and reducer controlled by the same ac motor driver realize the two motors stepless speed change and synchronization operation. The motor drive the main driving wheel working through drive system. The work piece is putted on the primary and secondary wheels, when the primary wheel running, the friction between work piece and primary wheel can drive the work piece rotating. the friction between rotating work piece and secondary wheel can drive the secondary wheel running. Each swing arms of the self-adjusting roller can drive work piece to adjust the diameter by itself, so that the labor power is saved much and the work efficiency is increased.
