maxeon C60 C66 high efficiency 125*125mm 3.63w Me3 3.89w sunpower solar cell
- Category: Solar Cells >>>
- Supplier: Shenzhen Xiangxinrui Solar Energy Co. Ltd.
Share on (62397045867):
Product Overview
Description
maxeon C60 C66 high efficiency 125*125mm 3.63w Me3 3.89w sunpower solar cell
Product Description
maxeon C60 C66 high efficiency 125*125mm 3.63w Me3 3.89w sunpower solar cell
|
Product name |
sun power solar cell for sale |
|
size |
125*125mm |
|
material |
monocrystalline silicon |
|
color |
dark blue |
|
busbar |
none busbar |
|
power watt |
3.89w |
|
Bin |
Me3 |
| efficiency | 25.2% |
|
Vmpp |
0.55V |
| Impp | 7.07A |
datasheet
| Efficiency Code | 2520 | 2240 | 2260 | 2370 | 2460 | 2480 | 2500 |
| Efficiency(%) | 25.2 | 22.4 | 22.6 | 23.7 | 24.6 | 24.8 | 25.0 |
| Pmax(W) | 3.89 | 3.44 | 3.46 | 3.63 | 3.79 | 3.8 | 3.85 |
| Vmp(V) | 0.55 | 0.55 | 0.55 | 0.55 | 0.55 | 0.55 | 0.55 |
| Imp(A) | 7.07 | 6.25 | 6.29 | 6.6 | 6.89 | 6.9 | 7 |
| Voc(V) | 0.649 | 0.649 | 0.649 | 0.649 | 0.649 | 0.649 | 0.649 |
| Isc(A) | 7.49 | 6.63 | 6.67 | 6.996 | 7.3 | 7.32 | 7.42 |
| 150 pcs | 600pcs | 36000pcs | 108000pcs | |
| Box Size | 22*20*8CM | 23*24*25CM | 120*100*120CM* 1PALLET |
120*100*122CM* 3PALLETS |
| GW | 1.5KG | 8KG | 435KG | 1296KG |

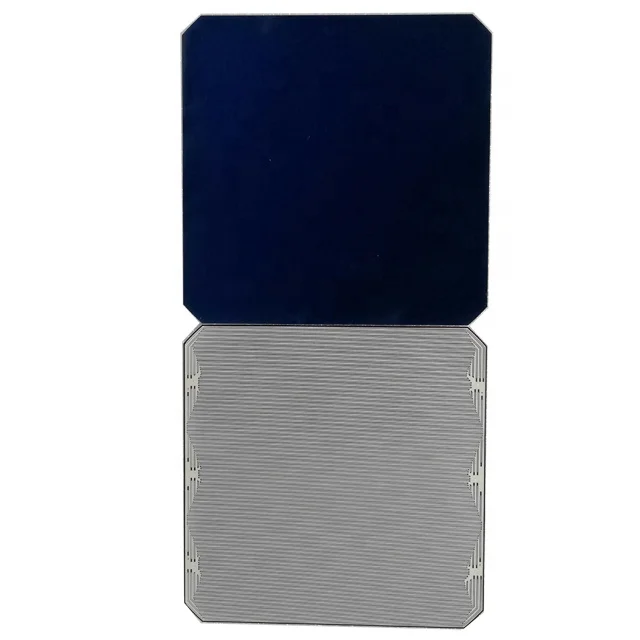

DETAILED IMAGES
---------§---------
PYSICAL
CHARACTERISTIC
| Dimension |
125mm X125mm
|
|||||
| Solar Cell Thickness | 200µm ± 20µm | |||||
| Front(-) |
Blue silicon nitride anti-reflection coatings,none busbar |
||||||||||
| Back(+) | Full-surface aluminum back-surface field, none busbar | |||||||||||
TYPICAL TEMPERATURE
COEFFICIENTS
| Voltage | - 0.3324%/K |
| Current | +3.50 mA/K |
| Power | -0.342%/K |

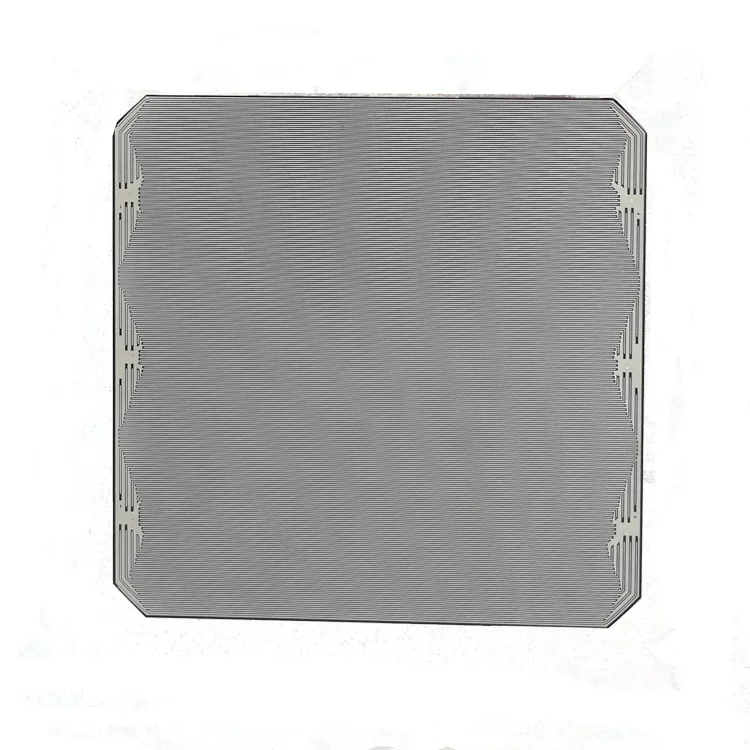

CONDUCTOR
PATTERNS
Product instructions
solar module one of material, different model make different kind of solar panel. according to your choice to choose the related solar cell model.
Packaging & Shipping
| 150 pcs | 1500pcs | 72000pcs | 100000pcs | 2000000pcs | |
| Packing Size | 22*20*8CM | 23*28*25CM | 120*100*100CM*2 PALLETS |
120*100*122CM* 3PALLETS |
120*100*122cm * 6 PALLETS |
| GW (KG) | 1.5KG | 15KG | 675KG | 1350KG | 2700kg |
| NW(KG) | 1.2kg | 12kg | 600KG | 1200kg | 2400KG |
