stock available bifacial 20.6% 5BB mono solar cell
- Category: >>>
- Supplier: Shenzhen Xiangxinrui Solar Energy Co. Ltd.
Share on (62397343433):
Product Overview
Description
stock available bifacial 20.6% 5BB mono solar cell
Product Description
stock available bifacial 20.6% 5BB mono solar cell
Product name | stock available bifacial 20.6% 5BB mono solar cell |
size | 156*156mm |
material | monocrystalline silicon |
color | dark blue |
busbar | 5BB busbar |
power watt | 5.25-5.47w |
| efficiency | 21.5-22.4% |
Vmpp | 0.53V |
| Impp | 9.9-10.32A |
| Solar cell grade | A grade |
| Efficiency Code | 2150 | 2160 | 2170 | 2180 | 2190 | 2200 | 2210 | 2220 | 2230 | 2240 |
| Efficiency(%) | 21.5 | 21.6 | 21.7 | 21.8 | 21.9 | 22.0 | 22.1 | 22.2 | 22.3 | 22.4 |
| Pmax(W) | 5.25 | 5.27 | 5.3 | 5.326 | 5.35 | 5.37 | 5.4 | 5.42 | 5.448 | 5.47 |
| Vmp(V) | 0.53 | 0.53 | 0.53 | 0.53 | 0.53 | 0.53 | 0.53 | 0.53 | 0.53 | 0.53 |
| Imp(A) | 9.9 | 9.94 | 10 | 10.4 | 10.09 | 10.13 | 10.18 | 10.22 | 10.28 | 10.32 |
| Voc(V) | 0.625 | 0.625 | 0.625 | 0.625 | 0.625 | 0.625 | 0.625 | 0.625 | 0.625 | 0.625 |
| Isc(A) | 10.5 | 10.54 | 10.6 | 10.65 | 10.7 | 10.74 | 10.8 | 10.84 | 10.89 | 10.94 |
PYSICAL CHARACTERISTIC
---------§---------
| Dimension | 156mm X156mm
| |||||
| Solar Cell Thickness | 180µm ± 20µm | |||||
| Front(-) | Five 0.8mm wide bus bars (silver) with distance 31.2mm | ||||||||||
| Back(+) | 1.4mm wide silver/aluminum soldering pads, aluminum local back surface field. | |||||||||||
TYPICAL TEMPERATURE COEFFICIENTS
---------§---------
| Voltage | - 0.3324%/K |
| Current | +3.50 mA/K |
| Power | -0.342%/K |
COEFFICIENTS CONDUCTOR PATTERNS
---------§---------
Product name | solar cell |
size | 156.75*156.75mm |
material | monocrystalline silicon |
color | dark blue |
busbar | 5BB busbar |
power watt | 5w |
| efficiency | 20.6% |
Vmpp | 0.53V |
| Impp | 9.43A |
| Solar cell grade | A grade |
datasheet
| Efficiency Code | 2060 | 2080 | 2100 | 2120 | 2140 | 2150 | 2160 | 2170 | 2180 | 2190 | 2200 | 2210 | 2220 | 2230 | 2240 |
| Efficiency(%) | 20.6 | 20.8 | 21.0 | 21.2 | 21.4 | 21.5 | 21.6 | 21.7 | 21.8 | 21.9 | 22.0 | 22.1 | 22.2 | 22.3 | 22.4 |
| Pmax(W) | 5 | 5.08 | 5.13 | 5.18 | 5.228 | 5.25 | 5.27 | 5.3 | 5.326 | 5.35 | 5.37 | 5.4 | 5.42 | 5.448 | 5.47 |
| Vmp(V) | 0.53 | 0.53 | 0.53 | 0.53 | 0.53 | 0.53 | 0.53 | 0.53 | 0.53 | 0.53 | 0.53 | 0.53 | 0.53 | 0.53 | 0.53 |
| Imp(A) | 9.43 | 9.58 | 9.679 | 9.77 | 9.86 | 9.9 | 9.94 | 10 | 10.4 | 10.09 | 10.13 | 10.18 | 10.22 | 10.28 | 10.32 |
| Voc(V) | 0.625 | 0.625 | 0.625 | 0.625 | 0.625 | 0.625 | 0.625 | 0.625 | 0.625 | 0.625 | 0.625 | 0.625 | 0.625 | 0.625 | 0.625 |
| Isc(A) | 9.99 | 10.16 | 10.26 | 10.36 | 10.45 | 10.5 | 10.54 | 10.6 | 10.65 | 10.7 | 10.74 | 10.8 | 10.84 | 10.89 | 10.94 |

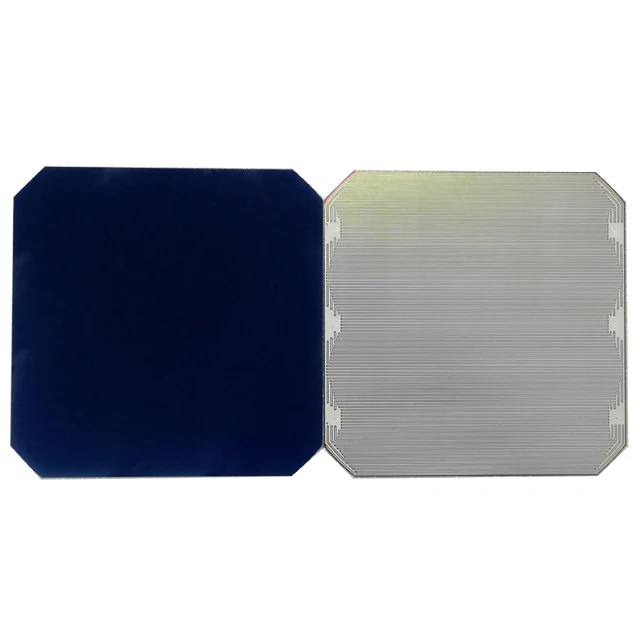

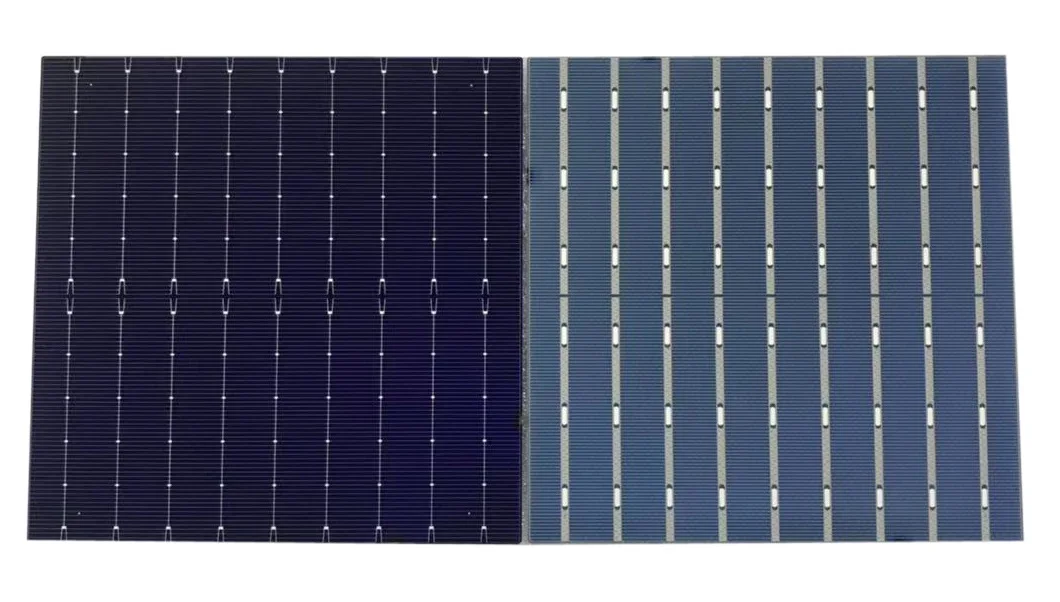

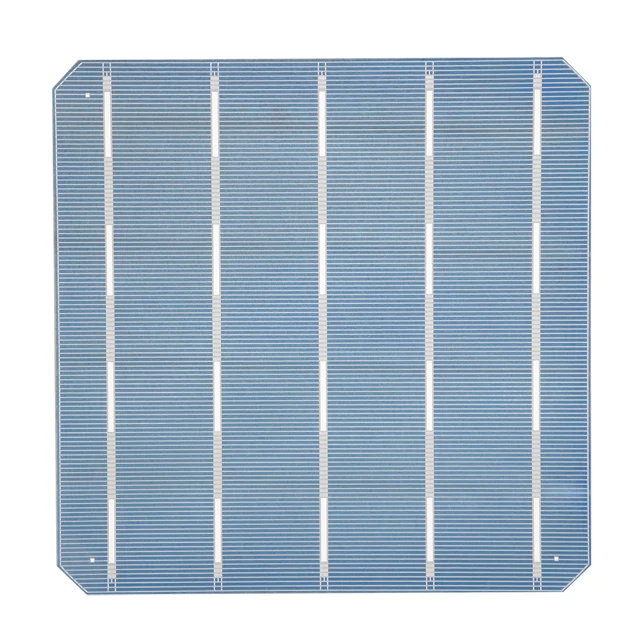

DETAILED IMAGES
---------§---------
Packaging & Shipping
stock available bifacial 20.6% 5BB mono solar cell
| 100 pcs | 1400pcs | 50000pcs | 100000pcs | 2000000pcs | |
| Packing Size | 22*20*8CM | 23*28*25CM | 120*100*100CM*2 PALLETS | 120*100*122CM* 3PALLETS | 120*100*122cm * 6 PALLETS |
| GW (KG) | 1.5KG | 15KG | 675KG | 1350KG | 2700kg |
| NW(KG) | 1.2kg | 12kg | 600KG | 1200kg | 2400KG |
