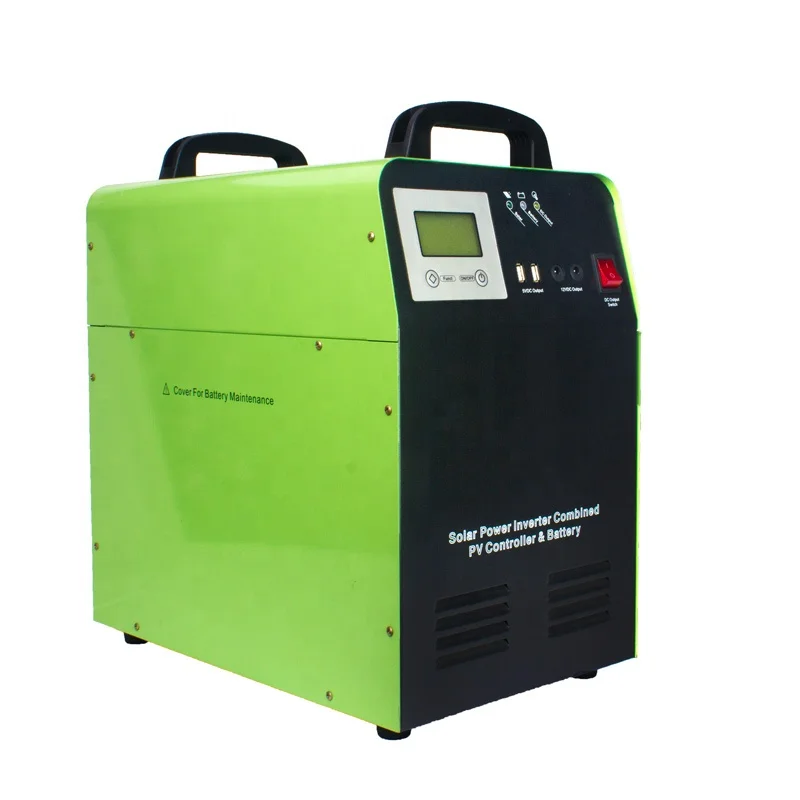

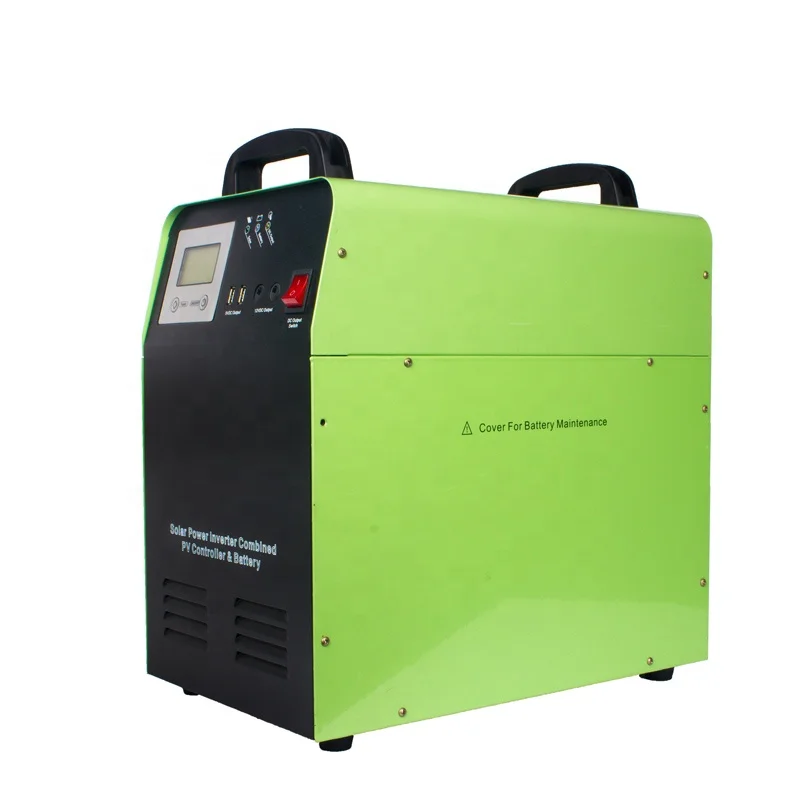

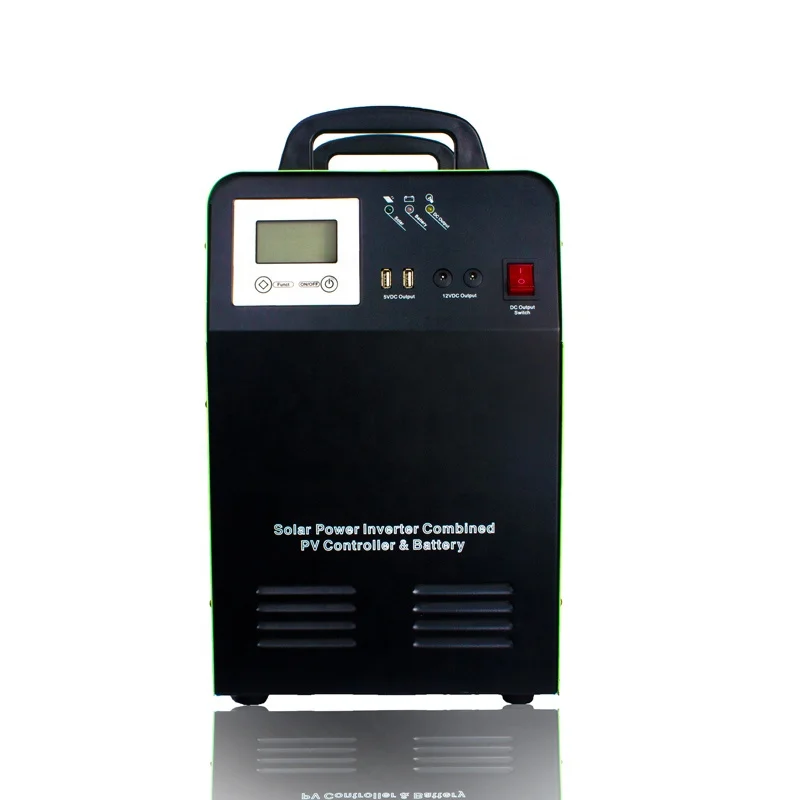

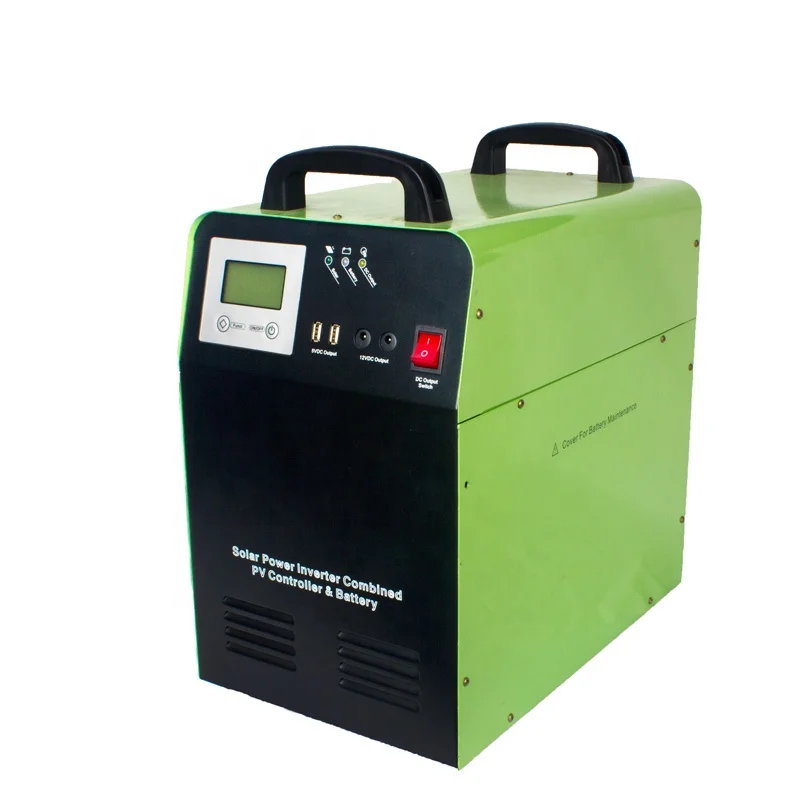

Solar power system 1000w 1500w all in one machine contains with inverter charge controller battery
- Category: >>>
- Supplier: Foshan Snat Energy Electric Technology Co. Ltd.
Share on (62397418375):
Product Overview
Description
Product Description
AL series inbuilt battery portable solar generator is is composed of inverter, solar charge controller and built-in battery, all in one.It was developed by our company since 2013 and popular to nowadays.The quality is stable. It has the following characteristics:
Three modes
The mains supply preferred mode, energy-saving mode, and battery preferred mode
Small size and light weight solar power generator, portable solar system, solar generator
The weight of below 500w capacity is light to easy bring,over 1000w capacity with the wheels on the machine to move, more convenient for transportation and saves freight.

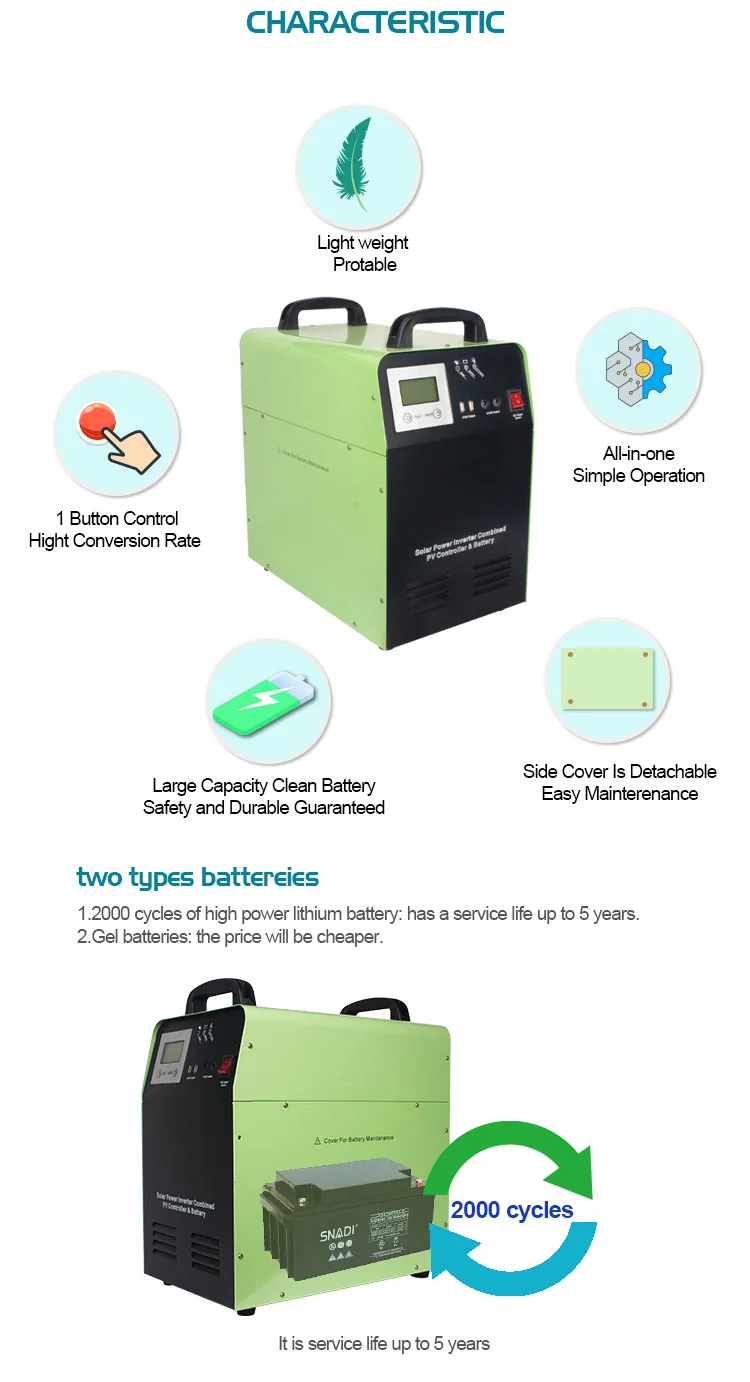

Two style batteries
1. 2000 cycles of high power lithium battery: has a service life up to 5 years.
2. Gel batteries: the price will be cheaper.
PWM Controller solar power generator, portable solar system, solar generato
Based on an MCU intelligent control technology,it realizes solar charge and discharge management for batteries for longer lives of systems.
Easy to use solar power generator, portable solar system, solar generato
Simple interface design, easy installation, ac ,5.0usb vdc and 12vdc ports for options, more convenient to use.
Easy maintenance solar power generator, portable solar system, solar generato

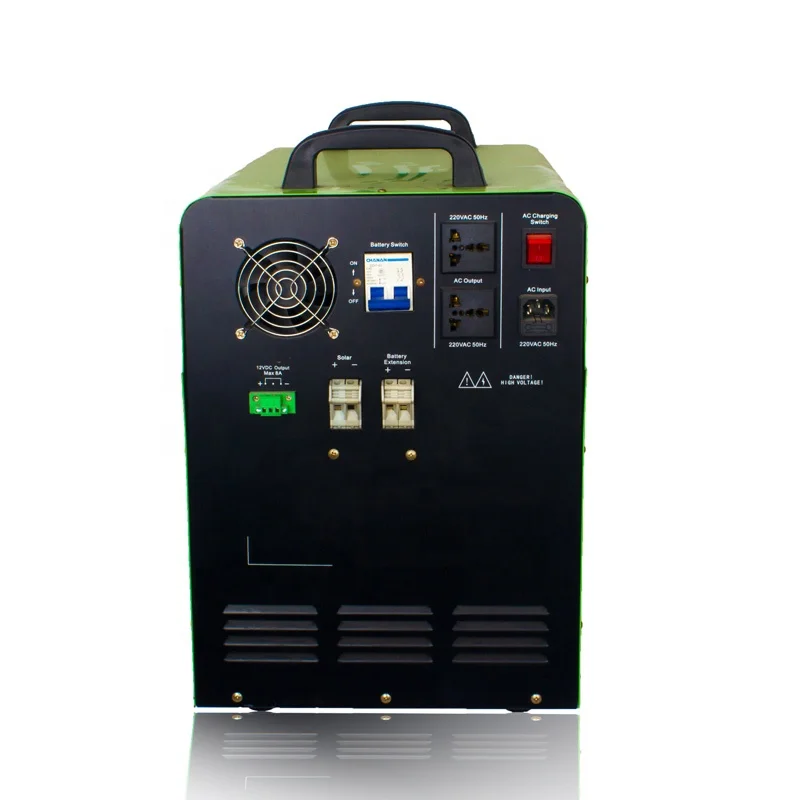

The rear cover is detachable for easy maintenance and battery replacement.
Product parameter
Model: AL | 0.3kw/12v | 0.5kw/12v | 0.5kw/24v | 1kw/24v | 1.5kw/24v | |
| Inverter | Battery voltage | 12v | 24v | |||
| In-built battery specification | 1*55AH/12V | 2*55AH/12V | 4*55AH/12V | |||
| Rated power | 300W | 500W | 500W | 1000W | 1500W | |
| Output voltage | 110/220VAC | |||||
| Output frequency | 50/60HZ | |||||
| Output waveform | sine wave | |||||
| Charge by a mains supply | Rated voltage | 110/220VAC---*("*"mean an optional function) | ||||
| Charge current | 10A(MAX)-*(ditto) | 5A(MAX)-*(ditto) | ||||
| solar input | Maximum power | ≤25V | ≤50V | |||
| Voltage of overcharge protection | 10-25V | 20-50V | ||||
| Rated charge current | 30A | |||||
| Maximum power | 360Wp | 720Wp | ||||
| Voltage of overcharge protection | 14.2V | 28.4V | ||||
| Voltage of overcharge recovery | 14.0V | 28.0V | ||||
| Voltage of floating charge | 13.7V | 27.4V | ||||
| DC output | Voltage of high-voltage protection | 16V | 32V | |||
| Voltage of high voltage recovery | 15.2V | 30.4V | ||||
| Voltage of low voltage recovery | 12.6V | 25 | ||||
| Voltage of lower voltage protection | 11V | 22V | ||||
| 5VDC USB output port | 2one/MAX2A | |||||
| 12VDC output port | 2 one ports + backboard 12V terminal block (MAX8A) | |||||
| Starting temperature of the exhaust fan | >45℃ | |||||
| Ambient temperature for operation | 0-40℃ | |||||
| Ambient temperature for storage | -25--+55℃ | |||||
| Operation/storage condition | 0-90% (no condensation) | |||||
