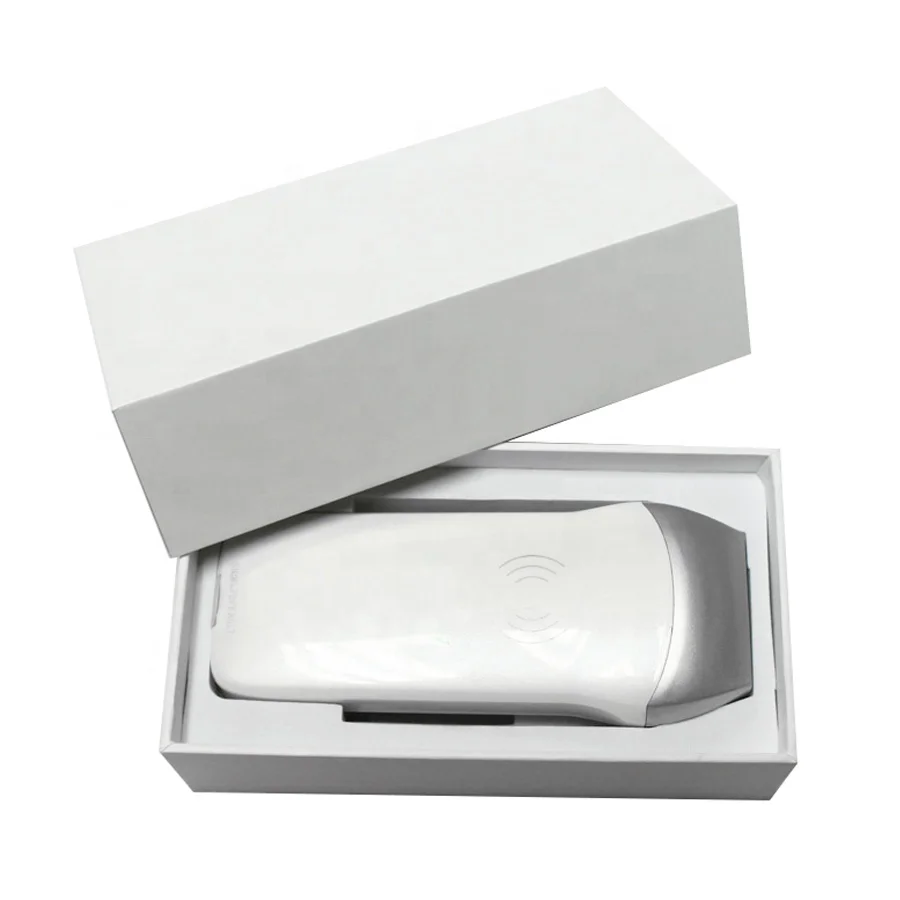

Лидер продаж, мини Wi Fi Портативный Беспроводной ультразвуковой аппарат, зонд сканер для Android, ios и Windows
- Category: Ultrasonic, Optical, Electronic Equipment >>>
- Supplier: Hefei MT Medical Co. Ltd.
Share on (62397432567):
Product Overview
Description
You Maybe Also Like
AW-5M | AW-5T | AW-5B |
Product Description
Linear Probe description

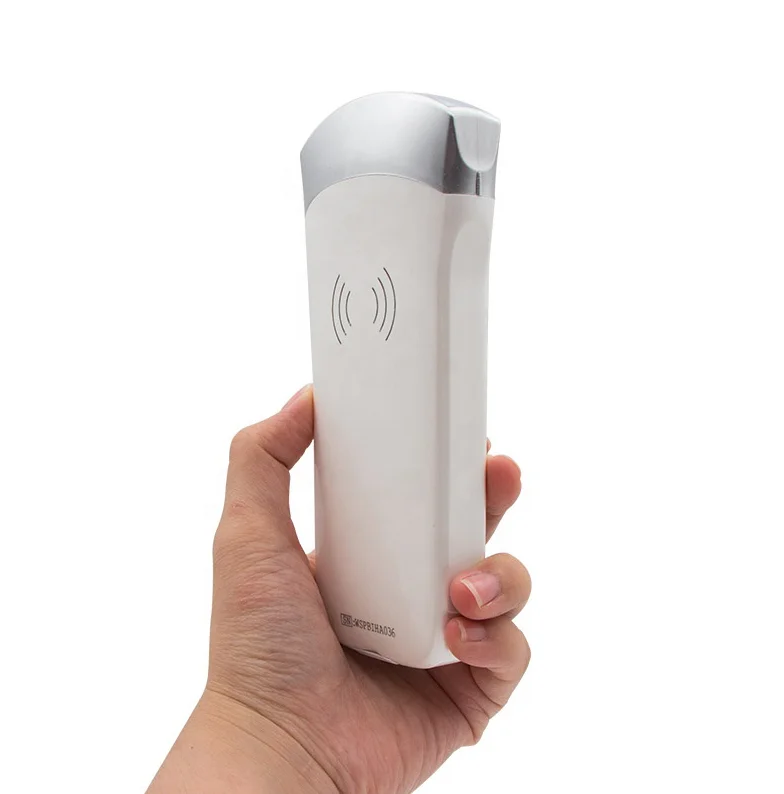

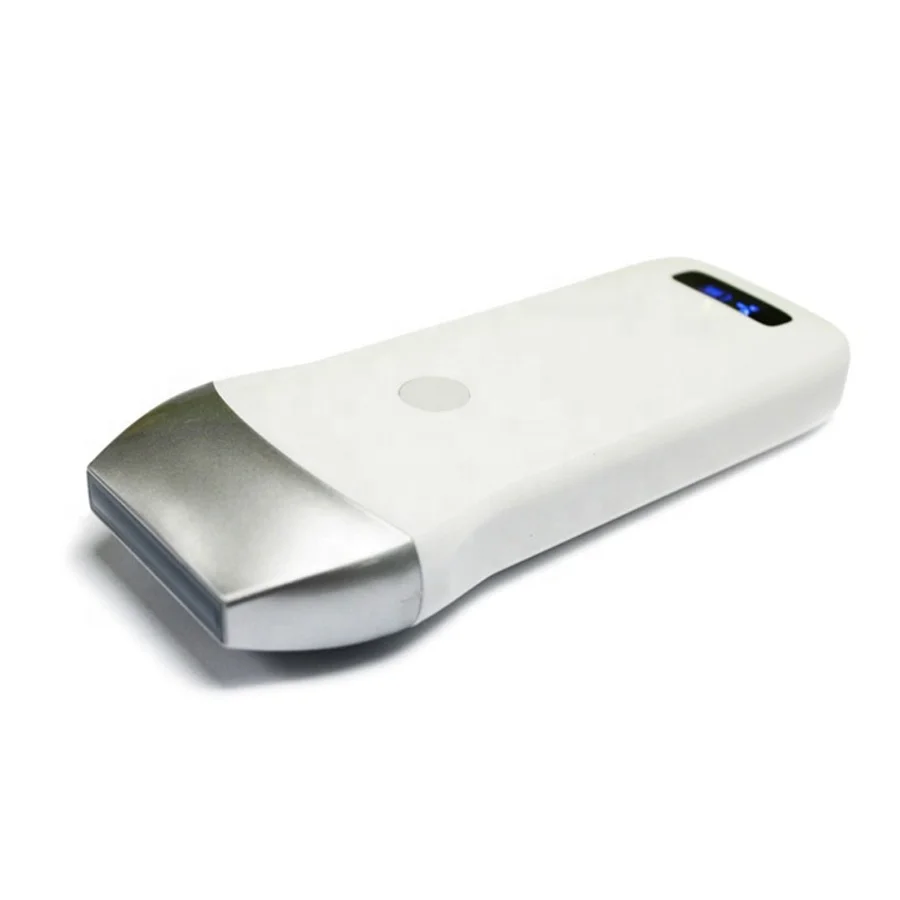

Linear probe image picture
Linear probe specifications:
Probe Type: | Linear Probe |
Display mode: | B, B/M |
Probe element: | 80 |
Channel of RF circuit board: | 16 |
Linear Probe frequency: | 7.5MHz/10MHz |
Linear Probe scan depth: | 20/40/60/100mm |
Linear Probe head radius/width: | 40mm |
Image Adjust: | BGain, TGC, DYN, Focus, Depth, Harmonic, Denoise, Color Gain, Steer, PRF |
Cineplay: | auto and manual, frames can set as 100/200/500/1000 |

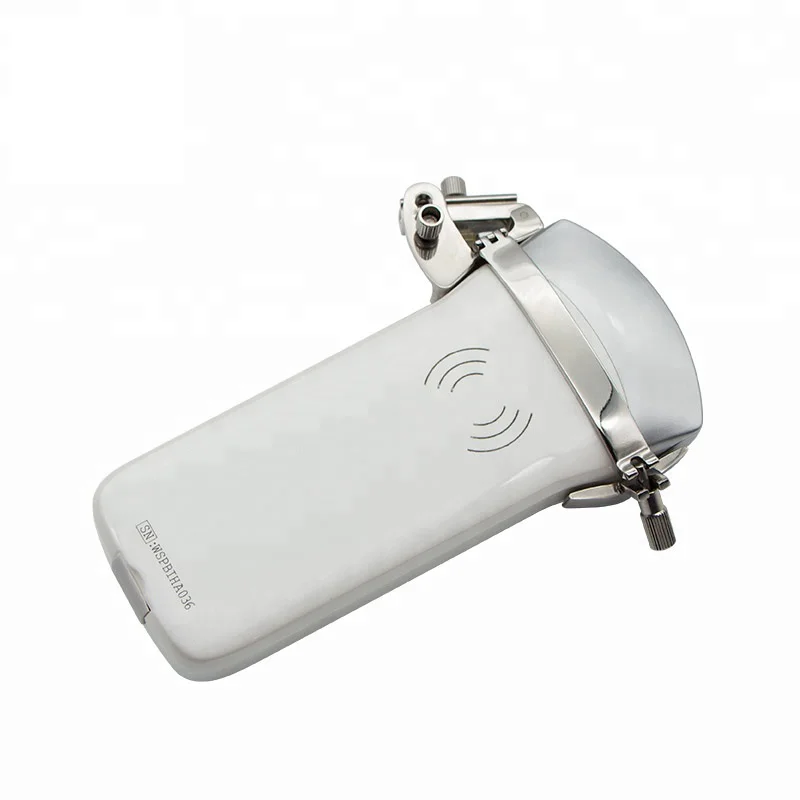

Puncture assist function: | the function of in-plane puncture guide line, out-of-plane puncture guide line, automatic blood vessel measurement. |
Measure: | Length, Area, Angle, Obstetrics |
Image save: | jpg, avi and DICOM format |
Image frame rate: | 18 frames/second |
Battery working time: | 3 hours(according to whether keep scan) |
Working system: | Apple iOS and Android, Windows |
Wifi type: | 802.11g/20MHz/5G/450Mbps |
Convex Probe description

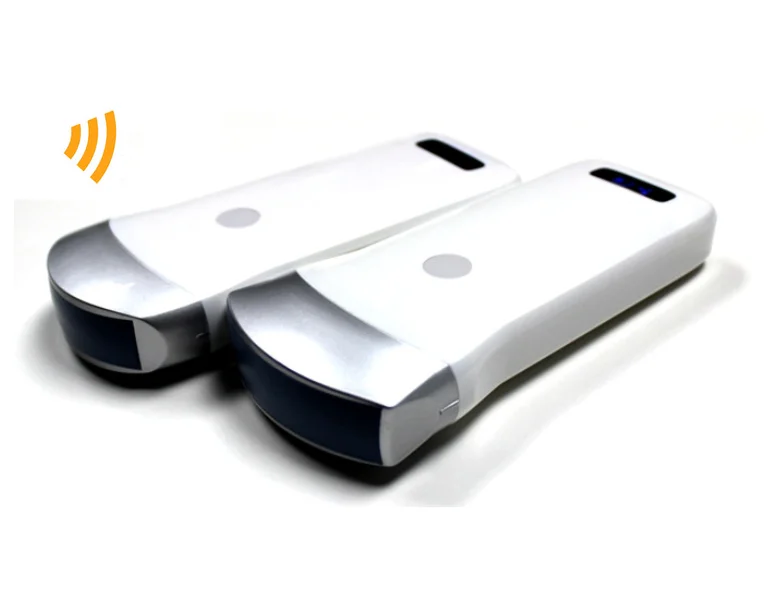

Convex probe image picture
Convex probe specifications:
Probe Type: | Convex Probe |
Display mode: | B, B/M |
Probe element: | 80 |
Channel of RF circuit board: | 16 |
Convex Probe frequency: | 3.5MHz/5MHz |
Convex Probe scan depth: | 90/160/220/305mm |
Convex Probe head radius/width: | 60mm |
Convex Probe scan angle: | 60° |
Image Adjust: | BGain, TGC, DYN, Focus, Depth, Harmonic, Denoise, Color Gain, Steer, PRF |
Cineplay: | auto and manual, frames can set as 100/200/500/1000 |
Puncture assist function: | the function of in-plane puncture guide line, out-of-plane puncture guide line, automatic blood vessel measurement. |
Measure: | Length, Area, Angle, Obstetrics |
Image save: | jpg, avi and DICOM format |
Image frame rate: | 18 frames/second |
Battery working time: | 3 hours(according to whether keep scan) |
Working system: | Apple iOS and Android, Windows |
Wifi type: | 802.11g/20MHz/5G/450Mbps |
Product advantage
Accessories&Install software
Best Selling
Buyers Review
Packaging &Shipping
* The inside protects the product safely without being affected by transportation, and the outside packaging is aluminum alloy box to protect the product from damage.
* We use international express delivery and provide door-to-door service.

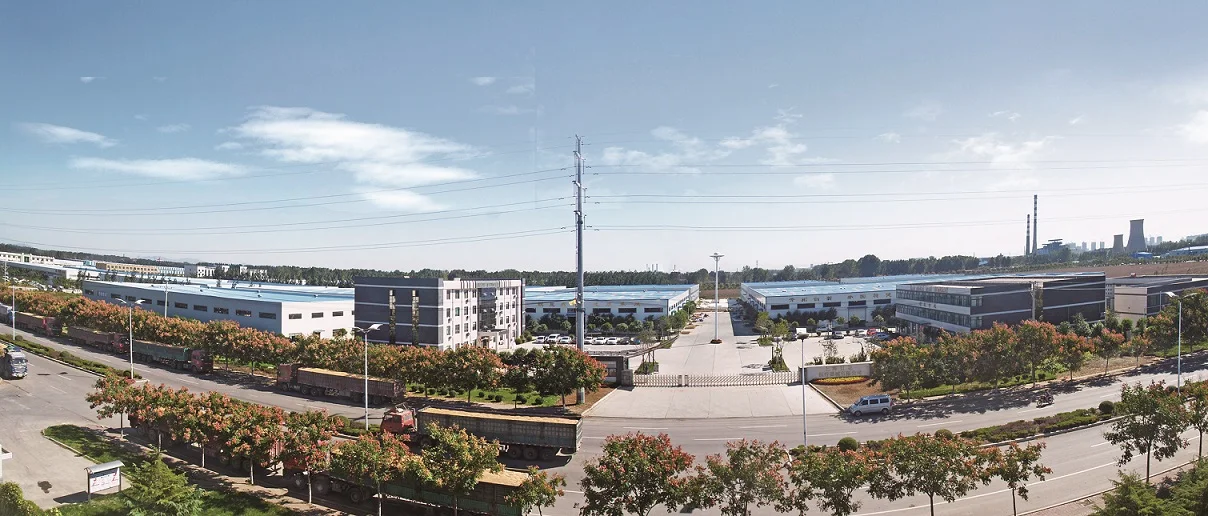

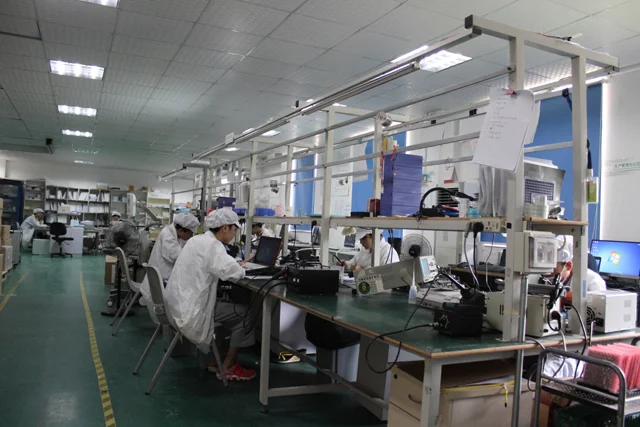

Company Introduction
Hefei MT Medical Equipment Co.,Ltd is one of the famous companies of medical device in China.We start from ultrasound equipment,and developed to ophthalmic, ECG equipment, patient monitor. We insist on the leading technology, the optimal cost-effective.
By excellent products, favorable prices make more medical establishments can easily owns advanced medical equipment. Our leading technology,good quality, high cost-effective and good service gain numerous customer's praise.
Our products were sold to the middle east,Southeast Asia,the Commonwealth of the Independent States,Africa,South America and some European markets.
Certificate
Exhibition
Arab Health in Dubai
MEDICA in Germany
CMEF in China
FAQ
Q: Are you manufacturer ?
A: Yes,we have our own R&D team and sales team,We provide you one-stop service.
Q: Do you have CE,ISO13485?
A: Yes,our products are approved by CE,ISO13485
Q: Is OEM &ODM available in your factory ?
A: Yes, you just offer us necessary documents and then we will produce the products as your requirements.
Q: What is your Payment term?
A: 1.L/C at sight;
2.T/T:30% deposit by T/T,70%balance by T/T before shipment
3.Trade term:EXW, FOB Shanghai or CIF&CFR
Q: What is your Packing details?
A: 1.Wooden case or carton package,standard export packages
2.All of the productions are inspected carfully by QC before delivery.
Q: What is your Delivery time?
A: Usually, we make merchandise inventory, if we have the products in stock,The delivery time is 5-10 days after receiving the deposit; If we don’t have the products in stock, we will arrange the production right now, the delivery time will be 20-30 days,It depends on the quantity of order
Q: What is your Min.order?
A: There's no minimum quantity
A: Yes,we have our own R&D team and sales team,We provide you one-stop service.
Q: Do you have CE,ISO13485?
A: Yes,our products are approved by CE,ISO13485
Q: Is OEM &ODM available in your factory ?
A: Yes, you just offer us necessary documents and then we will produce the products as your requirements.
Q: What is your Payment term?
A: 1.L/C at sight;
2.T/T:30% deposit by T/T,70%balance by T/T before shipment
3.Trade term:EXW, FOB Shanghai or CIF&CFR
Q: What is your Packing details?
A: 1.Wooden case or carton package,standard export packages
2.All of the productions are inspected carfully by QC before delivery.
Q: What is your Delivery time?
A: Usually, we make merchandise inventory, if we have the products in stock,The delivery time is 5-10 days after receiving the deposit; If we don’t have the products in stock, we will arrange the production right now, the delivery time will be 20-30 days,It depends on the quantity of order
Q: What is your Min.order?
A: There's no minimum quantity
Payment Term | T/T | EXW | 30% Deposit,balance before shipment | ||
FCA/FOB | |||||
CNF/CIF | |||||
DDU/DDP | |||||
L/C | Order Amount >50,000 USD | ||||
WEST UNION | Order Amount <5000 USD | ||||
Delivery Time | 3~5days after receiving the payment | ||||
