Product Overview
Description
Product Description
Features
Supersonic frequency hardened bed way.
Spindle speed readout.
Variable Speed.
DC motor
Precision roller bearing for spindle.
High quality steel, ground and hardened gear inside headstock.

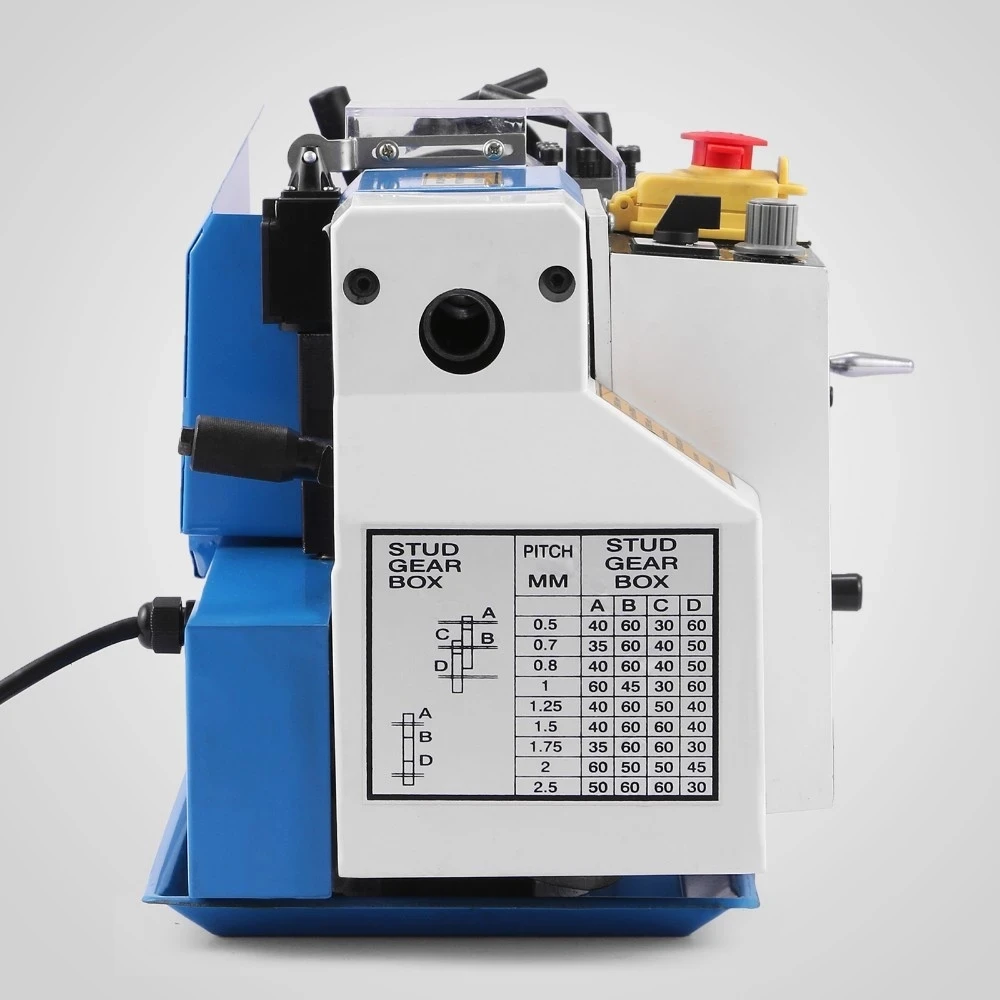

Various threads cutting function available.
Specifications for CQ0618*300 | ||
Distance Between Centers | 300mm | |
Swing Over Bed | 180mm | |
Taper Of Spindle Bore | MT3 | |
Spindle Bore | 20mm | |
Chuck Diameter | 80mm | |
Tool Of Tailstock Quill | MT2 | |
Range of Metric Thread | 0.5-2.5mm | |
Range of Inch Thread | 12-52TPL | |

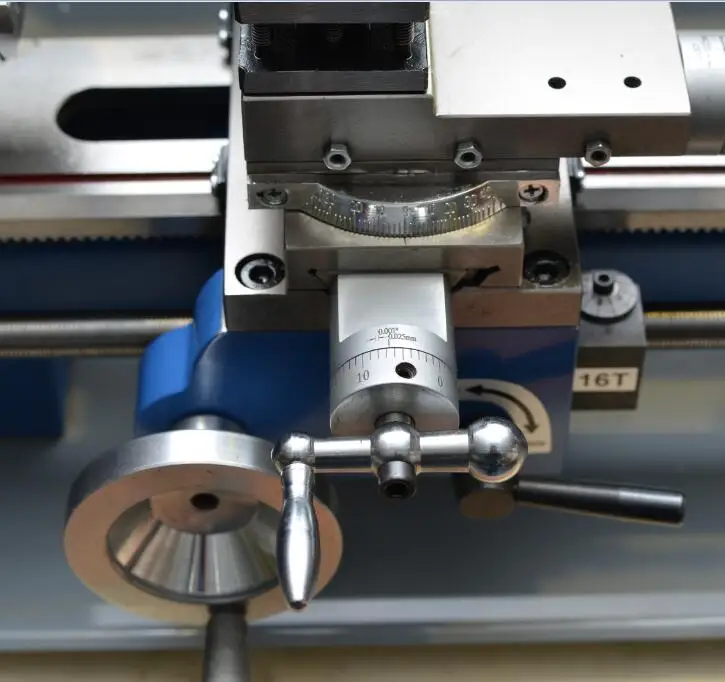

Cross Slide Travel | 65mm | |
Spindle Accuracy | 0.01mm | |
Spindle Speed | 50-2500RPM | |
Vol./Freq | 230V/50Hz or 120V/60Hz | |
Motor | 400W | |
Net Weight | 40kgs | |
Gross Weight | 45kgs | |
Packing Size | 810×310×370mm | |
Standard Accessories:

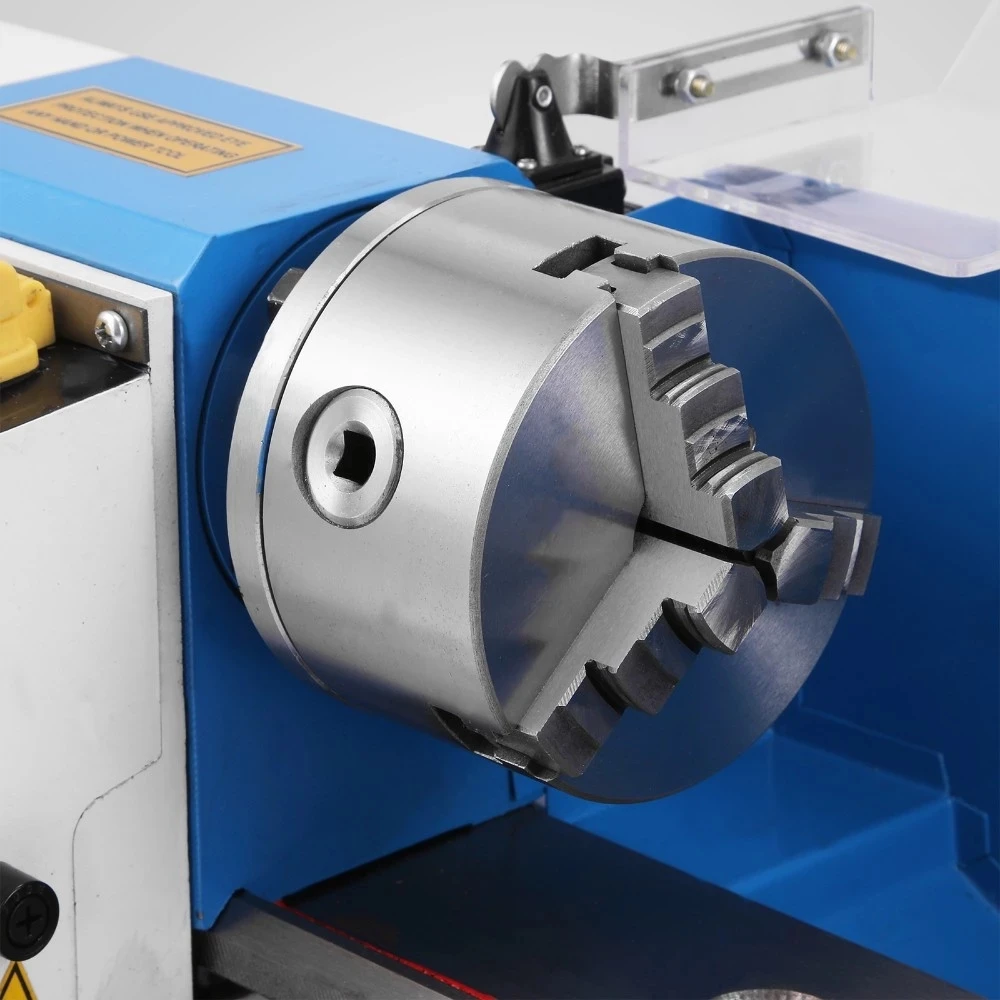

3-jaw chuck φ80
Change gears
Centers MT2
Oil gun
Set of wrench
Optional Accessories:
4-jaw chuck
Follow rest
Steady reat
Face plate 125mm
Stand
Toolpost cover
Leadscrew cover
Dial indicator
Leadscrew cover
