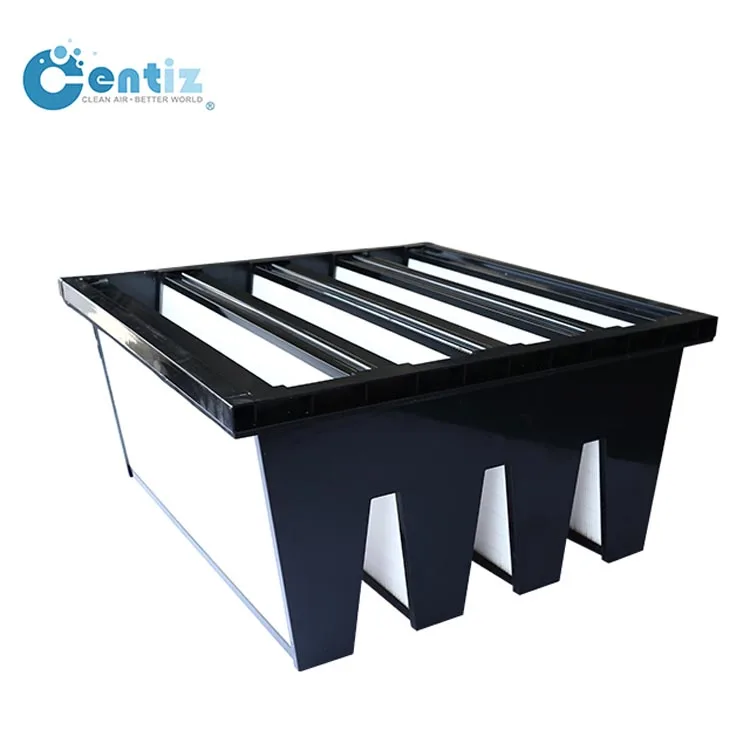

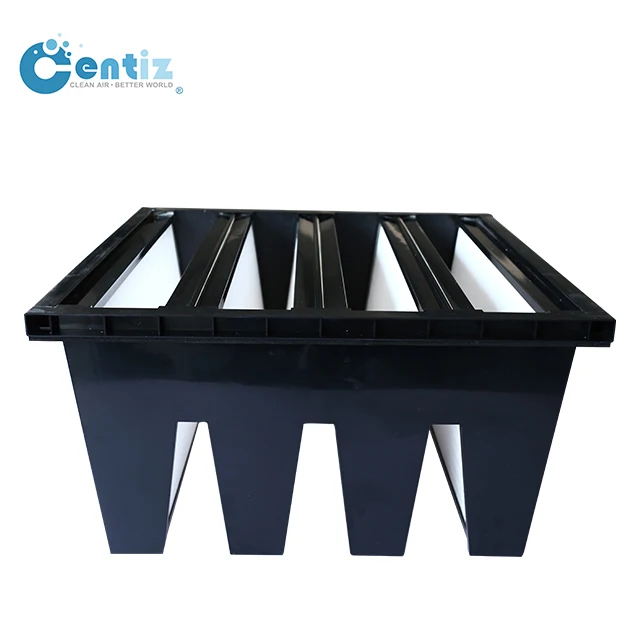

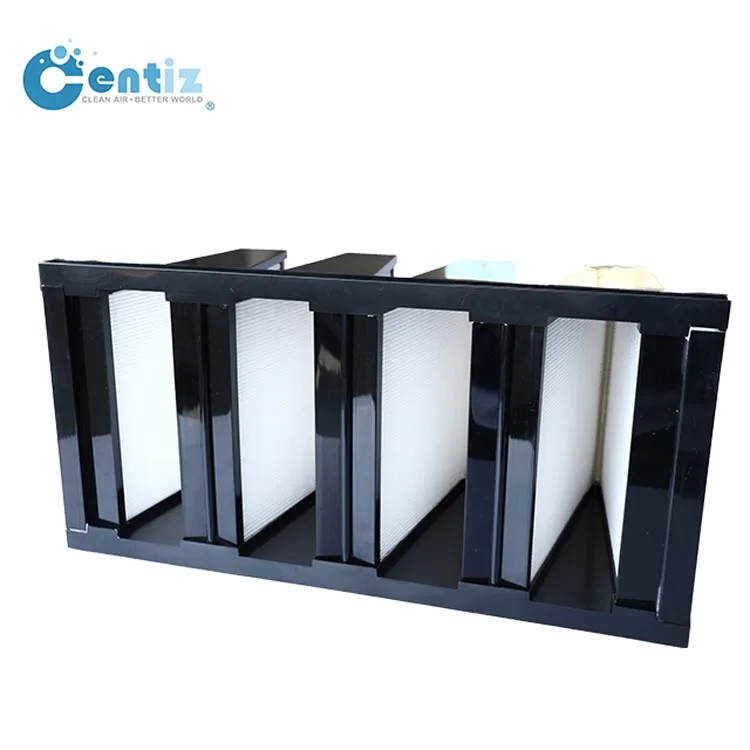

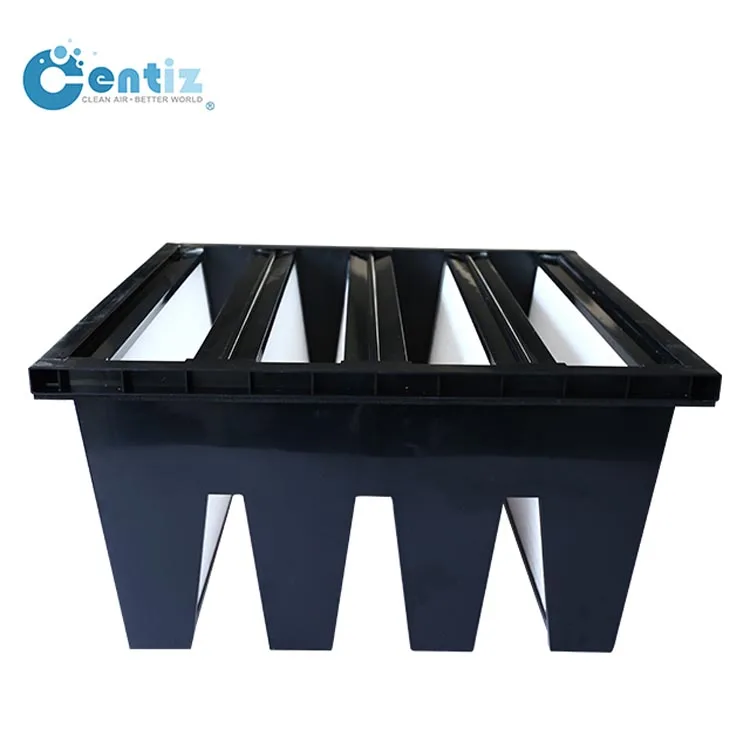

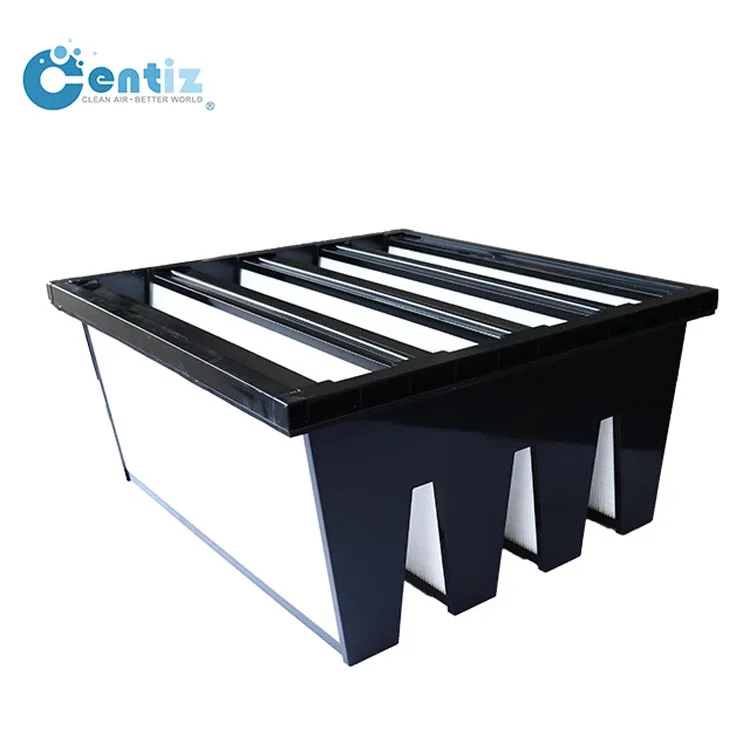

High efficiency/ultra high efficiency V/W type air filter v bank hepa filter

Product Overview

Description

High efficiency/ultra high efficiency V/W type air filter v bank hepa filter



Product features

V-shaped low pressure loss type filter

Non-partition design, low fiberglass filter

High dust holding capacity and long service life

Solid structure for good performance in turbulent conditions

Available in single flange, non-flange

Polypropylene frame can be completely incinerated and disposed



 Application of product

            Medium effect filter for clean room, commercial and industrial ventilation and air conditioning systems

            Ventilation and air conditioning system in high humidity environment

            Variable air volume ventilation and air conditioning system

            Ventilation and air conditioning system with tight installation space

            Ventilation and air conditioning system with high fire protection requirements or high ventilation temperature

            Widely used in clean rooms and other areas where air cleanliness is highly required



 Material list

            Frame - plastic frame / aluminum plate / stainless steel plate

          Optional thickness of frame - 292mm

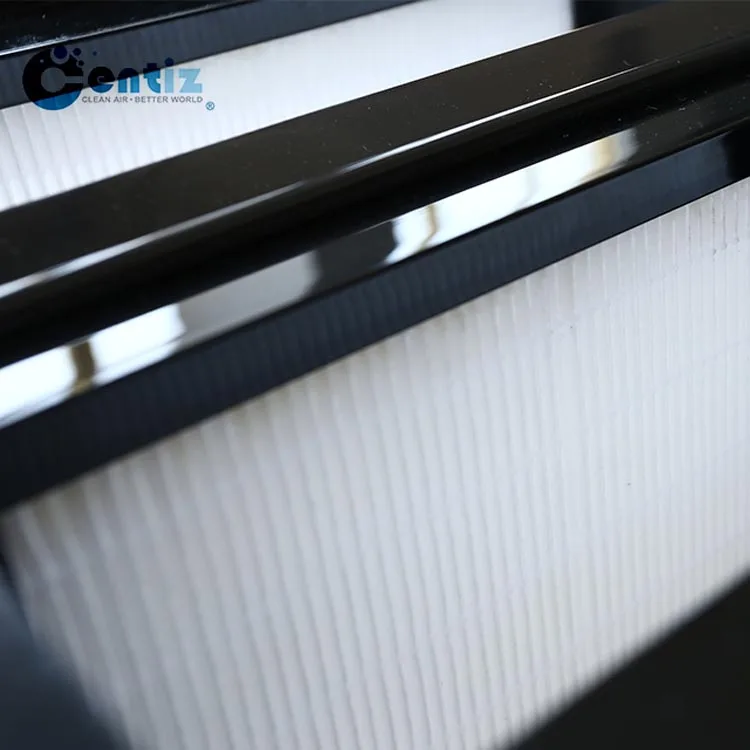

            Filter material - water resistant glass fiber

            Partition - hot melt adhesive

            Connection angle - polyurethane



Applicable condition

   Max. temperature (°C) 80(180℉)













M-HV product specification:high efficient V-shaped pleated filter

Nominal size	Actual size	Partition	Flange	Rated air volume	Surface air speed	Rated initial resistance		Recommended final resistance
(inch)	(mm)	(V)	(None/single)	(m3/h)	(m/s)	(Pa)		(Pa)
W×H×D	W×H×D					H13	H14
12×24×12	287×592×292	2V	Single flange	1000	2.00	249	270	500
24×12×12	592×287×292	4V	Single flange	1000	2.00	249	270	500
24×20×12	592×490×292	4V	Single flange	1800	2.00	249	270	500
24×24×12	592×592×292	4V	Single flange	2200	2.00	249	270	500
12×24×12	305×610×292	2V	Non-flange	1200	2.00	249	270	500
24×24×12	610×610×292	4V	Non-flange	2400	2.00	249	270	500



FAQ:

          1.Certificates:

             RoHs,UL,SGS,MSDS,DIN53438

          2.Payment terms:

             50% deposit upon getting the order,balance against the B/L copy.

          3.Delivery date:

             About 7 working days(≤500pcs), special order is negotiable to be quicker.

         4.Sample Terms:

            We can supply 1-2 small samples for tree but express cost is covered by your side.

         5.Minimum Order Quantity:

            No strict principle for standard sizes,but 50pcs for non-standard dimensions or types.

         6.Price Terms:

            EX-WORKS, FOB, CNF, CIF OR DDU is available and up to you.

         7.Lead time:

            3 Days for a 40ft container, weeks for two 40ft container.

         8.Factory:

            Our factory located in Jiangsu, about 2000sqm, with 30 workers.
