High quality PKE keyless push button start remote start system 4G GPS/GSM Smartphone APP car alarm and tracking system
- Category: >>>
- Supplier: Zhongshan Careasy Electronic Technology Co. Ltd.
Share on (62397530859):
Product Overview
Description
High quality PKE keyless push button start remote start system 4G GPS/GSM Smartphone APP car alarm and tracking system
Model No.: ASPKE-01 + G-02
Product Description
Our advantages:
Our PKE push start stop system has some special features that the products of the other manufacturers do not have.
1. User programmable engine crank time:
0.6 second, 0.85 second, 1 second, 1.2 seconds, 1.5 seconds, 1.8 seconds, 2 seconds, 5 seconds
2. User programmable engine run time:
5 minutes, 10 minutes, 15 minutes, 20 minutes, 30 minutes, 60 minutes
3. PKE proximity sensing lock/unlock and door handle control lock/unlock, setectable with Dip Switch:
Our system is with door handle control lock/unlock input. If the user can find the suitable door handle for his/her car, he/she may use door handle to lock/unlock the doors same as the car with original push stat/stop button.
4. Can work with both gasoline and diesel engines, selectable with Dip Switch.
5. With very good performance Password Keypad:
For the common solar film you may fix our keypad directly on it and there is no need to cut the solar film.
6. The standard package comes with shock sensor and with shock sensor bypass function.
7. With 4G GPS/GSM/GPRS smartphone APP control:
Our 4G GPS/GSM/GPRS module is the most stable one in China.
Main Features of the PKE push start system:
1. Proximity door lock/unlock (PKE)
Proximity door lock: While the system is armed, bring the Smart Key Remote Control and approach the vehicle about 1 meter, the system will disarm and unlock the doors automatically.
Proximity door unlock: After driving, turn off the ignition with the push button, close all the doors, bring the Smart Key Remote Control and walk away from the vehicle about 3 to 5 meters, the system will arm and lock the doors automatically.
2. Door lock/arm and unlock/disarm via Door Handle (Door handle is an optional item)
3. Door lock/arm and unlock/disarm via Remote Control
4. Door lock/arm and unlock/disarm via Password Keypad
5. Auto rearming
6. Push to start/stop
7. Remote engine start/stop via Remote Control
8. MTS mode for remote start of Manual Transmission vehicles
9. Programmable remote start and push to start engine crank time
9. Programmable remote start engine runtime
10. Working with both gasoline cars and diesel cars
11. Remote trunk release via Remote Control
12. Trunk release output Pos./Neg. selection
13. Car finder via Remote Control
14. Silent mode
15. Car washing mode (disable PKE function)
16. Power window output
17. Dome light delay
18. Single pulse/double pulse unlock selection
19. Automatic central locking (Programmable)
20. Door open alert while driving (Programmable)
21. Closing door reminder when arming
22. Alarm triggers by shock sensor/doors/trunk/ignition
23. Shock sensor bypass
24. Pos./Neg. door trigger selection
25. Trigger memory and report
26. Power interrupted memory
27. Remote control code learning
28. Code hopping
Technical Parameters of the PKE push start system
Control Module:
Working Voltage: 12V + 2V
Static Current: 20mA
Induction Current: 45mA
Working Frequency: 433.92Mhz / 125Khz
Remote Control:
Working Voltage: 2.7-3.3V
Static Current: 10uA
Battery Specs: CR2032
Working Frequency: 433.92Mhz / 125Khz
Main function illustrations

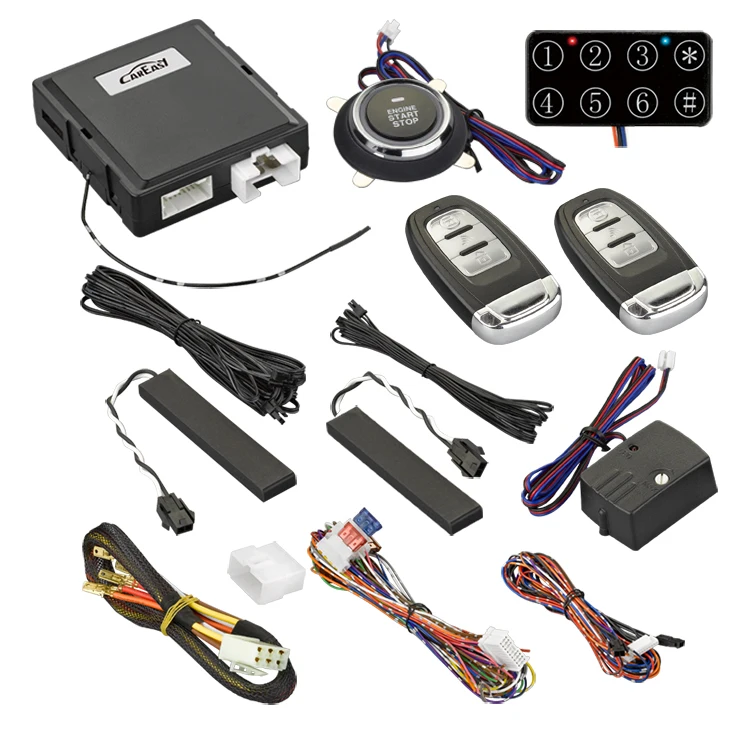

Kit of the PKE push button engine start/stop system
Control Module
Pin definition
Remote control operation
Selectable PKE Remote Controls
GPS/GSM/GPRS Smartphone Vehicle Control
Main features of the Smartphone APP Control:
1. With 4G GPS/GSM module
2. With Bluetooth lock/unlock
3. Two-way communications
4. No distance limitation
5. Operations via Smartphone APP
6. Real-time car status dynamic display on APP
7. With both GPRS data and SMS message controls
8. Arm/Lock, Disarm/Unlock, Trunk Release, Car Finding
9. Remote engine start/stop
10. Car temperature display
11. Car battery level display
12. Remote fuel cut off- Remote Immobilization (Optional)
13. Real-time location check and track history replay via Google map
14. Be notified when your car alarm was triggered
15. With built-in backup battery and power disconnect alert
16. Data protocol communications between the GPS/GSM/GPRS module and the alarm module
4G GPS/GSM/GPRS module
Interface of the APP
Car status indications on APP while the alarm is armed:
Car status indications on APP while the alarm is disarmed:
Car location
Car tracking
FAQ:
1.Q:Are you manufactory or trading company?
A:We are the 100% manufactory specialized in auto car electronic products.
2.Q:How can I get the samples?
A:Samples are available but the customer should pay the sample costs and shipping freight.
3.Q:How much the transportation freight of products?
A:The freight depends on total weight and packing size and your area.
4.Q:What can purchasers do if the products have problems?
A:Our products all have one-year warranty. If they do have quality related problems,please feel free to inform us,and we will try our best to make you pleased.
Shipping methods:
1. The sample orders or small orders will be shipped by courier such as DHL, FedEx, UPS, TNT, EMS, etc. or by air cargo.
2. The bulk orders will be shipped by sea.
Contact us
Mr. Daniel Du
Mobile/WhatsApp: +86 13925335867
WeChat ID: CarEasy
Skype ID: danieldu95
