ERISSON OEM Manufacturer Audio Marine Speaker 6.5 inch 2 way 100 watts

|
NO. |
Item |
Specification |
|
1 |
size |
6.5'' 172mm |
|
2 |
voice coil impedance |
4Ω |
|
3 |
voice coil size / material |
25.5 mm / KSV |
|
4 |
cone / edge |
PP/Rubber edge |
|
5 |
resonant freq (FO) |
77 Hz ± 20%Hz |
|
6 |
output S.P.L. |
89±3dB |
|
7 |
freq response |
77Hz~20KHz |
|
8 |
rated power input |
100watts |
|
9 |
max power input |
150watts |
|
10 |
magnet |
Φ80×15mm 316.5 g / 11.2 oz |
|
11 |
weight |
915g / 32.3OZ |

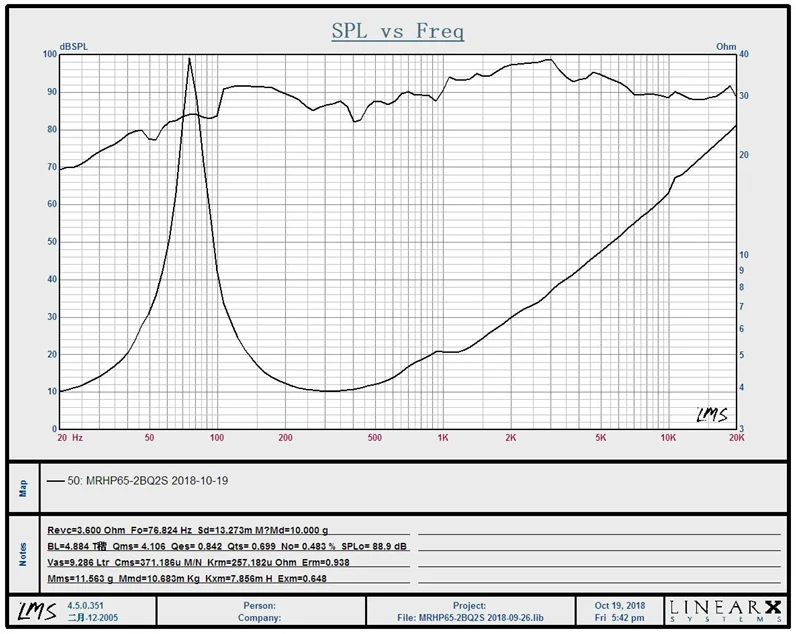

Testing of the 6.5 inch Marine Speaker:

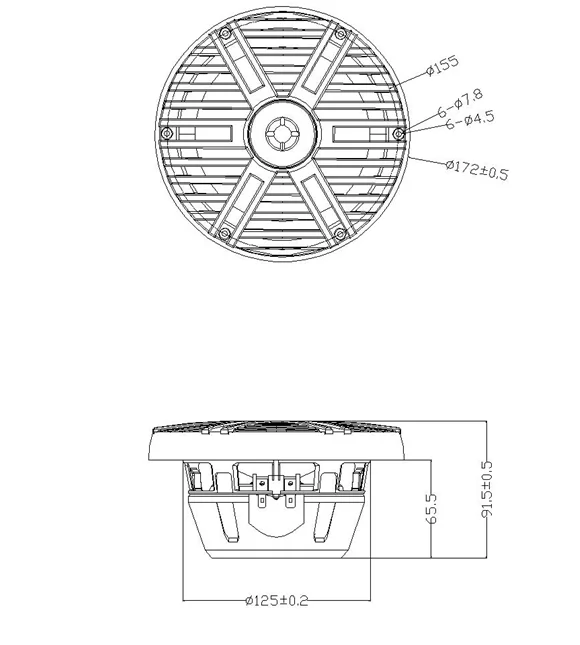

Drawing of the 6.5" Marine Speaker:

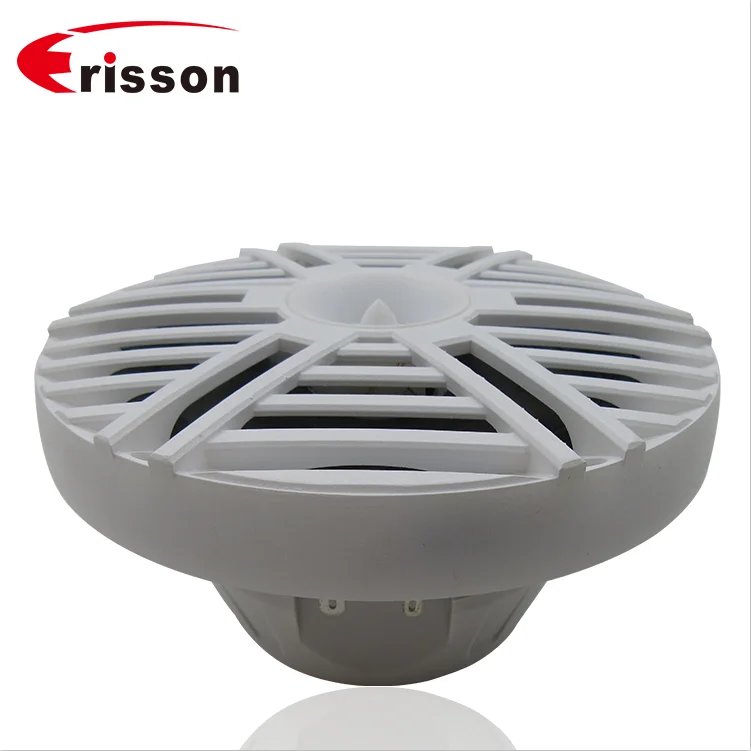

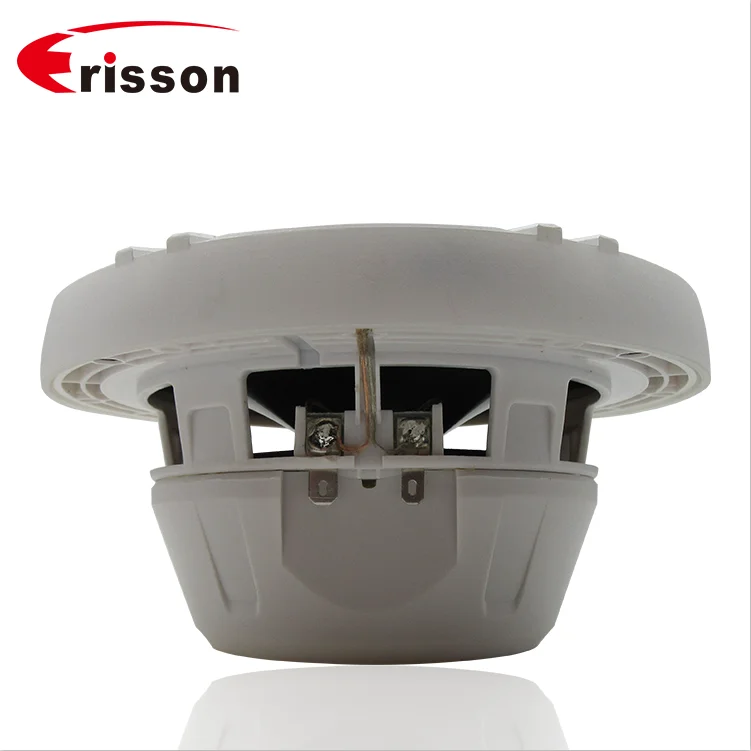

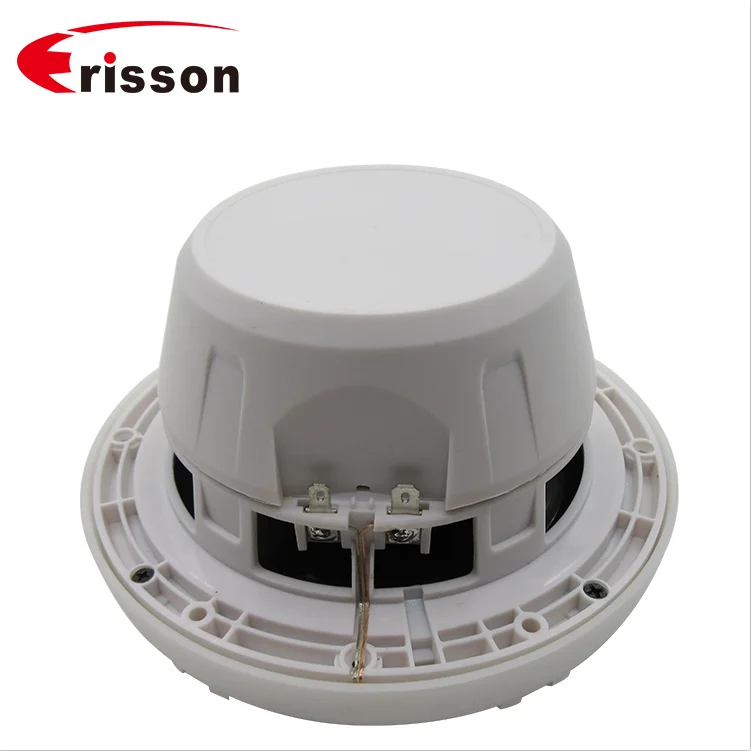

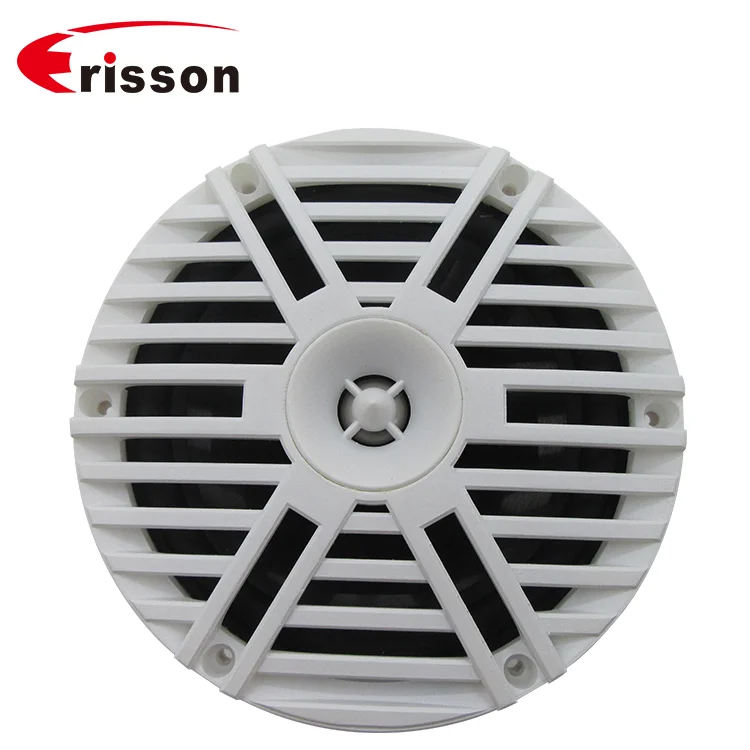

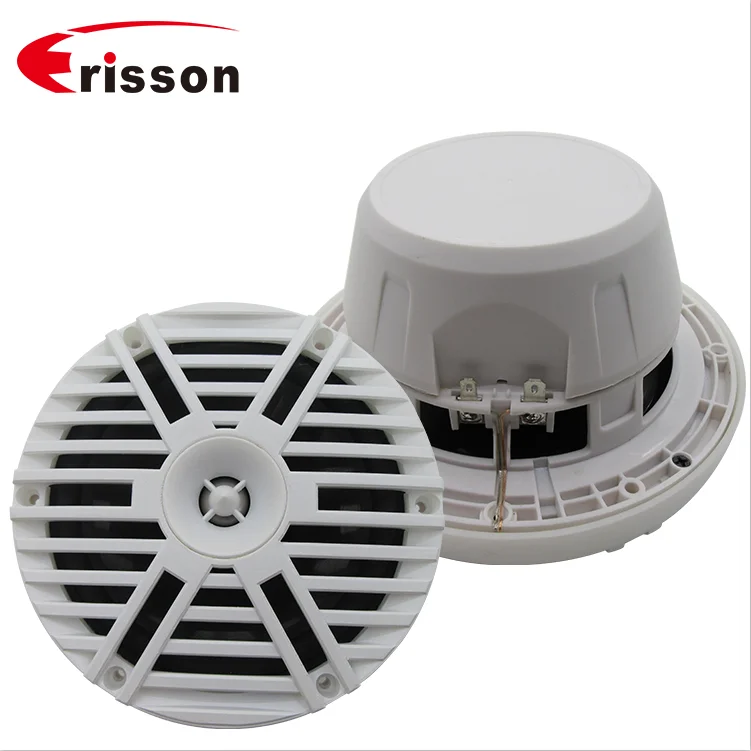

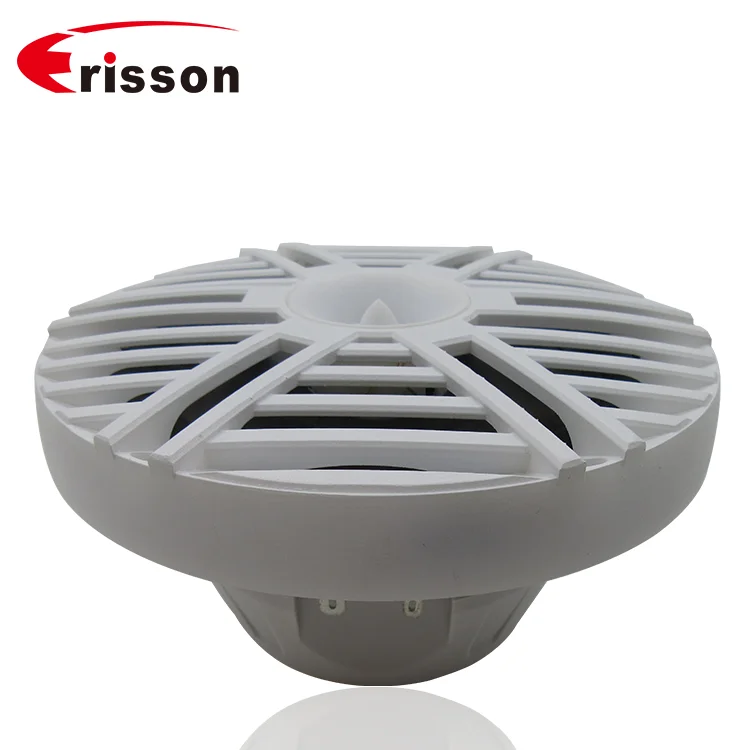

Photos of the 6 " Marine Speaker:

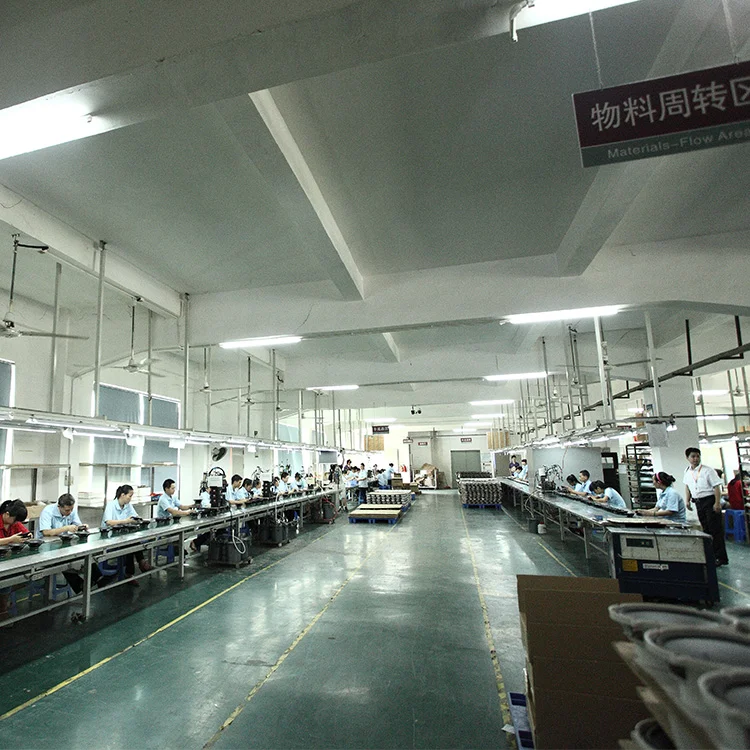

l Dongguan Erisson Acoustics Technology Co., Ltd. was established in 2005 .
l We specialize in Car speakers, Subwoofers, Marine speaker , In-Wall & In-Ceilings, In-Door & Out-Door products, Multi-media speakers, Pa speaker, and Home Theater speakers with more than 15 years production experience!
l Our goal is to provide customers with the best service possible and we are sincerely hope to enter into business relationship with you.
l All items coming with certification, have excellent team offering FREE DESIGN for your customized project
Q1: What is our warranty for speaker drivers?
For our speaker driver, we have one-year warranty.
Q2:How can i get a sample ?
If you need some samples to test,we can make as per your request .
You should pay for the transportation freight of samples and our samples cost,while the samples cost can be refundable after you place the order.Thanks.
Q3:How much the transportation freight of samples?
The freight depends on the weight and packing size and your area.
Q4:Is it OK to print my logo on the product?
Yes.Please inform us formally before our production and confirm the design firstly based on our sample.
Q5:Can you produce according to customers' design?
yes.we mainly do the OEM/ODM service.
Q6:What's the minimum order quantity(MOQ)?
MOQ is 50pcs-500pcs each model size.
Q7:How about the delivery time?
For sample: 10-15 days
For order: 30-45 days
