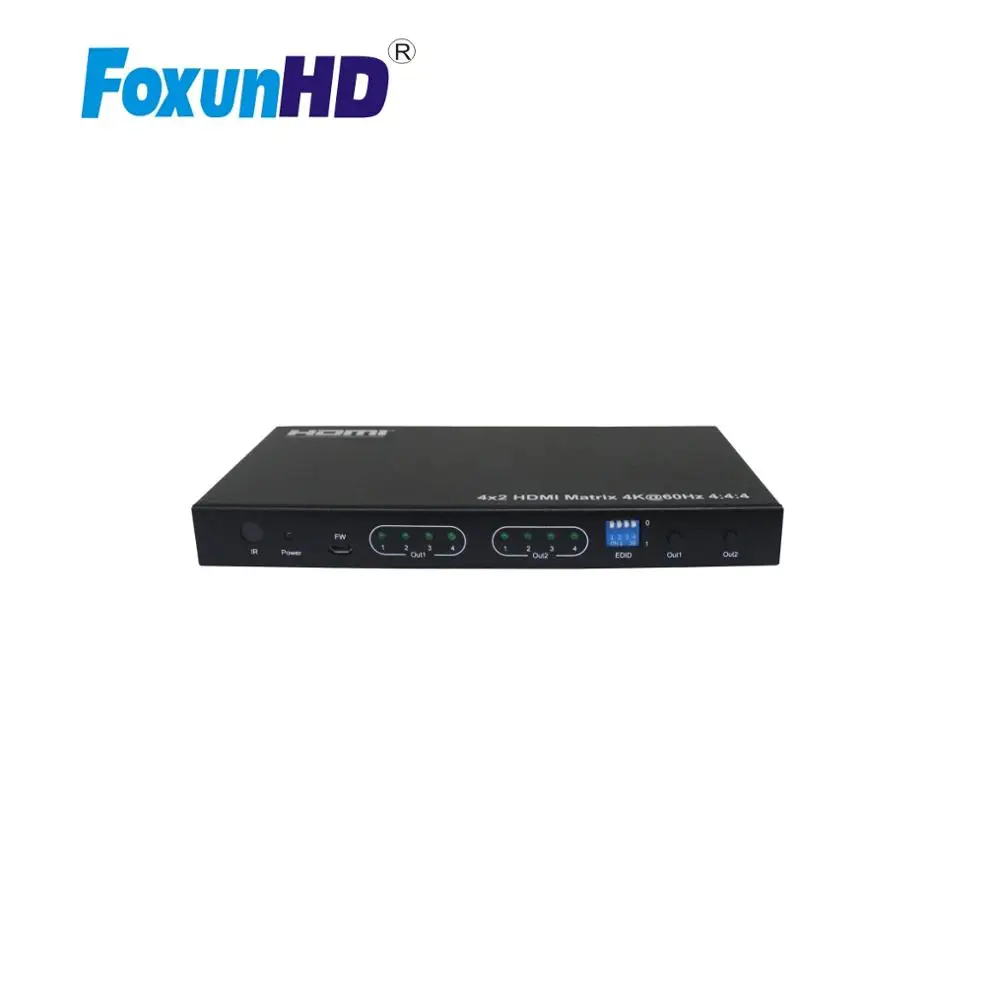

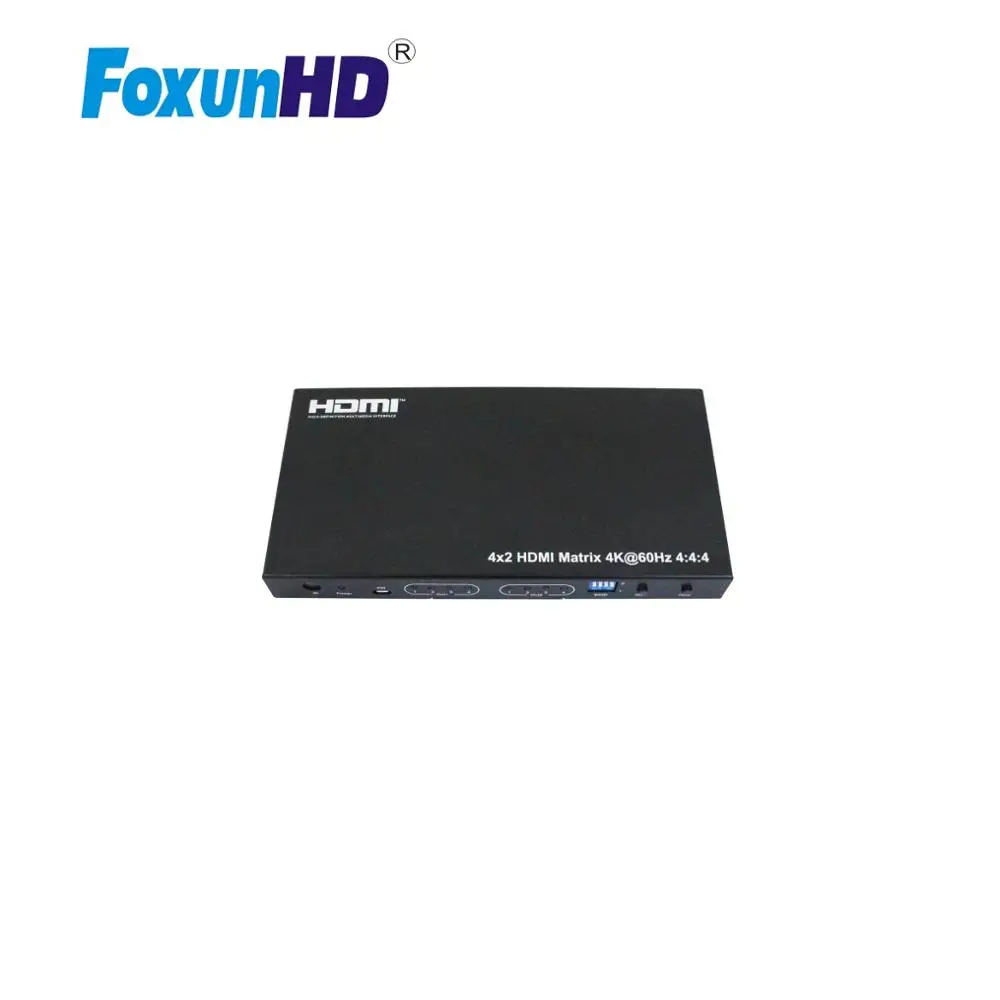

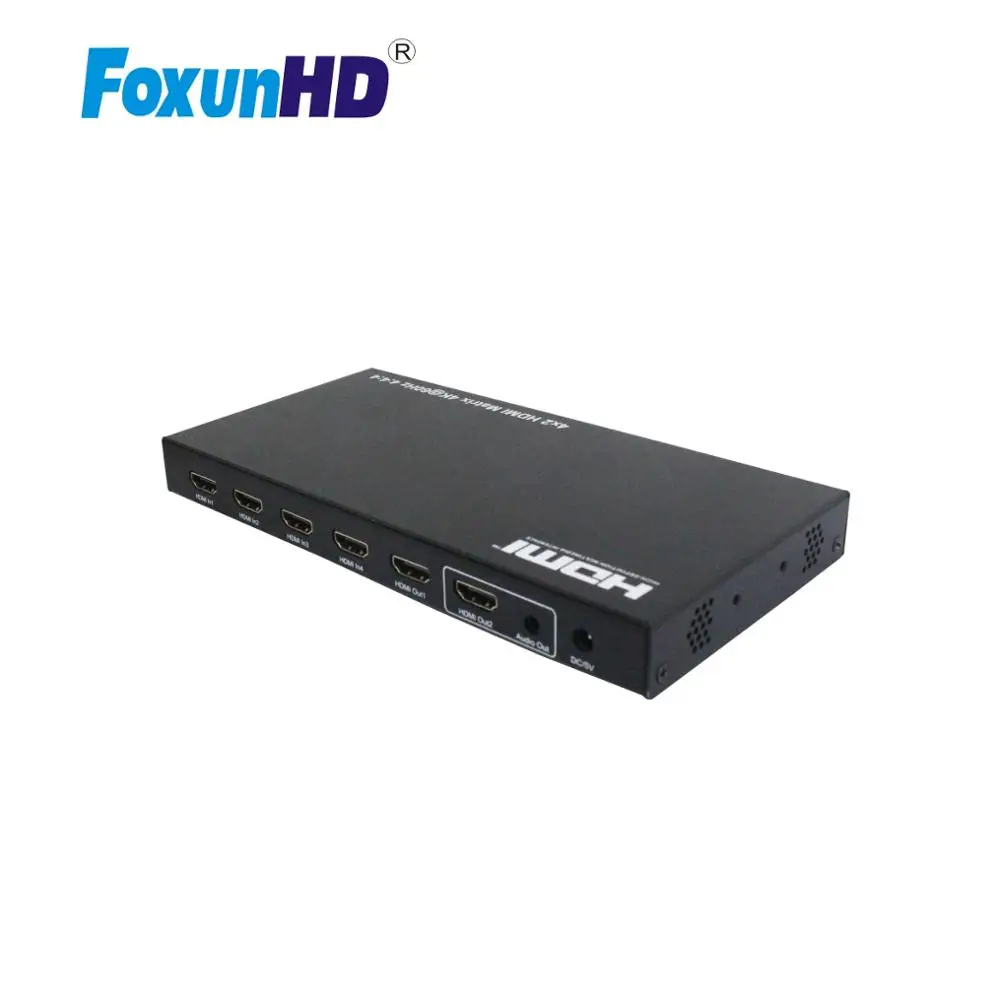

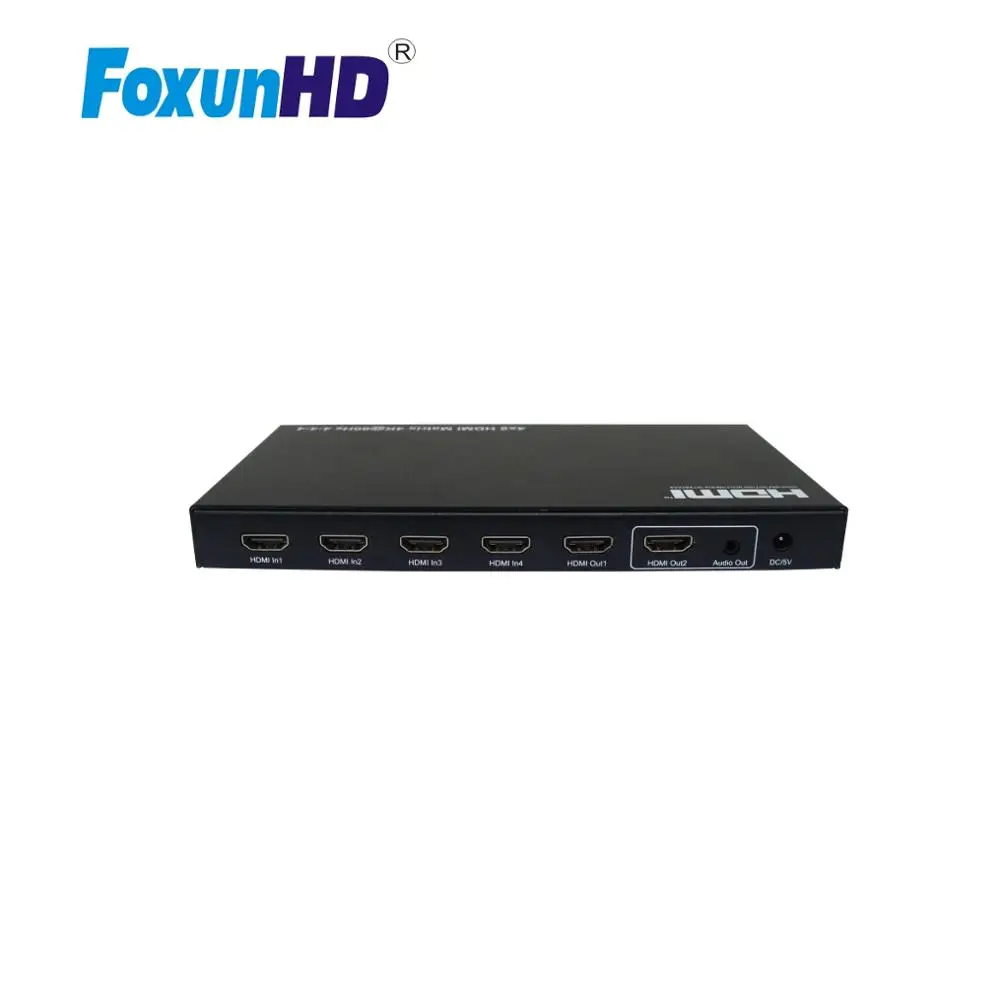

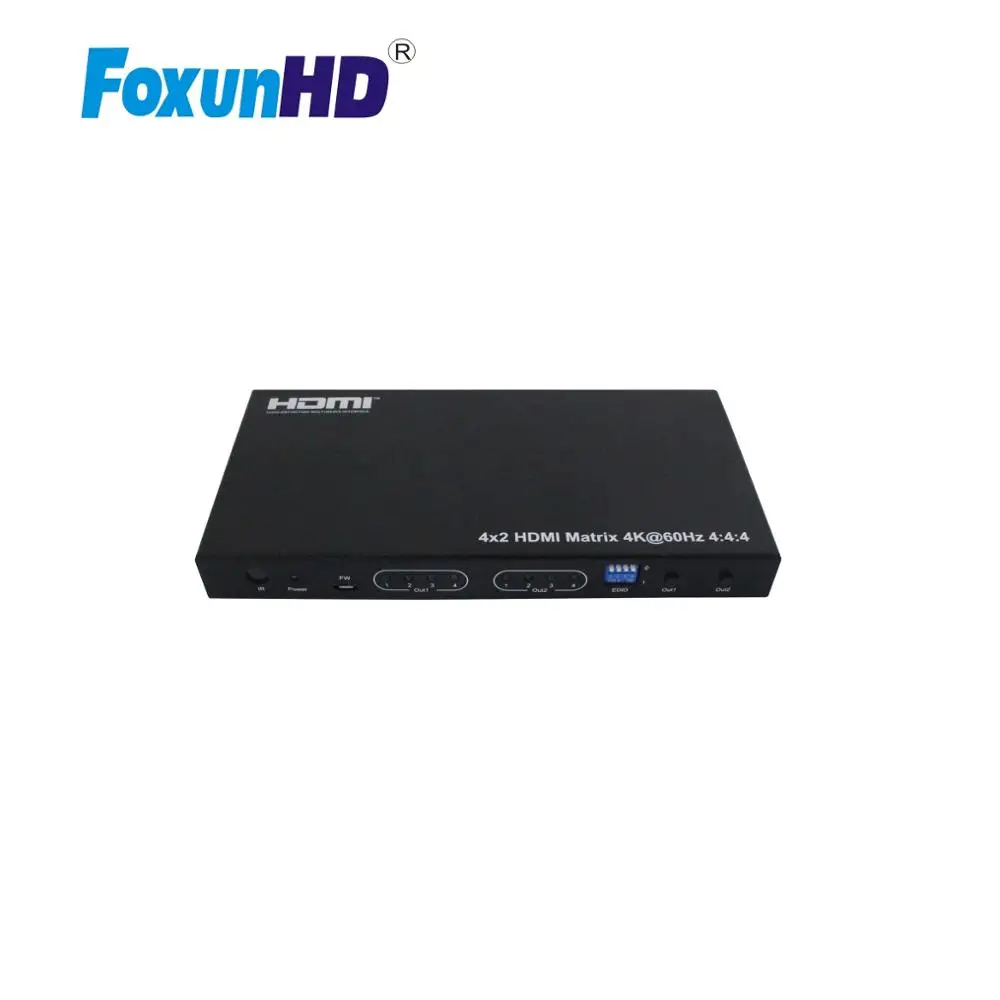

HDMI 4x2 Matrix shenzhen SHUNXUN HDMI Switch hdmi 1.4/2.0 Matrix with EDID supported
- Category: >>>
- Supplier: Shenzhen Shunxun Electronics Co. Ltd.
Share on (62397552003):
Product Overview
Description
4x4 HDMI2.0 Matrix Support 4K@60hz YUV4:4:4, 18Gbps, HDR
1) HDMI 2.0 version (Support 4K@60Hz YUV4:4:4)
2) Support 3D
3) Bandwidth upto 18Gbps
4) HDCP2.2 input ,HDCP2.2 output
5) HDCP1.4 input, HDCP1.4 output
6) Support HDR10
7) 4xHDMI Input, 4xHDMI output with 4xSPDIF Audio
8) Any one of the 4 Ultra HD sources to any one of the 4 Ultra HD displays
9) Support Panel Button, Local IR, RS232 Control with command, IP Control, Web GUI Control
10) Support Dolby True HD and DTS-HD master audio
2) Support 3D
3) Bandwidth upto 18Gbps
4) HDCP2.2 input ,HDCP2.2 output
5) HDCP1.4 input, HDCP1.4 output
6) Support HDR10
7) 4xHDMI Input, 4xHDMI output with 4xSPDIF Audio
8) Any one of the 4 Ultra HD sources to any one of the 4 Ultra HD displays
9) Support Panel Button, Local IR, RS232 Control with command, IP Control, Web GUI Control
10) Support Dolby True HD and DTS-HD master audio
Detailed Images
Product Paramenters
Operating Temperature | 23°F to 113°F (-5°C to 45°C) |
Storage Temperature | -4°F to 140°F (-20°C to 60°C) |
Resolution | 4K@ 60hz YUV4:4:4 |
HDCP Compliant | HDCP2.2 and HDCP1.4 |
Audio Format Supported | PCM, Dolby5.1/7.1, DTS5.1/7.1 digital audio, Dolby Atmos |
RS-232 serial port | 3PIN terminal block connectors |
Ethernet port (IP control) | RJ45, female |
IR Ext port | 1x3.5mm stereo jack |
USB port | Micro 5P female |
Bandwidth | 18 Gbps |
Default IP | 192.168.1.168 |
Rack-Mountable | Rack ears included |
Dimensions(WxHxD) | L216XW105XH34mm |
Net Weight | 0.72kg |
Power consumption | 13W(Max) |
