LKJ 560 Factory direct sell wood pelets line/wood pellet machine/biomass pellet mill line with low price

Product Overview

Description

           Factory supply wood sawdust pellet making machine price


Brief Introduction:

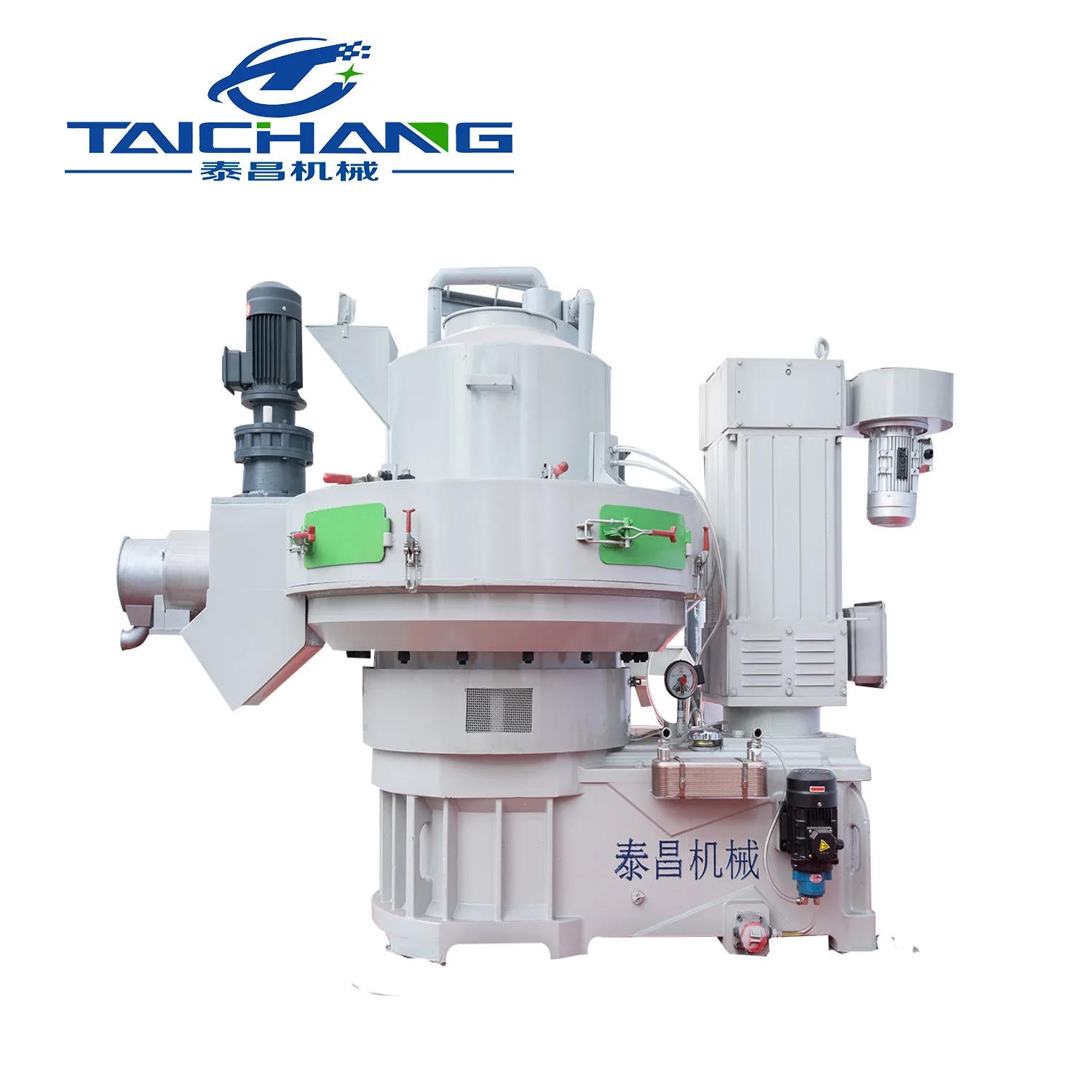

wood pellet machine
Power:90/132kw
Capacity:1-2t/h
Pellets Size:6mm,8mm,10mm,12mm

Introduction of wood pellet machine:
LKJ560 series is mainly applicable for difficult molding materials with low adhesion rate, for example rice husk, sunflower husk, peanut shell and fruit shell; branch, stem, rind and other wood waste; a variety of crop stalks; rubber, cement, ash and other chemical materials. It can be used in feed mill, wood processing plants, fuel plants, fertilizer plants, chemical plants etc.

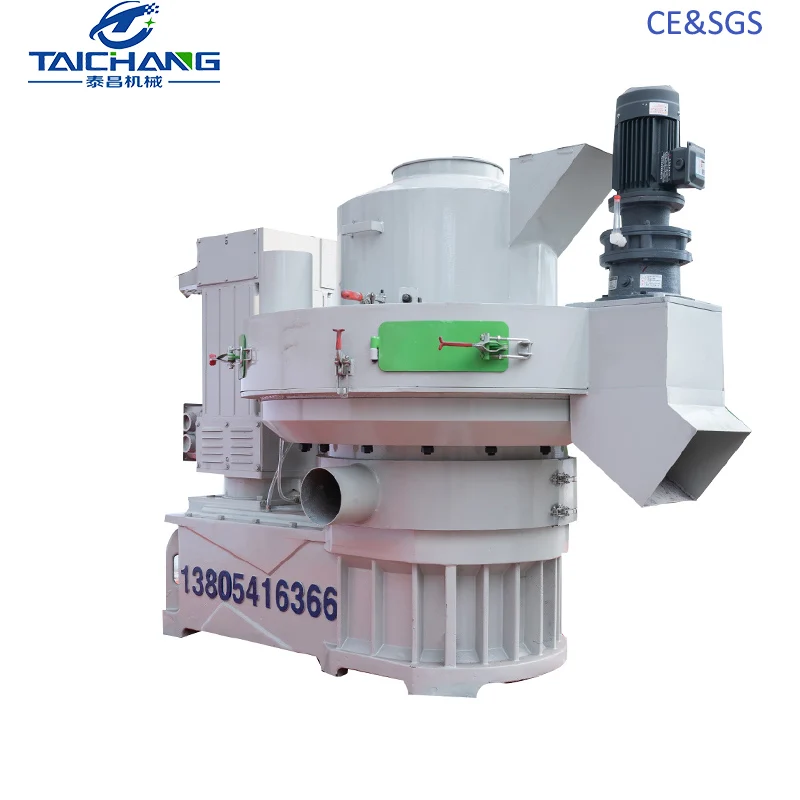

Specification Of Wood Pellet Machine



Model			LKJ560
Type			Vertical ring die type
Output			1-2t/h
Main Motor			90/132kw
Lubrication pump Motor			0.55kw
Pellet collecting disc Motor			1.5kw
Independent cooling Motor			1.1kw
Material of Mould			Stainless steel 4Cr13
Roller wraps			55# steel
Inlet&Feeding Cover			SS304
Pellet Diameter			6mm,8mm,10mm, 12mm
Pellet Length			Can be customized made
Pellet Density			1.0-1.4g/cm3

Other models

Type	Power(kw)	Pellets(mm)	Modelφ(mm)	Output(t/h)	Dimension(mm)	Weight(t)
LKJ560	90/132+1.1+1.5+0.55+2.2	φ6-12	φ548	1-2	1600*1210*1700	4.5
LKJ700	132/160+1.+1.5+0.55+2.2	φ6-12	φ700	2-3	1650*1261*1783	5.5
LKJ850	185+1.1+1.5+0.55+3	φ6-12	φ850	3-3.5	1800*1450*1850	7

Details Images:
Advantage points of wood pellet machine
1.Ring die, vertical structure, conducive to the pelletizing room cooling
2.Die static, rollers rotating, materials centrifugal, evenly distributed around
3.Wood pellet mill can press 6-12mm pellets diameter,if you need different pellets diameter,just change the different ring die is ok.
4.Pellet mill power supply is 380v,50hz,3phases,we also can design the special motor for you,like 220v,415v,60hz,3phases.

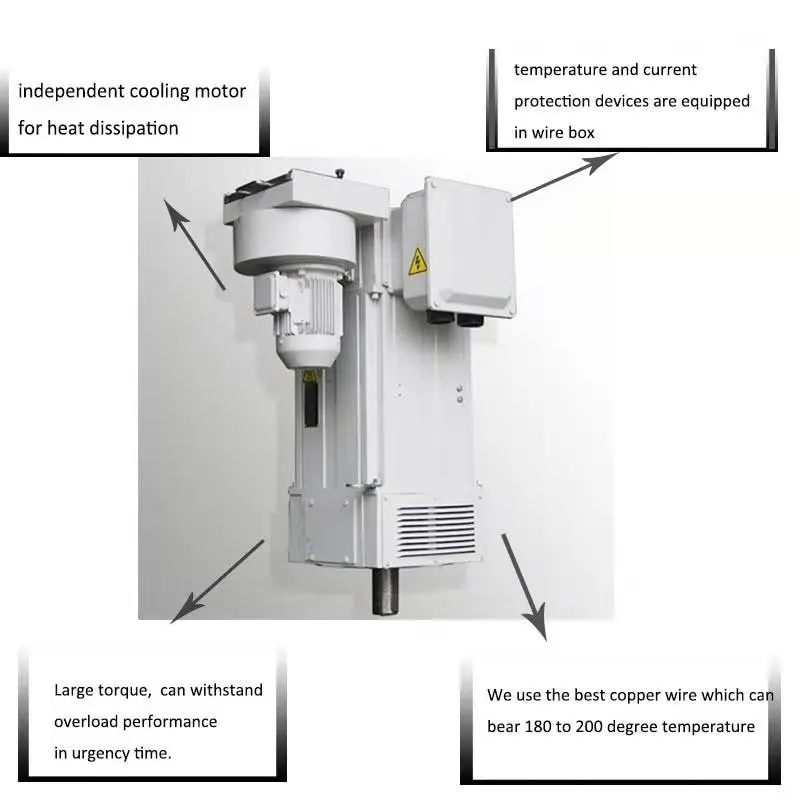

Special motor and reducer for wood pelleting machine
Motor: The first special motor for wood pellet machine only, the power output efficiency is increased by more than 10%, the power density of each center height can reach 3-5 times, the voltage and frequency tolerance range is wide, and it is more suitable foroperation under harsh environmental conditions. It is energy saving and safety stable.

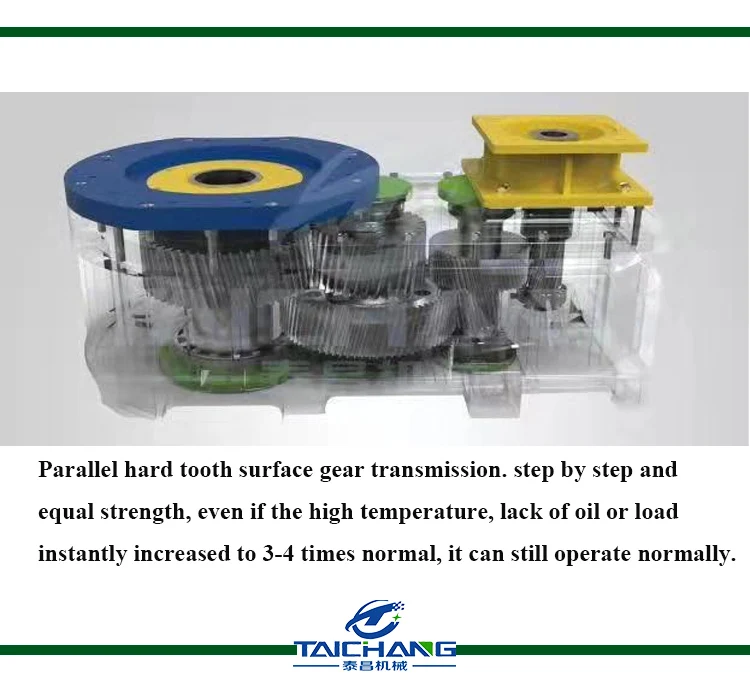

Casting box, four sets of gears, wide gears and large modulus, so the machine has a long life and high safety.

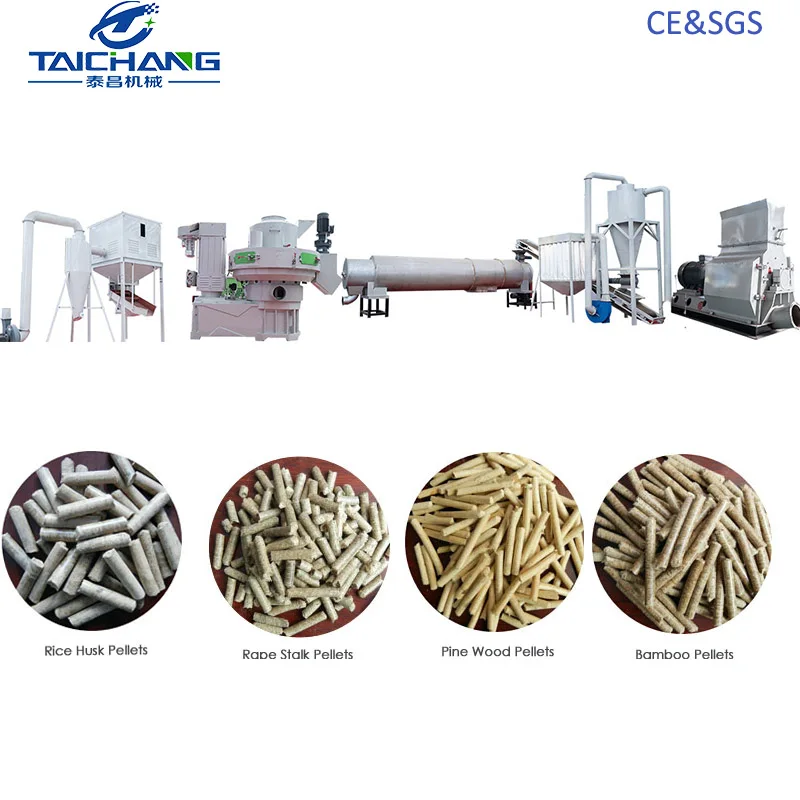

Production Process:

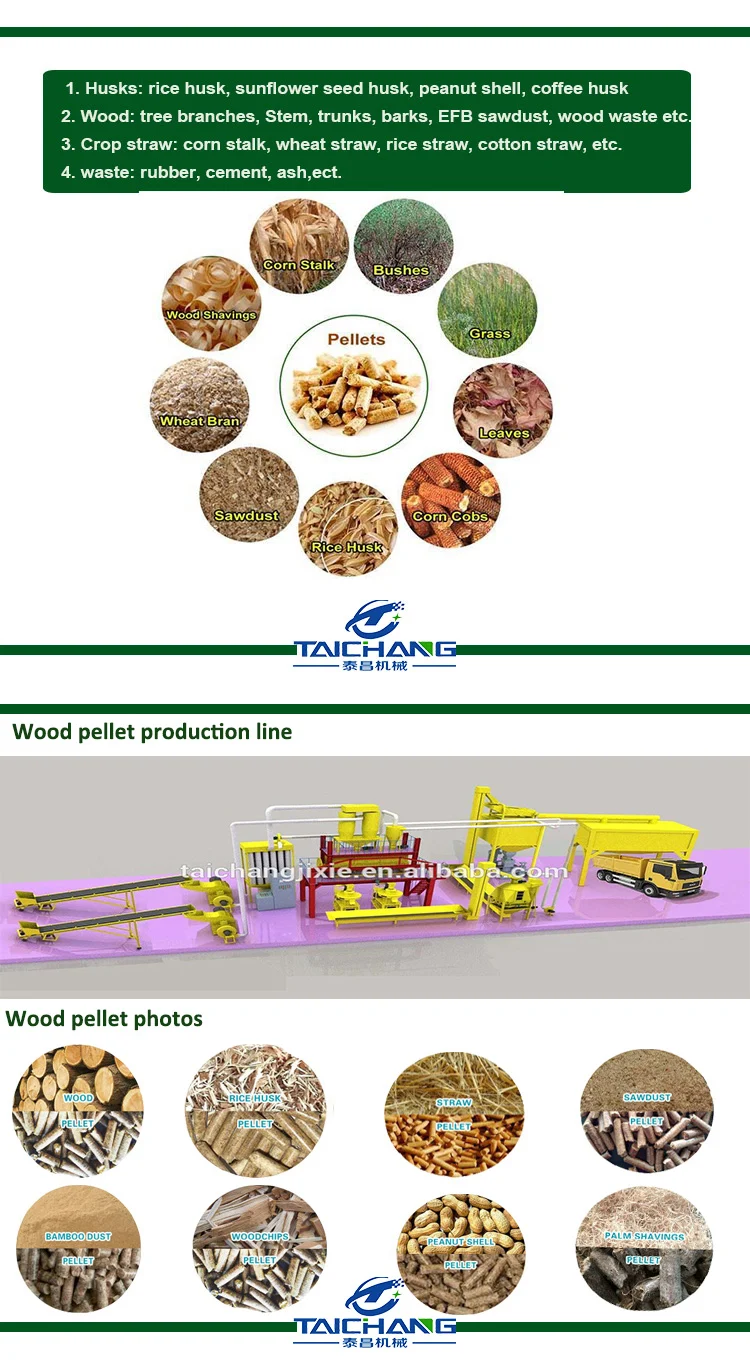

Agriculture, forestry raw material collection → raw material crushing → raw material drying → wood pellet → cooling → screening → bagging

Application:
Widely used for crude fiber granulator, such as sawdust, rice husk, cotton stalks, cottonseed skins, weeds,other crops straw and plant waste,widely used in large-scale complete pellet production lines.
1. Civil heating and domestic energy: high fuel utilization and easy storage;
2. Biomass industrial boiler: as the main fuel for industrial boilers, replacing coal combustion, reducing atmospheric emissions and pollution;
3. Power generation: It can be used as a fuel for thermal power generation.

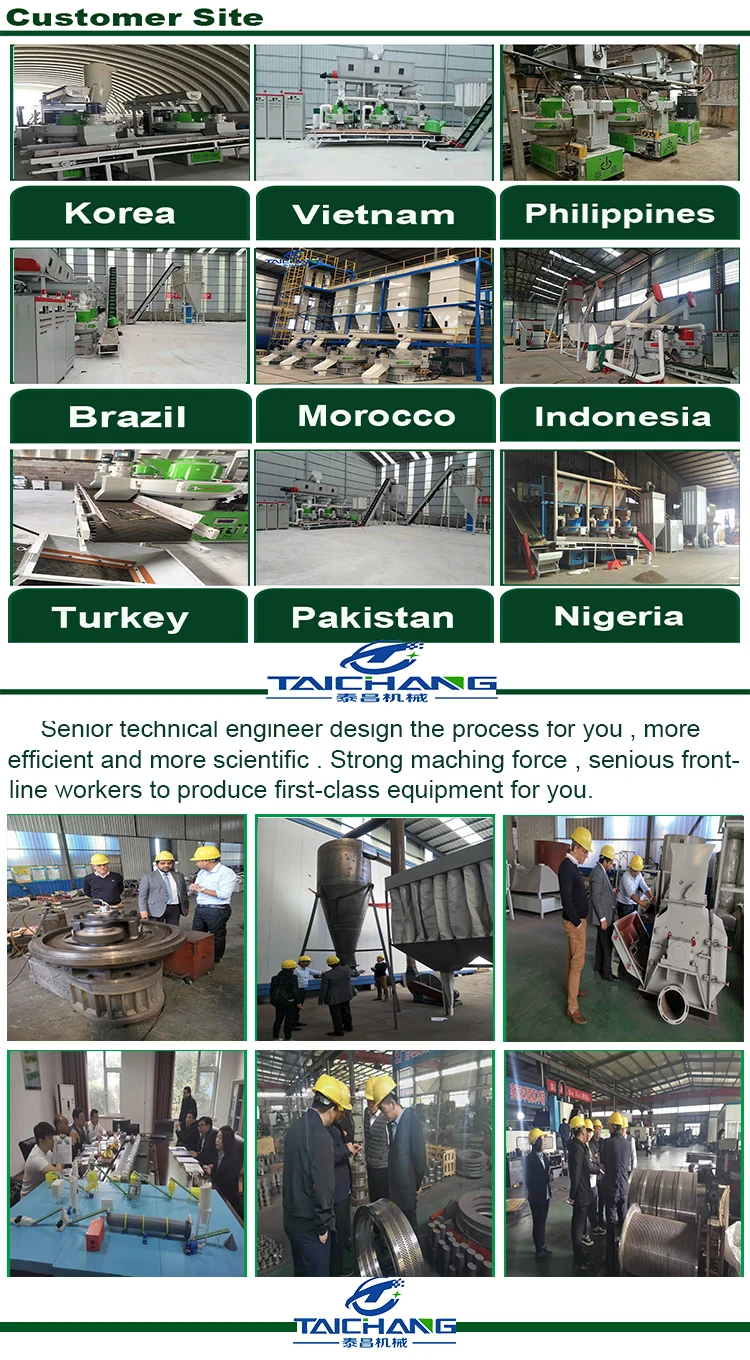

Our customers
Our products exported to Europe, North America, South America, Southeast Asia and Africa markets, received unanimous praise from foreign customers.

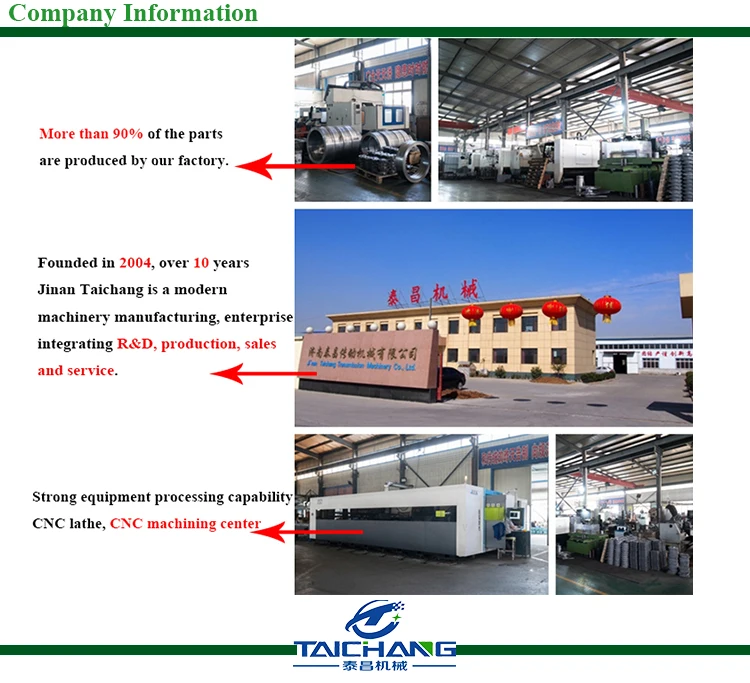

Company strength

Jinan Taichang Transmission Machinery Co.Ltd was founded in 2004 with registered capital of 8 million Yuan(USD 1,400,000.00),plant building area of 40000 square meters .More than 200 employees, including 10 senior engineers, 16 mechanical designers, 20 technicians, and is a research, development, production, operating as one of the modern machinery manufacturing enterprises. Strong technical force, advanced production technology, perfect after-sales service. Our company is the largest professional manufacturer with all types and large production in the domestic same industry.

Our After-Service
We are committed to providing customer satisfaction with professionalism.Customer satisfaction is our best word and the biggest publicity.

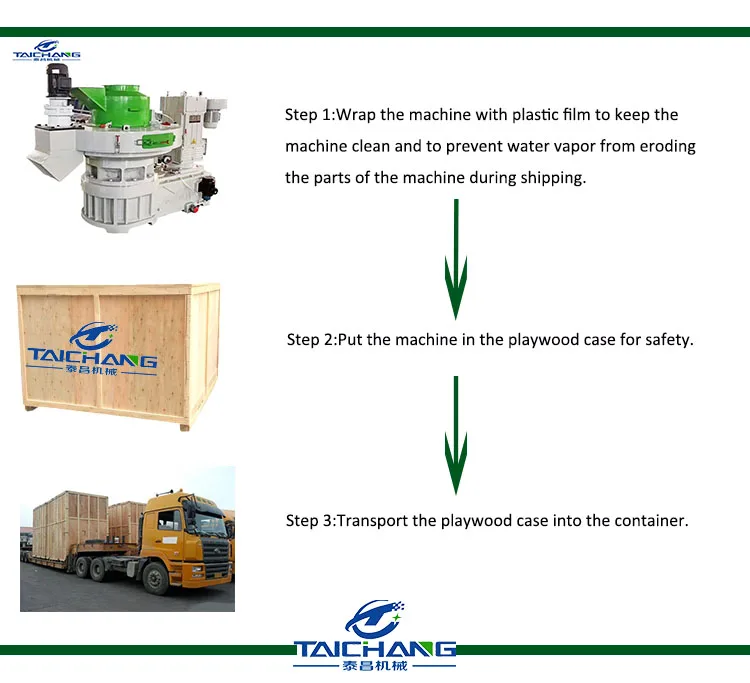

Packing&Shipping
We work with professional logistics companies to provide you with more professional logistics services.

FAQ

In order to better recommend the machine for you, could you please answer me these questions?We need to know the following information to give a quote and solution.
