6 inch 20.5% 5W monocrystalline silicon wafer solar cell for sale
- Category: Solar Cells >>>
- Supplier: Shenzhen Xiangxinrui Solar Energy Co. Ltd.
Share on (62397619623):
Product Overview
Description

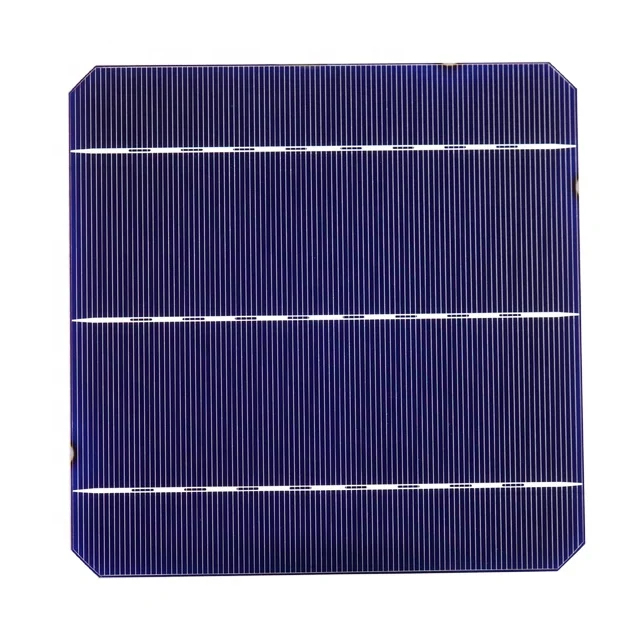

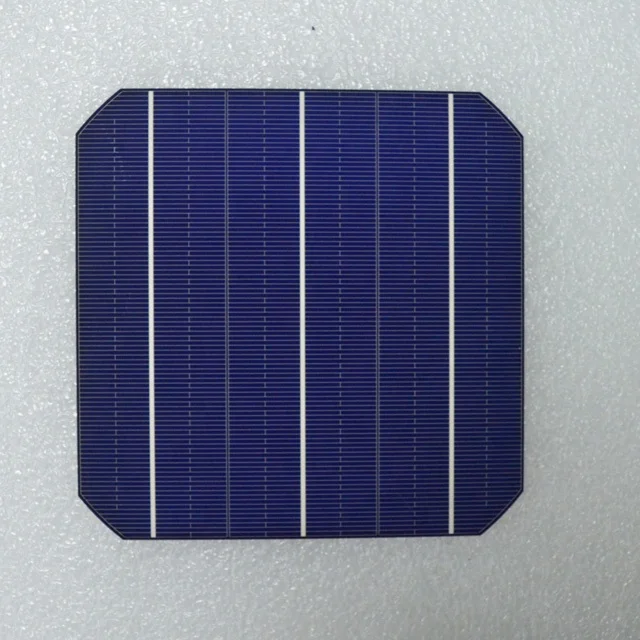

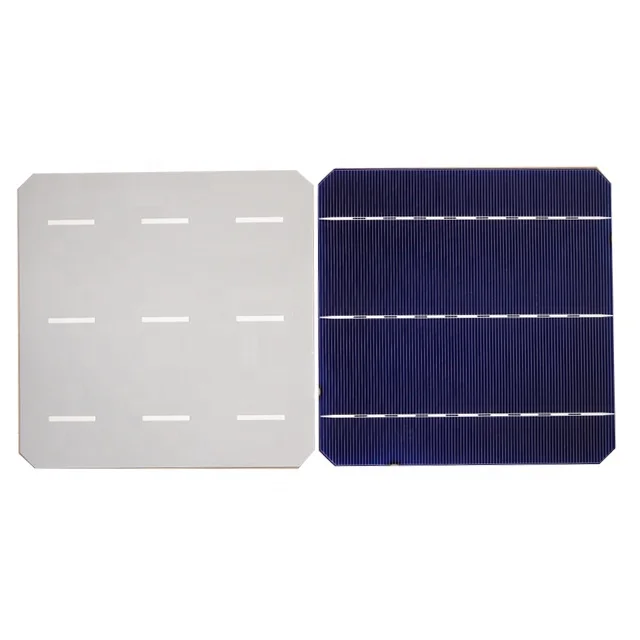

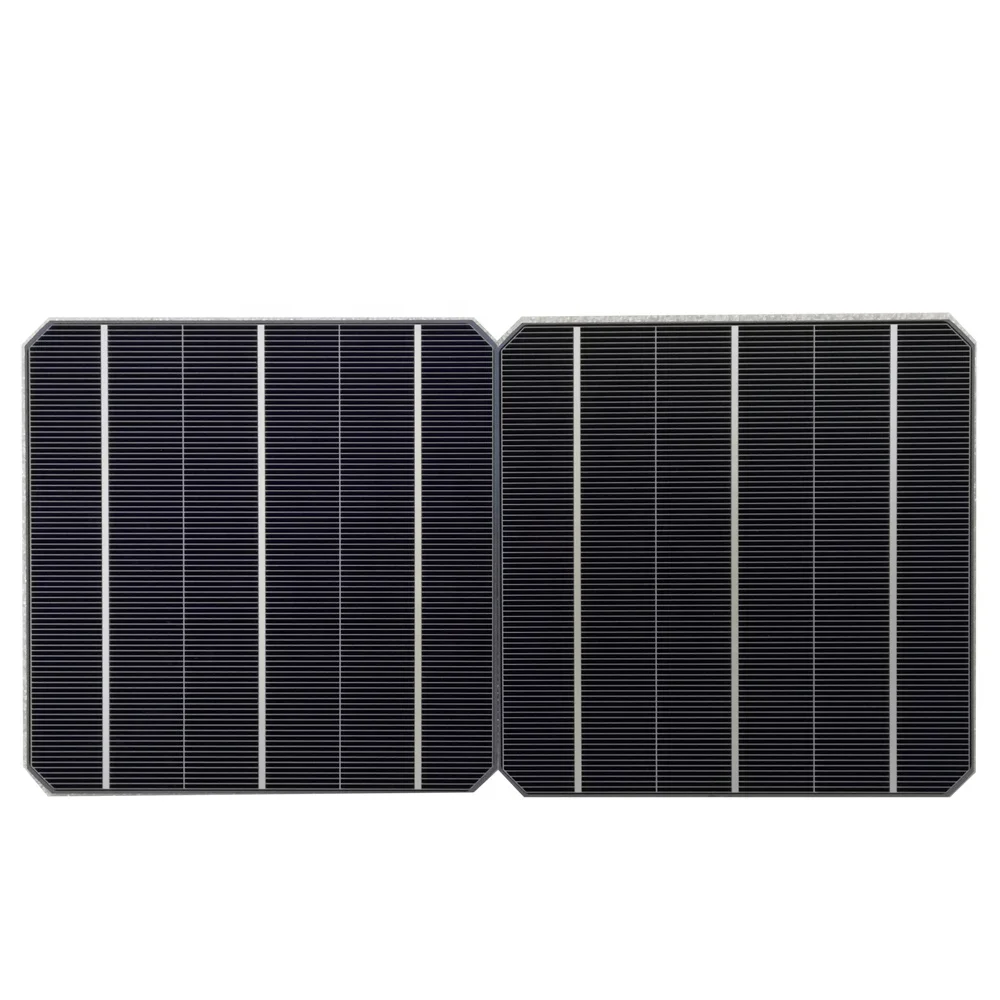

6 inch 20.5% 5W monocrystalline silicon wafer solar cell for sale
Product Description
6 inch 20.5% 5W monocrystalline silicon wafer solar cell for sale
6 inch 20.5% 5W monocrystalline silicon wafer solar cell for sale
|
Product name |
6 inch 20.5% 5W monocrystalline silicon wafer solar cell for sale |
|
size |
156.75*156.75mm |
|
material |
monocrystalline silicon |
|
color |
dark blue |
|
busbar |
3BB busbar |
|
power watt |
5w |
| efficiency | 20.5% |
|
Vmpp |
0.5V |
| Impp | 10A |
| Solar cell grade | A grade |
6 inch 20.5% 5W monocrystalline silicon wafer solar cell for sale
| Efficiency Code | 2050 | 2060 | 2080 | 2100 | 2120 | 2140 | 2150 | 2160 | 2170 | 2180 |
| Efficiency(%) | 20.5 | 20.6 | 20.8 | 21.0 | 21.2 | 21.4 | 21.5 | 21.6 | 21.7 | 21.8 |
| Pmax(W) | 5 | 5.03 | 5.08 | 5.13 | 5.18 | 5.228 | 5.25 | 5.27 | 5.3 | 5.326 |
| Vmp(V) | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.53 | 0.53 | 0.53 | 0.53 |
| Imp(A) | 10 | 10.06 | 10.16 | 10.26 | 10.36 | 10.456 | 9.9 | 9.94 | 10 | 10.4 |
| Voc(V) | 0.59 | 0.59 | 0.59 | 0.59 | 0.59 | 0.59 | 0.625 | 0.625 | 0.625 | 0.625 |
| Isc(A) | 10.6 | 10.66 | 10.77 | 10.87 | 10.98 | 11.08 | 10.5 | 10.54 | 10.6 | 10.65 |
| 120 pcs | 1200pcs | 50000pcs | 100000pcs | |
| Box Size | 22*20*8CM | 23*28*25CM | 120*100*100CM*2 PALLETS |
120*100*122CM* 3PALLETS |
| GW | 1.5KG | 16KG | 675KG | 1350KG |
DETAILED IMAGES
---------§---------
PYSICAL
CHARACTERISTIC
| Dimension |
156.75mm X156.75mm
|
|||||
| Solar Cell Thickness | 180µm ± 20µm | |||||
| Front(-) |
Five 1mm wide bus bars (silver) with distance 31.2mm |
||||||||||
| Back(+) | 1.5mm wide silver/aluminum soldering pads, aluminum local back surface field. | |||||||||||
TYPICAL TEMPERATURE
COEFFICIENTS
| Voltage | - 0.3324%/K |
| Current | +3.50 mA/K |
| Power | -0.342%/K |
Packaging & Shipping
| 100 pcs | 1400pcs | 50000pcs | 100000pcs | 2000000pcs | |
| Packing Size | 22*20*8CM | 23*28*25CM | 120*100*100CM*2 PALLETS |
120*100*122CM* 3PALLETS |
120*100*122cm * 6 PALLETS |
| GW (KG) | 1.5KG | 15KG | 675KG | 1350KG | 2700kg |
   NW(KG) |
1.2kg | 12kg | 600KG | 1200kg | 2400KG |
Product instructions
solar module one of material, different model make different kind of solar panel. according to your choice to choose the related solar cell model.
