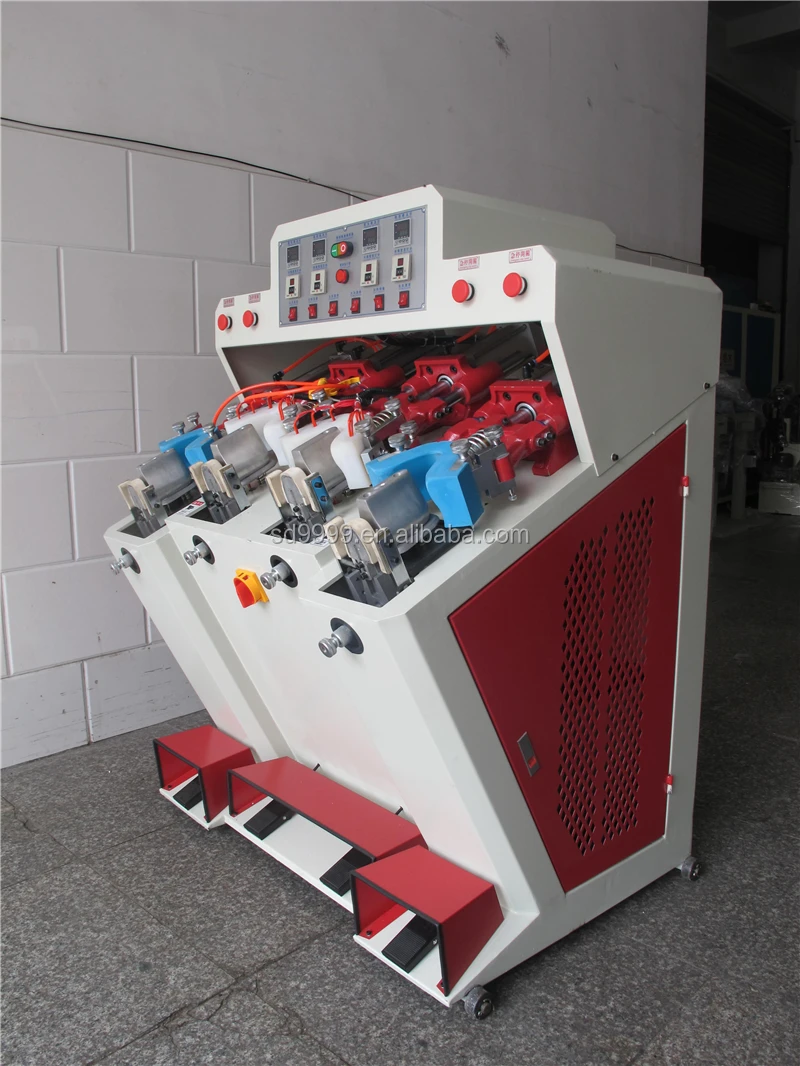

SD 622DB sports shoes leather shoes counter backpart moulding machine setting machine

Product Overview

Description

SD-622DB  spotrs shoes leather shoes counter  backpart moulding machine setting machine



Specifications

2. good effect of heel and high quality;
3. yield greater and the productivity higher.

Features



1. Double cooling and double heating mold group can make the yields greater and the productivity higher
2. The temperature of the inner and the outer molds can be adjusted, applying to the demands for the heating of the vamps and the liners of different materials.
3. The pre-shaped heel set can be glued with the vamp and the liner,which cannot be unglued easily.The liner can be completely leveled,to improve the quality of the vamp and reduce the rejection rate
4. The design of the slant machine can make the operation easier and more convenient.
5. The mold can be made according to the shoe shapes of the customers,which can reach the effects of obtaining the most accurate shapes
6. The clamp can adjust the journey or is not used,applying to the shoes of different shapes.





Technical parameters



Model	SD-622DB
Dimensions	1180*1000*1700mm
Power	2.8 KW
G.W.	410 KG
N.W.	320 KG
Output	1800-2000pairs/8h
