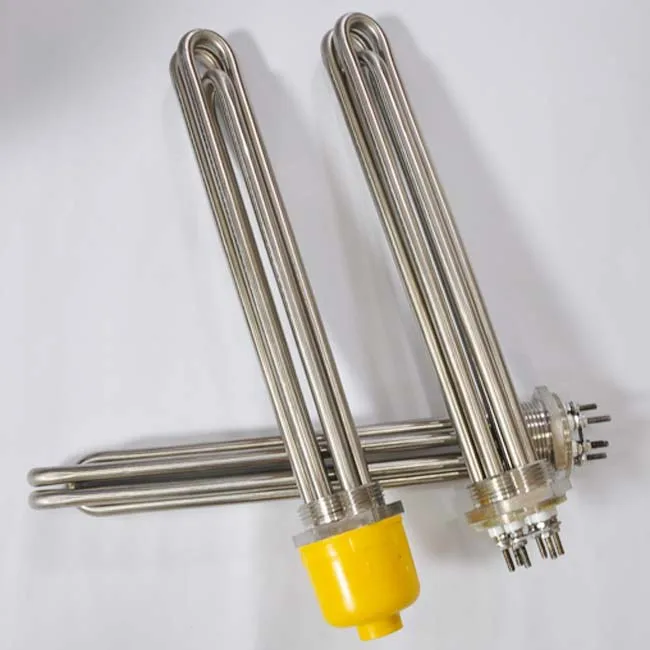

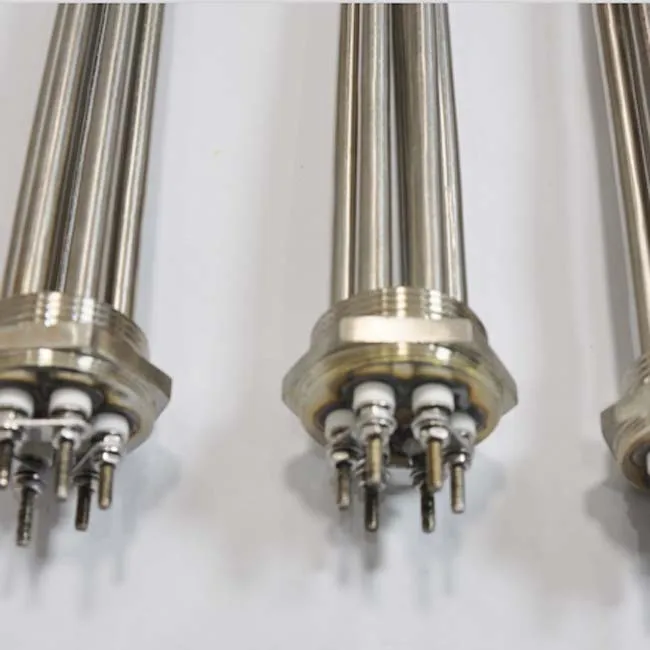

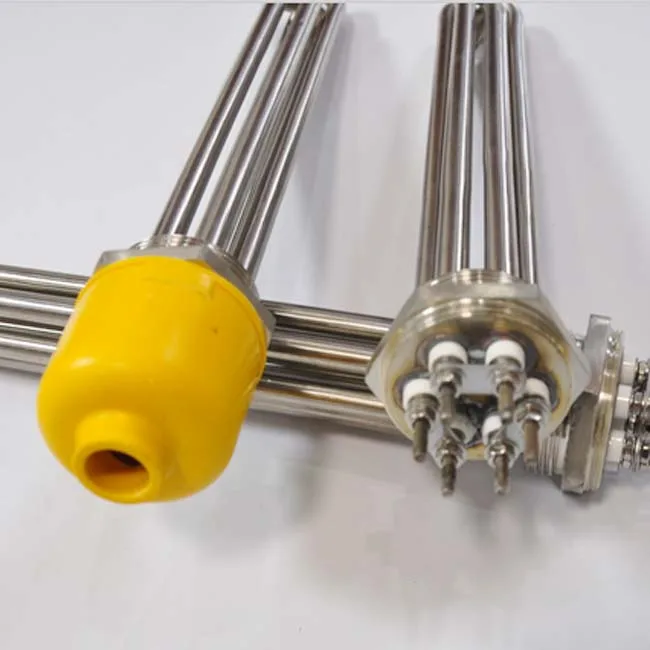

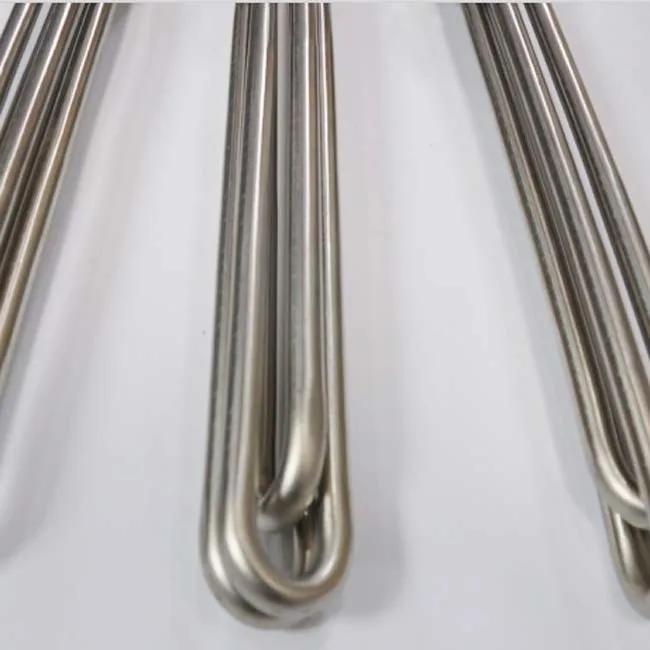

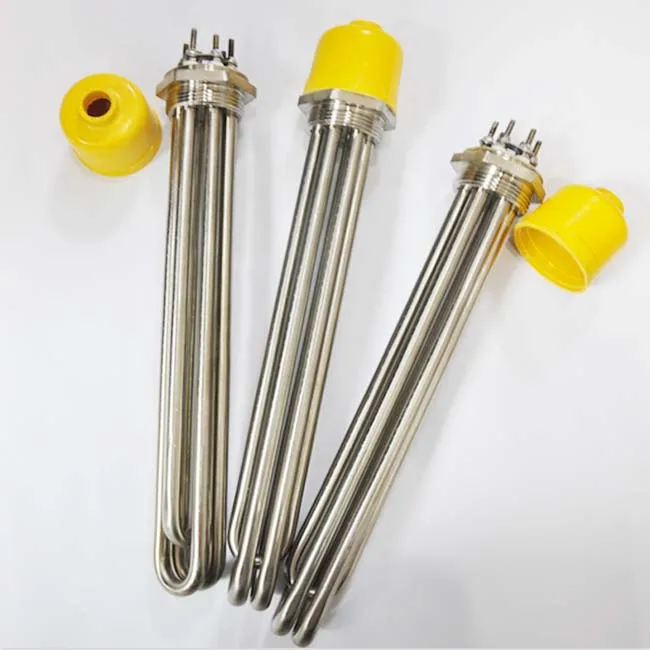

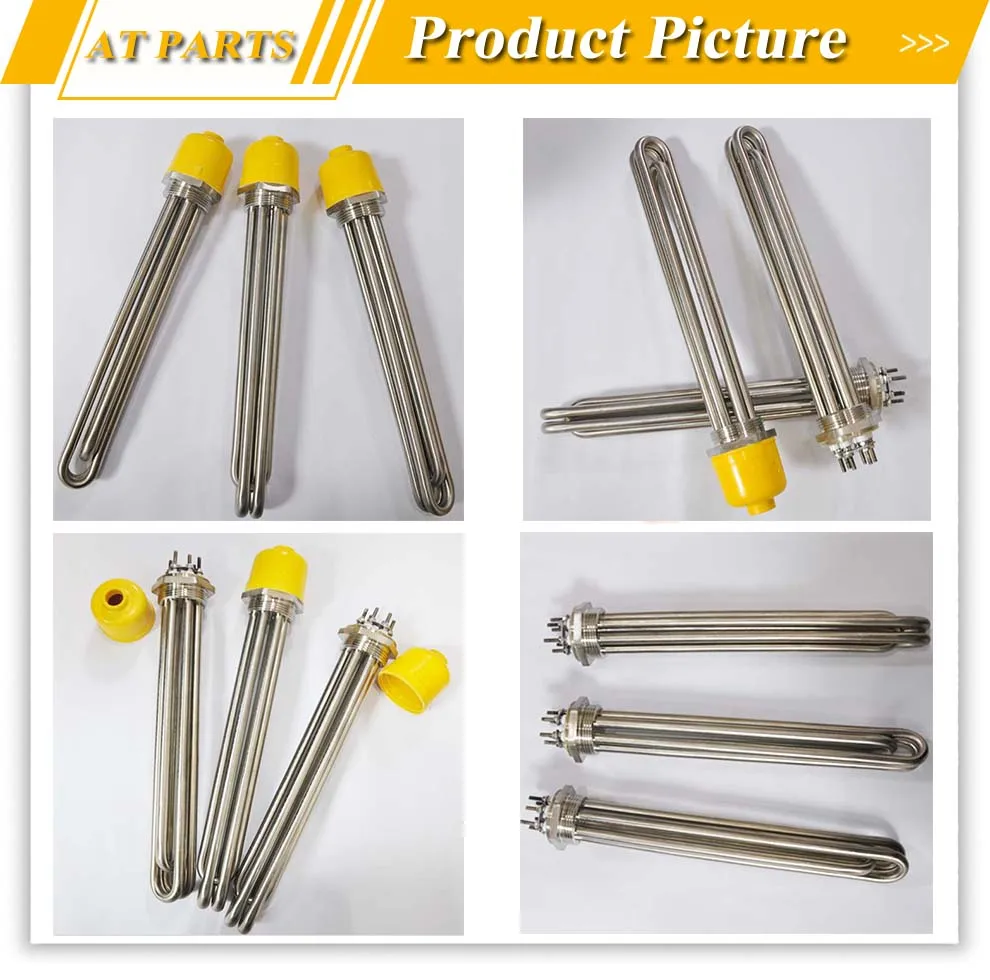

ATPARTS 3000 watt Best Selling Electric Industrial Immersion Tubular Heater Element for Water

Product Overview

Description

tubular heater,Low wattage tubular heater,electric tubular heater,tubular heater,straight tubular heater,industrial tubular heater,stainless steel tubular heater,electric tubular heater moment,industrial tubular heater,spiral tubular heater,micro tubular heater,Low energy tubular heater,tubular heater element,immersion tubular heater,water heater element,Waterproof Tubular Heater Element,Waterproof Tubular Heater,Tubular Heater Element,Immersion Tubular Heater,Water Immersion Tubular Heater,Water Tubular Heater,Immersion Tubular Heater Element,Screw Plug Tubular Heater Element,Screw Tubular Heater,Coil Tubular Heater,Spiral Tubular Heater,Tubular Heater Element,Tubular Heater Element,Titanium Tubular Heater,Industrial Tubular Heater Element,Flange Tubular Heater element,Flange Tubular Heater,Water Boiler Tubular Heater element,Flange faster Heating Element,Tubular Heating Element 220V,stainless steel Tubular Heating Element,Steamer Water Heater Element,Incoloy Water Tubular Heater,380V 12kw Tubular Heater,Tubular Air Heating Element.

ATPARTS 3000 watt Best Selling Electric Induatrial Titanium Immersion Tubular Heater Element for Water/Oil/Acid Heatinge









Tubular heaters are used for almost every kind of heating appliances. They are easy to form and feature highest mechanic stability and electric properties at the same time.
Flexible tubular heaters have developed to be a new industry standard for the use in heating platens, welding bars and manifolds.
Screw in tubular heaters are standardised for use in liquids like water.
Finned tubular heaters are especially for air-heating-cabinets or tunnels.
Important and useful characteristics of tubular heaters are that they can be formed into virtually any shape, brazed or welded to any metal surface, and cast into metals.

Overstandard quality
· Incoloy, stainless steel, steel or copper sheath

materials available

· Precision wound resistance wire for long heater life
· Superior heat transfer
· Variety of lengths available
· Resistance to shock, vibration, corrosion,
extreme temperatures
· Rapid heat transfer
· Customizable shape, size, diameter, kW ratings,
operating voltage





Sheath Material	SUS202/304/316L/Incoloy 800/Titanium etc
Insulation material	High-purity Mgo
Reisistance wire element	Ni-Cr/ FeCr
Tube Diameter	8mm,10mm,12mm or customized
Wattage	500W-15000W
Voltage	6v to 600v
Dimension(L*W*H)	5-10mm available
Length tolerance	+/-1.5%
Power tolerance	+5%,-10%
Product Keywords	Electric Flange 110v 1000w Immersion Heater
Material	Maximum Sheath Temperature	Application
Copper	350℉(170℃)	Water, Oil, Grease
Steel	750℉(400℃)	Alkaline cleaning solutions, Tars, Asphalt or air heating
Stainless Steel	1200℉(600℃)	Corrosive liquids, food processing equipment, Radiant heating
Incoloy	1500℉(815℃)	Cleaning and degreasing solutions, Corrosive liquids
Sheath Material	Maximum Watt /cm2	Medium
Copper	7w/cm2	Water, weak acid liquid
Copper	2.5w/cm2	Food oil, lubricating oil, hydraulic oil
Stainless Steel 304-316	11w/cm2	Water, weak acid liquid
Stainless Steel 304-316	2.5w/cm2	Food oil, lubricating oil, hydraulic oil
Stainless Steel 304-316	5w/cm2	still air
Stainless Steel 304-316	5.5w/cm2	Flow rate is not low 6m/s air
Stainless Steel 304-316	13w/cm2	Cast in aluminum or iron
Icoloy	10w/cm2	Still air
Icoloy	11w/cm2	Flow rate is not low 6m/s air











Q.Why the price is so low?
A: You are ordering directly from the factory.



Q.How can I get the quotation and specifications?
A: Dericen's heating element and temperature sensor is customized,can produce based on clients' requirments.



Q.Where is your factory located? How can I visit there?
A: Our factory located in Yancheng City,Jiangsu Province,China,about 4 hours bus ride from shanghai.



Q.What type of payment do you have available?
A: TT and L/C are accepted,for sample,the west union/moneygram,alibaba and paypal are available.



Q.How can I get some samples?
A: Samples are available,just contact US.



Q.How does your factory do regarding quality control?
A: Dericen has over 20 years experience for heating elements,quality is controlled by CE,ROHS and other quality certifications.



Use & Installation
Typical tubular heaters installations and uses

In Free Air
For applications like ovens and drying cabinets, tubular heating elements are compact, rugged heat sources. Their formability permits fitting around other oven components and work protrusions, concentrating heat at any point.



In Moving Air
Compression fittings, factory mounted fittings or brackets will mount a tubular element in a duct or air heating chamber.



In Liquids
Tubular heaters listed may be mounted through the side wall of a tank with compression fittings or by factory mounted fittings.



Transferring Heat to Metal Parts
The available diameters, lengths, ratings, watt densities, cross-sections, and maximum temperatures provide the solution for a given job.



Immersion in liquid heating
Water and water solutions can generally be heated to any desired temperature. If liquid is under pressure, temperatures should not exceed the maximum sheath temperature of the element minus 100°F.



Oil heating
Steel sheath elements can be used for heating oils, heat transfer oils and other solutions not corrosive to steel sheath.



Air & gas heating
Use watt densities compatible with work temperatures. Refer to Technical section of this catalog. Heaters mounted horizontally must be supported to avoid sagging at high temperatures.



Mounting Methods
Elements can be supplied with threaded fittings for mounting thru walls of tanks, ovens, etc. Compression threaded fittings are also available for easy field installation. Rings, clips, brackets and washers can also be attached to elements for mounting purposes.
