Product Overview

Description

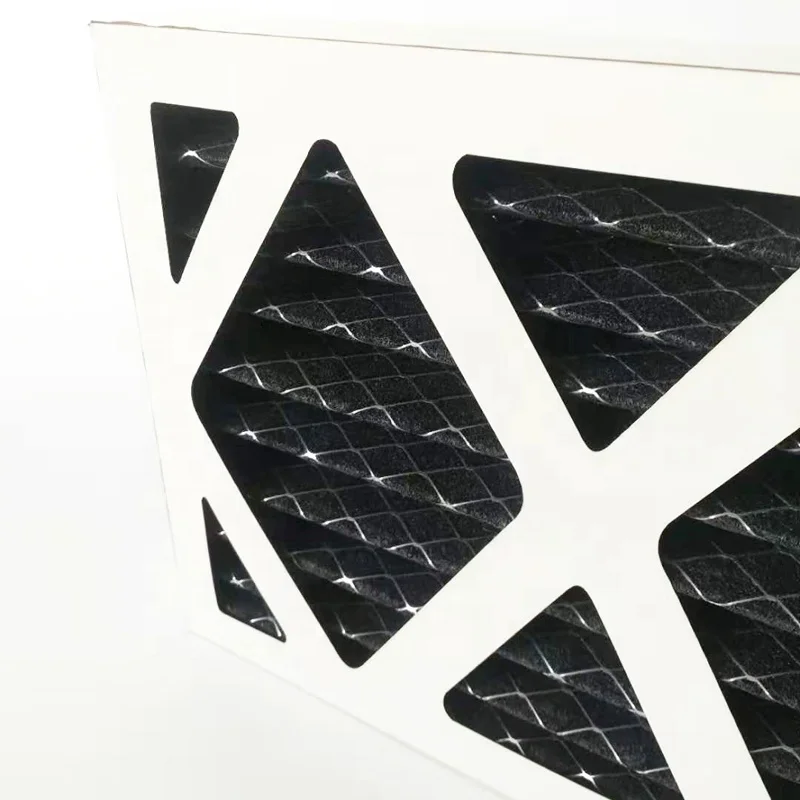

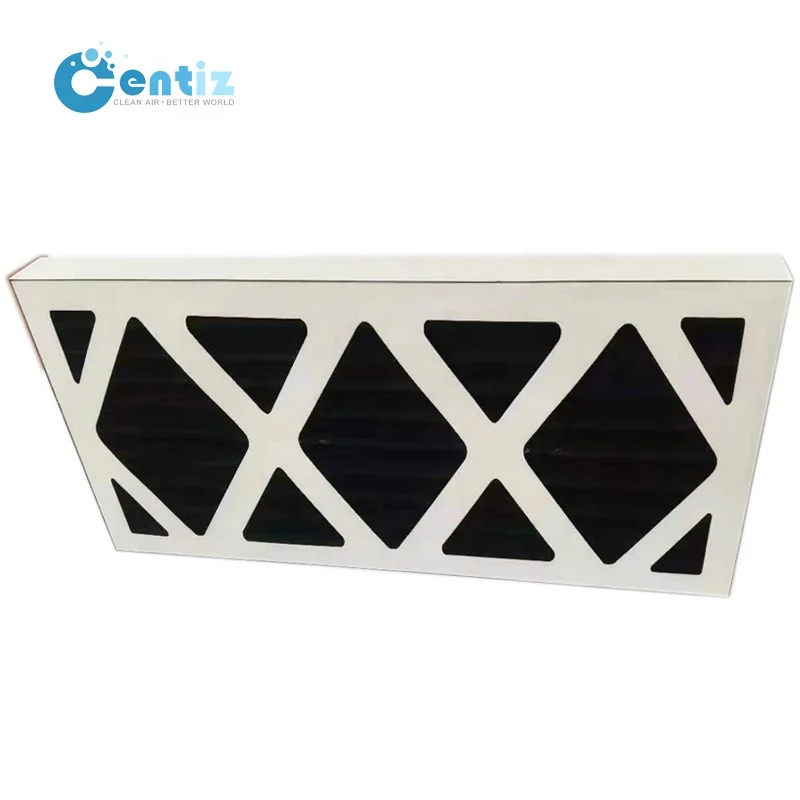

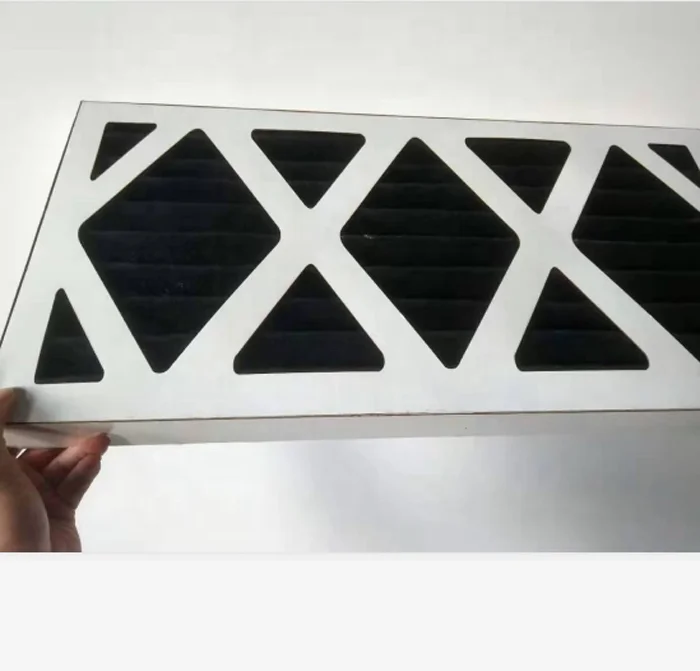

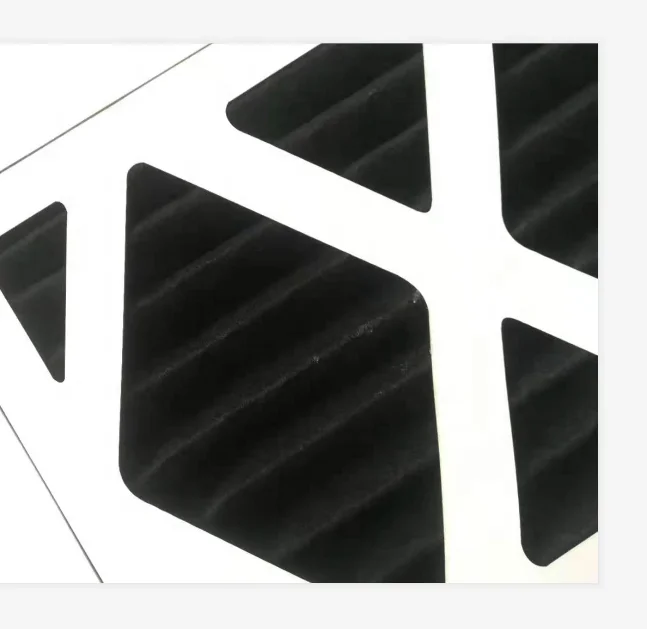

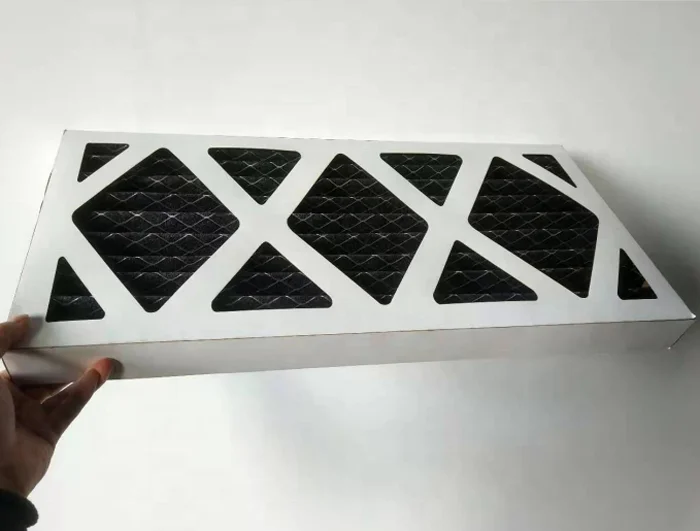

Activated carbon media filter with cardboard frame

Product features

Small volume and density, large specific surface area, high adsorption efficiency, low drag coefficient, no odor
Its carbon content is around 35%-50%
Sealant: hot melt adhesive
Acid and alkali resistance, VOC(volatile organic compounds)
Applicable temperature: 0-40 °C
Applicable humidity: <70% relative humidity

Application of product

Ventilation and air conditioning system with tight installation space and need to remove odorous gas pollutants
Commercial and civil buildings such as airports, high-end hotels, office buildings, and large shopping malls;
Air supply air-conditioning systems for museums, libraries, art galleries, etc.;
The best choice for optimizing the filtration function of current comfort air conditioning systems

Specification list
Nominal size
Actual size
Pleated number
Filter material area
Activated carbon weight
Air volume
Pressure loss
(inch)
(mm)
(pleat)
(m2)
(Kg)
(m3/h)
(Pa)
(W×H×D)
(W×H×D)
24×24×2
592×592×46
33
1.9
0.76
3400
180
12×24×2
290×592×46
16
0.9
0.36
1700
180
Activated carbon filter with cardboard frame
