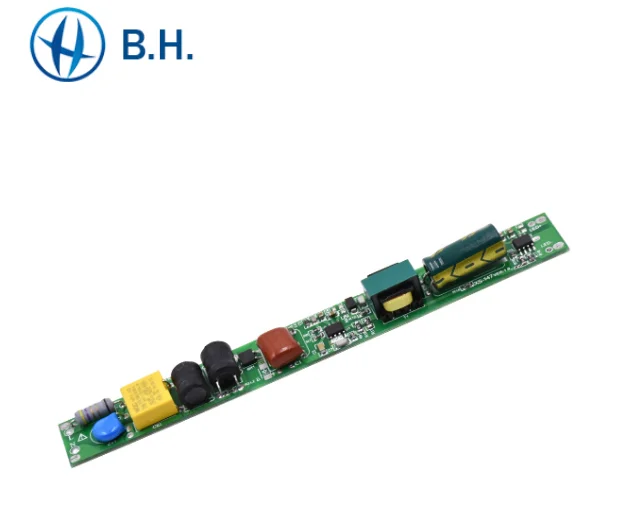

Бесмерцающий светодиодный трубчатый драйвер освещения 30 80 в импульсный источник питания 20 Вт
- Category: >>>
- Supplier: Shenzhen Bilateral Honesty Technology Co. Ltd.
Share on (62397734724):
Product Overview
Description
Product Parameters
XS-147 ( Pass CE ) | ||
Output Power: | 6~20W | |
Voltage Input: | 90~264V | |
Output Voltage: | 30~80V | |
Output Current: | 100~240mA (adjustable) | |
Surge Protection | 2.5KV ( optional ) | |
PFC : | PF≥0.9 | |
Certificate | Pass CE | |
Flicker | Flicker Free | |
Warranty | 3Years | |
P/N | Typical Power | Input Voltage | Output Voltage | Output Current | Conversion Efficiency | Power Factor | THD |
XS-147 | 6W | 90~264V | 30~80V | 100~240mA | 90% | ≥0.9 | ≤20 |
XS-147 | 12W | 90~264V | 30~80V | 100~240mA | 90% | ≥0.9 | ≤20 |
XS-147 | 15W | 90~264V | 30~80V | 100~240mA | 90% | ≥0.9 | ≤20 |
XS-147 | 18W | 90~264V | 30~80V | 100~240mA | 90% | ≥0.9 | ≤20 |
XS-147 | 20W | 90~264V | 30~80V | 100~240mA | 90% | ≥0.9 | ≤20 |
Product Description
This is a Non-isolated driver. Wide input voltage VAC 90-264V, Current range 100-240mA adjustable , High efficiency , High PF ≥0.9.
Application: Inside LED Tubes or add a shell for external use and so on . Use for office buildings, shopping malls, restaurants,schools, homes, factories, etc .
Application: Inside LED Tubes or add a shell for external use and so on . Use for office buildings, shopping malls, restaurants,schools, homes, factories, etc .
Details Description

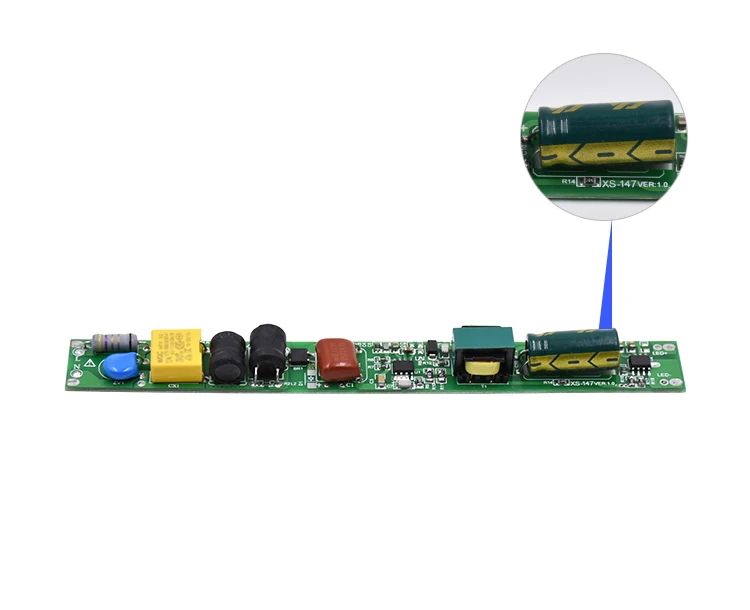

Electrolytic Capacitor
High performance,high reliability, Low impedance,high ripple current, Long life Lifetime + 105°C , 4, 000 to 10, 000 hours
Superior quality
Superior quality

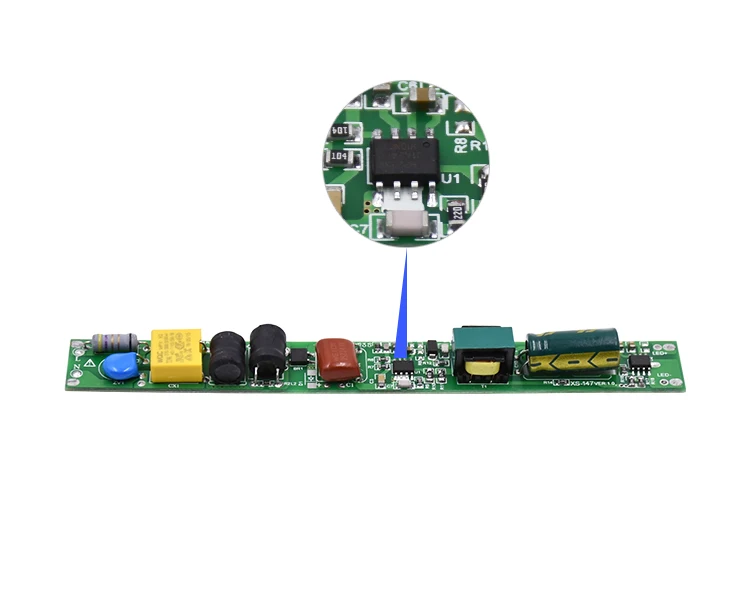

BP Brand IC
Taking energy saving and consumption as the leading factor, relying on

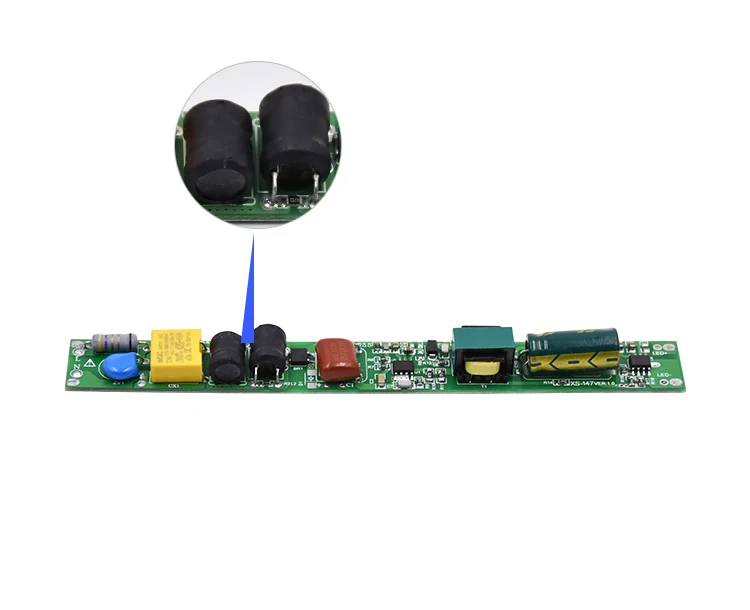

smart chip technologyWord Inductance
Pass CE EMC
heat dissipation during operation and improving product life.
Driver Features
Flicker Free
Surge Protection 2.5KV (optional ) . Short circuit protection, open circuit protection, over voltage protection, overheat protection, making it more stable and safer when working .
Use high-insulation FR4 PCB , high-conductivity copper foil lines, and reasonable design of the circuit to ensure efficient driving;
Application Scenarios
Office Application
Home Application
Use for Tube Light
Company Profile

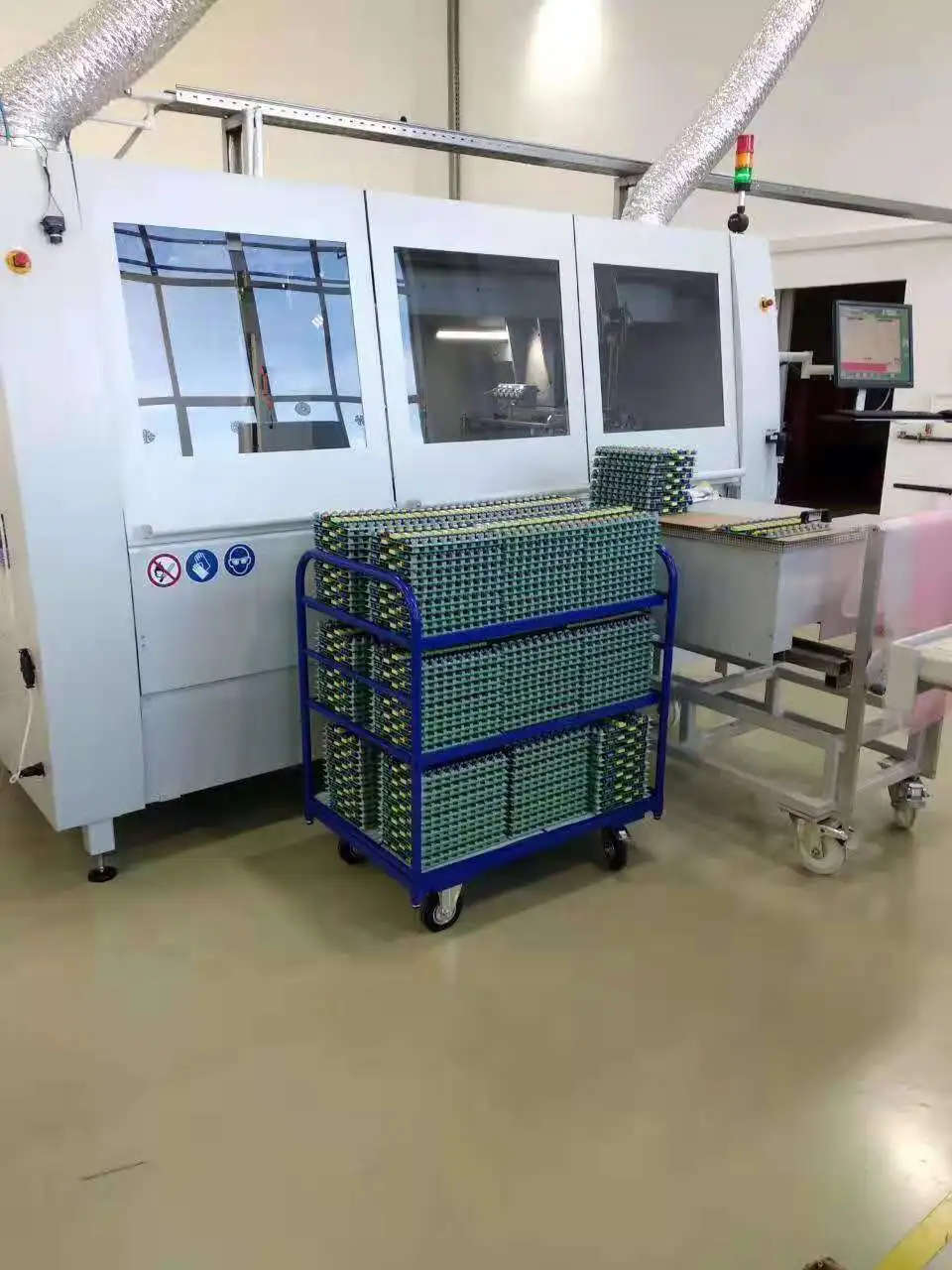

Production Equipment
