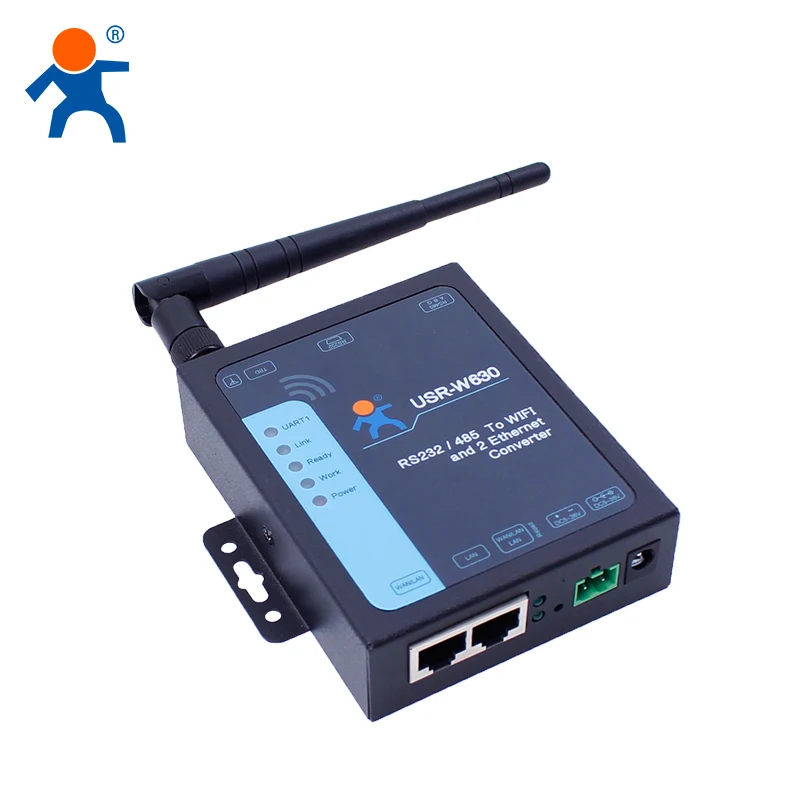

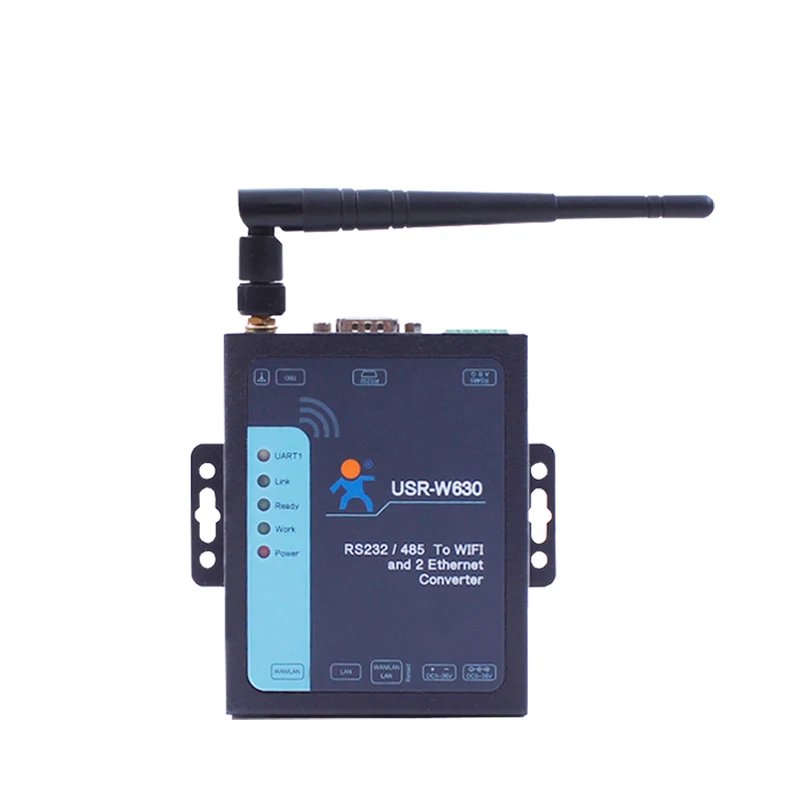

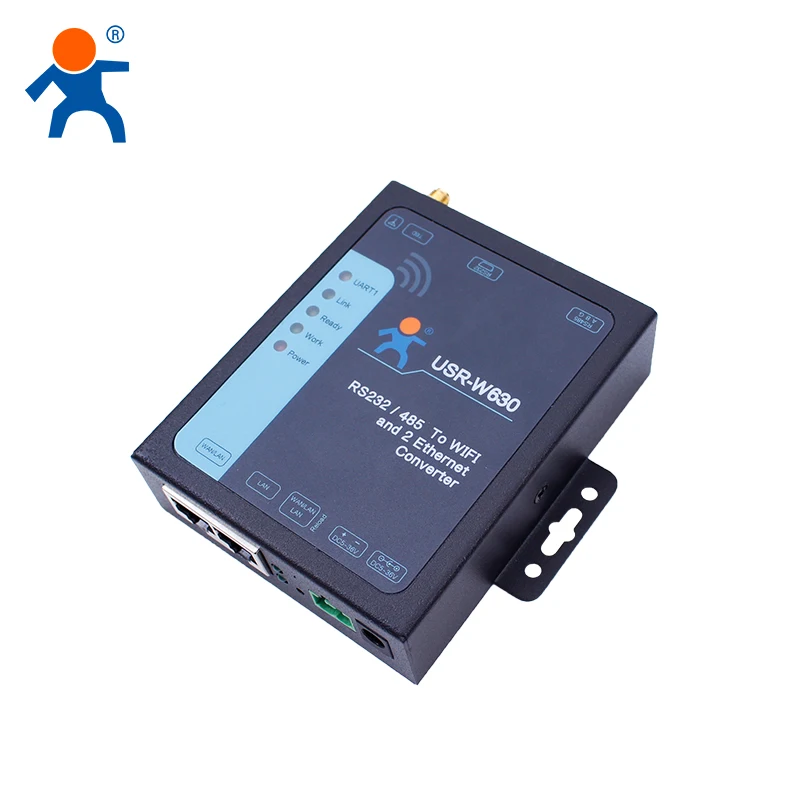

Serial RS485/RS232 Port to WiFi Ethernet Converter with modbus RTU to TCP USR W630

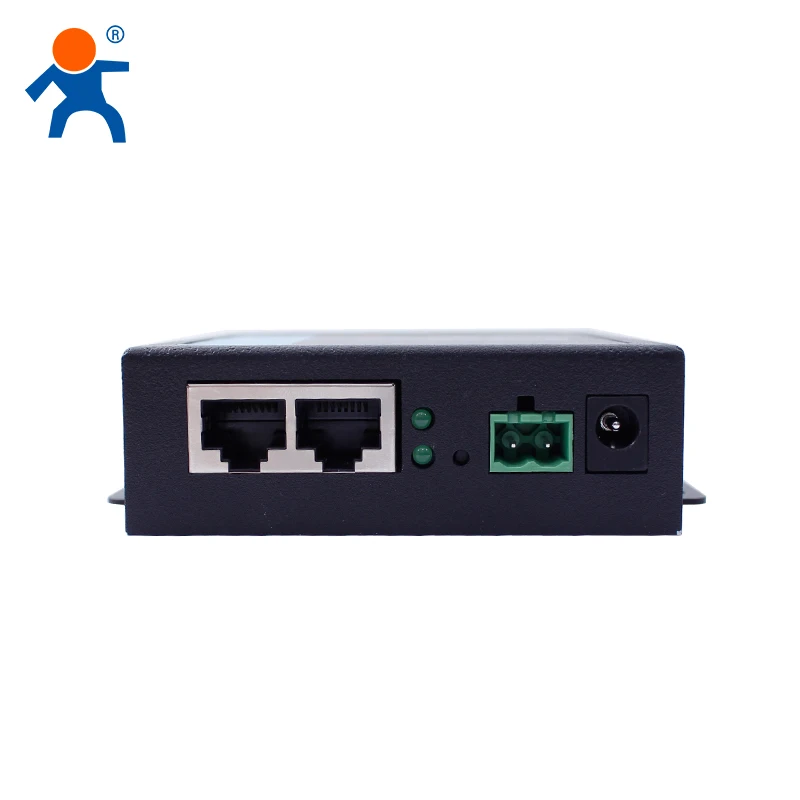

Two Ethernet ports: 1x WAN, 1x LAN/WAN. Two Ethernet ports (WAN and LAN) can be worked simultaneously

Modbus gateway: Modbus TCP to Modbus RTU in bi-directional; Modbus Polling
Electrostatic protection

Hardware WatchDog, 24 hours stable operation.
Timeout reset function, timing reset function.

Supports identity packet function.
Supports heartbeat packet function.
Websocket function
Supports Web Server, setup software, serial/network AT command to configure module.
Hardware reload.

WIFI Standard: 2.4GHz 802.11b/g/n
Work Mode:TCP Server/TCP Client/UDP Server/UDP Client/HTTP Client mode.
Supports AP, STA, AP+STA.
Supports usrlink.

EFT: Passed EFT test, when there is instantaneous high current in the circuit (such as lightning, power switch, etc.), it can ensure that the device hardware is not damaged. Power: 2KV, Ethernet interface 232 485: 2KV

1.Modbus Polling Mode
In this mode, it supports Modbus TCP and Modbus RTU mutual conversion.
2. Heartbeat Packet Function
USR-W630 supports network heartbeat packet and serial heartbeat packet. The network heartbeat packet notifies the server that it is in an active state, and it maintains the normal connection with the server by continuously sending the heartbeat packet.Serial port heartbeat packet notifies the serial device that USR-W630 is in an active state, and takes the initiative to grab the sensor data can not be initiative to push.
3. Socket Distribution Protocol
USR-W630 suppports SDP, you can add certain header in serial data. It will send the data to differetnt socket by different header. The data received from different
socket will be added different header before they are sent to serial.
4. Regular Restart Function
USR-W630 supports timing and timeout restart function, which makes the system run more stable.

1.Ethernet\t
Port Number\t2 ethernet ports: 1 x WAN, 1 x WAN/LAN
Buffer\tRx/TX: Max 16K bytes
Protection\t2 KV Electromagnetic isolation for Ethernet port
Network Protocol\tIP/TCP/UDP/DHCP/DNS/HTTP/ ARP/ICMP/Web socket/Httpd client
Speed Rate\t10/100 Mbps, MDI/MDIX
2.Wi-Fi\t
Certificate\tFCC/CE
WiFi\t802.11 b/g/n
Frequency Range\t2.412GHz-2.484GHz
Transmit Power\t802.11b: +19dBm(Max)
802.11g: +18dBm(Max)
802.11n:+17dBm(Max)
Receive Sensitivity\t802.11b: -89dBm
802.11g: -81dBm
802.11n: -73dBm

3.Hardware\t

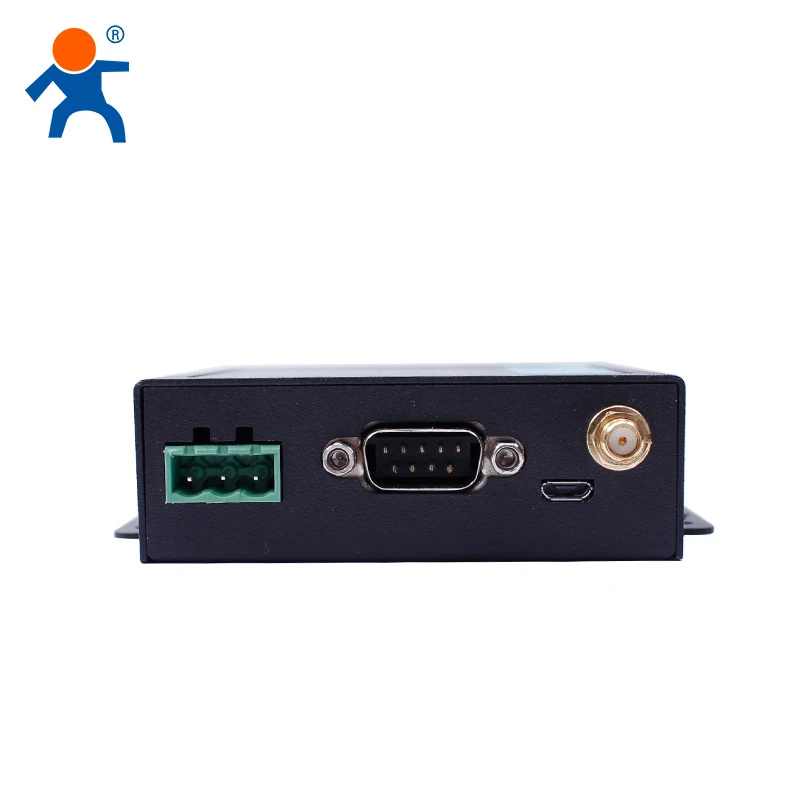

Interface Standard\tRS232:300~460.8Kbps
RS485:300~230.4Kbps
Input Voltage\tDC5~36V
Operating Temp.\t-40℃~ 85℃
Storage Temp.\t-40℃~ 125℃
Size\t86*82.5*25mm(L*W*H)

4.Software\t
Network Mode\tStation/AP/AP+Station
Security\tWEP/WPA-PSK/WPA2-PSK
Encryption\tWEP64/WEP128/TKIP/AES
Work Mode\tTransparent transmission / serial AT command/
HTTP Client,Modbus TCP<=>Modbus RTU
Setting Command\tAT+command
Networking Protocol\tTCP/UDP/ARP/ICMP/DHCP/DNS/HTTP
Max. Client Number in TCP Server Mode\t24
Configuration\tWeb sever+ AT command
5.More

Warranty\t2 years

Smart Agriculture
1.Monitoring the situation in the greenhouse,such as utilization rate about water resources, fertilizers and so on.
2. To obtain farmland information and monitor sudden natural disasters.
3. Fully automated operation without human intervention, achieving the precise control of agriculture.

Industrial Detection
1. According to the site environment to choose WiFi or wired networking.
2. Real-time detection of air leakage products mixed in

bottle buckles.
3. High sensitivity transmission monitoring data, the accurate data can ensure that monitoring without omission.
