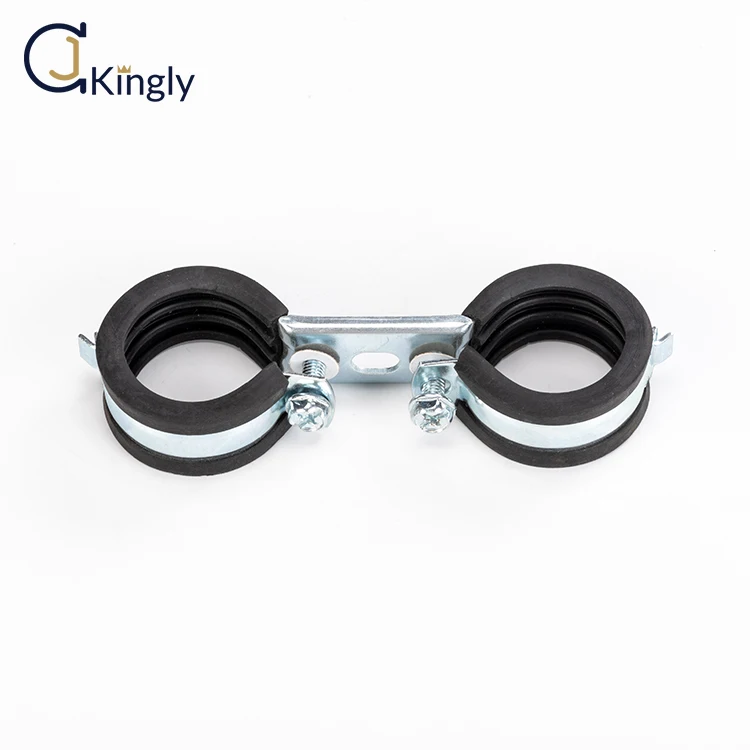

High quality sound insulated parallel double rubber pipe clamps for two pipes
- Category: Clamps >>>
- Supplier: Zhongshan,Jiancheng,Hardware,Multi-products,Factory
Share on:
Product Overview
Description
About the price
Due to the difference of models, please contact us for more detail
Product Description
Features:
1, suitable for indoor and outdoor environments.
2, suitable for all types of pipelines, mainly for fixed pipelines.
3, the installation is quick and convenient, and the operation is simple.
4, anti-corrosion, heat resistance.
1, suitable for indoor and outdoor environments.
2, suitable for all types of pipelines, mainly for fixed pipelines.
3, the installation is quick and convenient, and the operation is simple.
4, anti-corrosion, heat resistance.
For Suspending Stationary Non-Insulated Copper Tubing Lines

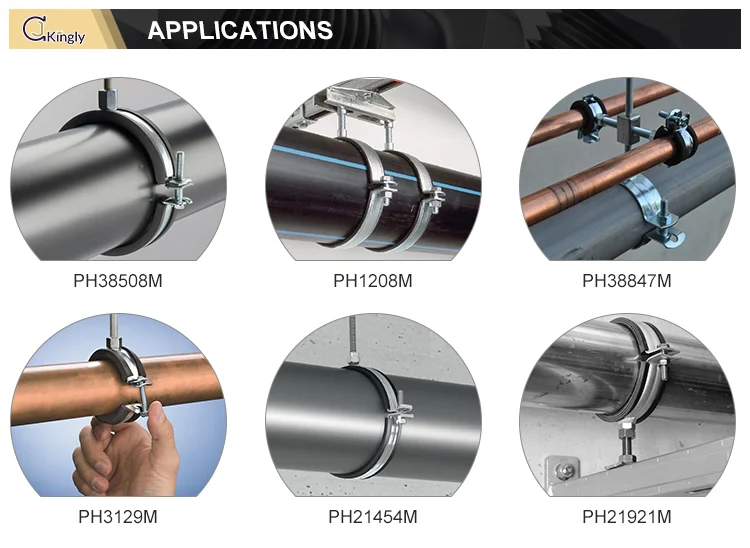

Being fasteners for pipe lines such as heating, sanitary and waste water pipes;to walls, ceilings and floors.
Being fasteners for pipe lines such as heating, sanitary and waste water pipes;to walls, ceilings and floors.

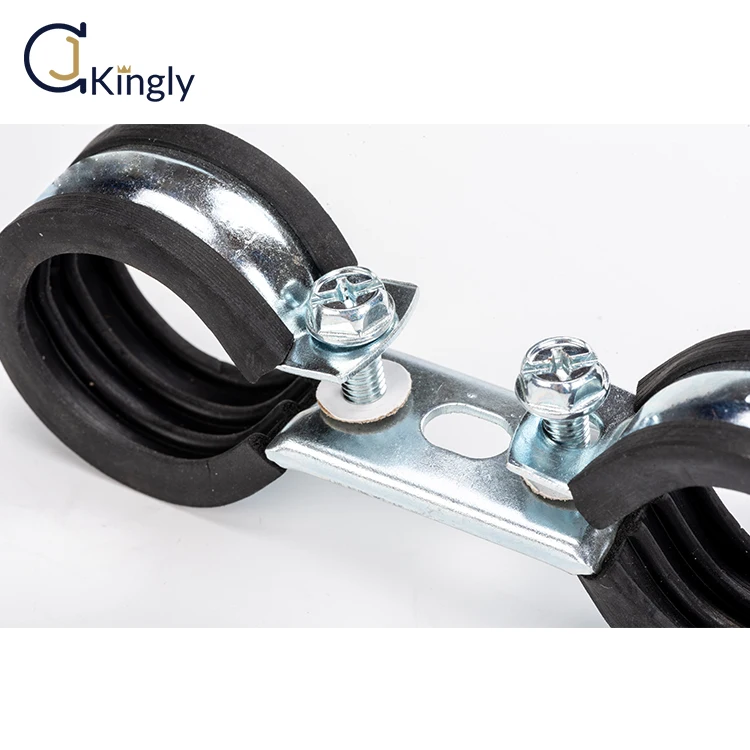

Side screws are protected against loss during assemble with the help of plastic washers

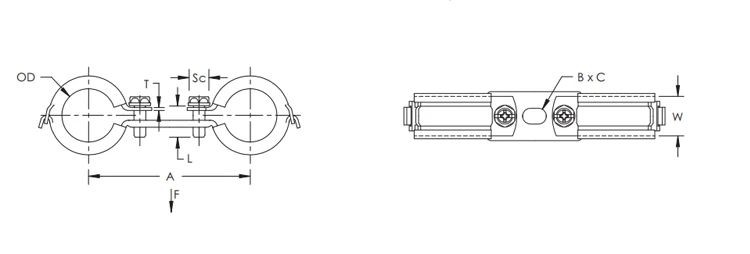

Part number | inch | NB/DN | thickness | A | B | C | torque |
MDCO19 | 3/8 | 10 | 15-19MM | 1.5MM | 72MM | 8.5MM | 500N |
MDCO23 | 1/2 | 15 | 21-23MM | 1.5MM | 76MM | 8.5MM | 500N |
MDCO28 | 3/4 | 20 | 26-28MM | 1.5MM | 82MM | 8.5MM | 500N |
MDCO35 | 1 | 25 | 32-35MM | 1.5MM | 89MM | 8.5MM | 500N |
Material: Steel, EPDM-SBR Rubber
Finish: Electrogalvanized
Width: 20 mm
Screw Diameter: M6
Screw Length: 20 mm
Temperature: -50 to 110 °C
Color: Black
Finish: Electrogalvanized
Width: 20 mm
Screw Diameter: M6
Screw Length: 20 mm
Temperature: -50 to 110 °C
Color: Black
* Fast installation of parallel pipes from a single anchor
* Category II noise reduction according to DIN EN ISO 3822-1
* Compliant for sound insulation design according to DIN 4109
* Reaction-to-fire classification is "E" in compliance with DIN EN 13501-1:2010-01
* Category II noise reduction according to DIN EN ISO 3822-1
* Compliant for sound insulation design according to DIN 4109
* Reaction-to-fire classification is "E" in compliance with DIN EN 13501-1:2010-01
Recommend Products
Packaging & Delivery
FAQ
1.About Price:
Our prices are mostly based on EXW term with MOQ in normal package without marking. The price is negotiable which can be changed according to your order quantity. When you are making an inquiry, please let us know the quantity you want.
2.About Raw Material:
Galvanized Steel, EPDM rubber (both are RoHs, SGS certificated)
3.About Sample:
Samples are FREE, but please kindly bear the freight costs. We can help to choose the cheapest forwarder service for you. Those costs can be returned when you place the order.
4.About MOQ:
Our MOQ for the products are based on the mould models which can be 3,000pcs to 5,000pcs.

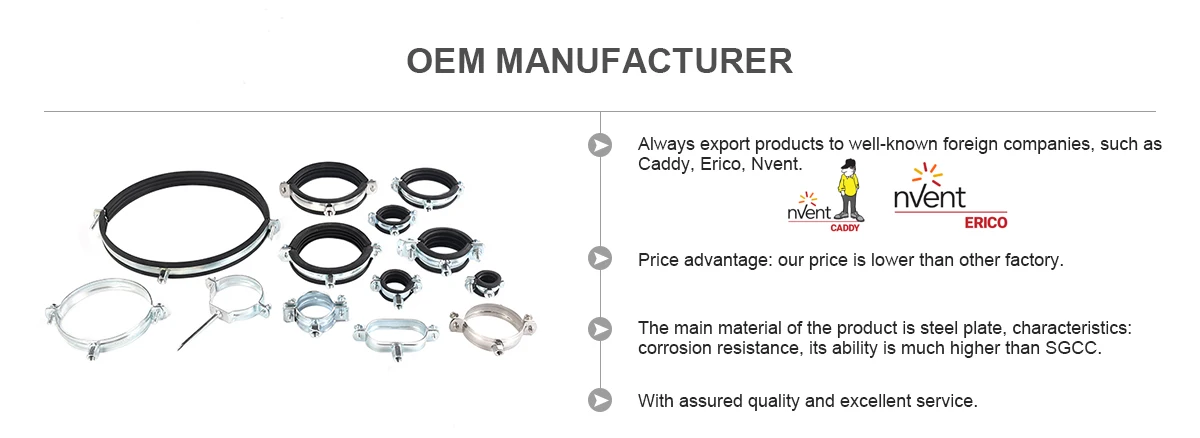

5.About OEM:
Welcome, you can send your own design drawings to us, our R&D Department will give the professional advises and make it into production.
6.About Customized Logo:
Welcome, It will be FREE for you if your order quantity for each size is more than 10,000pcs, please your own design logo CDR file to us.
7.About Quality Control:

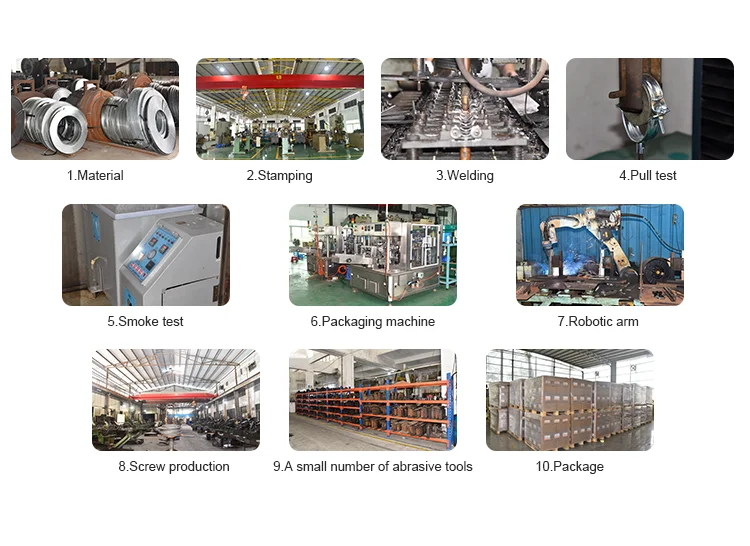

QC Department monitors from incoming materials to every important production steps. THREE main testings will be carried out: Salt Spray Test; Torque Test; Tensile Test for loading capacity.
9.About Certifications:
ROHS, SGS,FM/UL(on Customer’s brand), we are able to acquire the certifications for your needs.
10.About Payments:
Our prices are mostly based on EXW term with MOQ in normal package without marking. The price is negotiable which can be changed according to your order quantity. When you are making an inquiry, please let us know the quantity you want.
2.About Raw Material:
Galvanized Steel, EPDM rubber (both are RoHs, SGS certificated)
3.About Sample:
Samples are FREE, but please kindly bear the freight costs. We can help to choose the cheapest forwarder service for you. Those costs can be returned when you place the order.
4.About MOQ:
Our MOQ for the products are based on the mould models which can be 3,000pcs to 5,000pcs.
5.About OEM:
Welcome, you can send your own design drawings to us, our R&D Department will give the professional advises and make it into production.
6.About Customized Logo:
Welcome, It will be FREE for you if your order quantity for each size is more than 10,000pcs, please your own design logo CDR file to us.
7.About Quality Control:
QC Department monitors from incoming materials to every important production steps. THREE main testings will be carried out: Salt Spray Test; Torque Test; Tensile Test for loading capacity.
8.About Delivery:
Depends on the products, basically 15-35 working days after prepayment.
Depends on the products, basically 15-35 working days after prepayment.
9.About Certifications:
ROHS, SGS,FM/UL(on Customer’s brand), we are able to acquire the certifications for your needs.
10.About Payments:
Please kindly note that our payment term is 50% prepayment before production, 50% balance payment before delivery.
