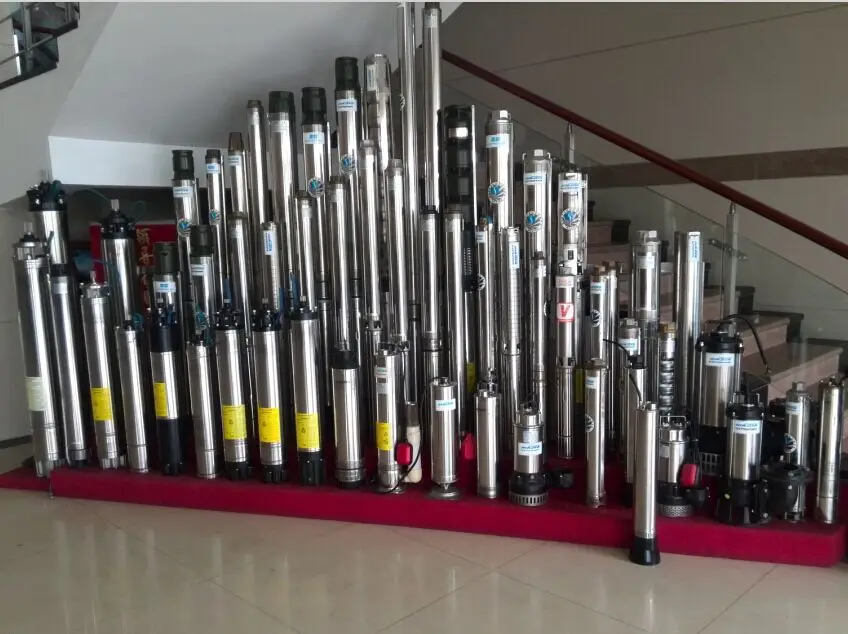

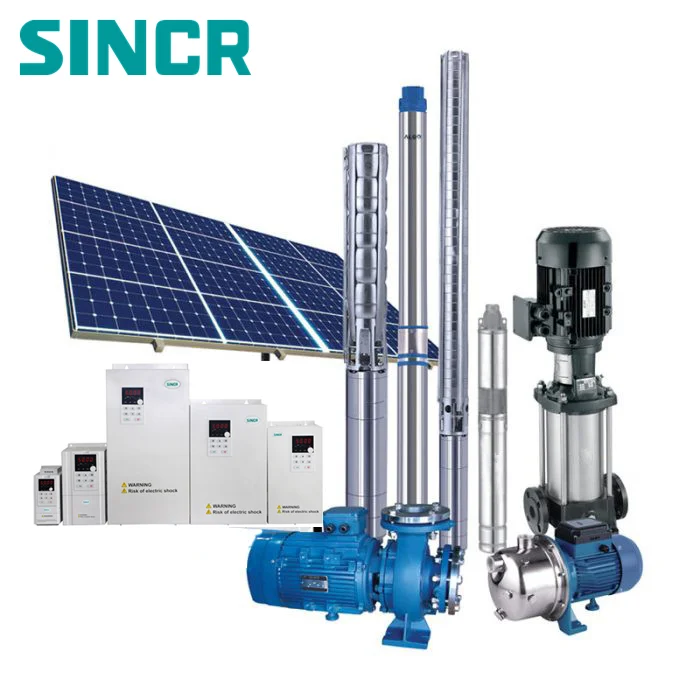

150m Max Head Submisible Solar Pump 30m3/h Solar Water Well Pump Solar Pool Pump Kit System For Deep Well

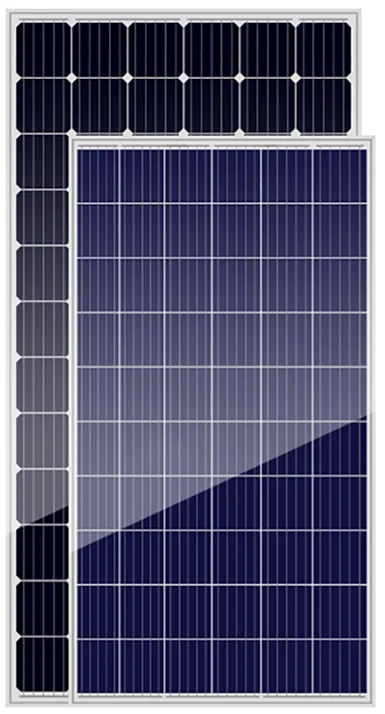

 Solar panel

• High-efficiency monocrystalline and polycrystalline solar module with conversion efficiency up to 19.58%.


• 10-year material process warranty,25-year line warranty.

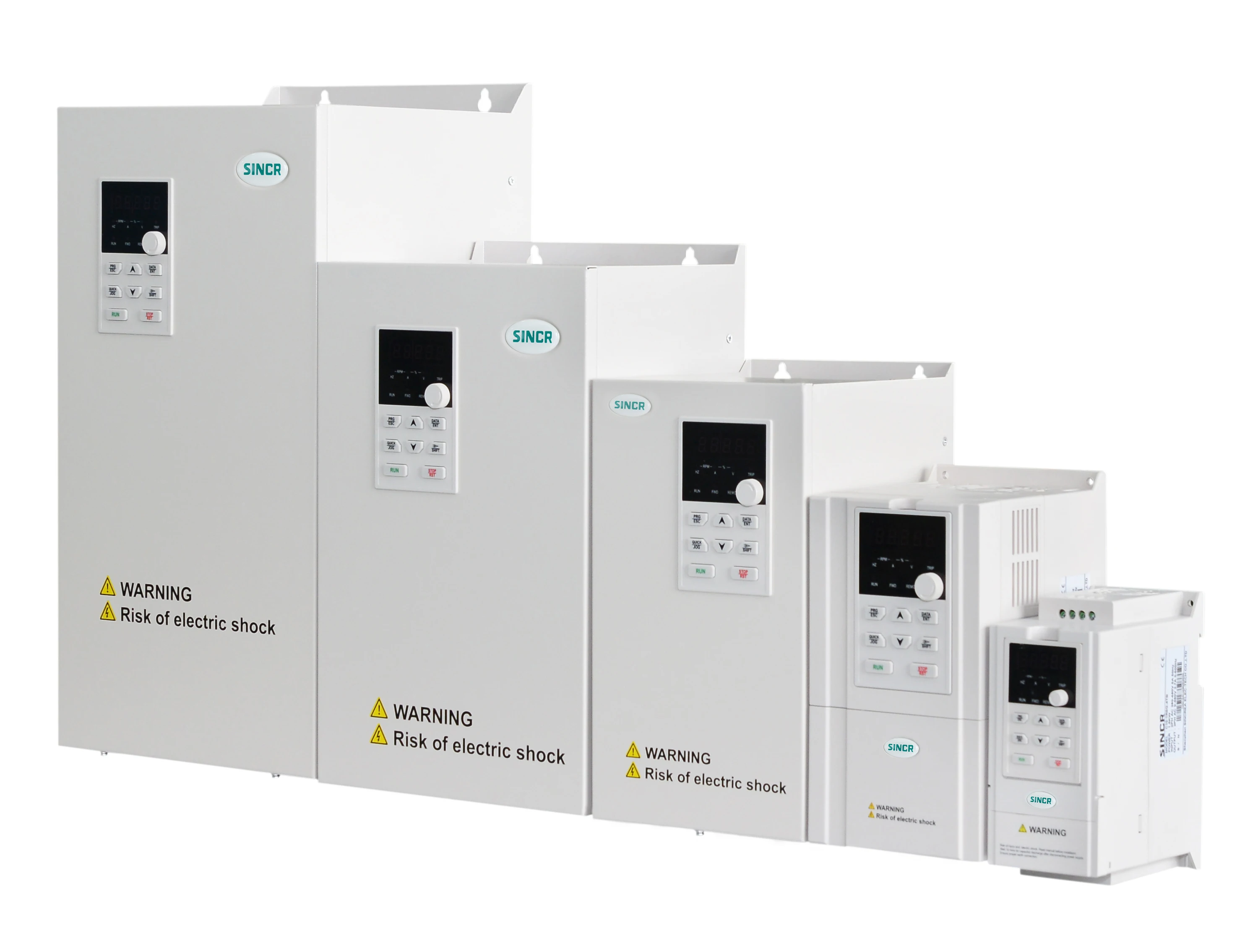

Solar Pump Inverter

• Built-in high-precision MPPT function, with accuracy reach up to 99%, make full use of solar energy.


• RS485 real-time remote monitoring system, remote control and monitoring system status.

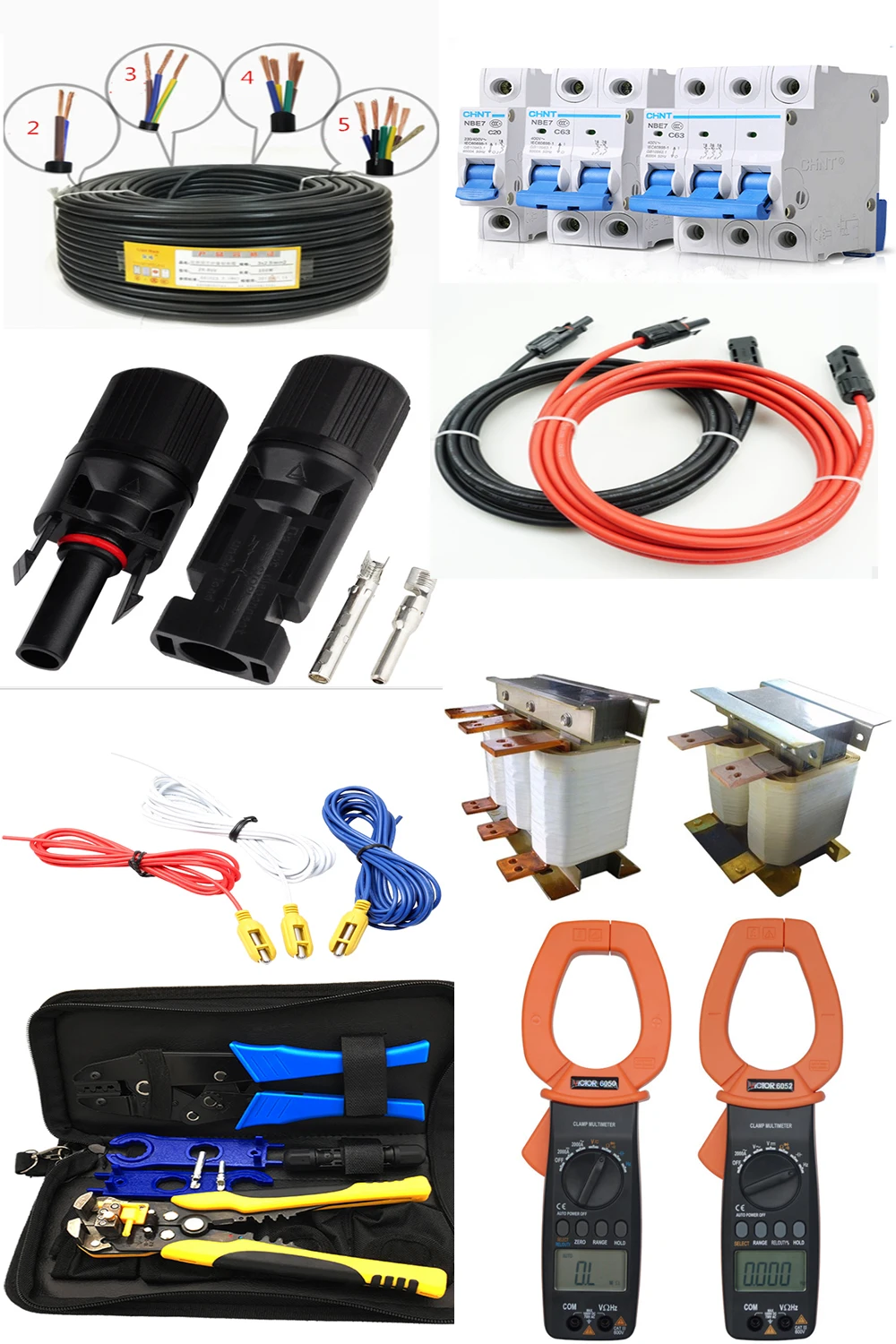

Accessories:

• Various AC/DC cables for the system.


• AC/DC breaker.


• MC4 connector MC4 branch connector.


• Steel wire rope and joint.


• Water level sensor.


• Output reactor and filter.


• PV installation tools.


• AC/DC multi-meter.

Note: Accoring to the installation environment and conditions, other accessories can be configured.

Location

Sindh-Pakistan

Purpose

Agriculture irrigation

Water source

River. water depth 8-10m, 2m from river to tank

Requiredments

Pakistan is a large country with traditional agricultural production. Due to the shortage of electricity, when agricultural irrigation requires water, it often loses power, which will have a great impact and loss on the cultivation of local farmers. In order to solve the actual pumping difficulties, SINCREA solar pump irrigation system was introduced to meet the needs of agricultural irrigation.

Solutions

Water pump

3KW AISI304 submersible pump,3phase,380V

Rated water flow:20 m³/h;Rated lift head:10m

Solar panel

4.8KW,15pcs 320W Mono solar panel in series

Solar pump inverter

SINCREA,Model:SV500-004-4TB

4KW Solar pump inverter,3phase 380V

Mounting bracket

Ground fixed Q235 hot galvanizing steel mounting bracket

Accessoires

DC/AC cables,MC4 connector,water level sensor,DC/AC multi-meter,installation tool.etc

Benefits

Adopting SINREA 3KW solar pump system, the 4.8KW solar panel drive the 3KW pump by the 4KW solar pump inverter. The system pump water from the 8m depth river to the tank, and then flows to each farmland through the channel, working 6-8 hours a day, 100~150 cubic meters of water can be pumped for farmland irrigation, solving the water shortage due to power outage and water shortage, fully automatic operation, and no manual operation.

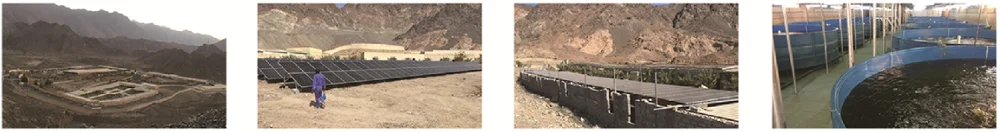

Location

Muscat-Oman

Purpose

Farm fishery, animal husbandry

Water source

Tank

Requiredments

The farm is located in the mountains and deserts, with drought and long sunshine radiation all the year, inconvenient for water supply, unable to meet the demand for electricity in the farm, and the high dependence of the fishery on water. Considering the power grid limit, the electricity price during the day is high and the electricity price is low at night. So to install SINCREA solar pump power supply system to provide protection for fish farming and farm electricity, saving electricity costs.

Solution

Water pump

2pcs 15KW pump+8pcs 7.5KW pumps+4pcs 4KW pump

Solar panel

150KW,480pcs 300W Mono solar panel in series and in parallel

Solar pump inverter

SINCREA,Model:SV500-015-4TB + SV500-7R5-4TB + SV500-004-4TB

15KW,7.5KW,4KW Solar pump inverter,3P 380V

Mounting bracket

Ground fixed + roof type Q235 hot galvanized steel bracket

Accessories

DC/AC cables,MC4 connector,MC4 branch connector,water level sensor, installation tools,DC/AC multi-meter.etc

Benefits

The SINREA 100KW ground fixed +50KW roof-type photovoltaic pump power supply system is installed in the farm. During the day, all solar energy is used to power the pump, and the electricity consumption at night is low. Now saves $1,500 in electricity bills per month, which not only solves the demand for electricity, but also saves the whole cost of electricity.
