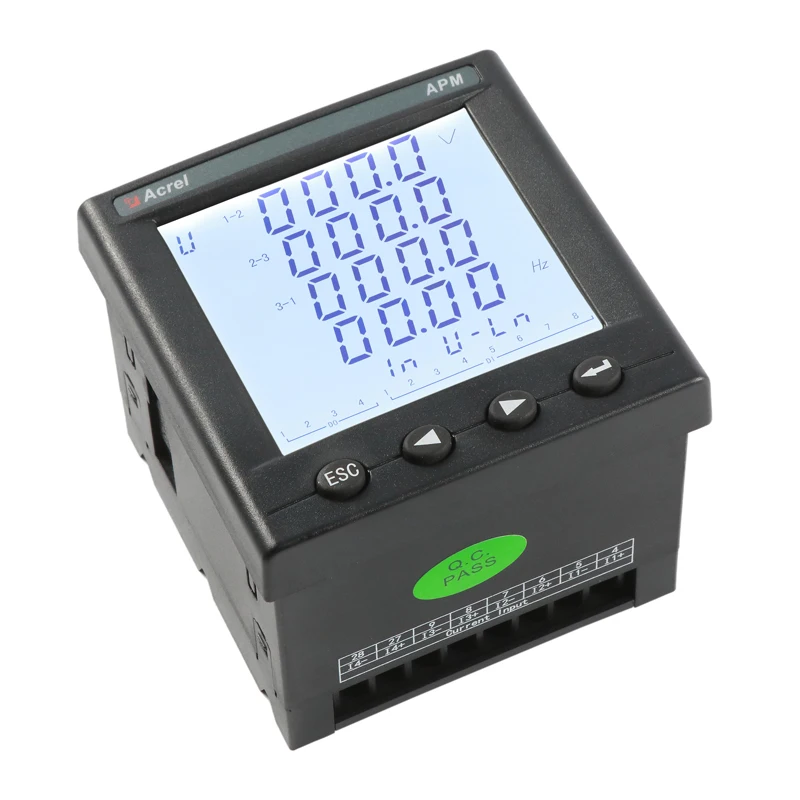

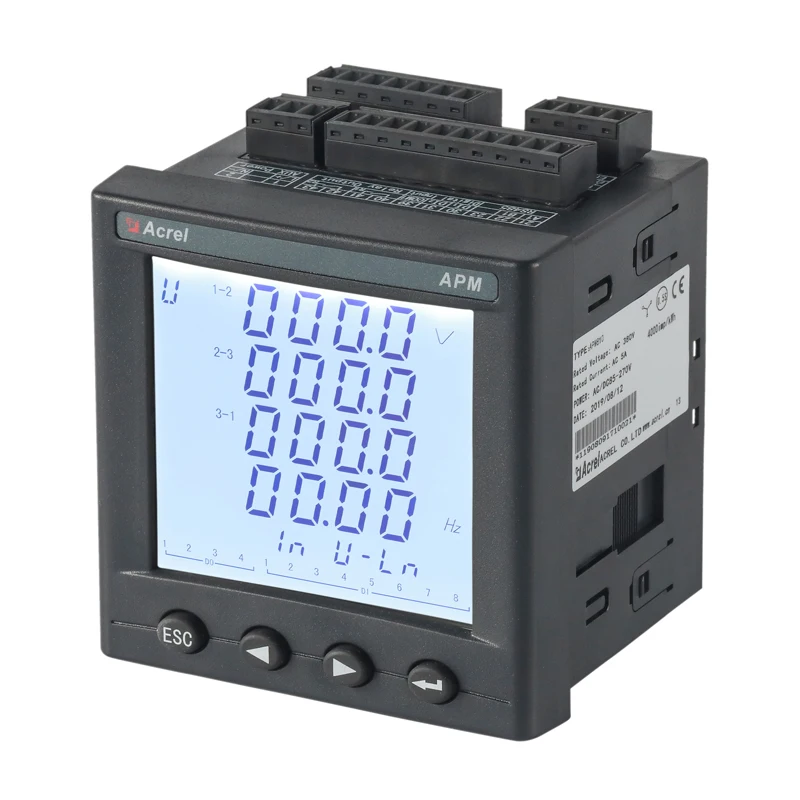

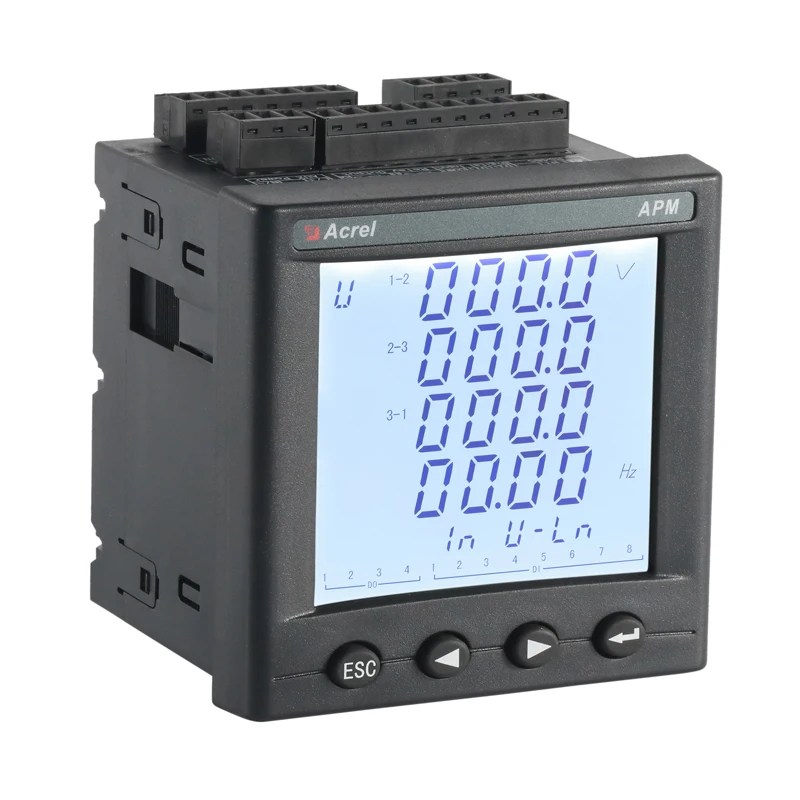

Characteristic

* Communication:  RS485 interface/Modbus-RTU protocol and DLT645 protocol
                                 optional: Profibus-DP interface/Profibus-DP protocol; RJ45 interface                                                (Ethernet) / Modbus-TCP, http, DHCP and other protocols;

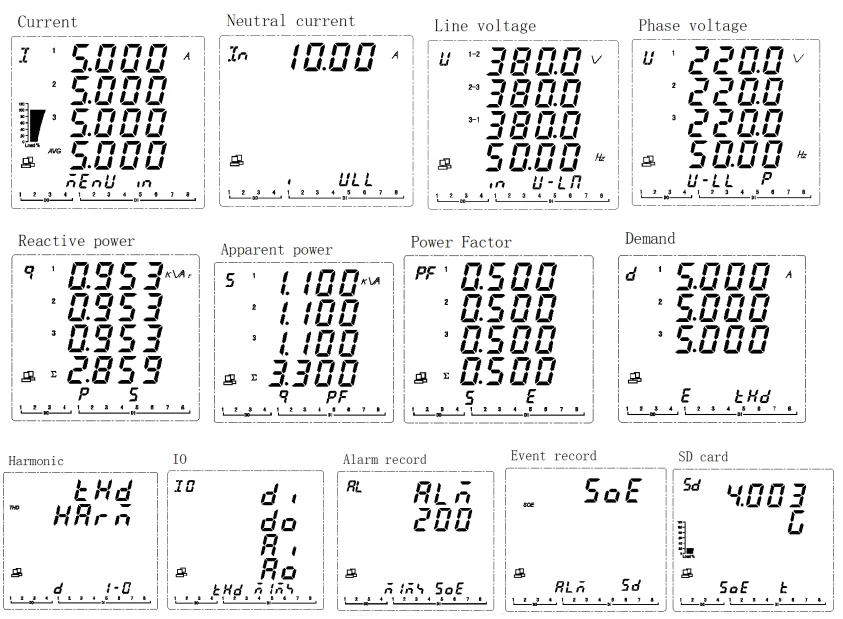

* Display:  8 digits LCD display U,I,P,Q,PF,kWh and other energy consumption,power                                      measurement,harmonic content

* Rated U and I:  Voltage:AC 100V,110V,400V,690V;Current:AC 1A, 5A, support 4 mm2 line                                       access;

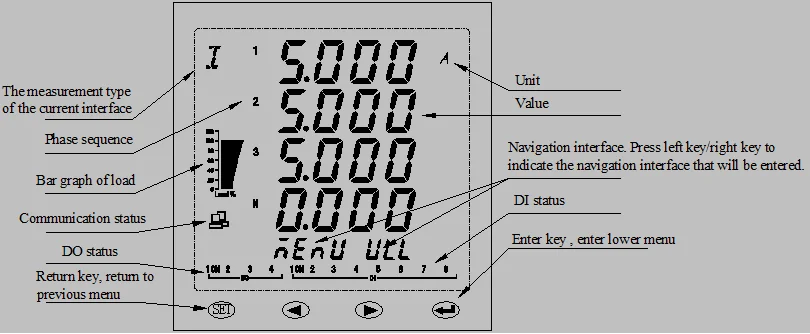

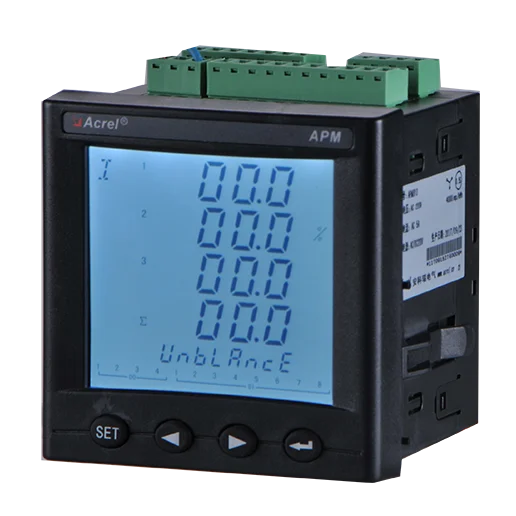

LCD Display

Function

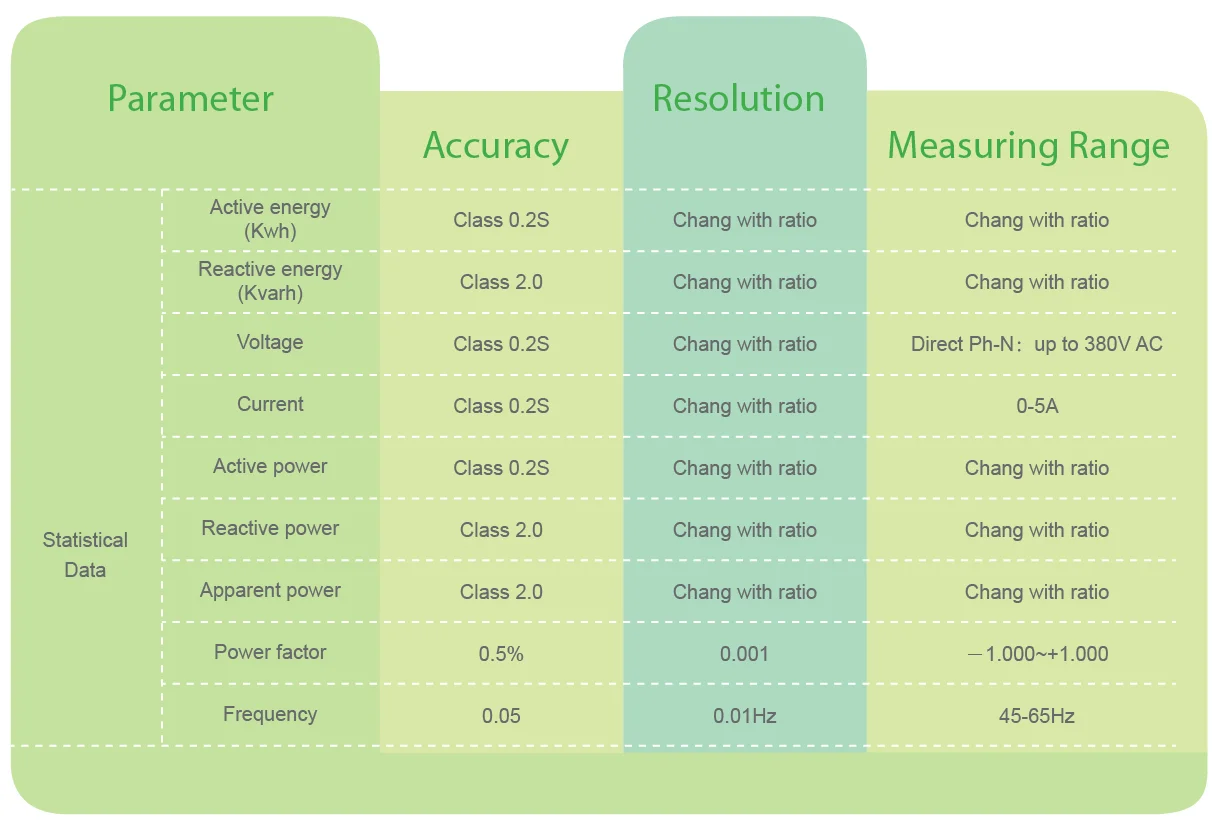

Accuracy Voltage,current and power:class 0.2s Active powe:class 0.2s Reactive power: class 2 Frequency Range:45-65Hz  Power Supply AC/DC 85V~265V or AC/DC 115~415V  Pulse output Output mode: Optocoupler pulse with open collector; Pulse constant:4000(5A),8000(1A) imp/kWh; Input consumption Voltage:Power consumption:<0.5VA; Current:Power consumption:< 0.5VA; Power supply:power consumption≤15VA
	Installation         Embedded installing         Dimension(L*W*H)         Faceplate(L×W):96*96mm         Cutout(L×W):92*92mm         Switch relay         DC 30V/3A AC 220V/3A         Starting current         0.1%

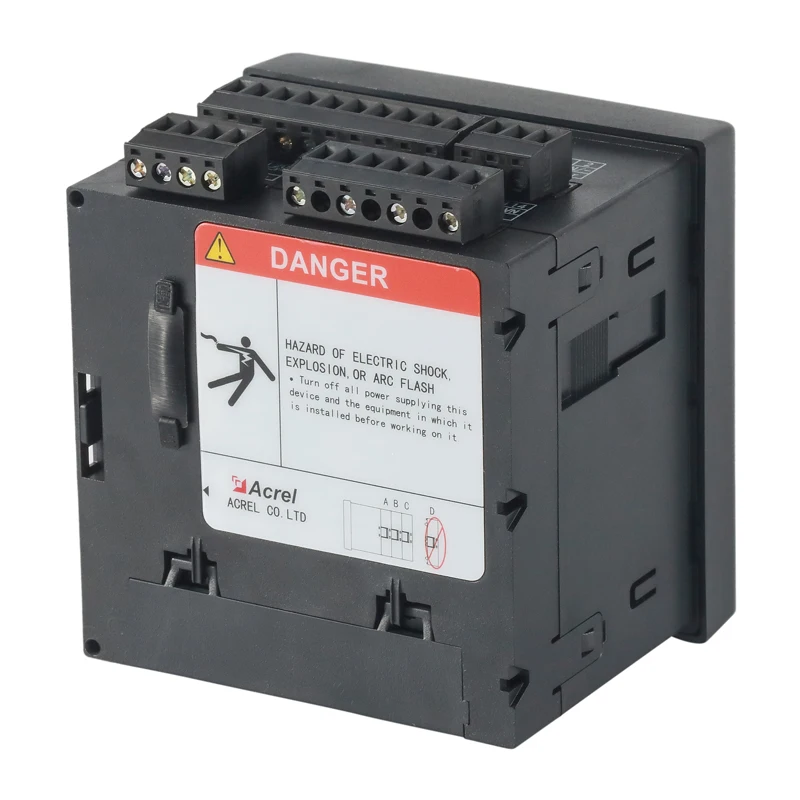

Wiring

Typical connection

Parameter
