60x60x10mm 5v 12v 18v 24volt dc 60x60 mini 60mm high speed Inverter brushless fan
- Category: >>>
- Supplier: Shenzhen Feng Zhi Yuan Electronics Co. Ltd.
Share on (62397950849):
Product Overview
Description

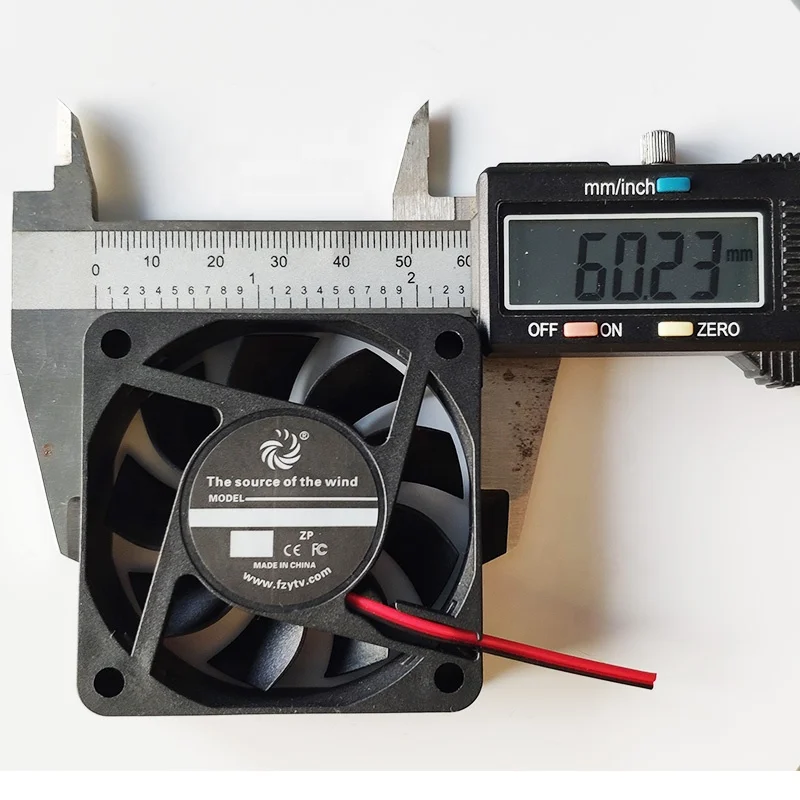

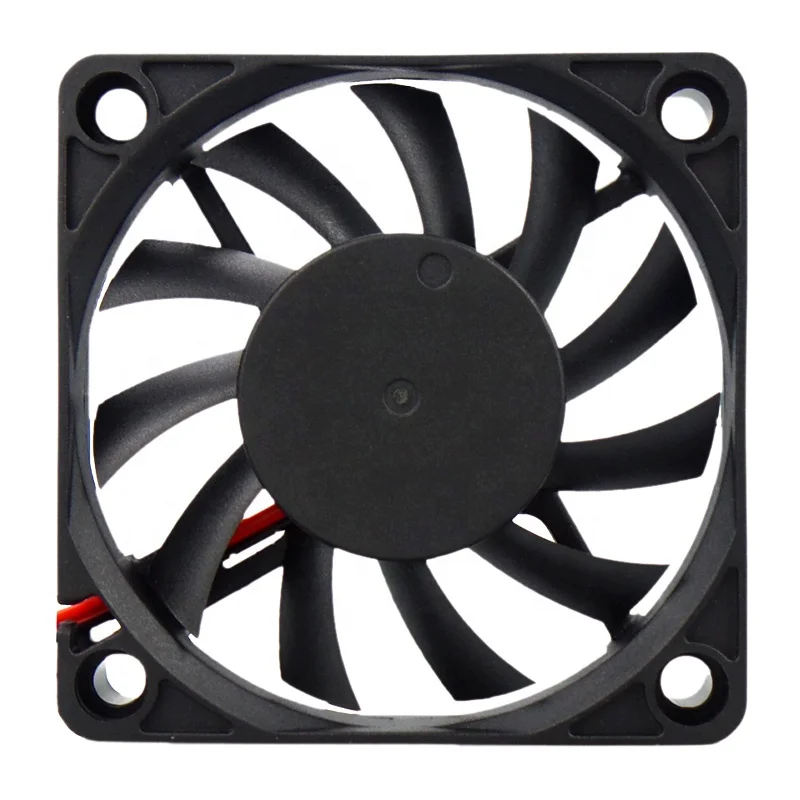

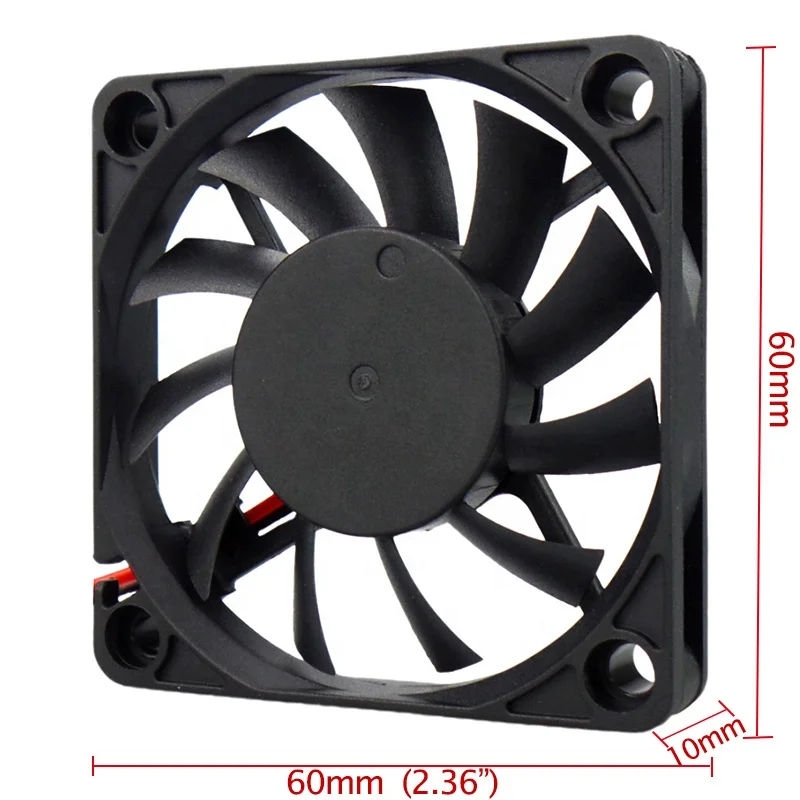

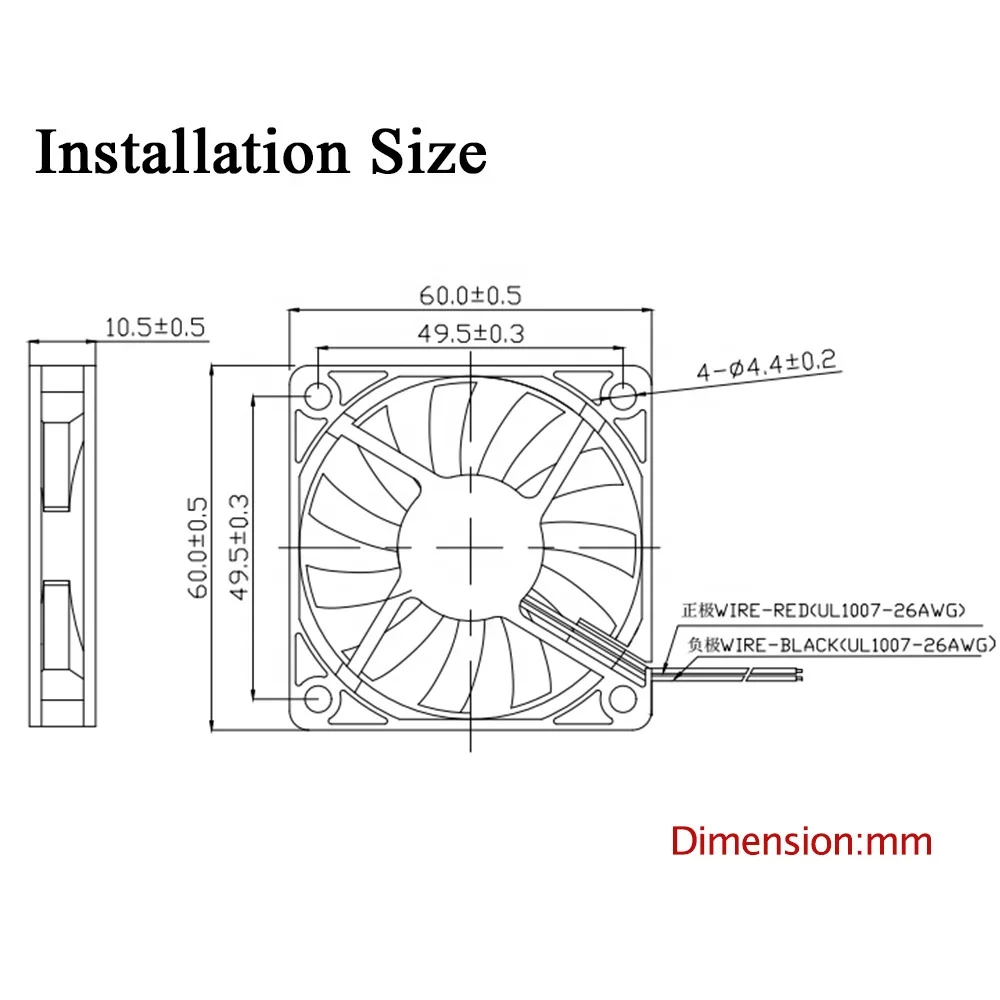

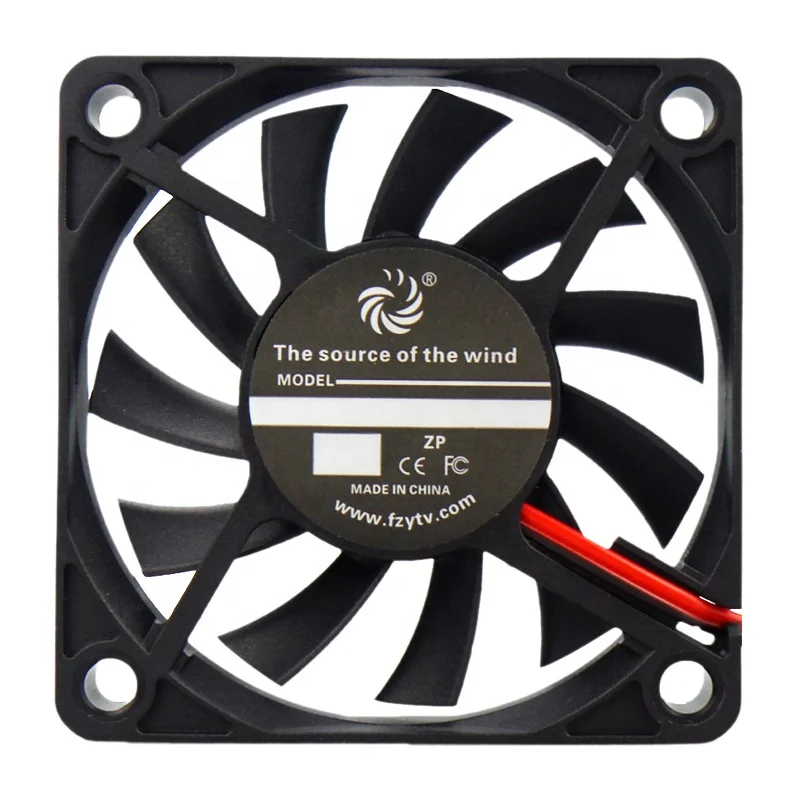

60x60x10 mm 5v 12v 18v 24volt dc 60x60 mini 60mm high speed Inverter brushless fan
Product Description
| Model | Rated Voltage | Voltage Range | Current | Power | Speed | Air Flow | Pressure | Noise | Weight | ||
| VDC | VDC | Amp | Watts | RPM | m³/min | CFM | mm Aq | In H2O | dBA | g | |
| FD6010B4H-AP00 | 24 | 12~26.4 | 0.12 | 2.88 | 4000 | 0.49 | 17.2 | 2.82 | 0.11 | 31.6 | 25 |
| FD6010B4M-AP00 | 0.06 | 1.44 | 3500 | 0.41 | 14.4 | 1.96 | 0.08 | 27.4 | |||
| FD6010B4L-AP00 | 0.04 | 0.96 | 3000 | 0.34 | 12.1 | 1.27 | 0.05 | 25.1 | |||
| FD6010B2H-AP00 | 12 | 6~14 | 0.14 | 1.68 | 4000 | 0.49 | 17.2 | 2.82 | 0.11 | 31.6 | |
| FD6010B2M-AP00 | 0.08 | 0.96 | 3500 | 0.41 | 14.4 | 1.96 | 0.08 | 27.4 | |||
| FD6010B2L-AP00 | 0.06 | 0.72 | 3000 | 0.34 | 12.1 | 1.27 | 0.05 | 25.1 | |||
| FD6010B1H-AP00 | 5 | 3.5~5.5 | 0.15 | 0.75 | 4000 | 0.49 | 17.2 | 2.82 | 0.11 | 31.6 | |
| FD6010B1M-AP00 | 0.12 | 0.60 | 3500 | 0.41 | 14.4 | 1.96 | 0.08 | 27.4 | |||
| FD6010B1L-AP00 | 0.10 | 0.50 | 3000 | 0.34 | 12.1 | 1.27 | 0.05 | 25.1 | |||
Product List
| DC fan Size | Speed Range |
| 25x25x7mm | 8000-12000rpm |
| 8000-12000rpm | |
| 30x30x7mm | 6000-10000rpm |
| 30x30x10mm | 6000-10000rpm |
| 35x35x10mm | 5000-9000rpm |
| 40x40x10mm | 5000-8000rpm |
| 40x40x20mm | 5000-9500rpm |
| 40x40x28mm | 7000-20000rpm |
| 45x45x10mm | 4500-6500rpm |
| 50x50x10mm | 4000-6000rpm |
| 50x50x15mm | 4000-7000rpm |
| 50x50x20mm | 3000-6500rpm |
| 60x60x10mm | 3000-4000rpm |
| 60x60x20mm | 3000-6000rpm |
| 60x60x25mm | 4000-7000rpm |
| 60x60x38mm | 7000-12000rpm |
| 70x70x25mm | 3500-5000rpm |
| 80x80x10mm | 2000-3000rpm |
| 80x80x15mm | 2500-4000rpm |
| 80x80x25mm | 2000-5000rpm |
| 80x80x38mm | 5000-8000rpm |
| 92x92x25mm | 2000-4000rpm |
| 92x92x38mm | 4000-5500rpm |
| 120x120x25mm | 1500-5000rpm |
| 120x120x38mm | 2500-5000rpm |
| 172x150x51mm | 3000-4500rpm |
Company Profile
FAQ
Q1: Are you a factory or trading company ?
A1: We are a factory.
Q2: What is DC Fan and AC fan?
A2: DC fan is powered by DC voltage,normal voltage is 5V 12V 24V 48V 60V and72V.
AC fan is powered by AC voltage,normal voltage is 110V,220V and 380V.
Q3:How about the lifetime of fan?
A3:
Bearing type | Lifetime |
Dual Ball Bearing | 50000 hours |
Sleeve Bearing | 20000 hours |
Hydraulic Sleeve Bearing | 30000 hours |
Q4:Certificate?
A4:FCC,CE, ROSH,ISO9001,ISO14001 Approved.
Q5:What is the delivery time?
A5:Sample lead time:3-5 days
Mass production delivery lead time:2-3 weeks(Depend on the quantity)
Q6:Delivery ways ?
A6:FedEx, DHL ,UPS,TNT Door to Door service ,By Air ,By Sea ,etc.
Q7:Payment terms ?
A7: By T/T or Paypal .
100% payment for sample orders .
30% as deposit and 70% balance before shipment .
Q8: What is the fan use for?
A8:
Office supplies | 3D printers |
Industry & Scientific | Stage lighting,VR equipment,Intelligent Manicure machine, Projector,High-speed camera,Head mounted display,Automotive industry, Cabinet industry, Power industry,UAV application, Electric forklift,LED lighting industry, Hand held air detector,Charging machine,Nebulizer. |
Home & Kitchen | Electromagnetic oven,Humidifier,Smart toilet,Intelligent household lampblack machine,Air purifier,Car GPS,Car LED lamp,Aromatherapy machine. |
Computer appliances | CPU cooler,Case. |
