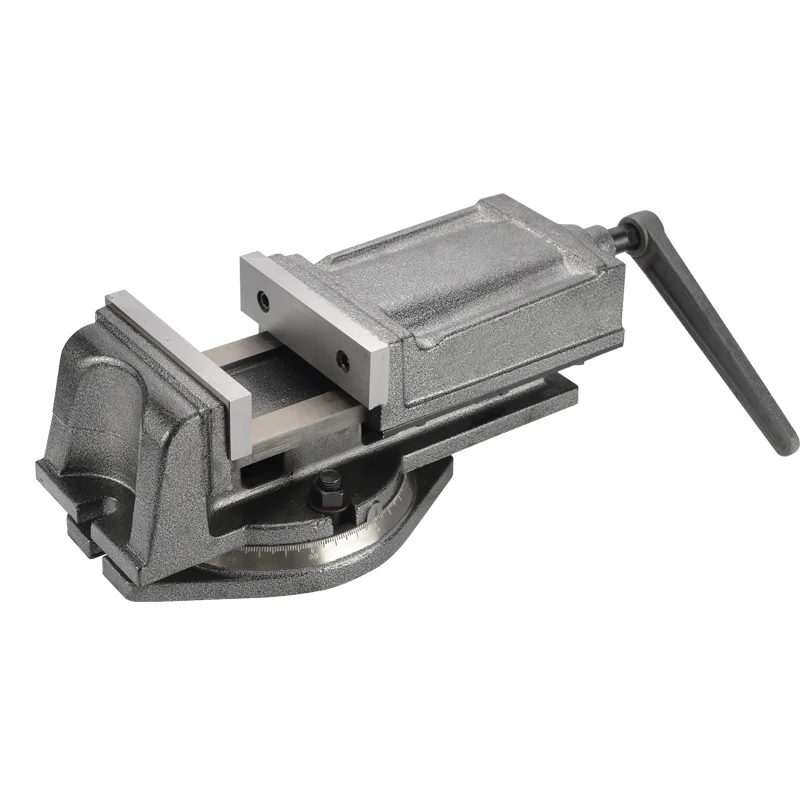

Machine vice QH100 vice precision milling machine 4' milling tool accessory

Product Overview

Description



Machine vice QH100



1.It is made of high-quality cast iron.
2.parallelism 0.025mm/100mm,  squareness 0.025mm
3.It is widely used on milling ,plating and drilling machine tools in macking some kinds of slots/holes and faces



Model	Jaw Width	Max opening	Jaw height	Overall length	Overall width	Overall height
QH80	80	63	32	215	115	91
QH100	100	80	37	260	140	105
QH125	125	100	40	301	160	122
QH160	160	125	52	411	222	158
QH200	200	160	63	461	240	175
QH250	250	200	68	510	300	200
