19 Ton Hydraulic Cable Puller For Transmission Line

Product Overview

Description

19 Ton Hydraulic Cable Puller For Transmission Line

TY180 Hydraulic Puller

The machine allows for the tension stringing of 4-bundle conductor of 630mm2 and below in mountainous and hilly areas, and of 4-bundle conductor of 720mm2 and below in flat lands; besides, it can be used for traction stringing of OPGW or ADSS optical cable and 500kV traction stringing in various terrains, suitable for use at altitudes up to 1500 meters above sea level.



Characteristics

• Max pull: 190kN


• Max continuous pull: 180kN


• Speed at max pull: 2.5km/h


• Max speed: 6km/h


• Pull at max speed: 75kN

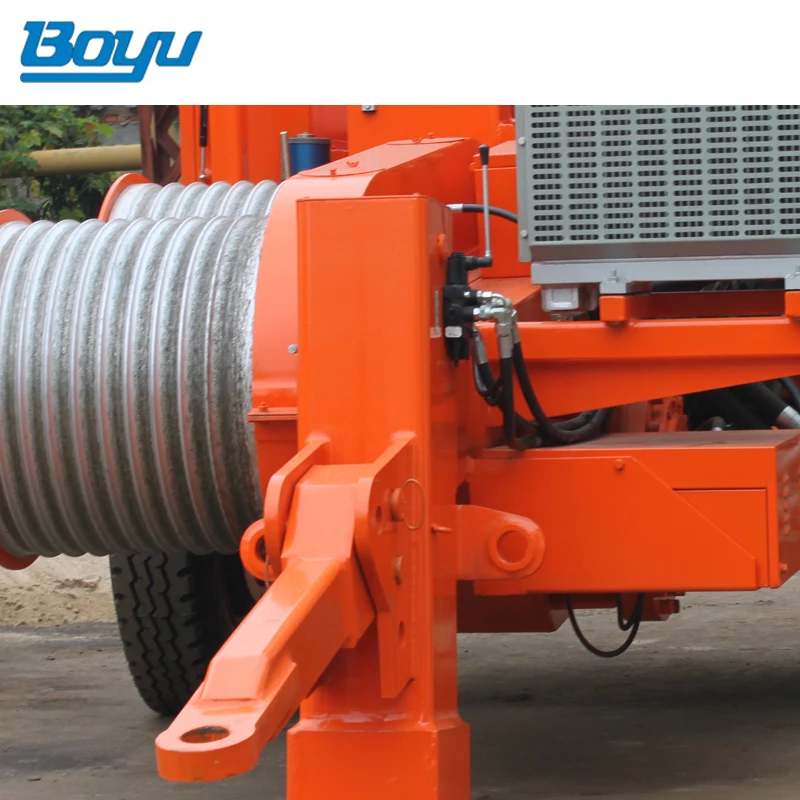

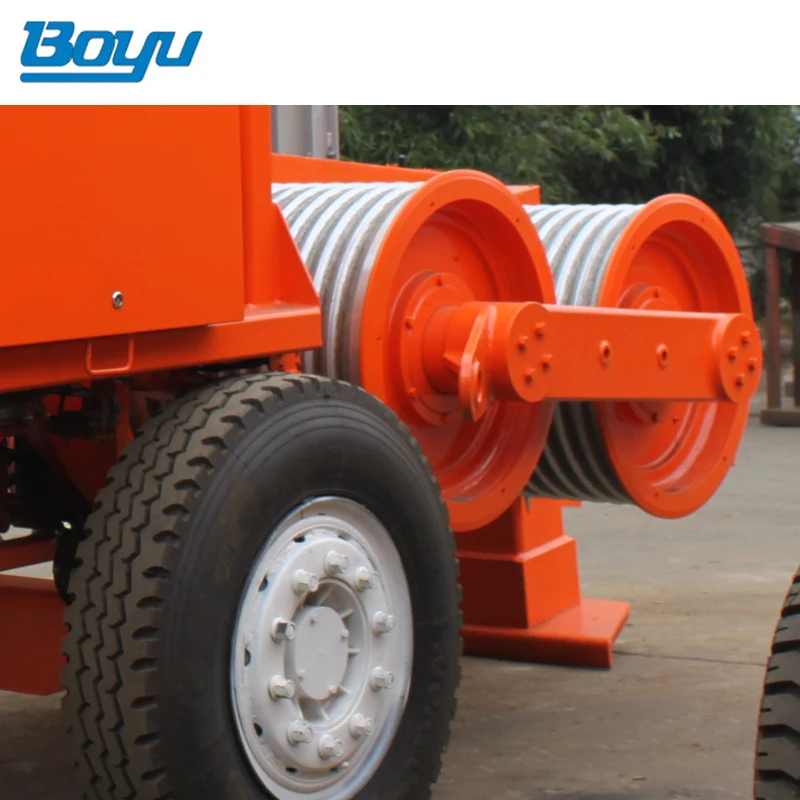

• Bull-wheel diameter: 750mm


• Groove number: 10


• Max rope diameter: 28mm


• Max diameter of rope reel: 1400mm


• Total weight: 6700kg


• Overall dimension (length*width*height): 5000x2300x2500mm

Engine

• Diesel: 325hp Euro III, 4-stroke cycle, turbo-charged


• Cooling system: liquid


• Electrical system: 24V

Main configuration

• Engine: Cummins


• Hydraulic pump: German Rexroth


• Main motor: German Rexroth


• speed reducer: German Rexroth


• Tail bracket hoisting motor: American Eton


• Hydraulic meter: German WIKA


• Operating handle:   German Rexroth

Hydraulic Transmission

Closed hydraulic circuit for step less speed variation in both rotating directions. This machine is provided with a pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by automatically adjusting the operation speed according to the friction and unexpected loads which may occur.



Configuration

Hydraulic dynamometer with set-point and automatic control of maximum pull

Hydraulic oil cooling system

Control instruments for hydraulic system and diesel engine

On board reel winder with automatic level wind, suitable for standard reel mod. 1100 and 1400

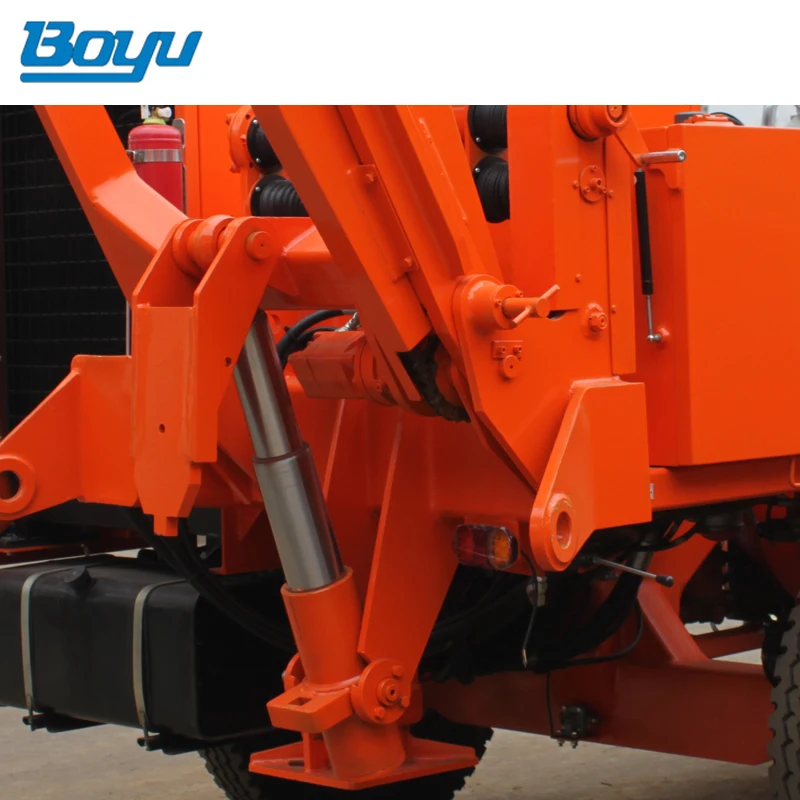

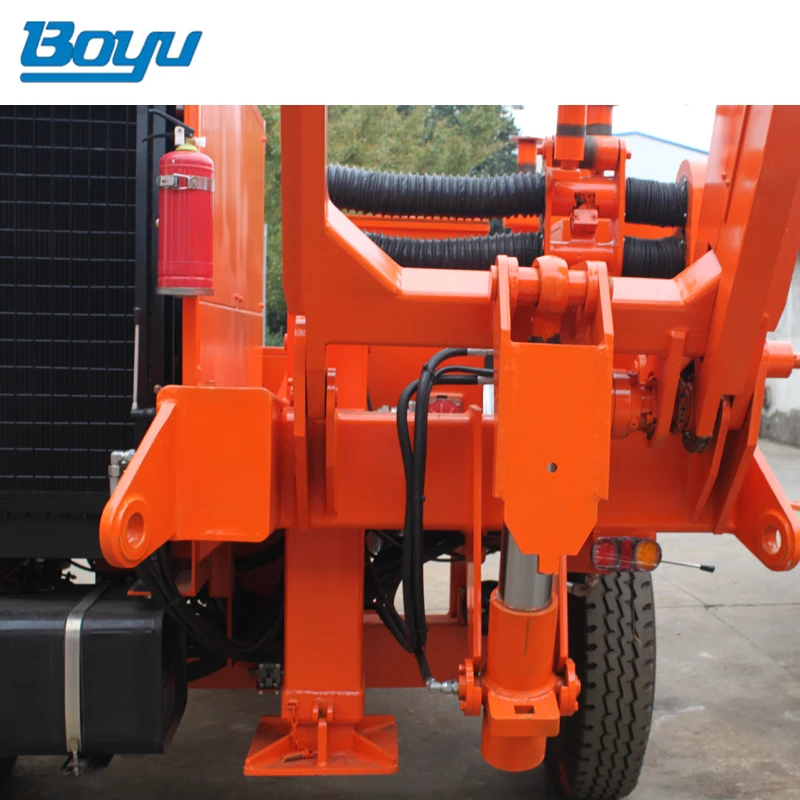

Hydraulic front stabilizer, Grounding connection point



Additional Devices

Lighting system for the trailer

Hydraulic rope clamp for reel change

Swivel guide rope roller

Trailer for towing at max speed of 30 km/h

Extra shaft

Digital speed and meter counter (extra charge)



Additional Devices

The chassis provided with Brake, back lights and mudguard, with a single point lift to allow lifting with a crane.

Cable and radio remote control fully replacing all controls at machine panel.

Remote diagnosis via GSM network with GPS modem, Synchronization system

Hydraulic system for drum stand control with flat face quick action couplings

Auxiliary Hydraulic system (700/1000 bar) for power pressing tool

Lockable toolbox, Holding fixture for hose kit, Grounding plate, Acoustic insulation

Biodegradable hydraulic oil, Allowable tension indictor, Overload tension alarm, First Aid Kit

Manufacturer's workshop maintenance manual, in English

Manufacturer's recommended tools.

Manufacturer's routine spares for five years' duty (filters, bulbs, etc.).



Product Display



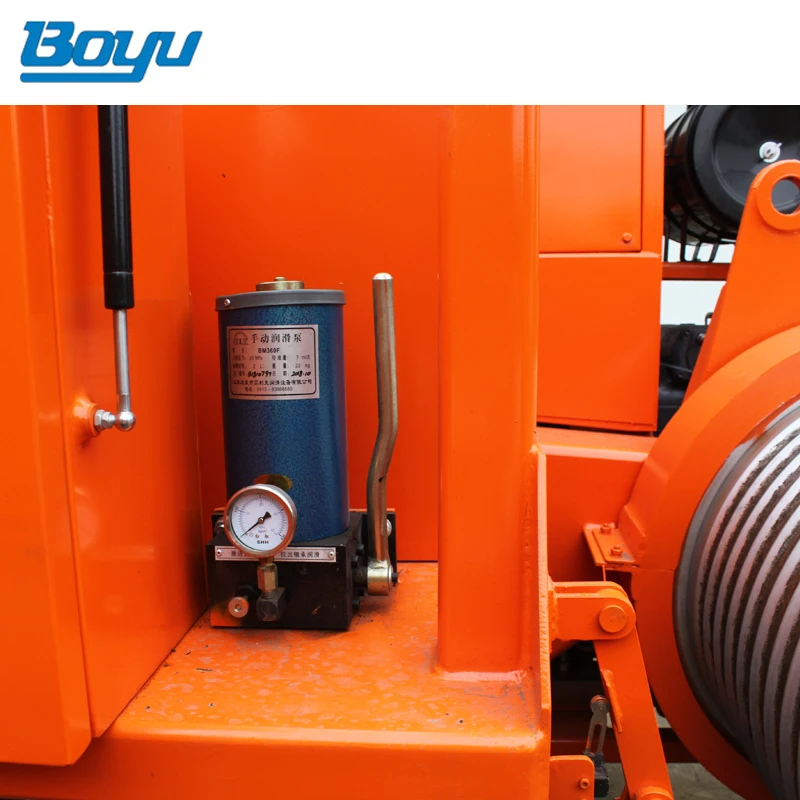

Product Details



Other Model

Model		TY40	TY60	TY120	TY150	TY220	TY280	TY380
Max intermittent pull	KN	40	60	120	150	220	280	380
Max continuous pull	KN	30	50	100	120	180	250	350
Speed at max pull	km/h	2.5	2.5	2.5	2.5	2.5	2.5	2.5
Max speed	km/h	5	5	5	5	5	5	5
Pull at max speed	KN	20	25	50	60	90	120	170
Diesel	kw(hp)	77(103)	77(103)	129(173)	129(173)	239(320)	298(400)	440(590)
Cooling system		Water	Water	Water	Water	Water	Water	Water
Electrical system	V	24	24	24	24	24	24	24
Bull-wheel diamete	mm	400	450	600	600	760	960	960
Groove number		7	7	10	10	10	11	11
Max rope diameter	mm	16	18	24	24	30	38	38
Max diameter of rope reel	mm	1200	1400	1400	1600	1600	1600	1900
Total weight	kg	3000	3500	4800	5500	6800	12800	13600
