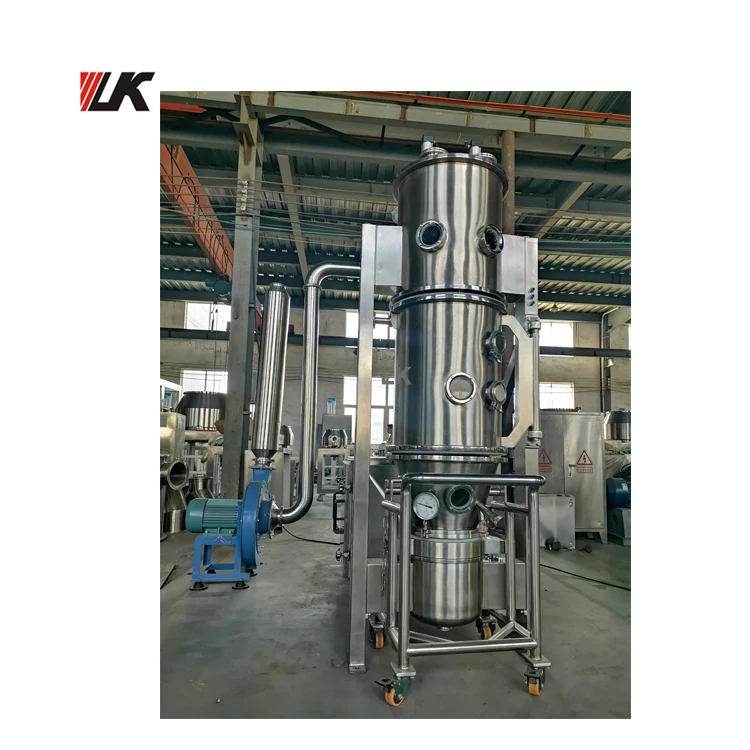

120KG Per Batch Fluid Bed Dryer Spray Drying Equipment For Powder
- Category: Fluid Bed Drying Equipment >>>
- Supplier: Wezhou Liangke Machinery Co. Ltd.
Share on (62398526431):
Product Overview
Description
120KG Per Batch Fluid Bed Dryer Spray Drying Equipment For Powder
Product Description
Technical Parameter
Model Item | FL-15 | FL-30 | FL-60 | FL-120 | FL-200 | FL-300 | FL-500 |
Material container volume (L) | 45 | 100 | 220 | 420 | 670 | 1000 | 1500 |
Material container diameter (mm) | 550 | 700 | 1000 | 1200 | 1400 | 1600 | 1800 |
Production capacity (KG/batch) | 15 | 30 | 60 | 120 | 200 | 300 | 500 |
Steam pressure (MPa) | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
Steam consumption (Kg/h) | 20 | 60 | 120 | 140 | 180 | 310 | 400 |
Compressed air pressure (MPa) | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
Compressed air consumption (m3/min) | 0.6 | 0.6 | 0.9 | 0.9 | 1.1 | 1.1 | 1.5 |
Fan power (KW) | 3 | 5.5 | 11 | 18.5 | 22 | 30 | 45 |
Electric heater power (KW) | 12 | 21 | 30 | 48 | 87 | 163 | 185 |
Noise (dB) | With isolating treatment, the noise of draught fan is less than 75 dB. | ||||||

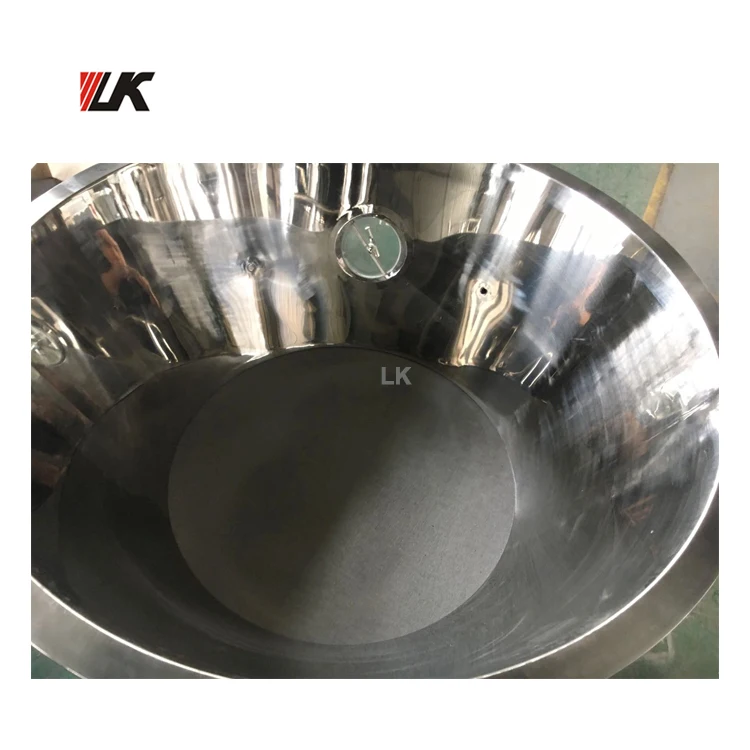

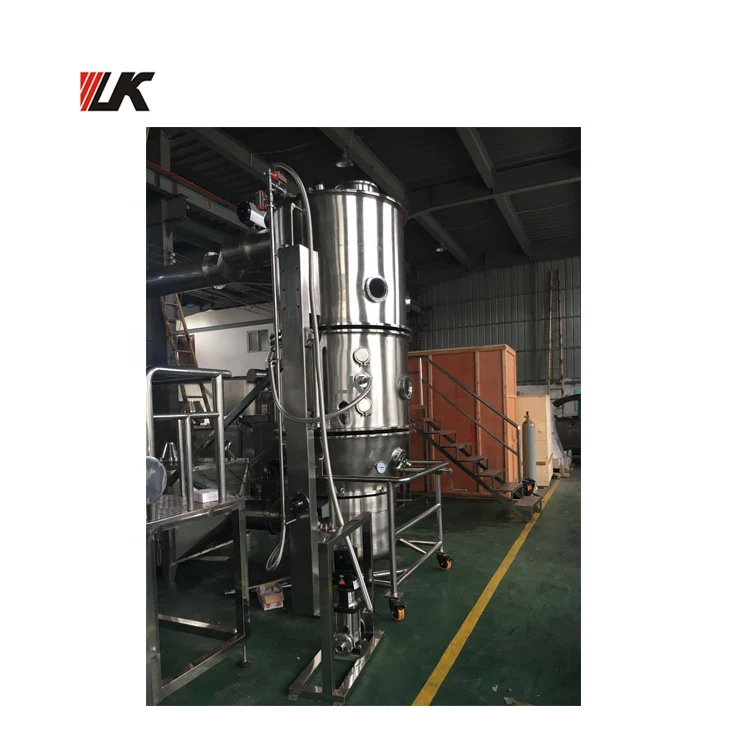

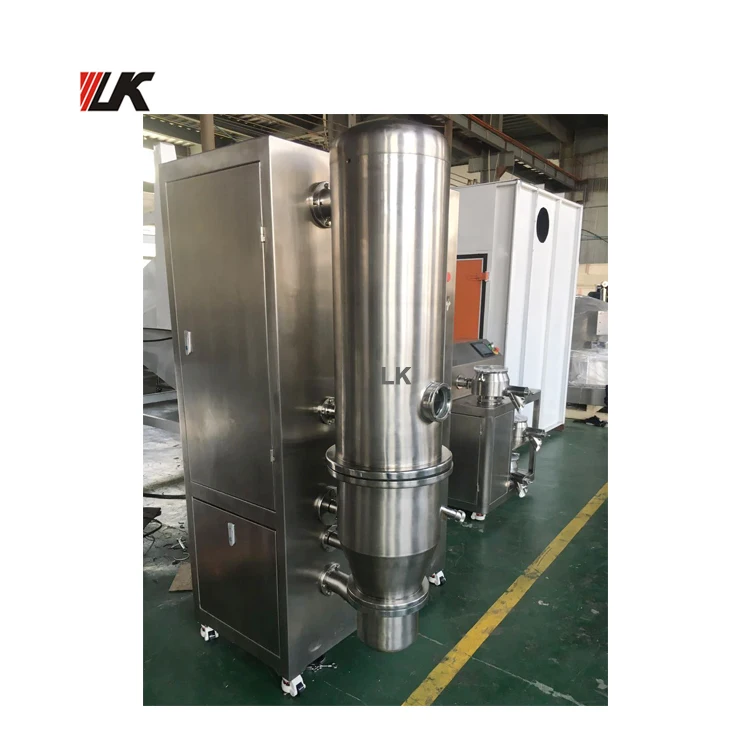

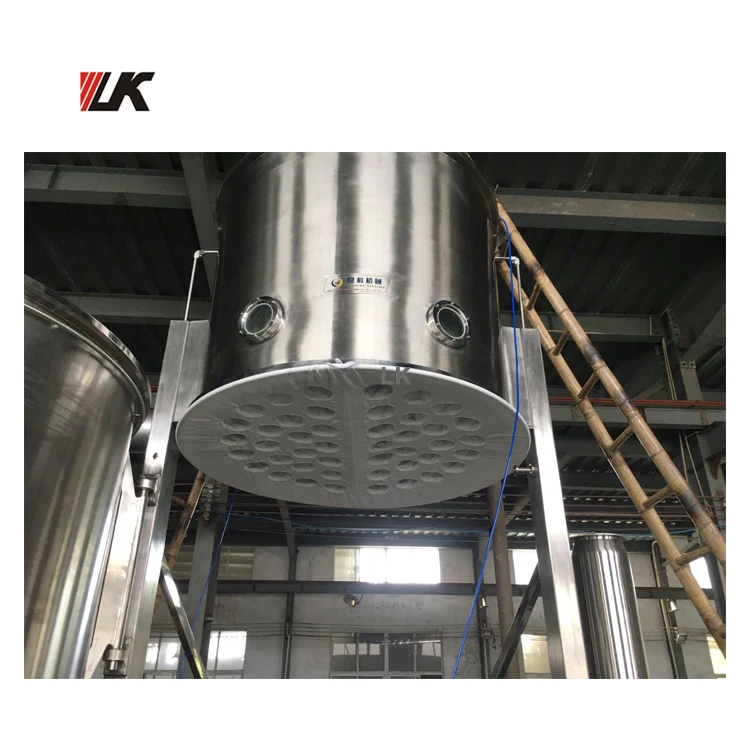

Samples
Company Information
Certifications
Packaging & Shipping
Our Services* Inquiry and consulting support. * Training how to instal the machine, training how to
Pre-Sales Service After-Sales Service
* Inquiry and consulting support. * Training how to instal the machine, training how to
* Sample testing support. use the machine.
* View our Factory. * Engineers available to service machinery overseas.
