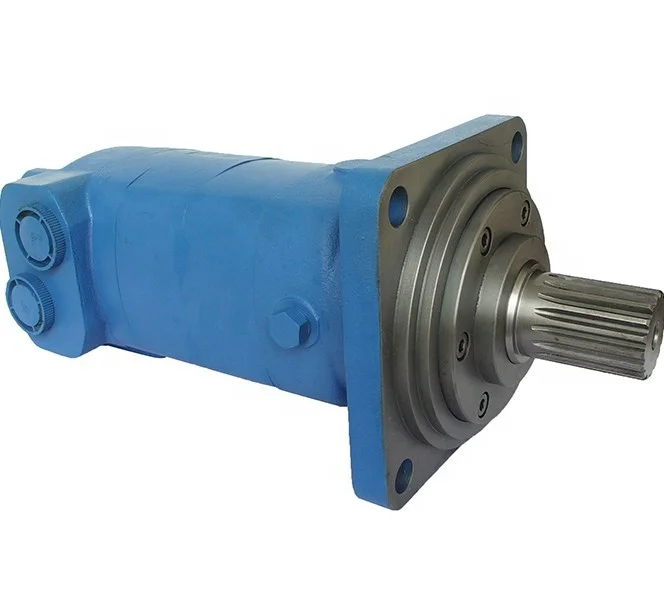

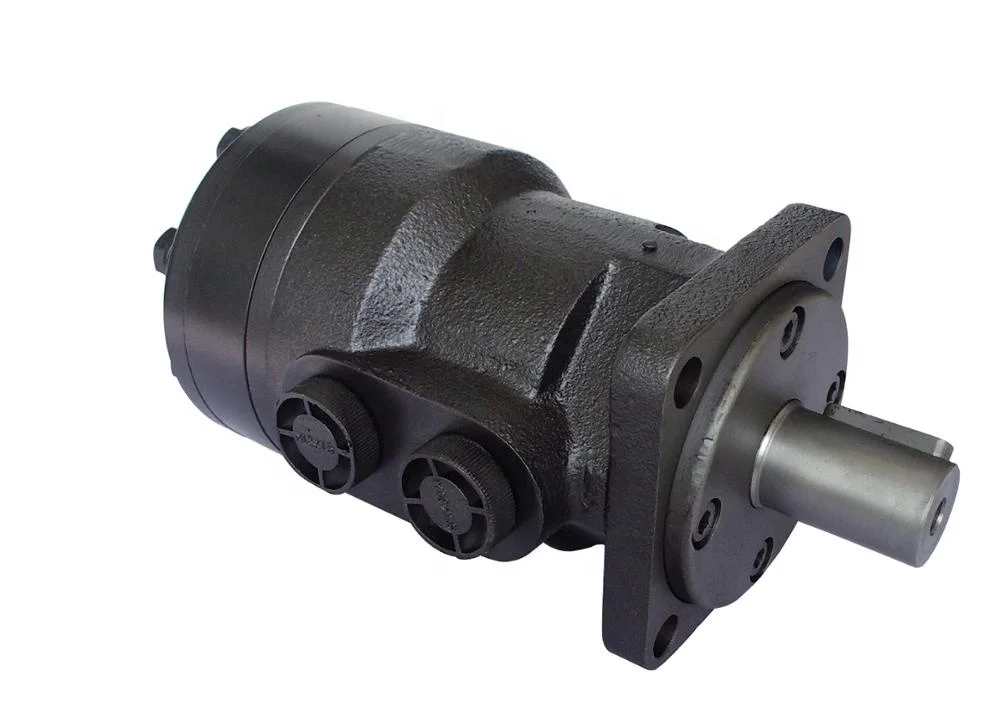

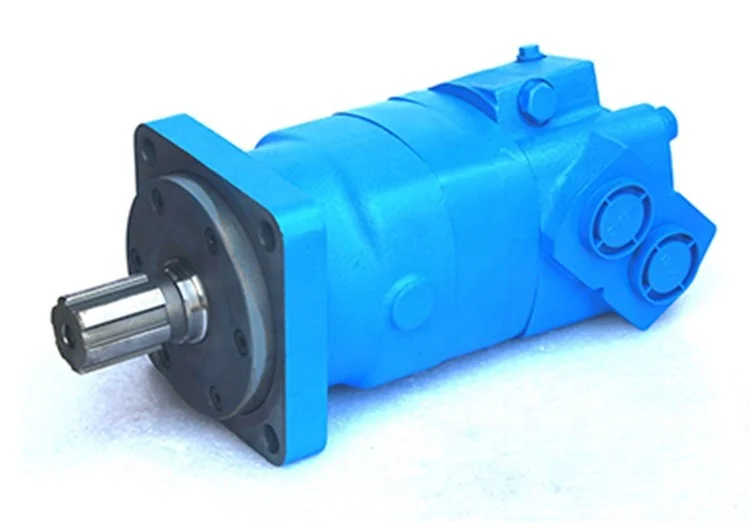

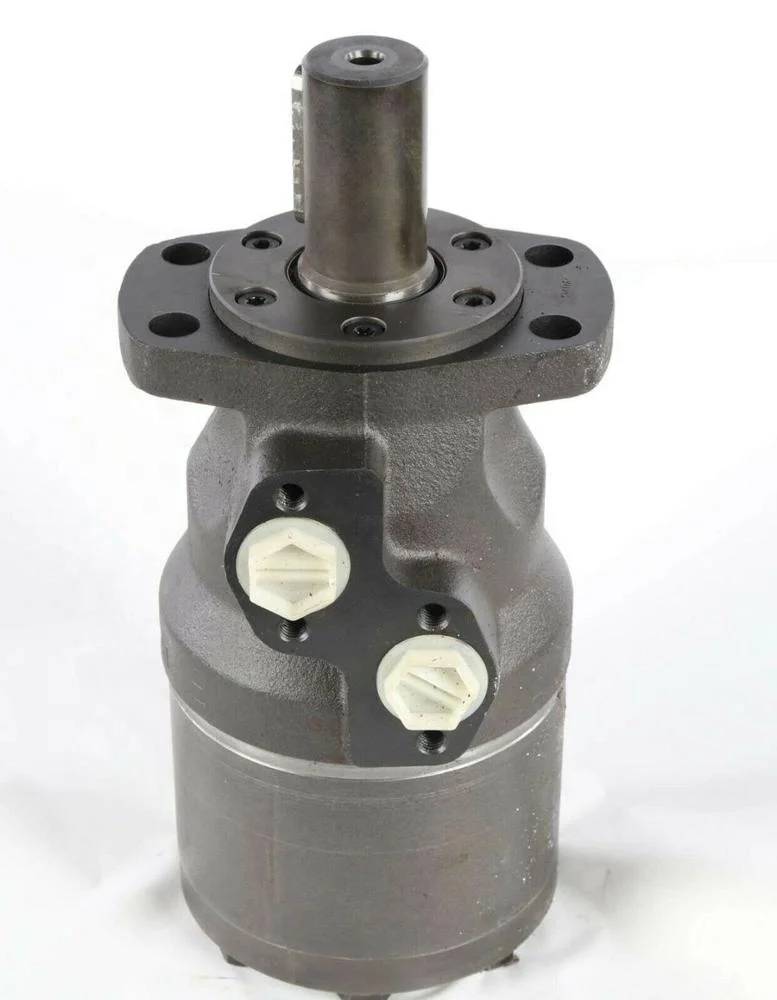

Hydraulic Motor for drilling machine and hydraulic winch

Product Overview

Description



Introduction

• Max. pressure is the allowed pressure at the inlet port. Rated pressure is the working pressure difference between inlet and outlet port.


• A simultaneous maximum RPM and maximum pressure NOT recommended.


• Maximum pressure or maximum RPM operation: 10% of very minute.


• Recommended fluids: Anti-wear type of hydraulic oil. Viscosity recommended 37-73cSt. Recommended filtration ISO18/13. Maximum operating temperature recommended 80°C.


• Special high pressure capacity shaft seal ensures back pressure up to 10 Mpa.Recommended preferable back pressure 5 Mpa. Case drain line is recommended when back pressure higher than 5 Mpa. When case drain line is used, make sure the motor is always filled with oil. The motor life is benefited from a case drain line.


• It is highly recommended thar the motor runs at 30% of rated pressure for at least one our before application of full load. Be sure the motor is filled with fluid prior to any load applications.



Feature

• Compact in design with disc valving and Geroler


• High pressure capacity shaft seal


• Design and manufacture of the spline and drives give the motor durability


• Wide variety of mounting flanges,shafts,ports and speed provides design flexibility


• Direction of shaft rotation and speed can be controlled easily and smoothly


• Best combination of high efficiency and economy in medium duty applications

Advantages

• Displacement ranges from 195cc/r to 985cc/r.


• Advanced gear set parameter design, low start- up  pressure, high efficiency and steady low rotation.


• High operate pressure and output torque.


• Advanced shaft seal design, high backpressure abaility.


• Advanced driver-linker design, prolong operating life.


• Advanced distribution system design which canautomatically compensate in operation.


• Motor can be used in parellel or in series, outer drain pipes when in series linkaged.


• Compact volume and easy installation


• Adapt tapered roller bearings that permit high axial and radial force. The case can offer capacities of high pressure  and high torque in the wide of applications.

 Specifications:

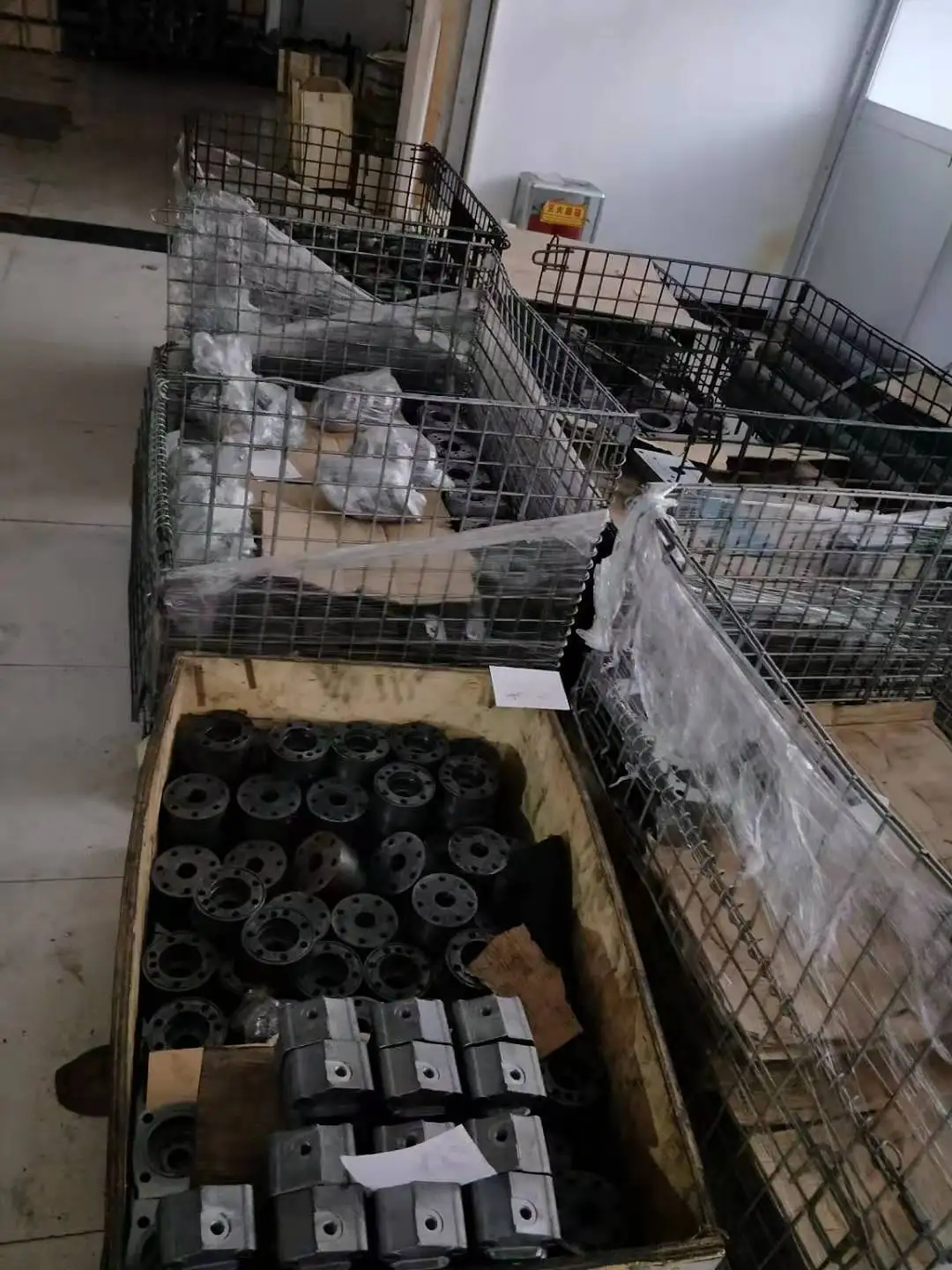

Part of hydraulic motor:

Jining Yuansheng Electromechanical Co., Ltd.We're proffessional hydraulic motor supplier in China,Located in Jining city ,Shandong province,China.Our main products including BM1,BM2,BM3,BM4 ,BM5,BM6 series,can replace EATON,DANFOSS,WHITE,M+S different brand motors, meet different requirements of customers.
Our business also involves hydraulic brake, mining accessories,industrial & mining machinery, hydraulic winchs, hydraulic pumps, steering control units,hydraulic valves,hydraulic system components, construction equipment.

Product Details
