2 axes Kirloskar flat bed horizontal GSK Siemens control cnc lathe machine xian CK6150 machines
CNC Lathe use:
Machine can automatically process the inside and outside cylinder surface, cone surface ,circular arc surface,end face, such as processing,and also process the single and multiple threads in metric ,inch and other standars.
CNC Lathe Features:
A high strength,widening the carriage,suitable for heavy cutting.

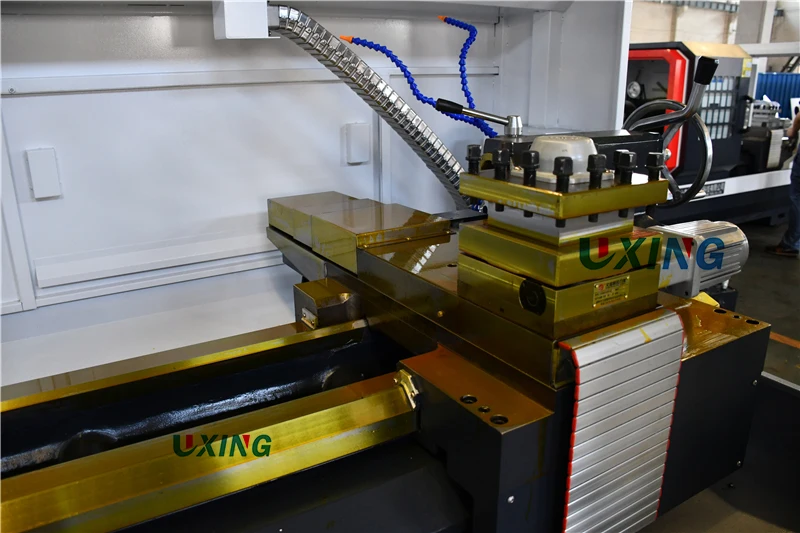

Four position eletric turret
Frequency conversion stepless speed regulation
Standard configuration : manual chuck
Optional configuration : hydraulic chuck
Four position eletric turret
Frequency conversion stepless speed regulation
Standard configuration : manual chuck
Optional configuration : hydraulic chuck
Machine main specifications:
Specification | Unite | Ck6150 | Ck6160 |
Max swing over bed | mm | 500 | 600 |
Max swing over cross slide | mm | 250 | 395 |
Max processing length | mm | 850/1500 | 850/1500 |
X/Z axis travel | X:300 Z:1000/1600 | X:300 Z:1000/1600 | |
Spindle nose | mm | A2-8/11 | A2-8/11 |
Thu-hole dia.of spindle | mm | 82 | 82/130(optional) |
Spindle drawn tube diameter | rpm | 65 | 65/none |
Max .spindle speed | mm | 1800 | 1600 |
Chuck size | kw | 250 | 250/380(380) |
Spindle motor | mm | 7.5 | 11 |
X/Z axis position accuracy | mm | ±0.006/300 | ±0.006/300 |
X/Z repeatability | mm | ±0.005/300 | ±0.005/300 |
X/Z feed motor torque | n.m | 5/7.5(1meter) 7.5/10(1.5 meter) | 5/7.5(1meter) 7.5/10(1.5 meter) |
X/Z feed motor power | kw | 1.3/1.88 | 1.88/2.5 |
X/Z axis fast feeding speed | Mm/min | 8000/10000 | 8000/10000 |

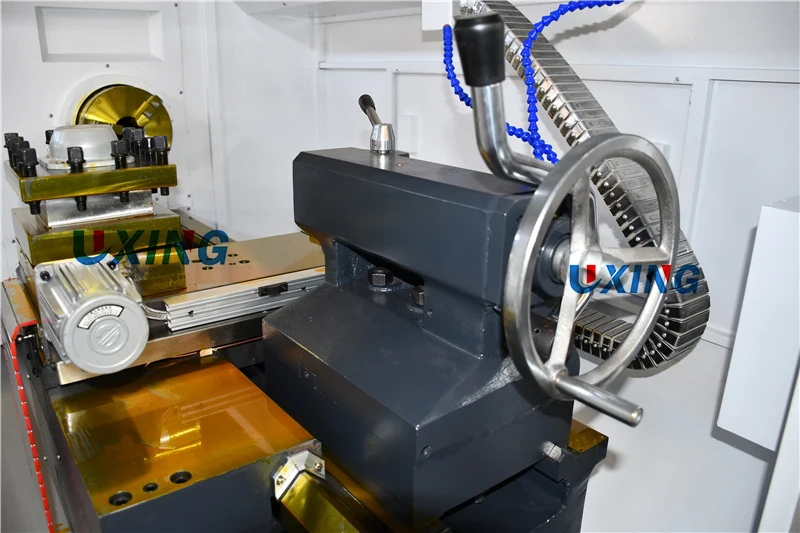

Tailstock sleeve dia. | mm | 75 | 75 |
Tailstock sleeve travel | mm | 200 | 200 |
Tailstock sleeve taper | MT5 | MT5 | |
Tool post type | 4 workstations | 4 workstations | |
Cutting tool shape size | mm | 25*25 | 25*25 |
Guide form | Flat guide | Flat guide | |
Total power capacity | kva | 13 | 15 |
Machine dimension | mm | 2950*1550*1820 | 3610*1550*1820 |
N.W | kg | 2850 | 3150 |
Details:
FAQ:
1:How can I choose the most suitable machines?
A: Please tell me your specifications (or send your workpiece drawing to us) ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Manual mills,Drilling Machine ,Radial Drilling Machine ,Band Saw Machine ,Shaper machine and so on .
3: How long is the delivery time?
For standard machines,it would be around 30 days;For non-standard machines and customized machine according to client’s specifications requirements,it wouble be a little longer.
4.Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277599 China.
You are warmly welcomed to visit us.
5. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
6: What's the Payment Terms?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
7: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
