Lathe Turning, Drilling, Milling, Boring & Thread-cutting Big lathes
For CW6163B lathe, its bed is of a structure combining oblique stiffener of large width to enhance its
rigidity as a whole and operate in concentrative way, the slide carriage is provided with quick feed and
the spindle's normal or reverse rotation and braking is controlled hydraulically. The bottom slide surface
of the guide rails is of the TSF wear-resistant embedded structure to move freely and smoothly, long
service life. The outside-of-stock lubrication system is used to increase its processing accuracy.
Lathe Product advantages:
1.We use electric furnace smelting, resin sand molding casting technology，avoid sand holes, stoma casting internal defect effectively, all the accessories are assayed by imported spectrum analyzer, it assures the quality of the casting . The casting had been through second thermal aging treatment with good stability.
we can can absolutely ensure the casting quality after the United States imported equipment precision spectrometer analysis.

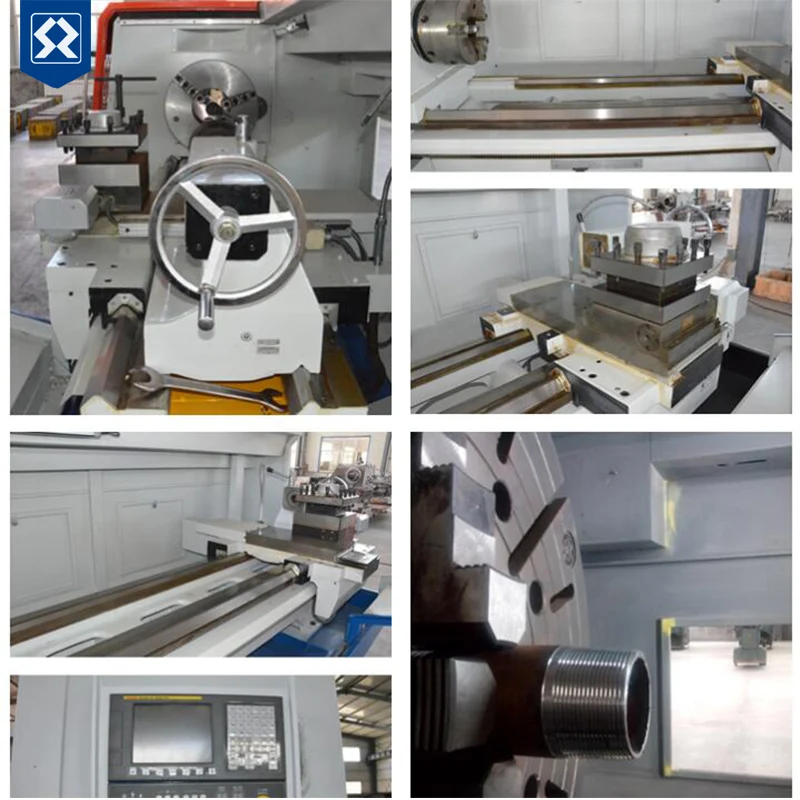

2. The bed of floor type is the whole structure. The rigidity and width of guide way on the bed of lathe is good enough. The guide way is through high-frequency quenching, the slide guide way joint SD compound soft belt. to make more wear-resisting and lower friction factor. The lead screw is the whole structure (not butt). The saddle is wider and thicker than before, the machine is running more stable. And the cutting ability is better.
With the super audio quenching treatment ,the hardness of Body guide rail can reach above HRC55 degrees, it can keep the hardness high accurate, and prolong the wear resistance and service life.
3. The 3 boxes of lathe were processed by Taiwan’s CNC boring and milling machine center. The other tools are processed by CNC lathe and machine center to ensure the precision of the box and tools.
The lathe bed we produced is all research and development by our own engineers. These all can greatly increased the rigidity and are helpful to widen and Thicken the dragging plate,
4The large plate guide guide rail (X) is also go through the super audio quenching treatment, so it increased hardness and then could guarantee the service life of equipment more efficiently.
4. The equipment will firstly tested by the laser interferometer imported from Britain to test repeated positioning accuracy of X, Z direction in order to make sure the accuracy. Then the whole machine will be tested according to the National standard whole machine.
Our enterprise have got the ISO9001-2008 quality system certification and the European Union CE certification.
Description of product

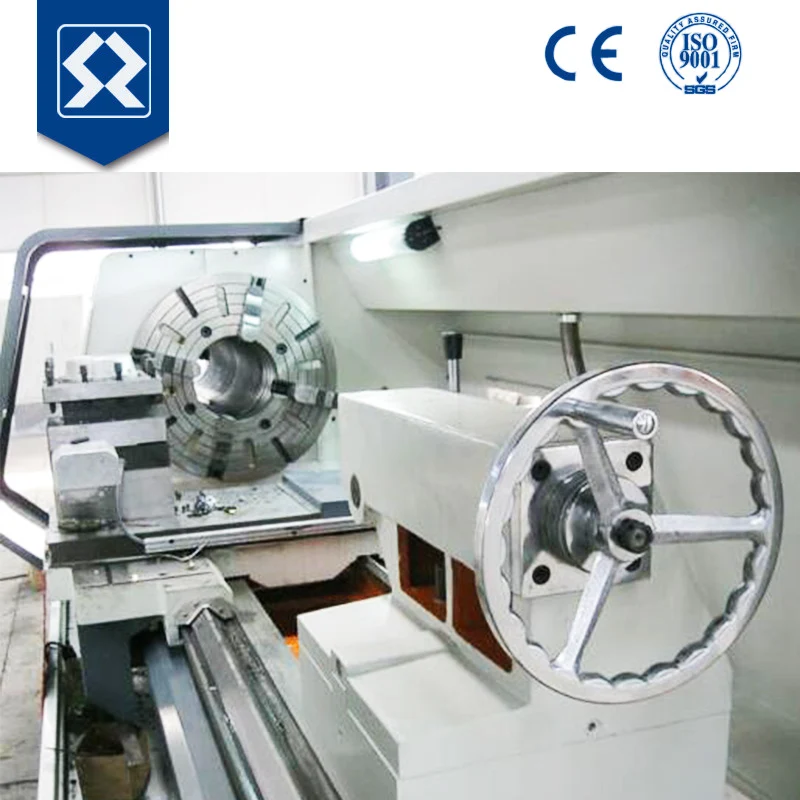

The spindle bore is 105 mm and the tail stock is equipped with a graduation disc and graduation lines, more visually usable. The machine is nice in appearance and easy to clean and maintain.
Advantages of product
The lathe can be used
in various milling and turning, for instance, milling inner/outer cylindrical/conical surfaces, formir
swiveling surface and annular groove, and it may also be used to drill/ream bores, tap and knurl etc.
Size Information
