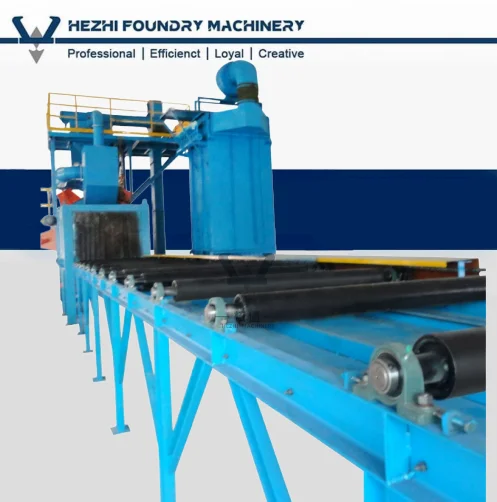

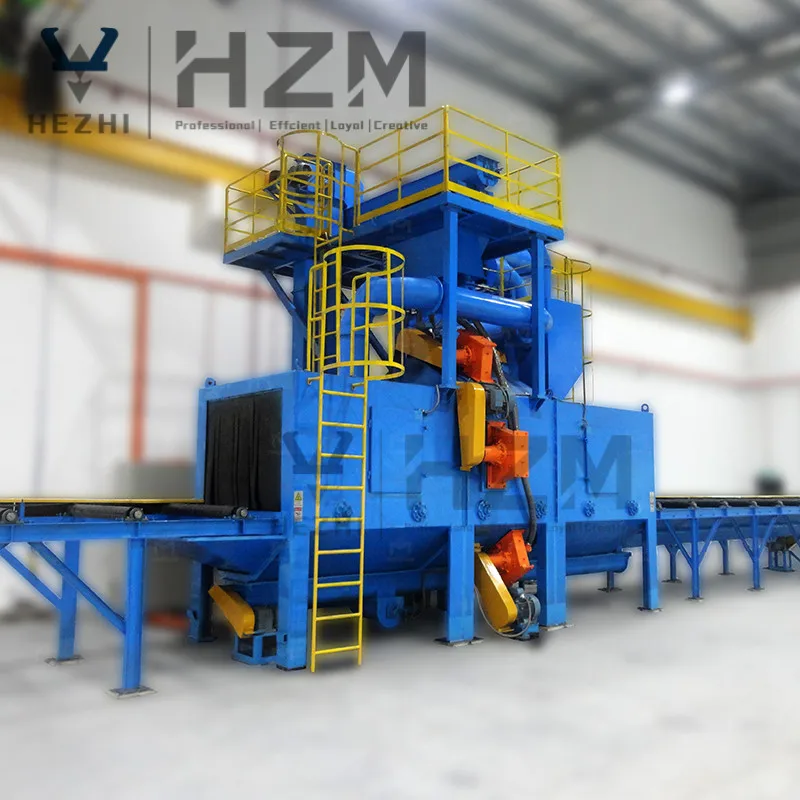

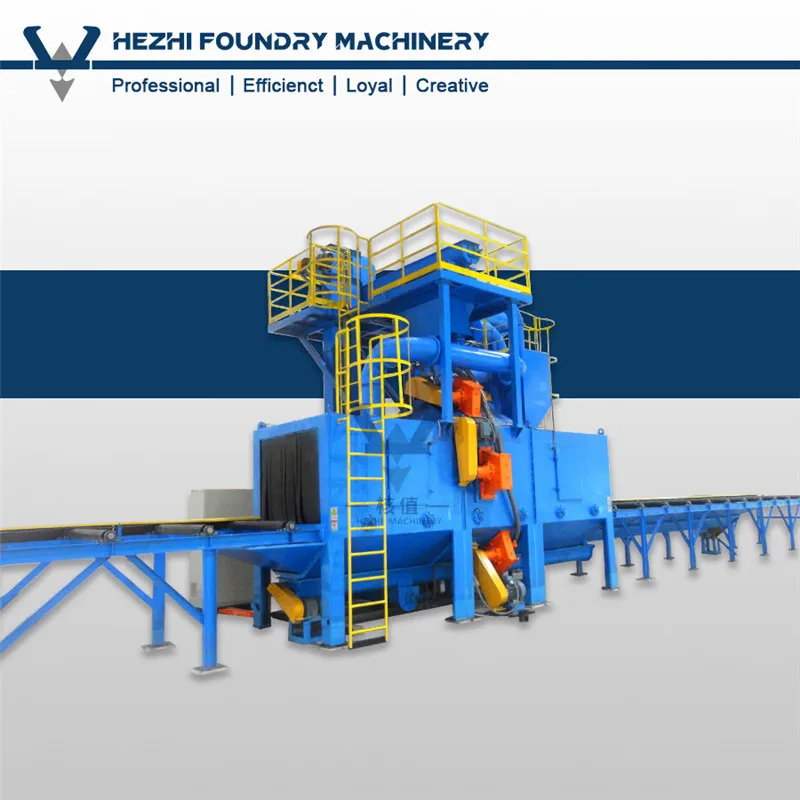

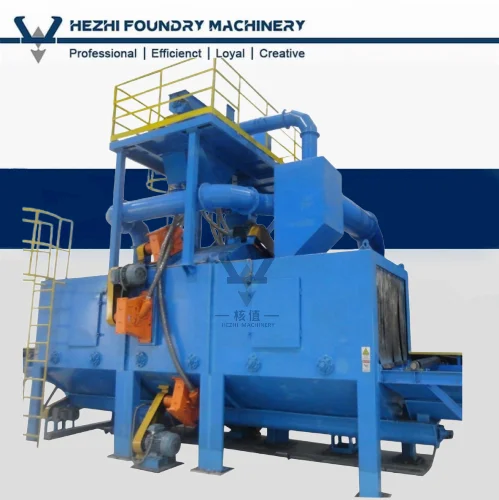

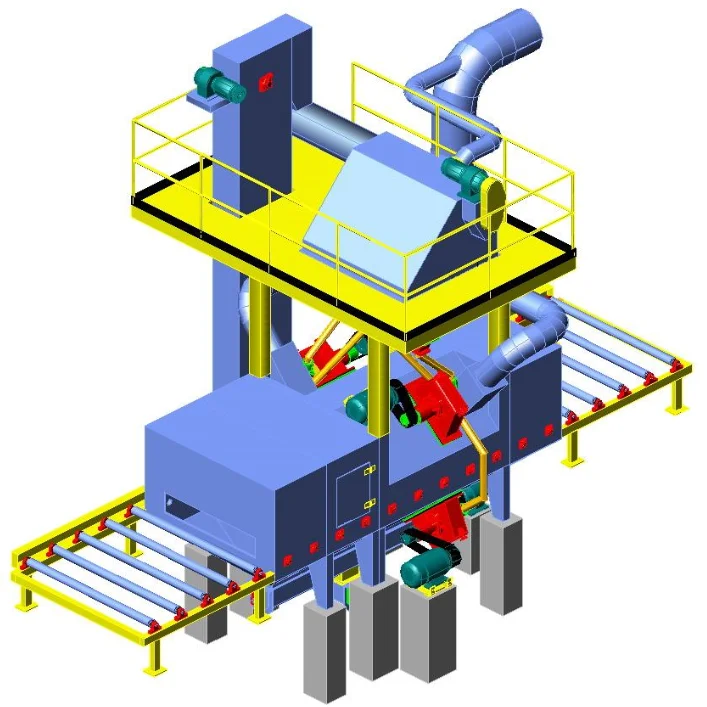

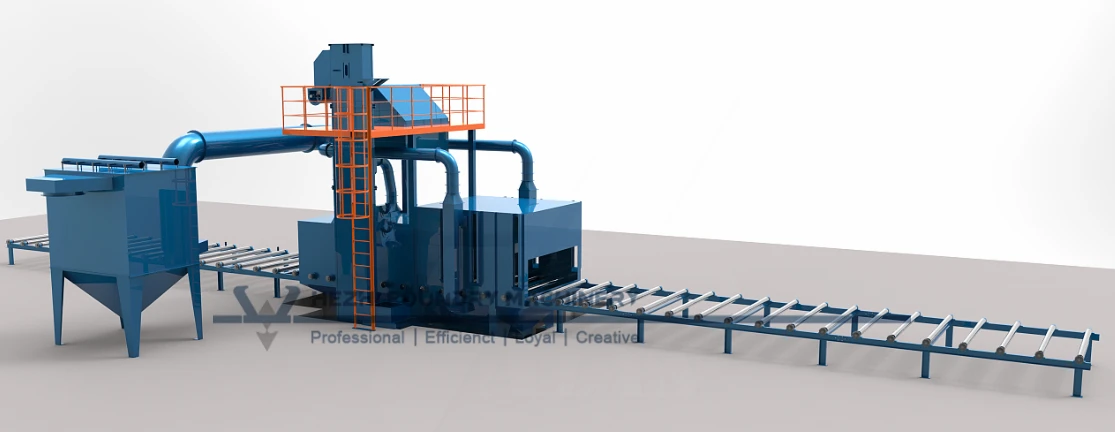

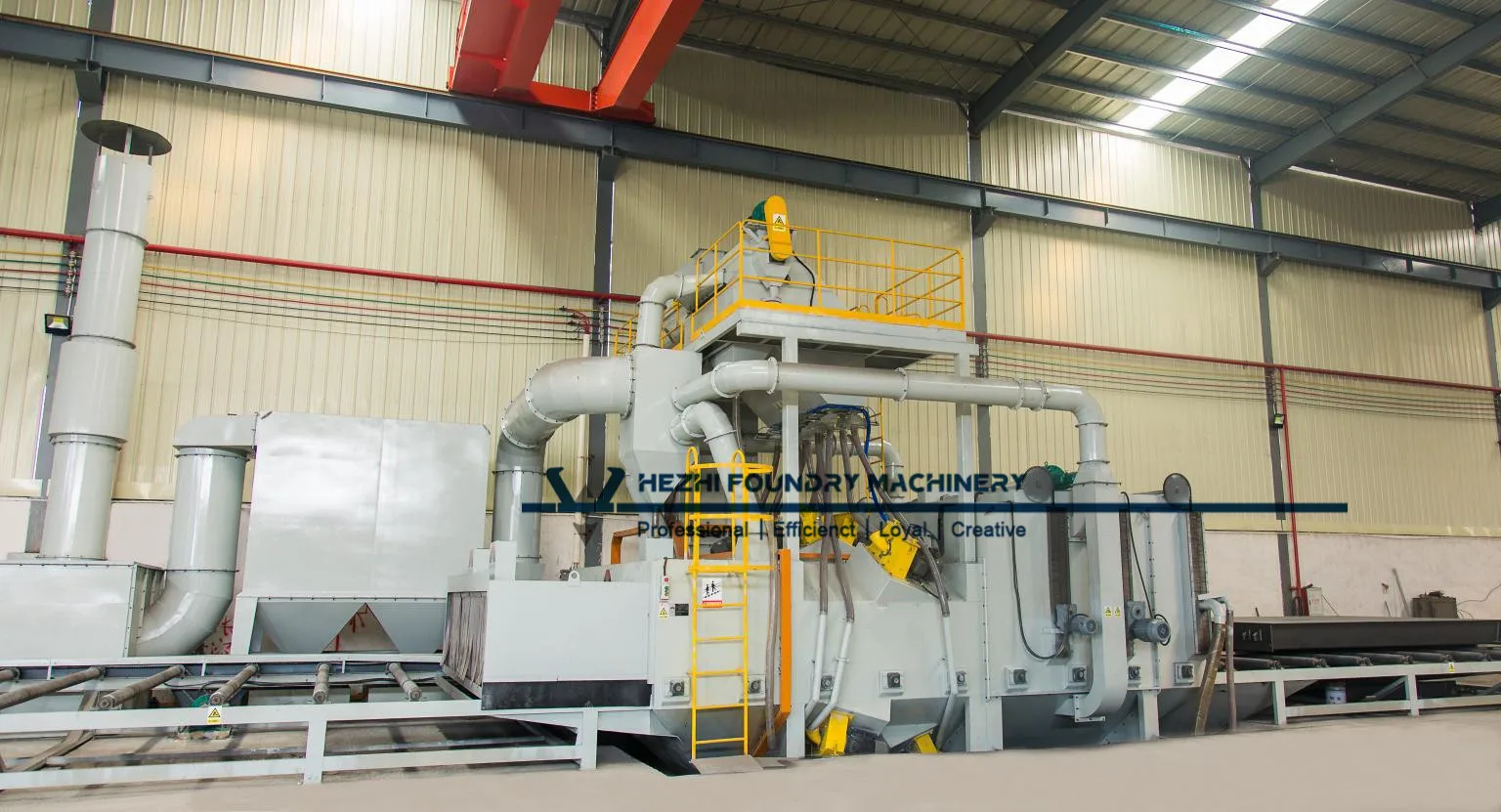

Roller Conveyor Shot Blasting Machine is heavy duty blast cleaning equipment. Roller conveyors are made of three parts, feeding rollers, middle rollers and out-feeding rollers. Feeding rollers deliver work pieces to middle rollers in blasting chamber where work pieces will be blasted by blasting wheels mounted on the blasting chamber walls. Out-feeding rollers deliver blasted and finished work pieces out of blasting chamber for unloading.
Feeding rollers and out-feeding rollers are driven by variable speed reducers. Roller speed can be adjustable according to work pieces surface condition and metal surface finish level.
Roller Conveyor Shot Blasting Machine is heavy duty and versatile wheel blast cleaning equipment.
Work pieces include H beans, I beams, steel plate, sheets and strips, square tubes, tubes and pipes, bars and rebars. Fabricated steel works and structural steel works can be blasted thoroughly to reach SA 2.5 or even SA 3.0 ready for priming and coating.
Model | Q698 | Q6912 | Q6915 | Q6920 | Q6930 | Q6940 |
Max width | 800mm | 1200mm | 1500mm | 2000mm | 3000mm | 4000mm |
Max height | 300mm | 400mm | 500mm | 500mm | 500mm | 500mm |
Speed | 0.5-4m/min | 0.5-4m/min | 0.5-4m/min | 0.5-4m/min | 0.5-4m/min | 0.5-4m/min |
Wheels | 4 pcs | 4 pcs | 4 pcs | 6 pcs | 6 pcs | 8 pcs |
Capacity | 4x125kg/s | 4 x125kg/s | 4 x125kg/s | 6 x125kg/s | 6 x125kg/s | 8 x125kg/s |
Air volume | 17560 m3/min | 19000 m3/min | 19550 m3/min | 27758 m3/min | 28050 m3/min | 38000 m3/min |
Power | 78kw | 113kw | 156kw | 224kw | 204kw | 293kw |
Dimension | 12180x4250x7095mm | 15200x5370x6797mm | 30650x6850x9095mm | 31200x6850x9095mm | 44020x6385x7758mm | 4500x7830x11117mm |
We can design and manufacture all kinds of non-standard roller conveyor shot blasting machines
According to customers' different work piece detail requirement ,weight and productivity .
Work Effect of Roller conveyor shot blasting machine：
Before After Before After
↓ ↓ ↓ ↓

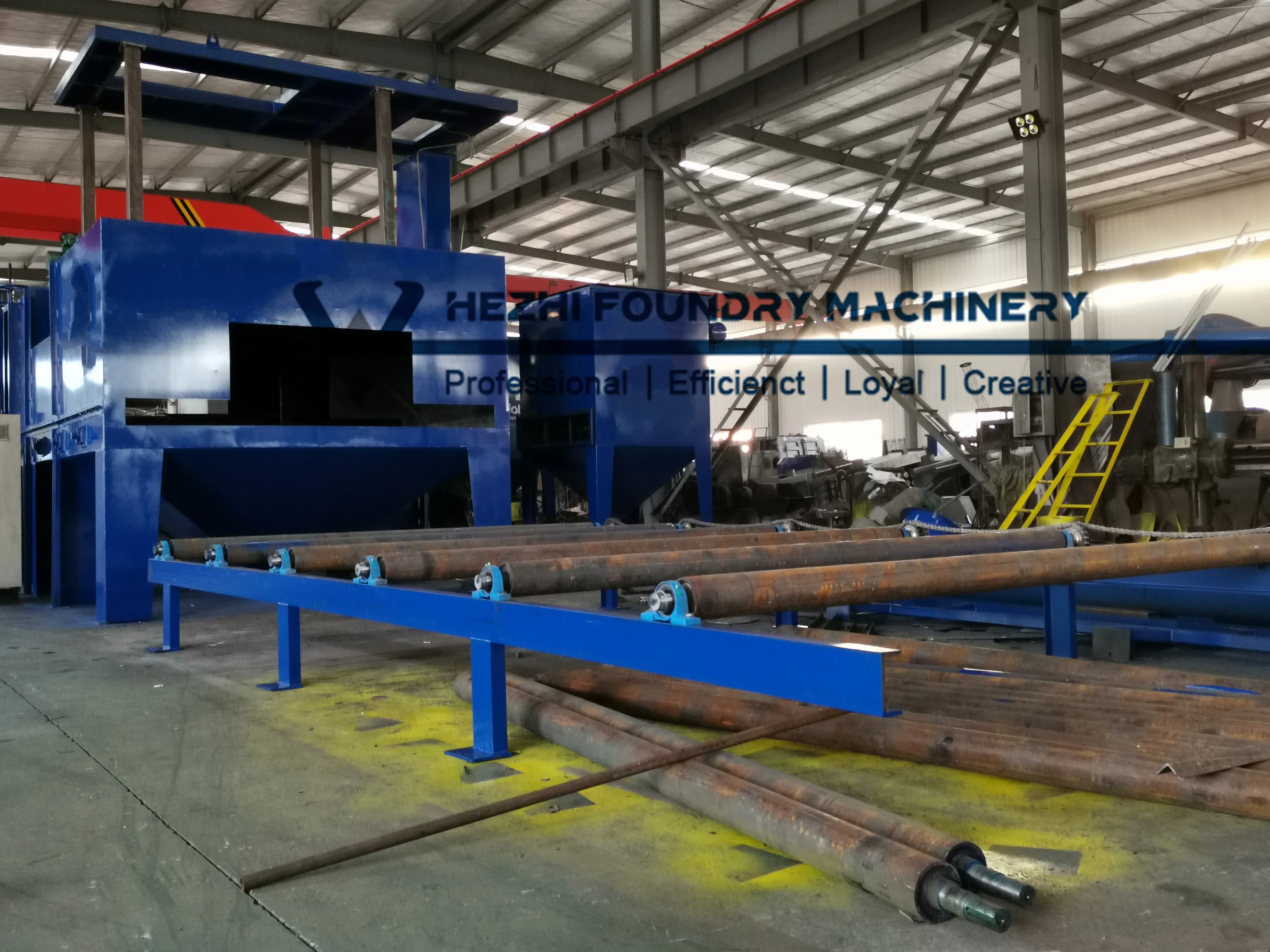

Roller Conveyor Systems

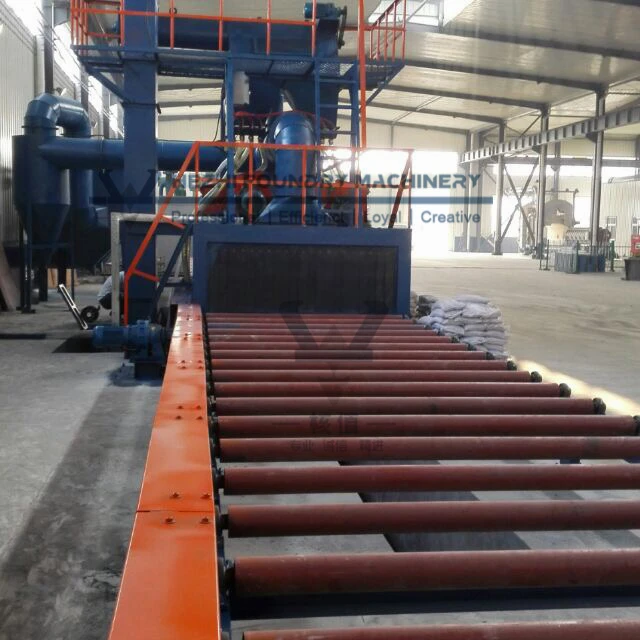

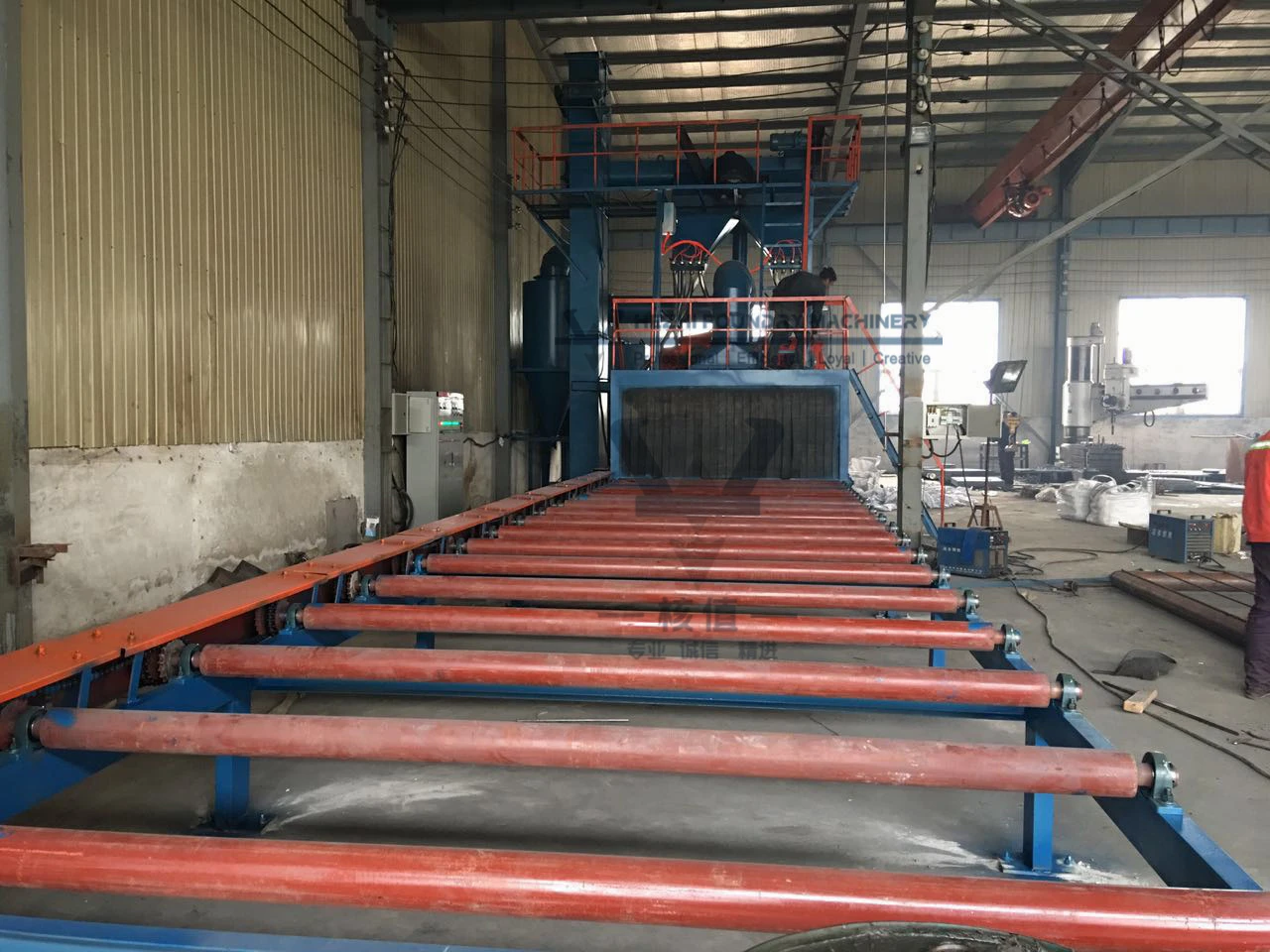

Composition: Feeding rollers, middle rollers, out-feeding rollers.
Loading capacity: 2 tons per meter.
Rollers Distance: 1 m.
Rollers Speed: 0.5-4 m per min.
Drive: Variable speed reducer.

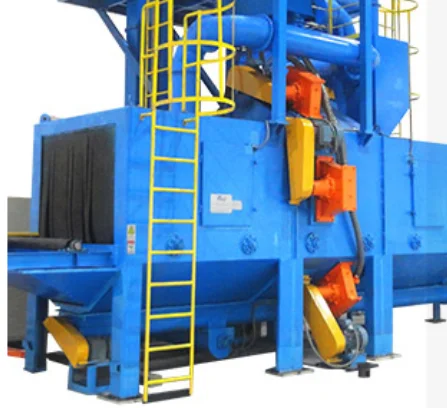

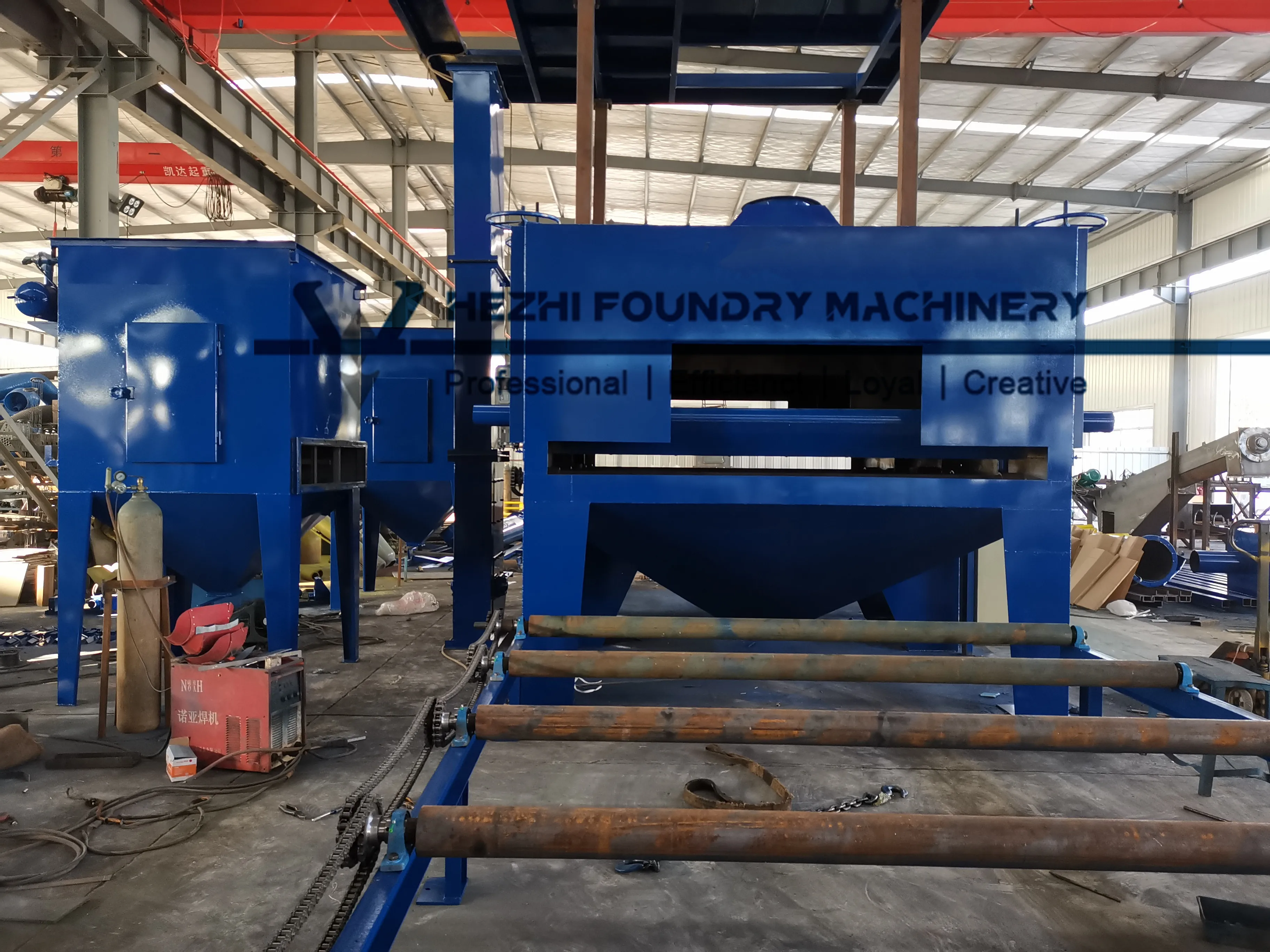

Blasting Chambers
Composition: Main blasting chamber, 2 auxiliary blasting chambers.

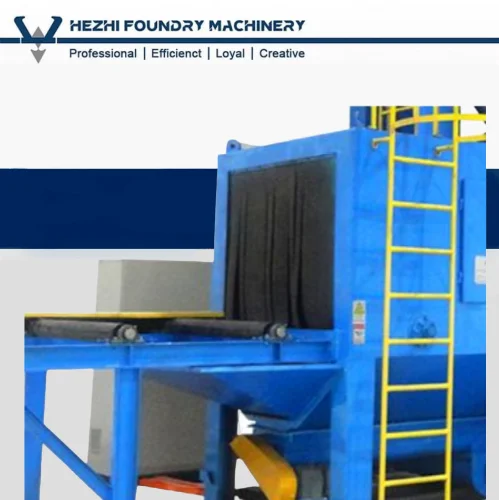

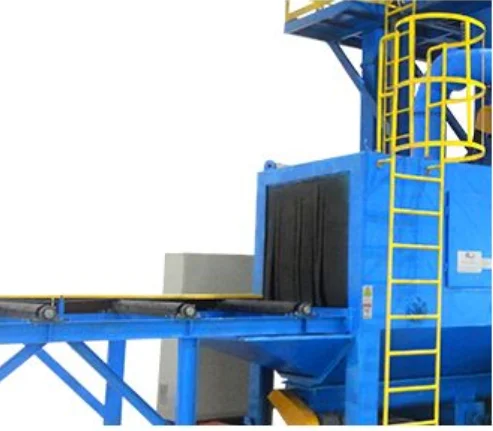

Auxiliary Blasting Chamber:Four layers rubber curtains to prevent steel shots and grits out.
Main Blasting Chamber: All blasting wheels are mounted on chamber in different angles and protected by Mn alloy liners.
Divided & Modular Chambers: Designed accordingly
Abrasive Recycling System
Longitude Screw:To collect used steel shots & grits at the bottom.
Horizontal Screw: Deliver collected shots & grits from longitude screw to bucket elevator.
Bucket Elevator:Lift used steel shots&grits from bottom to separator.
Bucket Elevator:Lift used steel shots&grits from bottom to separator.
Separator:Separate & get qualified shots & grits to abrasive hopper..

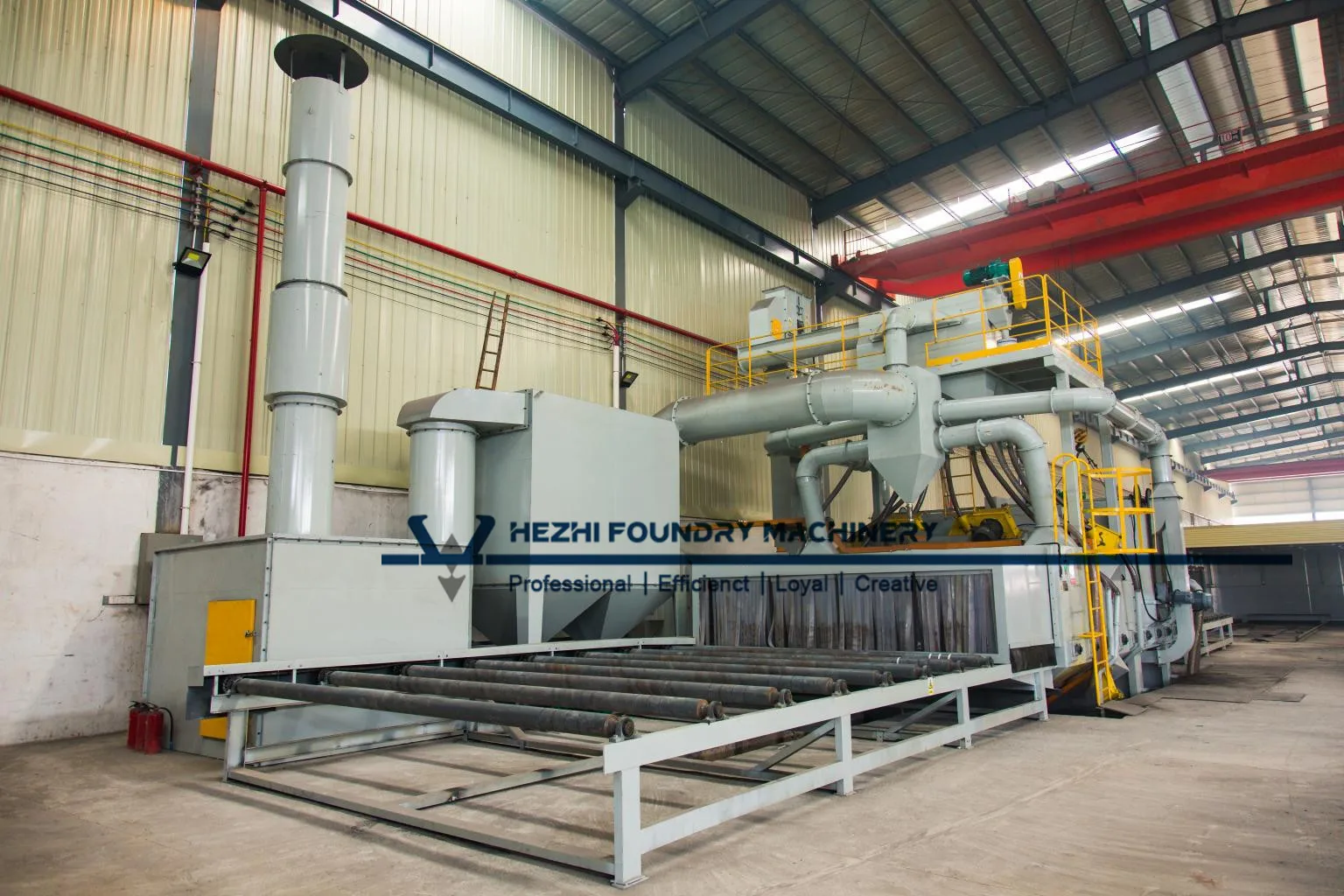

Dust Collection System
Filtration Rate: 99.9%, dustless shot blasting machine, healthy environment.

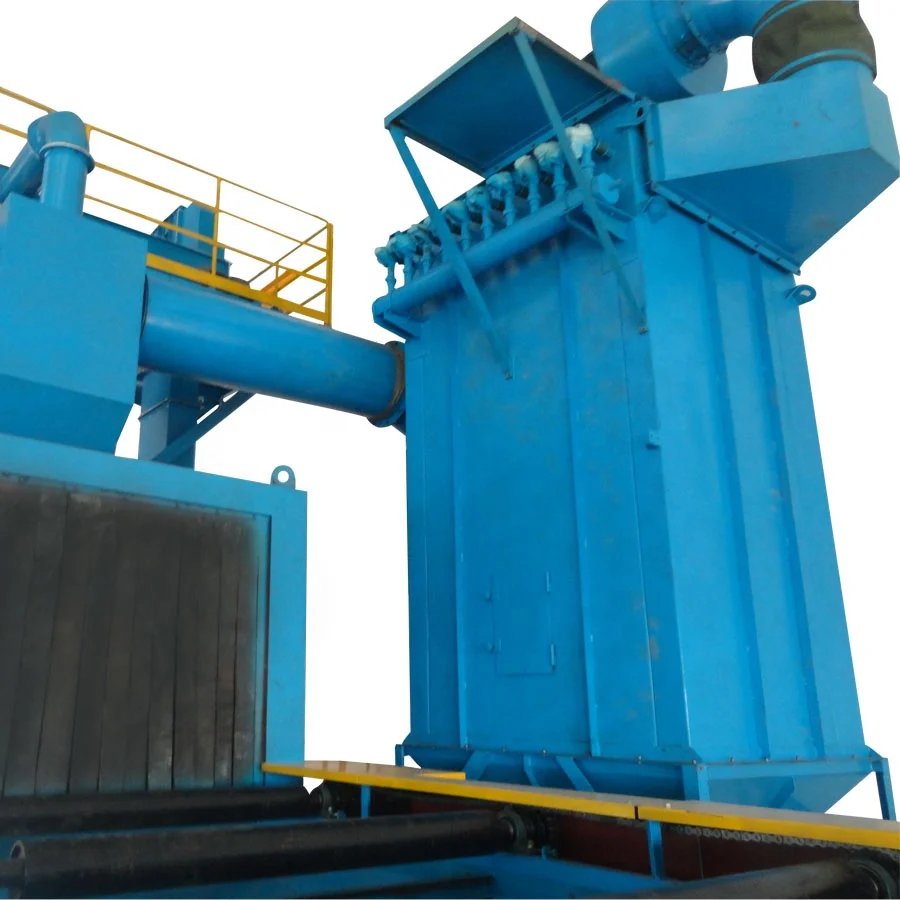

Cyclone Dust Collector: first sate dust collection.
Dust Collector: Cartridge or bag type are second stage dust collection.
Fan Extractor:Extract dusts from piping to dust collector.
Ventilation Piping:Collect dusts from blasting chambers &separators.
Electric Control System
Model: Automatic ( manual type is available).
Control Unit: PLC .
P L C : Siemens, Omron or famous reliable brand in China for your choice.
Emergency Stop: on main control panel and rollers conveyors .
Power Indicator: available on control panel .
Advantages of Roller Conveyor Type Shot Blasting Machines:
1. Wide application, Easy to install and use.
2. Customized, Meet your needs.
3. Good stability, Low failure rate (technical maturity, technical precipitation, skilled workers).
4. Exquisite appearance (mature craft).
5. Large factories, Prompt delivery.
6. Strict quality inspection department.
7. Factory direct selling with competitive price.
8. Over 15 years' production experience.
9. Professional design team to serve you.
10. Mainly electrical control system adoptsinternational brand.
11. CE certificate assure you our quality.
1. Wide application, Easy to install and use.
2. Customized, Meet your needs.
3. Good stability, Low failure rate (technical maturity, technical precipitation, skilled workers).
4. Exquisite appearance (mature craft).
5. Large factories, Prompt delivery.
6. Strict quality inspection department.
7. Factory direct selling with competitive price.
8. Over 15 years' production experience.
9. Professional design team to serve you.
10. Mainly electrical control system adoptsinternational brand.
11. CE certificate assure you our quality.
Qingdao Hezhi Machinery Group
Qingdao Hezhi Machinery Group located in Qingdao West Coast Economic New Zone .we are a manufacturer for Foundry Machinery & Shot Blasting Machine since 2005 .
We has convenient transportation and strong production strength. Hezhi Group is a high-tech industrialized entity integrating casting machinery, surface shot blasting machine, sand treatment,and automation equipment research, development, production, operation, export and service. We owned 3600m2 work shop area for production with 2x10 cranes.Another 2600m2 space is planned for extension.
ISO9001 and CE certificate is achieved. Full set of production ,QC(3 staff) and after-sales (3 staff) guarantee none-defective products.3D Solidworks is used in designing. R&D staff with over 20 years expertise experience meet your customized requirements.
Our philosophy: Professional, Efficienct, Loyal,
Our mission: To creat core vlaue for our customer, our staff and our company.
Choose Hezhi,Get factory price and reliable shot blasting Machinery!
ISO9001 and CE certificate is achieved. Full set of production ,QC(3 staff) and after-sales (3 staff) guarantee none-defective products.3D Solidworks is used in designing. R&D staff with over 20 years expertise experience meet your customized requirements.
Our philosophy: Professional, Efficienct, Loyal,
Our mission: To creat core vlaue for our customer, our staff and our company.
Choose Hezhi,Get factory price and reliable shot blasting Machinery!
Q:What is basting speed of roller conveyor shot blasting machine ?
A:0.5-1.5 m per minute.
Q:What is max weight of rollers of roller conveyor shot blasting machine ?
A:2 tons per 1 meter.
Q:What kind of abrasives to be used for roller conveyor shot blasting machine ?
A:Steel shots, steel grits or steel cut wire.
Q:Is it necessary to dig pit for installation of roller conveyor shot blasting machine ?
A:It depends on the rollers height and work piece size.
Q:How to clean small work pieces shorter than 1 meter ?
A:To make tooling on roller.
Q:How many operators are needed to run roller conveyor shot blasting machine ?
A:1 operator.
