Product Overview

Description

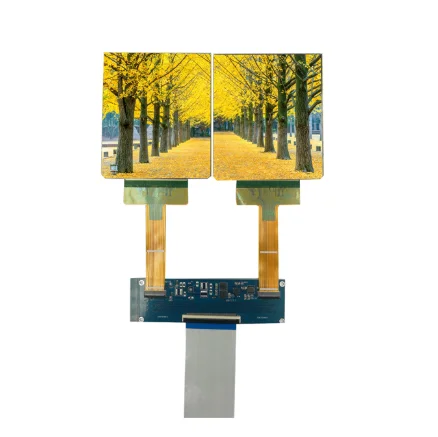

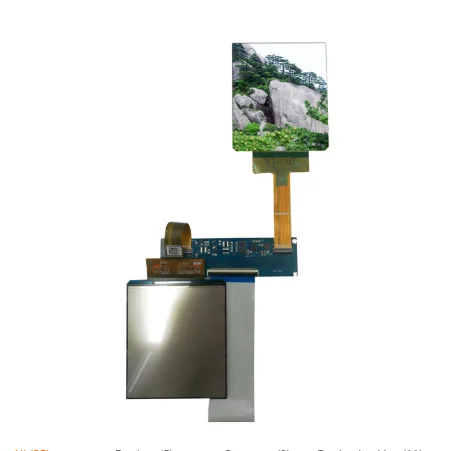

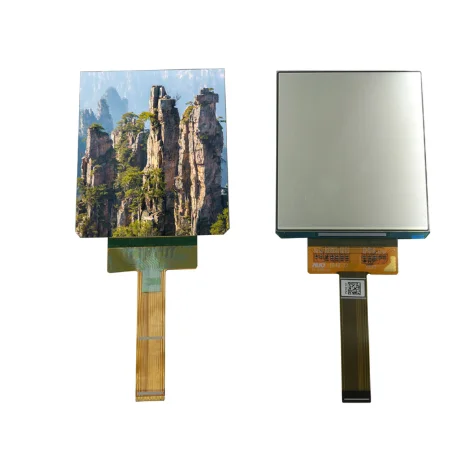

OLED Display 3.81 inch 1080x1200 AMOLED Screen 90hz with h-dmi MIPI board H381DLN01.2 for VR Headset hmd Virtual Reality




Product Description














































































Panel General Features



 Panel Size



 3.8 inch



 Panel Type



 OLED



 Pixel Format



 1080(RGB)×1200



 Configuration



 RGB Vertical Stripe



 Active Area



 64.8× 72 (H×V)



 Outline Dim.



 67.6× 78.95 × 1.29 (H×V×D)



 Luminance



 100 (Typ.)(cd/m²)



 Contrast Ratio



 3000 : 1 (Typ.) (TM)



 View Direction



 Symmetry



 Response Time



 /



 Viewing Angle



 80/80/80/80 (Typ.)(CR≥480)



 Operating Mode



 /



 Support Color



 16.7M   100% NTSC



 Light Source



 self



 Mass



 /



 Used for



 HMD VR AR



 Refresh Rate



 90Hz



 Touchscreen



  Without



 Signal Interface



 MIPI ( 4 data lanes) , Connector , 39 pins



 Input Voltage



 1.8/4.6/5.8/-2.9V (Typ.)(IOVCC/OVDD/AVDD/OVSS)



 Environment



 Storage Temp.: -40 ~ 80 °C    Operating Temp.: -20 ~ 70 °C

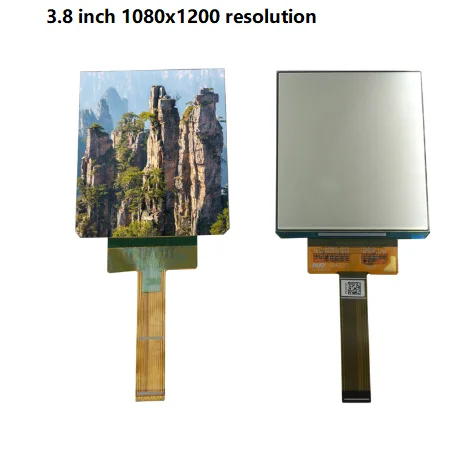

 H381DLN01.2 (1).png


LCD Outline dimensions

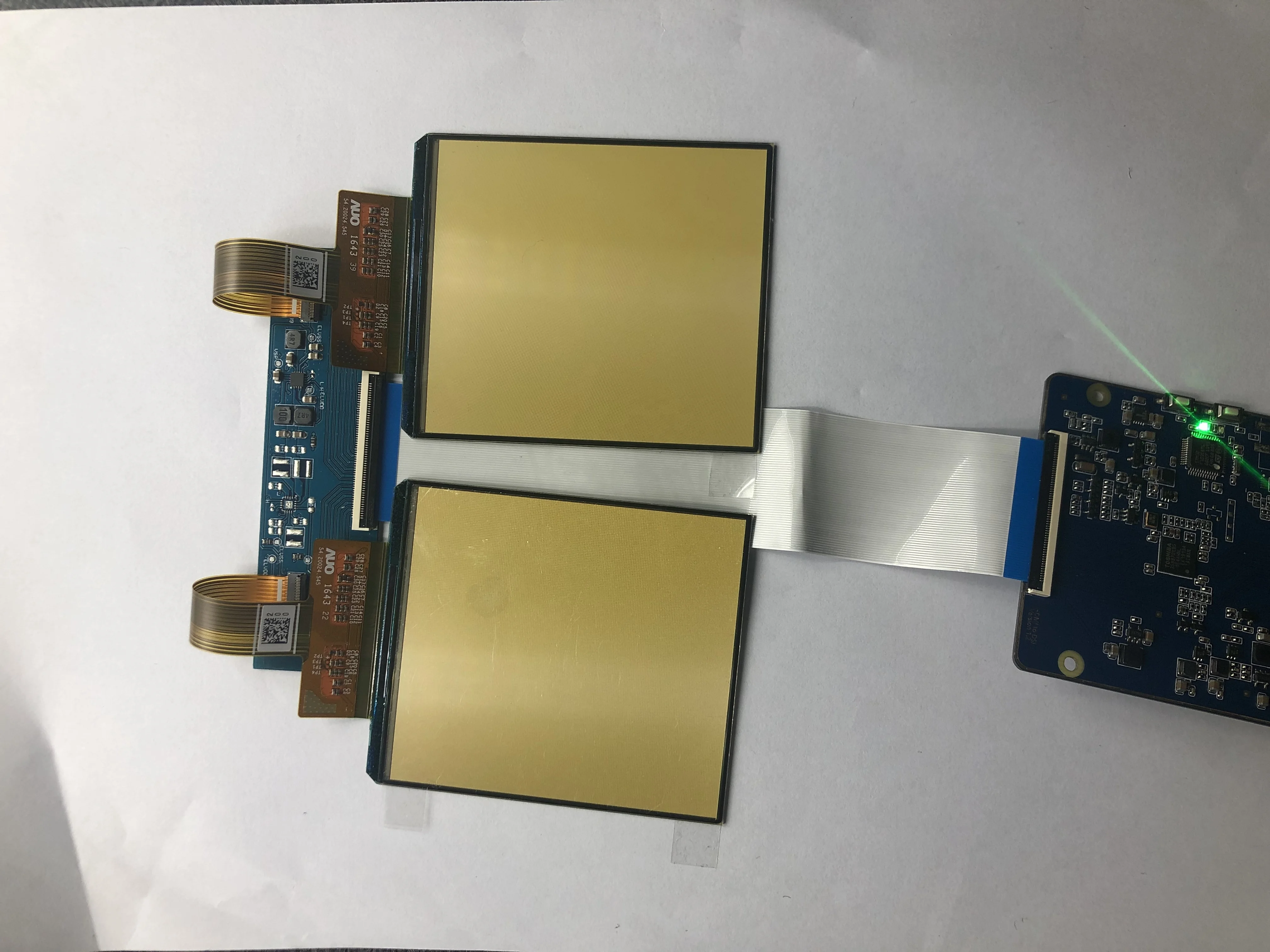

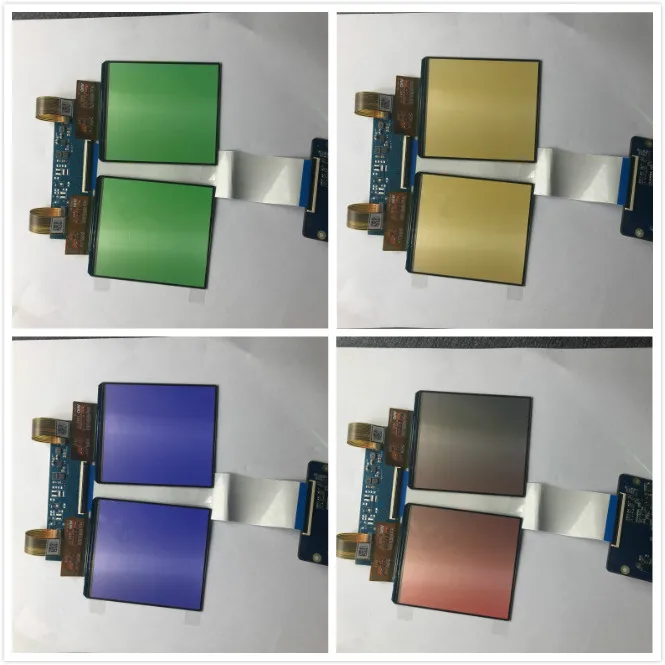

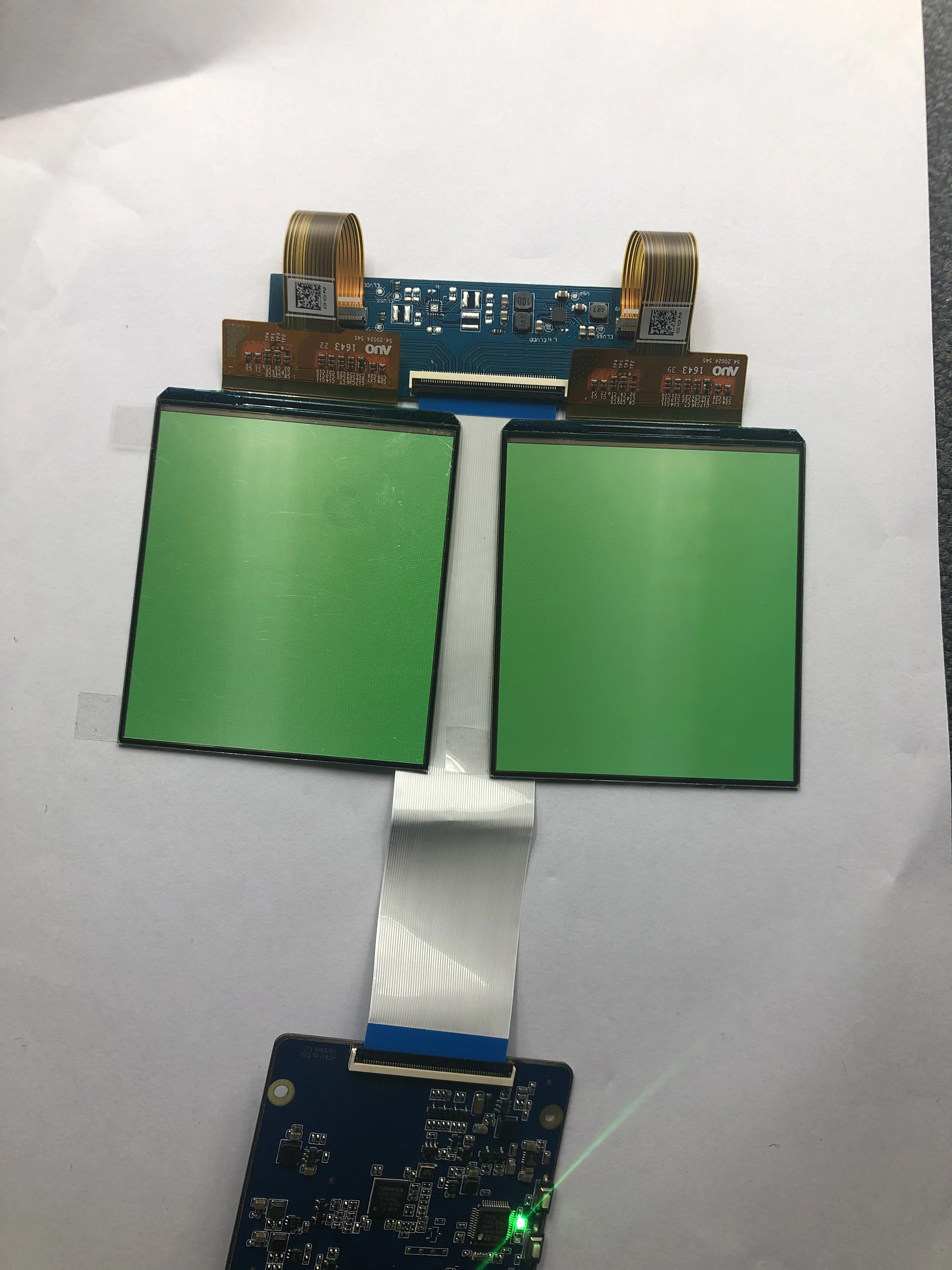

LCD Light Up Pictures :




 -


What we do: Sell LCDs to all over the world





LCD Size: 1.0”-55”


LCD Feature:Transflective TFT,Transmissive TFT,High resolution and High brightness, A variety of viewing angles


LCD Application: For Industrial Device LCD,For plan making and factory product processing,For development new


                              products & scientific research(Customers OEM for Special needs)


LCD Brands: Orturstech,Toppoly,Sharp,NEC,Orturstech,AUO,Hitachi,Tianma,Innolux,Samsung,LG.etc.


 ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------


Why Choose us:


            1.Our company established in 2002, and have a long-term cooperation with many well-known company


            2.We have a professional r&d team and technical support


            3.We have a large number of spot inventory and we can ship delivery asap after payment


            4.All screen ship from our company has long warranty and we have enough technical support can provide


               after-sales service





---------------------------------------------------------------------------------------------------------------------------------------







We are looking forward to cooperate with you in the near future.
