1 Pair POE Adapter Cable Tape Screened POE Switch Cable POE Splitter Injector Power Supply 12V Synthesizer Separator Combiner
- Category: >>>
- Supplier: Shenzhen GLS Technology Co. Ltd.
Share on (62399057079):
Product Overview
Description
1 Pair POE Adapter Cable Tape Screened POE Switch Cable POE Splitter Injector Power Supply 12V Synthesizer Separator Combiner
Product Description
Description:

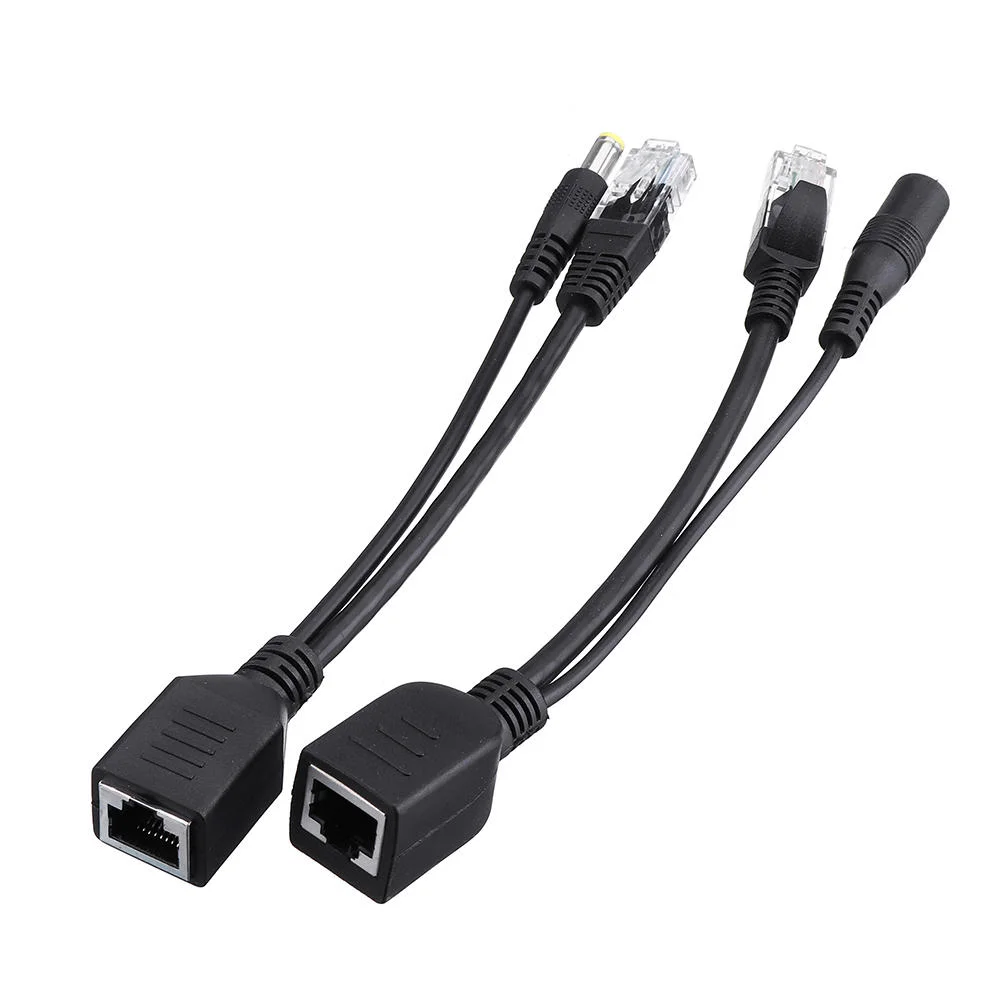

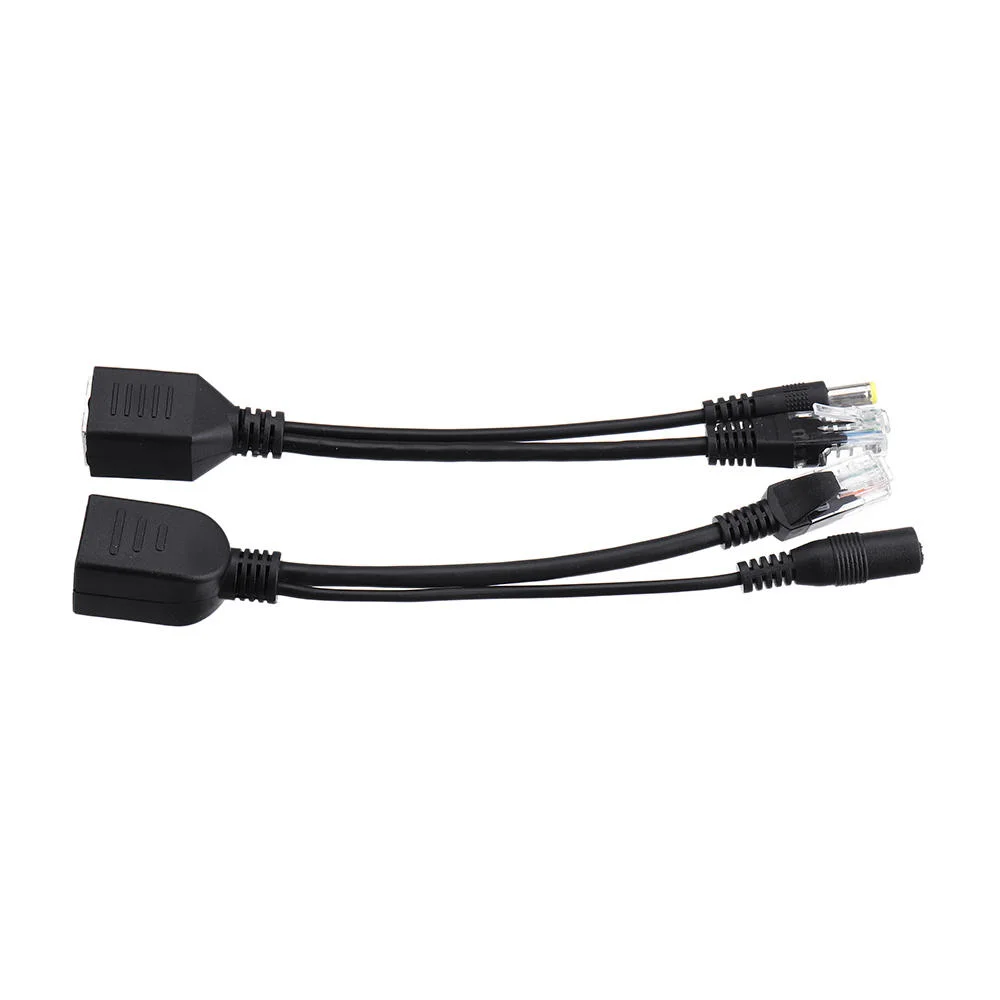

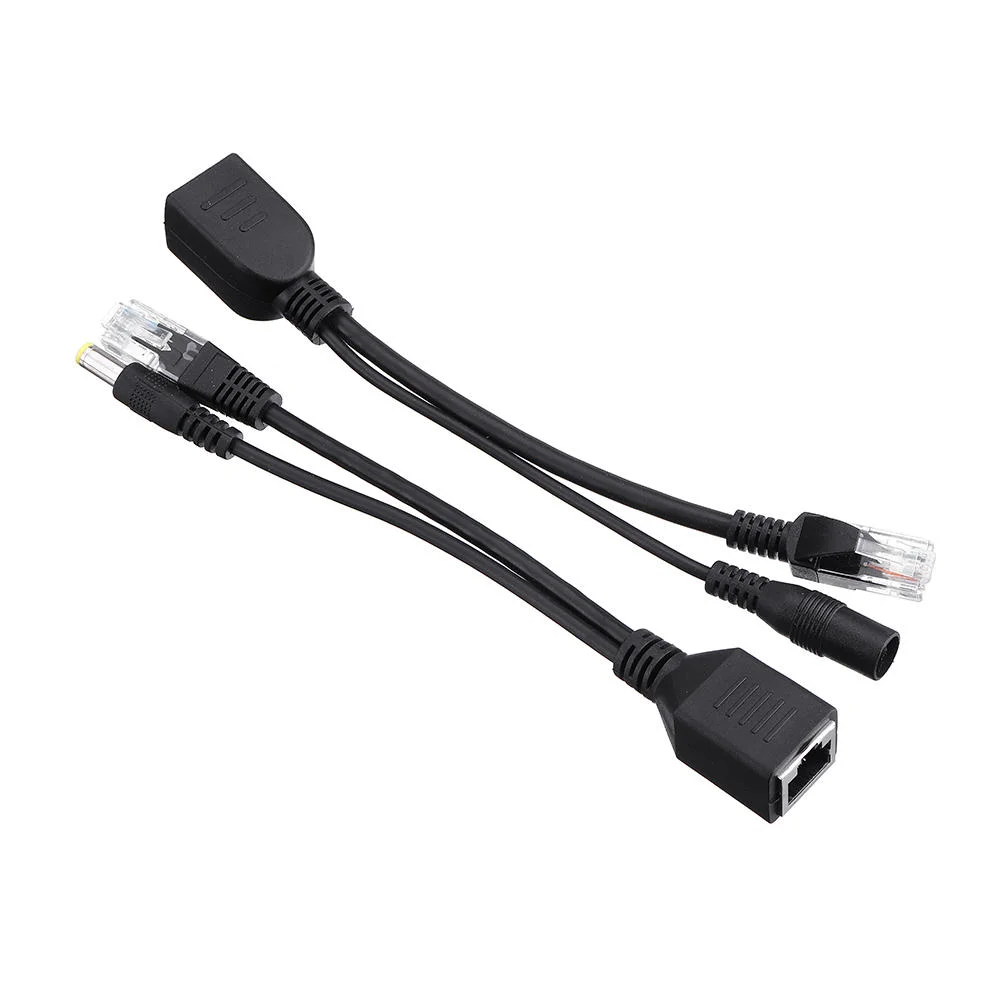

The complete Passive Power over Ethernet SET contains two pieces - INJECTOR and SPLITTER. It is suitable for using with products
that basically do not support Power Over Ethernet. Passive Power Over Ethernet SET is applicable for wide range of network
products such as Access Points, Routers, IP cameras, modems, switches, embedded computers or other network devices. Passive Power
over Ethernet SET is compatible with most devices available on the market such as D-Link, Linksys, Airlive, Senao, Wline,
Micronet, Edimax etc. The devices can be supplied standardly up to 50V. (The power adapter is not included - it is possible to use
the power adapter of the powered device as access point, IP camera etc.) Passive PoE`s range is normally form 30-40 metres/100-130
ft (the real distance depends on the power supply, type of cable and powered device).
Contains: INJECTOR and SPLITTER.
Complete set for wide range of network products such as Access Points, Routers, IP cameras, modems, switches, embedded computers
or other network devices such as D-Link, Ovislink, Senao, Wline, RouterBOARD, WRAP boards and other devices using passive POE
injection.

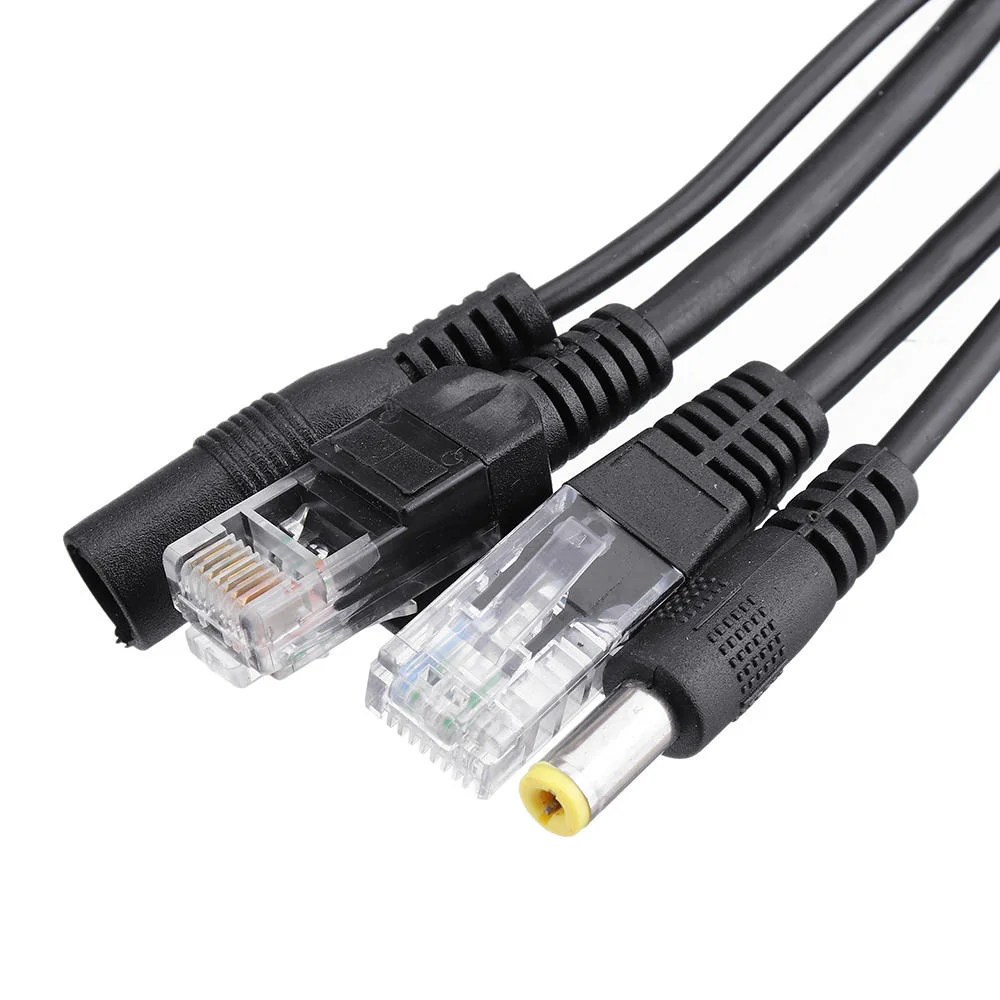

Connector Barrel size is 2.1mm (5.5 x 2.1 mm)
Power Pins 4,5 + and 7,8 -

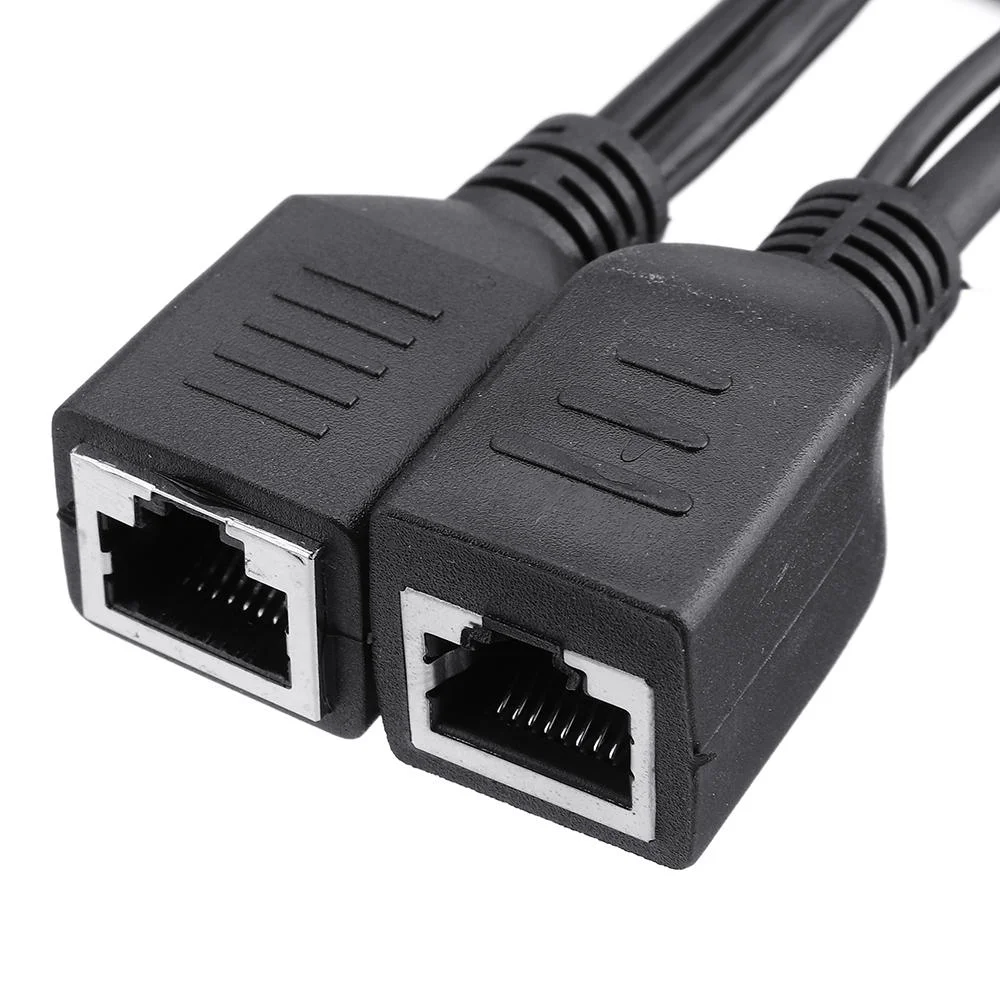

1. It is very simple to connect a passive PoE. On the lower part, we connect the Ethernet
RJ connector of passive PoE to the PC, Hub or Switch and connect the power adapter
to the power socket.
2. On the opposite end (RJ socket) we connect the Ethernet cable leading to the far end.
3. At the far end, we connect the end of the Ethernet cable to the RJ45 socket and connect
the power connectors and the Ethernet to the powered equipment. The equipment is now
connected by them.
that basically do not support Power Over Ethernet. Passive Power Over Ethernet SET is applicable for wide range of network
products such as Access Points, Routers, IP cameras, modems, switches, embedded computers or other network devices. Passive Power
over Ethernet SET is compatible with most devices available on the market such as D-Link, Linksys, Airlive, Senao, Wline,
Micronet, Edimax etc. The devices can be supplied standardly up to 50V. (The power adapter is not included - it is possible to use
the power adapter of the powered device as access point, IP camera etc.) Passive PoE`s range is normally form 30-40 metres/100-130
ft (the real distance depends on the power supply, type of cable and powered device).
Contains: INJECTOR and SPLITTER.
Complete set for wide range of network products such as Access Points, Routers, IP cameras, modems, switches, embedded computers
or other network devices such as D-Link, Ovislink, Senao, Wline, RouterBOARD, WRAP boards and other devices using passive POE
injection.
Connector Barrel size is 2.1mm (5.5 x 2.1 mm)
Power Pins 4,5 + and 7,8 -
1. It is very simple to connect a passive PoE. On the lower part, we connect the Ethernet
RJ connector of passive PoE to the PC, Hub or Switch and connect the power adapter
to the power socket.
2. On the opposite end (RJ socket) we connect the Ethernet cable leading to the far end.
3. At the far end, we connect the end of the Ethernet cable to the RJ45 socket and connect
the power connectors and the Ethernet to the powered equipment. The equipment is now
connected by them.
Input / Output Specifications:
Supports Voltage: 5V, 12V, 24V, 48V
Support Voltage Max Output Current 0.4A Max.
Over Current Protection None
Support Voltage Max Output Current 0.4A Max.
Over Current Protection None
General Sepcifications:
Operating Temperature 0° ~ +45°
Storage Temperature -30oC ~ +70oC
CASE OF MATERIAL PVC
Ethernet Date Rate 10/100Mbps
Ethernet Cable TIA/EIA 568 Cat.5
Humidity Up to 90%
Weight: 24g*4
DC Plugs 2.1mmx5.5mmx12mm
Length 180mm
Storage Temperature -30oC ~ +70oC
CASE OF MATERIAL PVC
Ethernet Date Rate 10/100Mbps
Ethernet Cable TIA/EIA 568 Cat.5
Humidity Up to 90%
Weight: 24g*4
DC Plugs 2.1mmx5.5mmx12mm
Length 180mm
