forged inconel 718 bar price per kg
- Category: >>>
- Supplier: Jiangsu Xurui Metal Group Co. Ltd.
Share on (62399076554):
Product Overview
Description
forged inconel 718 bar price per kg
| Material | Monel/Inconel/Hastelloy/Duplex Steel/PH Steel/Nickel Alloy |
| Shape | Bar,Pipe/tube,sheet/plate,Forging,Ring,Coil,Flange,Ribbon,Square pipe/bar,product processing |
| Grade | Duplex: 2205(UNS S31803/S32205),2507(UNS S32750),UNS S32760(Zeron 100),2304,904L |
| Hastelloy: Hastelloy B/ -2/B-3/C22/C-4/S/ C276/C-2000/G-35/G-30/X/N/g;etc | |
| Inconel 600/601/602CA/617/625/713/718/738/X-750;ETC | |
| Incoloy: Incoloy 800/800H/800HT/825/925/926;etc | |
| GH: GH2132,GH3030,GH3039,GH3128,GH4180,GH3044,etc | |
| Monel: Monel 400/K500/R405,etc | |
| Nitronic: Nitronic 40/50/60;etc | |
| Nimonic: Nimonic 75/80A/90/A263 ;etc | |
| Specification | Wire: 0.01-10mm Strip: 0.05*5.0-5.0*250mm Bar: φ4-50mm;Length 2000-5000mm Pipe: φ6-273mm;δ1-30mm;Length 1000-8000mm Sheet: δ 0.8-36mm;Width 650-2000mm;Length 800-4500mm |
| Product Characteristics | 1.According to the preparation process can be divided into deformation superalloys, casting superalloys and powder metallurgy superalloys. 2.According to the strengthening mode, there are solid solution strengthening type, precipitation strengthening type, oxide dispersion strengthening type and fiber strengthening type, etc.. |
| Inspection | ISO,SGS,BV and so on. |
| Packaging | All our products are packed, stored, transported according to the international regulation.Or as customer's requirement provide special packing. |
Inconel 718
Features: Inconel 718 is a nickel-chromium-molybdenum alloy designed to resist a wide range of severely corrosive environments, pitting and crevice corrosion. This nickel steel alloy also displays exceptionally high yield, tensile, and creep-rupture properties at high temperatures. This nickel alloy is used from cryogenic temperatures up to long term service at 1200° F. One of the distinguishing features of Inconel 718’s composition is the addition of niobium to permit age hardening which allows annealing and welding without spontaneous hardening during heating and cooling. The addition of niobium acts with the molybdenum to stiffen the alloy’s matrix and provide high strength without a strengthening heat treatment. Other popular nickel-chromium alloys are age hardened through the addition of aluminum and titanium. This nickel steel alloy is readily fabricated and may be welded in either the annealed or precipitation (age) hardened condition. This superalloy is used in a variety of industries such as aerospace, chemical processing, marine engineering, pollution-control equipment, and nuclear reactors.
Chemical Composition
| Ni | Cr | Fe | C | Mn | Si | Mo | Cu |
|---|---|---|---|---|---|---|---|
| 50-55 | 17-21 | balance | 0.08 max | 0.35 max | 0.35 max | 2.8-3.3 | 0.3 max |
| Co | Al | Ti | Nb | B | P | S |
|---|---|---|---|---|---|---|
| 1.0 max | 0.20-0.80 | 0.65-1.15 | 4.75-5.50 | 0-0.006 | 0.01 max | 0.01 max |
Density and Melting point
| Density | Melting point |
|---|---|
| 8.24g/cm³ | 1260-1320 ℃ |
Mechanical Properties
| Finish Condition | Tensile strength Rm N/mm² | Yield strength R P 0. 2N/mm² | Elongation (A 5%) Min | HB |
|---|---|---|---|---|
| Solution treatment | 965 | 550 | 30 | ≤363 |

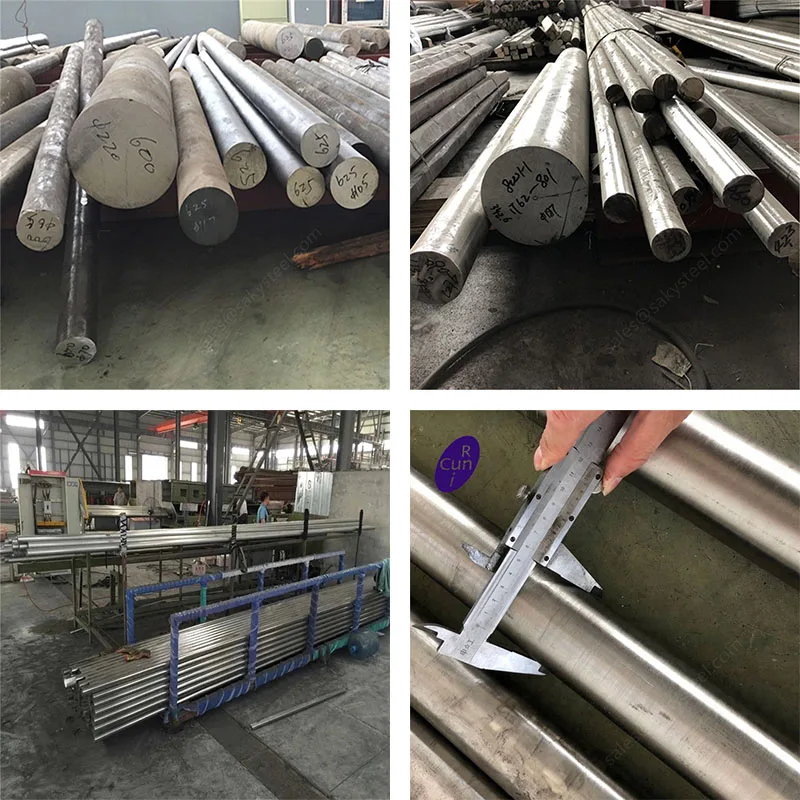

pictures of products
Factory & packaging
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufacturer.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: How long is your delivery time?
A: Generally it is 7-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Any further questions, please feel free to contact us!
