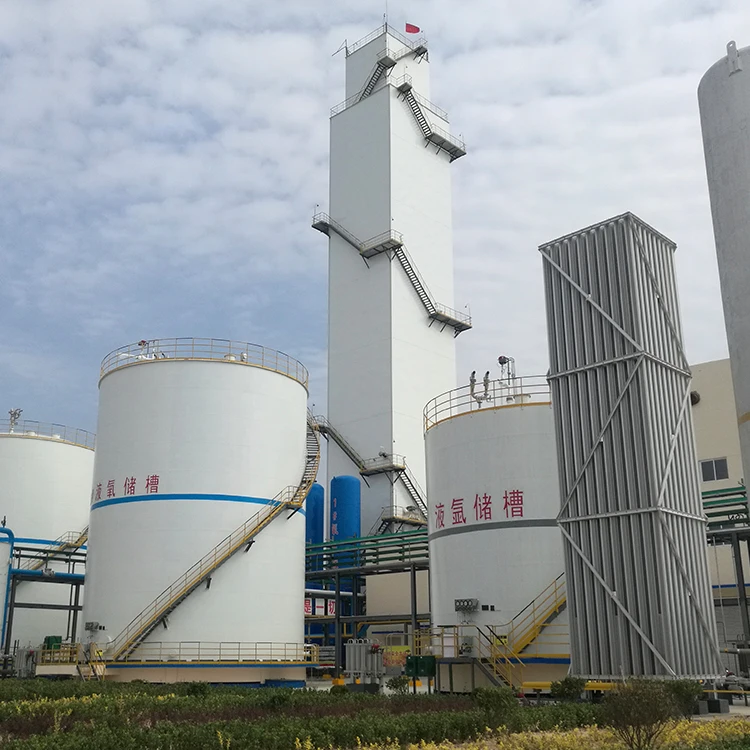

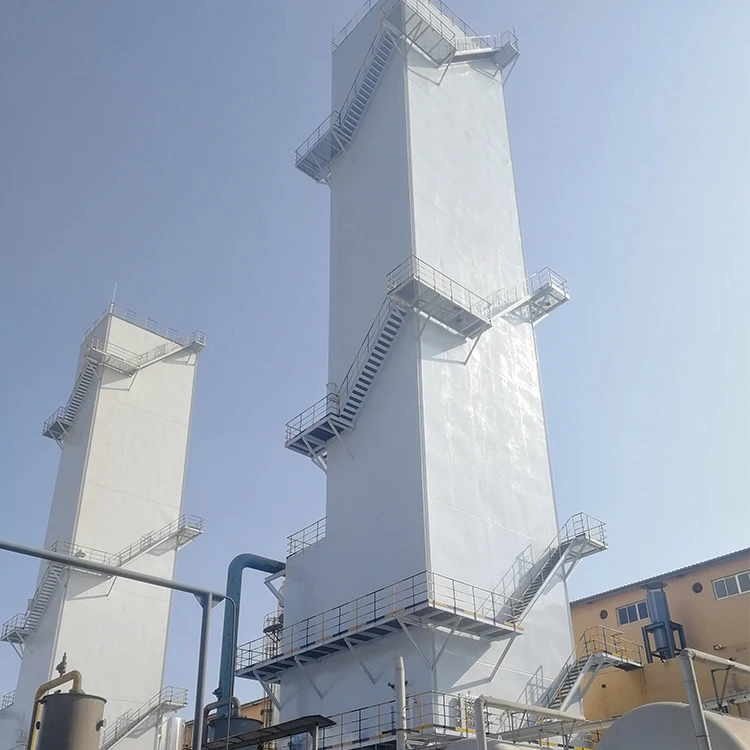

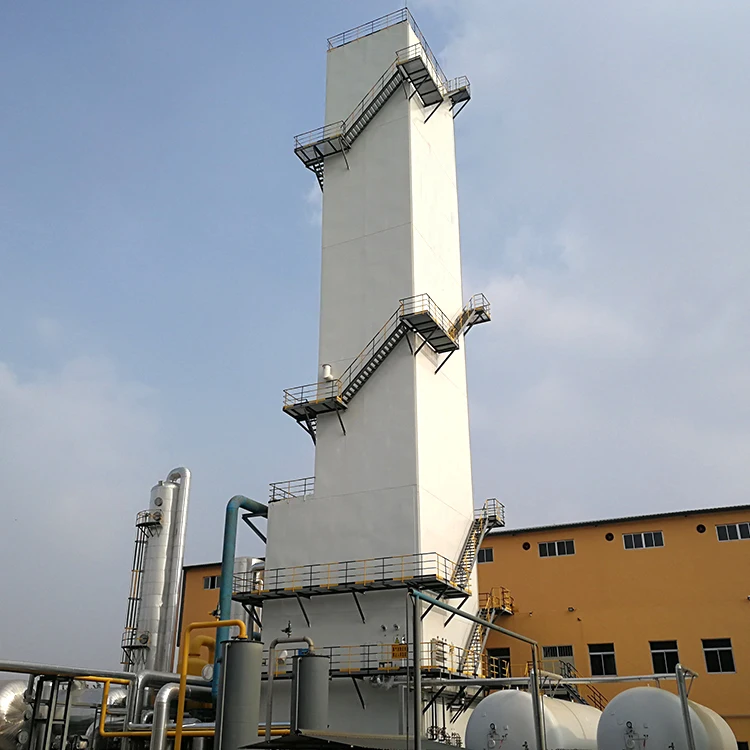

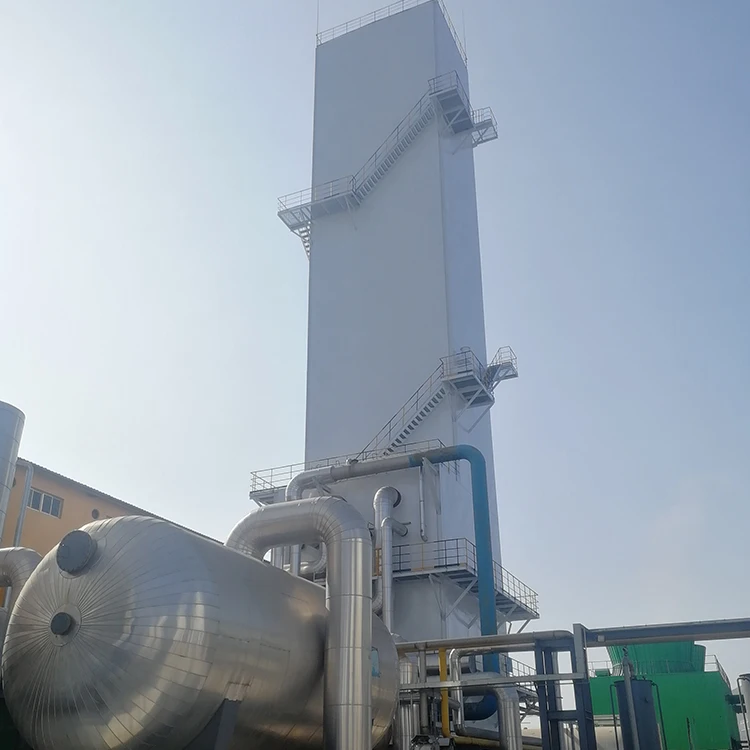

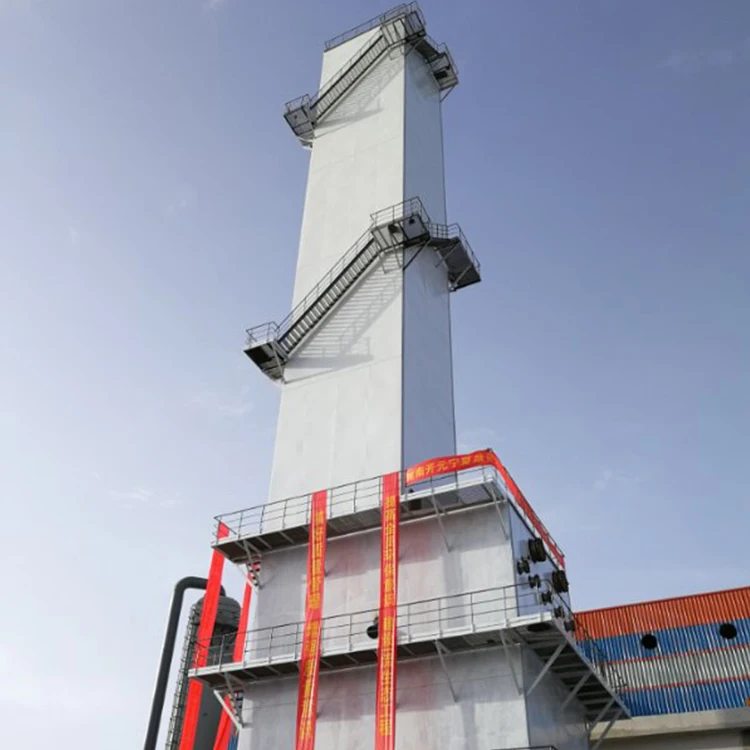

Ultra low pressure air separation unit for cryogenic oxygen plant
- Category: >>>
- Supplier: Henan Kylin Air Separation Group Co. Ltd
Share on (62399160755):
Product Overview
Description
Product Description
Through deep optimization of the process, the operating pressure of the raw material air compressor can be reduced to just a bit over 0.4 MPa, the upper and lower towers are all equipped with high-efficiency distillation packings, and the main cooling adopts new multi-layer heat exchangers. After the technology is put into use, it has saved millions of dollars of energy costs for dozens of our end users.
Sample Model | Oxygen output (Nm3/h) | Adjustable Nitrogen output (Nm3/h) | Adjustable Argon ouput | O2 purity (upgradable)
| N2 purity
| Argon purity
| Air compressor operating pressure
|
KDON-500/500 | 500 | 500 |
| 99.6%O2 | ≤10PPmO2 |
| 0.43Mpa |
KDON-1500/1500 | 1500 | 1500 |
|
| |||
KDONAr- 5000/5000/120 | 5000 | 5000 | 120 |
≤2PPmO2 ≤3PPmN2 | |||
KDONAr-10000/10000/300 | 10000 | 10000 | 300 | ||||
KDONAr-15000/25000/480 | 15000 | 25000 | 480 | ||||
KDONAr-20000/40000/650 | 20000 | 40000 | 650 | ||||
KDONAr-30000/30000/950 | 30000 | 75000 | 950 | ||||
KDONAr-40000/40000/1300 | 40000 | 120000 | 1300 | ||||
KDONAr-60000/60000/2000 | 60000 | 150000 | 2000 | ||||
KDONAr-80000/80000/2600 | 80000 | 200000 | 2600 |
