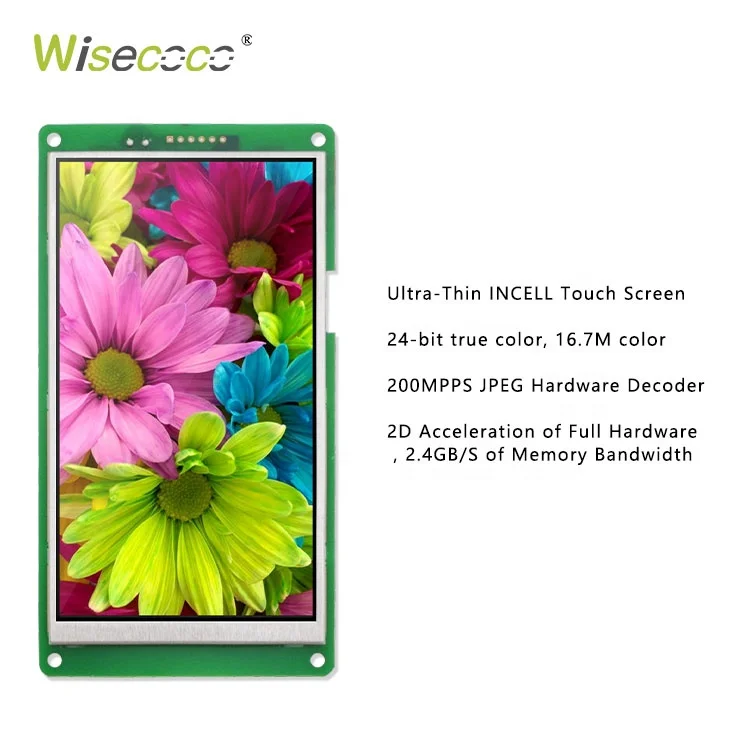

5 Inch IPS 1280*720 Resolution Thin Thermostat Touch TFT LCD Incell Capacitive Touch Display Screen Panel Module
- Category: >>>
- Supplier: Shenzhen Huaizhi Technology Co. Ltd.
Share on (62399196564):
Product Overview
Description
Ips 5 inch thin thermostat touchscreen tft lcd 1280x720 Resolution incell capacitive touch display screen panel module
General Features | |||
Diagonal Size | 5 inch | Type | TFT-LCD |
Pixel Format | 1280(RGB)*720 | Configuration | RGB Vertical Stripe |

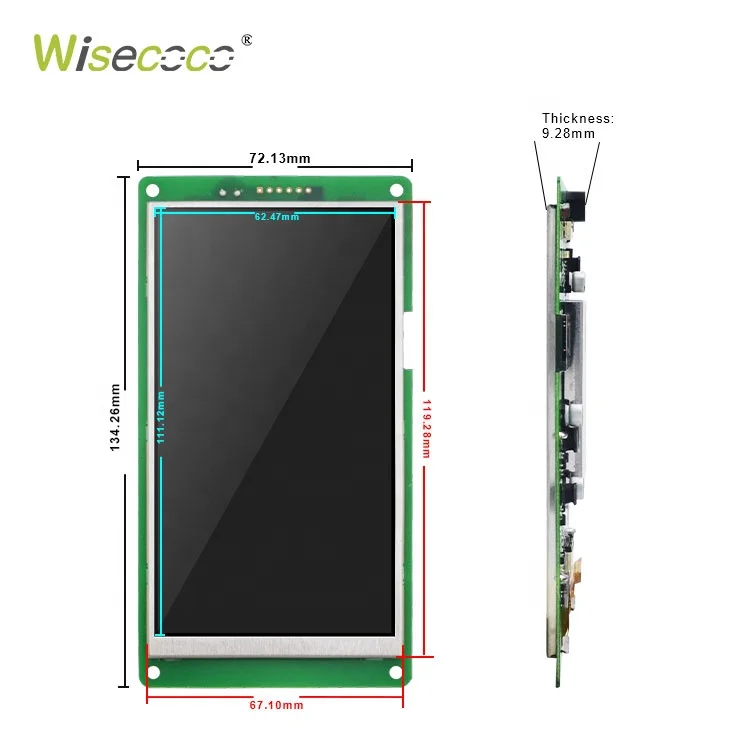

Active Area | 111.12*62.47 (H*V) mm | Outline Dim. | 134.26*72.13*9.28 (H*V*D) mm |
Bezel Area | - | Treatment | - |
Luminance | 250 cd/cm2 (Typ.) | Contrast Ratio | - |
View Direction | Symmetry | Response Time | - |
Viewing Angle | - | Operating Mode | IPS |
Support Color | 16.7M | Backlight | LED |
Weight | - | Designed For | HMI, Thermostat, line controller |
Frame Rate | - | Touch Panel | Incell Touch |

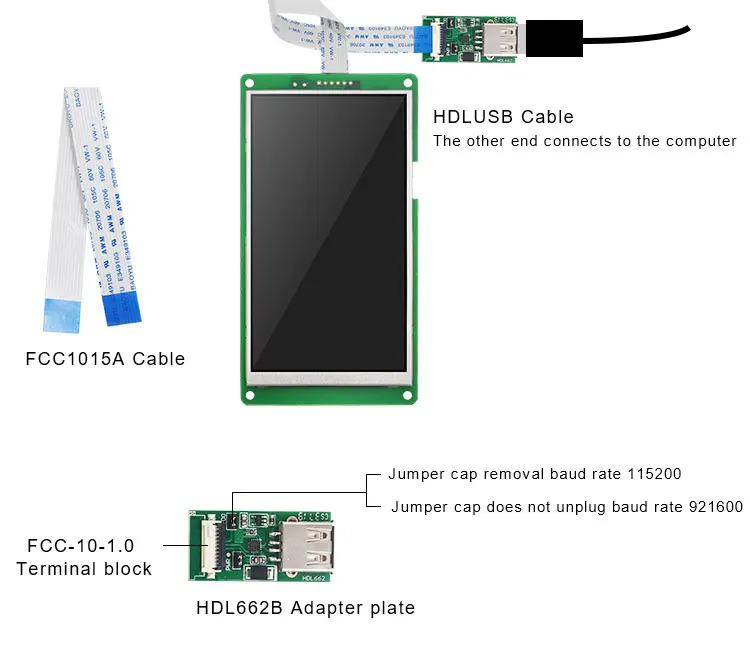

Interface Type | FCC 10pin | ||
Power Supply | 5V (Typ.)(VDDI/AVDD/AVEE) | ||
Environment | Storage Temp.: -30 ~ 85 °C Operating Temp.: -20 ~ 70°C | ||
High Quality!
Large Stock!
Fast Delivery!
Cost-Effective!
Competitive Price!
Long-term Supply!
Excellent After-sales Service!
Welcome to contact us and get our best service!
