DN20 Household ultrasonic heat meter
- Category: >>>
- Supplier: Shanghai Mingwan Intelligent Instrument Co. Ltd.
Share on (62399210424):
Product Overview
Description

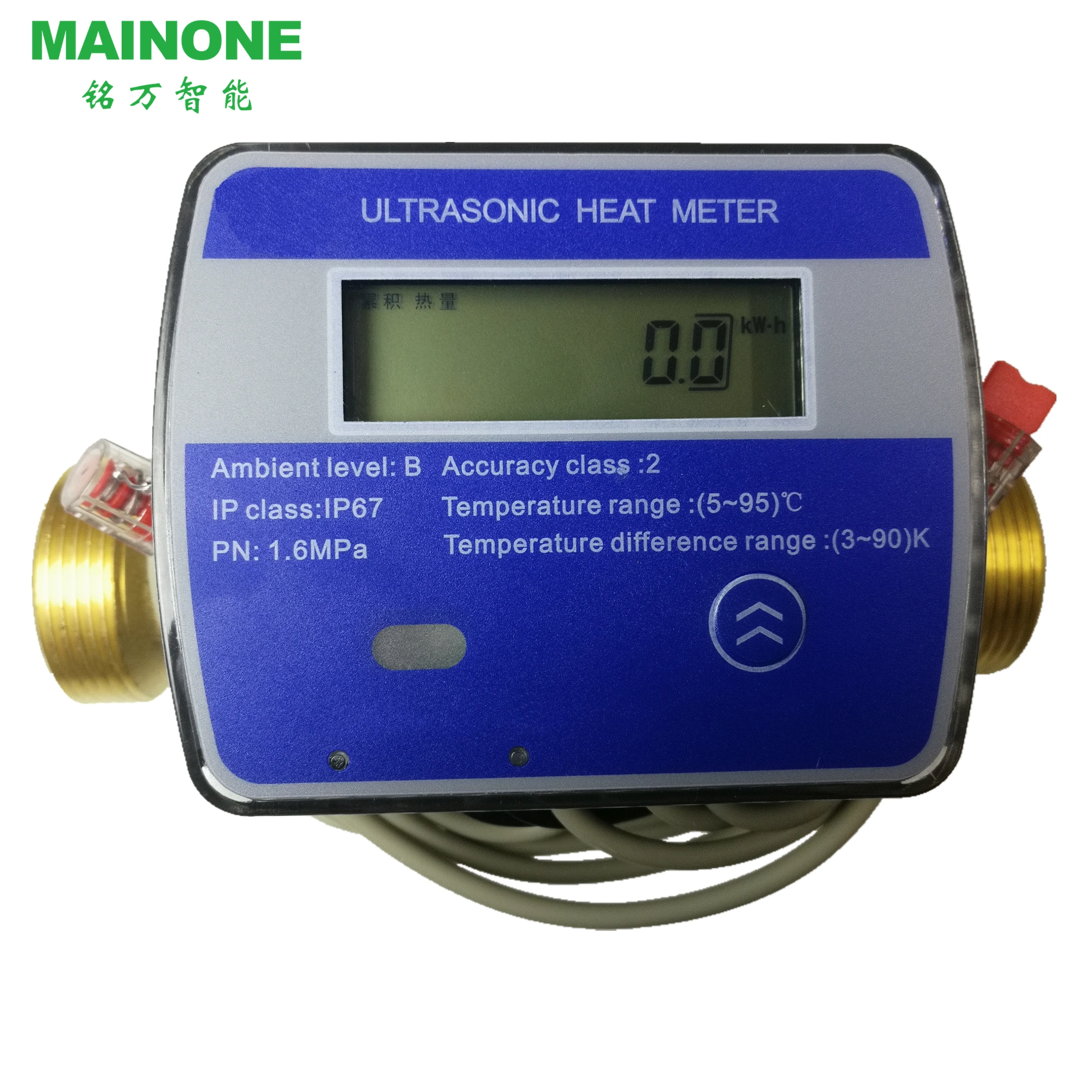

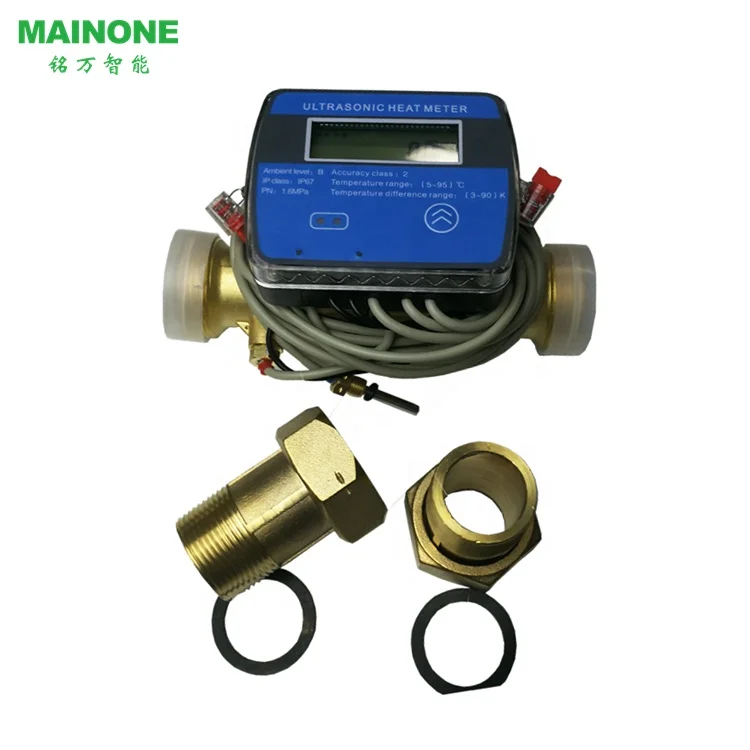

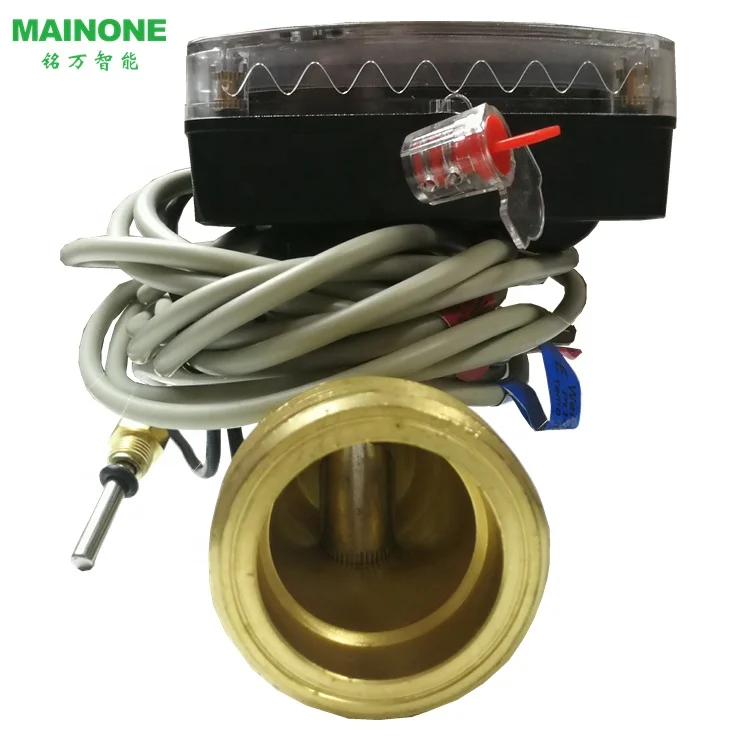

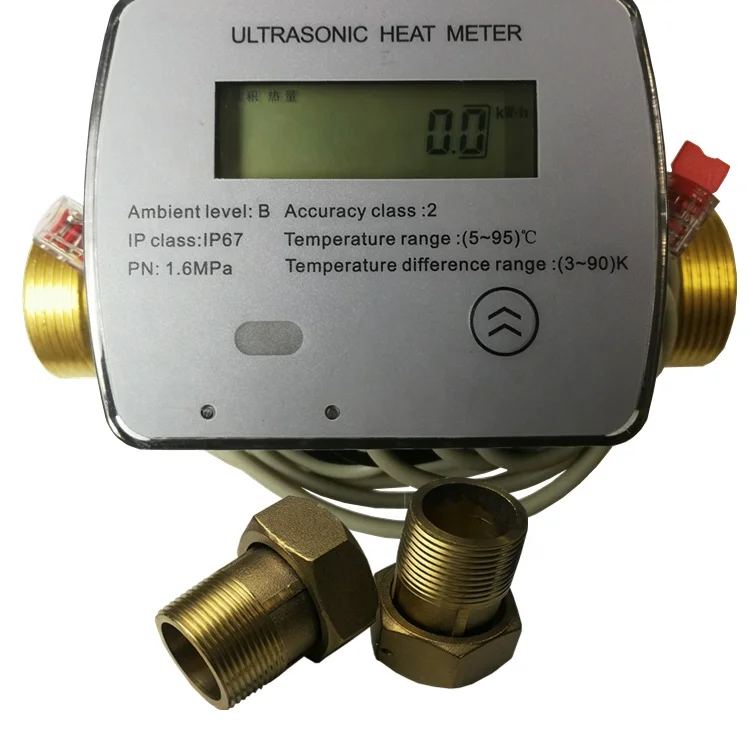

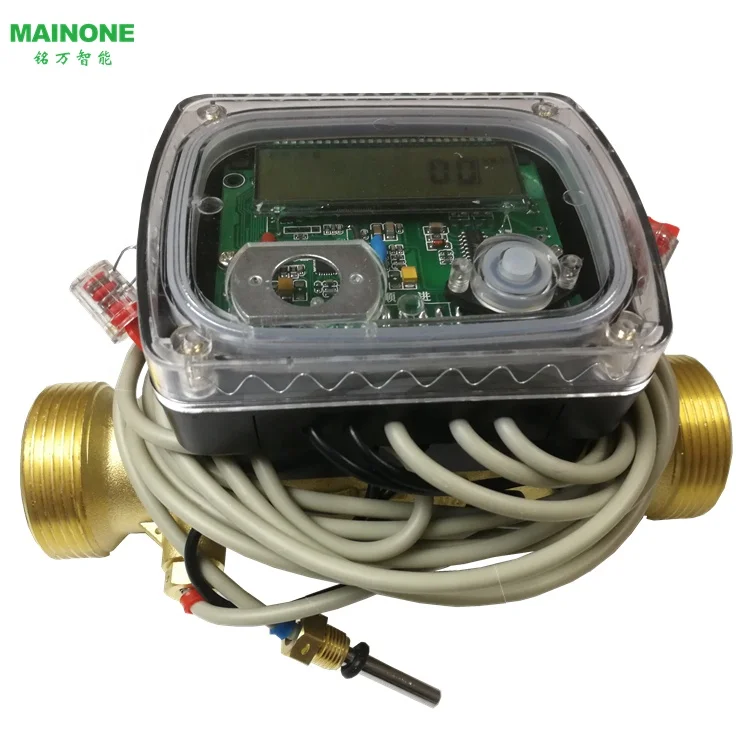

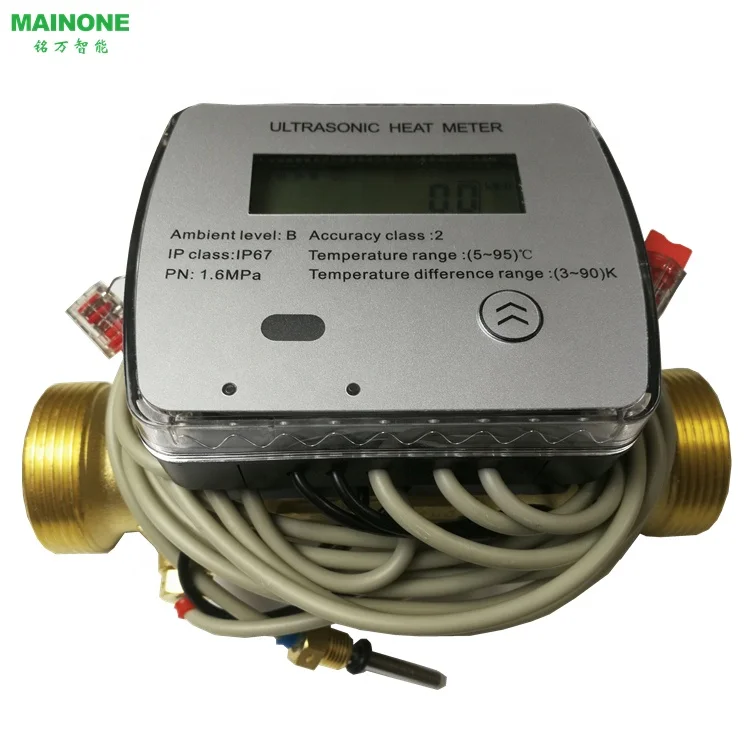

DN20 Household ultrasonic heat meter
Using microprocessor technology and micro-power technology, all energy consumption is calculated intelligently;
With dual measurement functions of heat and cold metering;
It can display various data required for the heat meter, and all the data are showed by English;
With power-off data protection and data recovery;
With error self-test and alarm function;
Has a low battery alert function;
Has 18 months of data storage and query function;
Infrared photoelectric data reading function;
Data communication interface: M-BUS, RS485 for data remote transmission and centralized control;
The integrator section can be removed for easy reading of values on site.
Measuring the actual heat consumption of the heat supplying facilities users in buildings.
Specifications:
Show topic | The contents | Unit | Precision | Remark | |
DN15-32 | DN40 | ||||
Cold | Cold | Kwh | 1 | 1 |
|
Power | Cold Heat | Kw | 0.001 | 0.001 |
|
Inlet temp. | T1 | “ °” | 0.01 | 0.01 |
|
Outlet temp. | T2 | “ °” | 0.01 | 0.01 |
|
Inlet Outlet temp.difference | ΔT | “ °” | 0.01 | 0.01 |
|
Instaneous flow | Flow | m³/h | 0.001 | 0.001 |
|
Flow volume | Water | m³ | 0.01 | 0.01 |
|
Run time |
| h | 1 | 1 |
|
Current date | YY-MM-DD |
|
|
| Effective working hours |
Heat | Heat | Kwh | 1 | 1 |
|
Into the next cycle |
|
|
|
|
|
PRODUCT SIZE : DN15,DN20,DN25,DN32,DN40
Item | Unit | Technical Parameter | ||||
Size DN | mm | 15 | 20 | 25 | 32 | 40 |
Max flow | m³/h | 3 | 5 | 7 | 12 | 20 |
Permanent flow | m³/h | 1.5 | 2.5 | 3.5 | 6 | 10 |
Min flow | m³/h | 0.03 | 0.05 | 0.07 | 0.12 | 0.2 |
Accuracy |
| Class 2 | ||||
Job stress | MPa | 1.6 | ||||
Pressure loss | MPa | < 0.025 | ||||
Temp. range | ℃ | 4~95 | ||||
Temp. difference range | K | 2~60 | ||||
The largest value displayed | 999999.99 | |||||
Protection level | IP67 | |||||
Environmental level | A type: temp. 5~55℃;humidity RH(%)< 39 | |||||
Built-in battery | Working time ≥6 years | |||||
Temperature sensor | Pt1000 platinum resistance | |||||
Products are divided into economical, practical and waterproof to meet the needs of different users. Please specify the piping design flow and installation position (inlet or outlet water) when purchasing.
Company Information

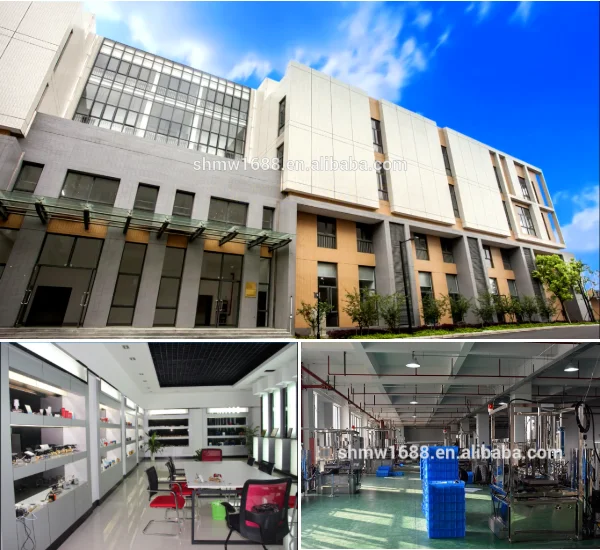

Shanghai Mingwan Intelligent Instrument Co., Ltd. was established in 2010. The company is registered in Shanghai Nanxiang, a thousand-year-old town. Nanxiang Xiaolongbao is a famous food in the country.
