ceramic furnace ceramic oven furnace for melting glass
- Category: Laboratory Heating Equipments >>>
- Supplier: Henan Sante Furnace Technology Co. Ltd.
Share on (62399235075):
Product Overview
Description
Products Description

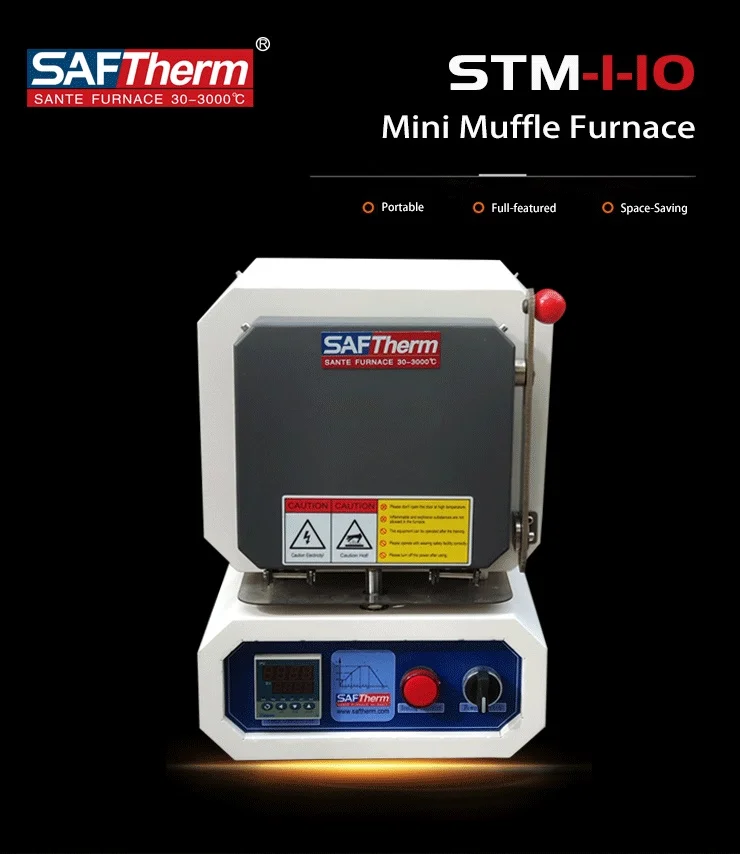

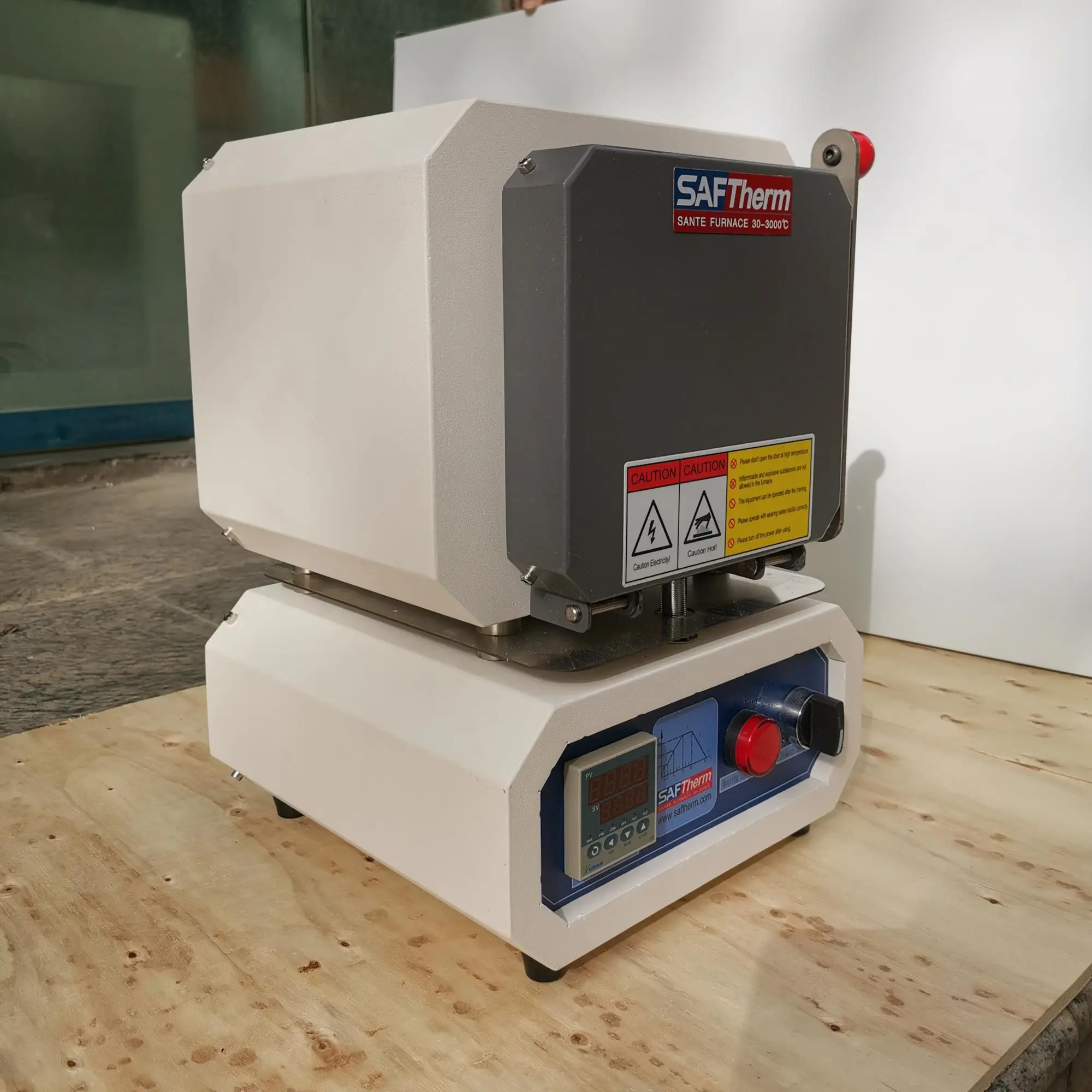

Cheap Price 1000C 1L Small Electric Muffle Furnace
The Cheap Price 1000C 1L Small Electric Muffle Furnace With the features of small volume, low energy consumption and light weight, the mini furnace is convenient for every person hold one set in the laboratory. It use electric resistance wire as heating element, adopted carbon steel shell structure and intelligent temperature control system;

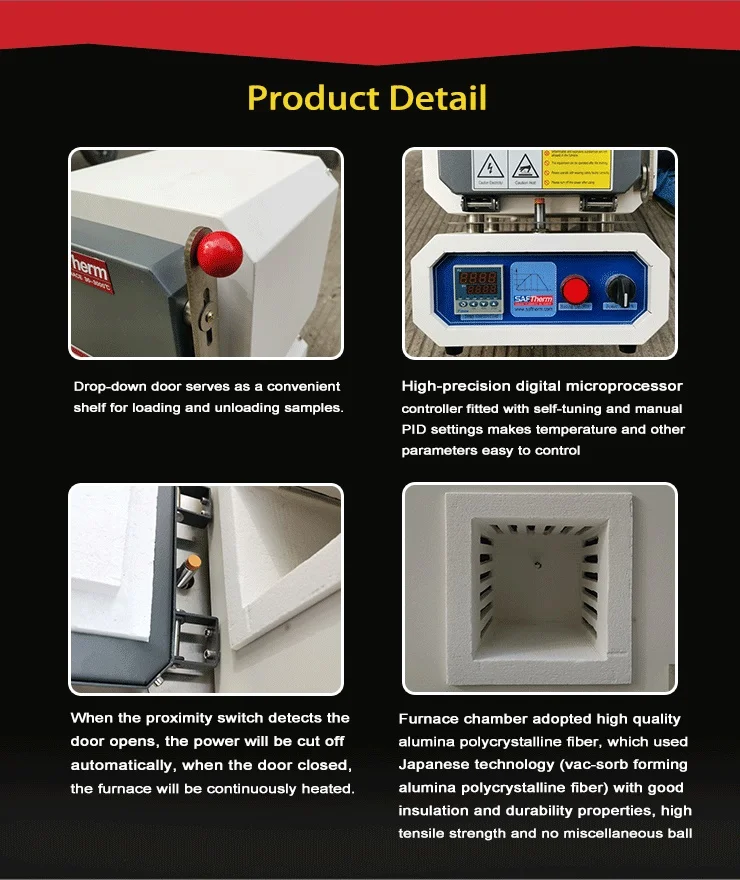

Details Images
Product Paramenters
Model No. | STM-1-10 | STM-8-12 | STM-18-12 | STM-30-12 | |||
Chamber Size | 100x100x100mm | 200x300x120mm | 250x300x250mm | 300x500x200mm | |||
Power Supply | 220V/1.2KW | 220V/2.5KW | 220V/6KW | 380V/7.5KW | |||
Furnace Type | Benchtop, flap door | ||||||
Usage | General purpose furnace ideal for general laboratory uses—gravimetric analysis, sintering, quantitative analysis and heat treatment | ||||||
Furnace Structure | 1. The furnace is consist of heating system, gas system, vacuum system 2. chamber is consist of chamber material, insulation material heating elements and atmosphere boxes 3. Temperature controller is consist of temperature PID controller, control elements and thermocouple 4. Integrated the furnace body and the temperature controller in one, the furnace is fixed on the temperature controller | ||||||
Max. Temperature | 1000℃ | 1200℃ | |||||
Continuous Temp. | 900℃ | 1100℃ | |||||
Heating Rate | ≤15℃/min (suggest 10℃/min for longer life using of furnace) | ||||||
Heating Element | With the features of small volume, low energy consumption and light weight, the mini furnace is convenient for every person hold one set in the laboratory. It use electric resistance wire as heating element, adopted carbon steel shell structure and intelligent temperature control system; | ||||||
Chamber Material | 1. Adopt high quality alumina polycrystalline fiber, which used Japanese technology (vac-sorb forming alumina polycrystalline fiber) with good insulation and durability properties 2. High quality 1300 degree fiber alumina as refractory lining, pure white color 3. Ceramic fiber insulation for fast heat-up and reduced energy consumption—rise time to 1100°>C takes only 50 minutes. 4. Embedded heating elements on the round chamber which give an ideal temperature uniformity | ||||||
Temp. Uniformity | ±5°C | ||||||
Thermocouple | N Type | ||||||
Temp. Controller | 1. Control system integrated in furnace base, Defined application within the constraints of the operating instructions 2. Furnace temperature controller utilizes PID technology for highly accurate 30-segment programmability 3. Feature single setpoint digital control, simultaneous LED display of actual temperature vs set point 4. A high-precision digital microprocessor controller fitted with self-tuning and manual PID settings makes temperature and other parameters easy to control 5. Temperature controller Precision ±1℃ | ||||||
Electronics | SCHNEIDER maker air switch, buttons, solid-state relay, A.C contactor etc. | ||||||
Furnace Shell | 1. High quality cold-rolled steel sheets CNC processing 2. Environmental electrostatic plastic-spraying on surface after deoiling, derusting, phosphating etc. nine processes 3. Energy efficient insulation keeps exterior safe to touch | ||||||
Safety Precautions | 1. Overheating & Broken thermocouple protection 2. Leakage circuit breaker 3. Automatic power off when furnace door opens (optional function) 4. Over-temperature protection and alarm allow for operation without attendant(s) 5. Microprocessor-based PID control with self-tuning capability to prevent overshooting of set temperature | ||||||
Supply Scope | 1. One furnace body 2. One set of temperature controller system 3. Three-meter power line 4. One thermocouple 5. One pair of crucible stongs 6. One pair of high temperature furnace gloves 7. An instruction book | ||||||
Optional Devices | Quartz Boat paperless recorder exhaust chimney | ||||||
Warranty | One year limited manufacturer's warranty (Consumable parts such as processing tubes, O-rings and heating elements are not covered by the warranty, please order replacements at related products respectively | ||||||
Scope of Application
Scope and Field of Vacuum Tube Furnace
1. AEROSPACE
The vacuum tube furnace can be used in high-temperature tempering, annealing, quenching and other heating treatment processes of structural high-temperature metal materials and composites of aircraft and spacecraft engines
2. MILITARY MANUFACTURING INDUSTRY
Can be selected for all kinds of parts and components requiring heat treatment in military factories
3. SCIENTIFIC RESEARCH
we have rich experience in product in the field of scientific research, series products of 1200 ℃ to 1700 ℃ for schools and institutions.
4. PETROCHEMICAL
The high-temperature furnace is suitable for the preparation and sintering of petrochemical products.
Company Profile
SAFtherm Furnace Technology
Henan Sante Furnace Technology Co., Ltd. is a high-tech enterprise located in Luoyang area of Henan﹒China Free Trade Zone. SAFTHERM products cover 1000℃/1200℃/1300℃/1400℃/1600℃/1700℃/1800℃ Box furnace, Tube furnace, Vacuum furnace, High Temperature Furnace, 2000℃ Ultra-High Temperature Furnace, Dental furnace, Industrial chamber furnace, elevator furnace, Intelligent mobile car bottom furnace, Smelting furnace and so on.
Our company has passed ISO9001 quality certification, CE certification and SGS factory certification. It also has got a number of technical honors like "Scientific and Technologic Enterprise of Henan Province", "National Small and Medium-Sized Sci-Tech Enterprise", "Refractory Material Technology Sintering R&D Center" issued by Science and Technology Department of Henan Province.
Our company has passed ISO9001 quality certification, CE certification and SGS factory certification. It also has got a number of technical honors like "Scientific and Technologic Enterprise of Henan Province", "National Small and Medium-Sized Sci-Tech Enterprise", "Refractory Material Technology Sintering R&D Center" issued by Science and Technology Department of Henan Province.
Before the products leaving the factory, it will be carried out QC processes, which including electrical test, temperature test, temperature accuracy calibration, furnace size check, furnace material check, product appearance inspection, electrical grounding safety test; ensure that each product is safe and qualified.
Recommend Products
Product packaging
Our Services
Packaging details for the 1200c degree vacuum tube furnace:
1.The furnace body was warped with enrivonmental plastic stretch film, then fixed well on the fumigation-free pallet
2.Tailored polywood case, coupled perfectly with the pallet
3.Filled with polyfoam, fit well between the furnace body and the case in all sides
4.Easy-to-identify double-sided outer box print logos and shippment marks
5.Delivery Time: 15 working days against receiving advanced payment
2.Tailored polywood case, coupled perfectly with the pallet
3.Filled with polyfoam, fit well between the furnace body and the case in all sides
4.Easy-to-identify double-sided outer box print logos and shippment marks
5.Delivery Time: 15 working days against receiving advanced payment
