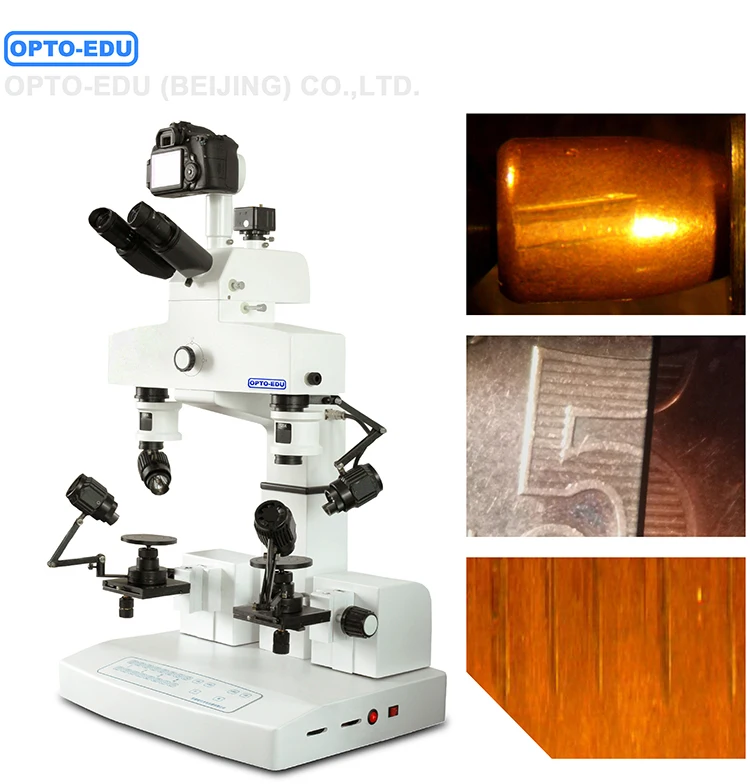

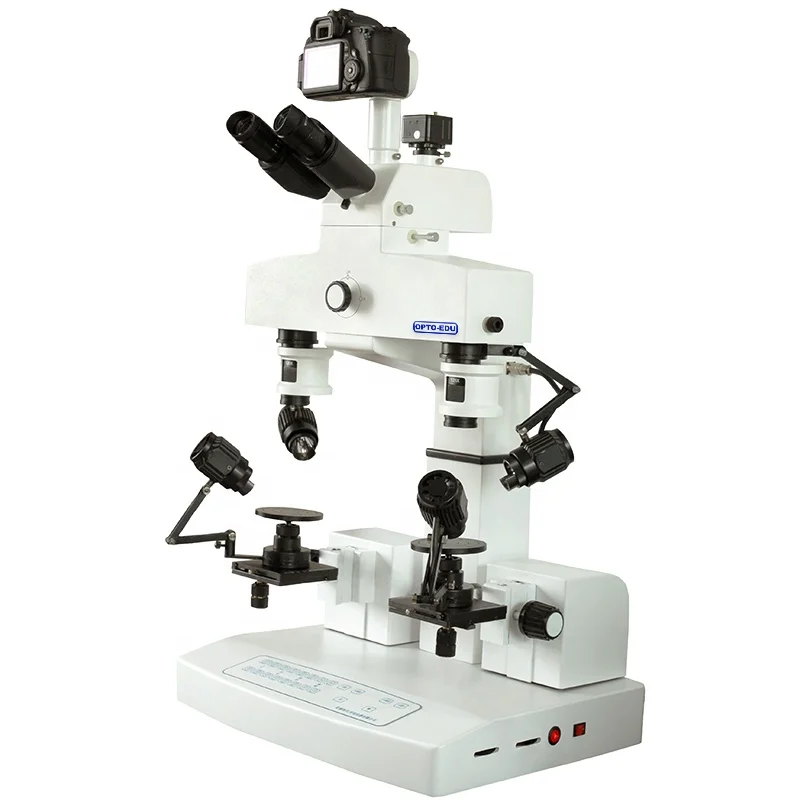

OPTO EDU A18.1822 3.2x~320x Dual Bridge Zoom 1x 1.6x comparison forensic microscope
- Category: >>>
- Supplier: Opto-Edu (Beijing) Co. Ltd.
Share on (62399246667):
Product Overview
Description
| A18.1822 Motorized Comparsion Microscope | |
| Total Magnification | 3.2x-320x |
| Head | Binocular 45° Inclinded, 48-75mm |
| Eyepiece | WF10X/22mm, WF16X/13mm, WF20X/12mm |
| Zoom | Dual Bridge Zoom 1x/1.6x |
| Objective | When The Bridge Zoom Is 1x, 5 Step Zoom Lens 0.8x,1.25x,2x,3.2x,4.8x |
| When The Bridge Zoom Is 1.6x, 5 Step Zoom Lens 1.28x,2x,3.2x,5x,8x | |

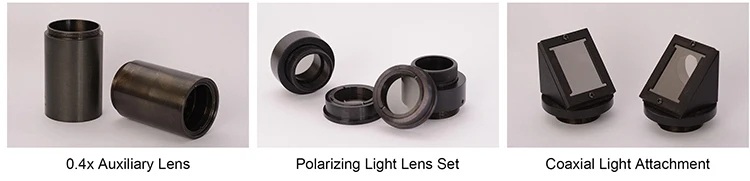

| Auxiliary Lens | 0.4x.2.0x |

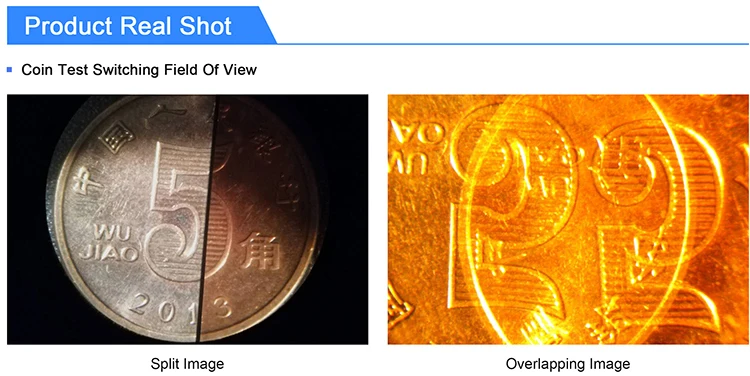

| View Field | Full Left, Full Right, Split Image, Overlapping Image |
| Working Stage | Manual Adjustment Range: X-55mm, Y-55mm, Z-55mm, Round Stage Size:Φ90mm |
| Motorized Adjustment Range: X-50mm, Y-50mm, Z-50mm | |
| Joint Left/Right Moving Range 54mm, Joint Up/Down Range 60mm | |
| Working Distance | 102mm |
| Bridge | Motorized Joint Up/Down Range 0-150mm |
| Light Source | Dual Light 5W LED Coaxial Light Polarizing Light UV Filter And Red/Yellow/Blue/Green Filter |
| Camera | 3.0M Digital Camera, Photo Adapter For Cannon SLR |
| Adapter | 0.5x C-Mount |
| Function Panel | Touch Type, User-Friendly Design, Easy To Operate And Accurate |
| Power | Power Supply 80-240V |
Company Information
OPTO-EDU, as one of the most professional manufacturer and supplier of microscope in China, our sub-brand CNOPTEC series high end biological, laboratory, polarizing, metallurgical, fluorescene microscopes, CNCOMPARISON series forensic microscope, A63 series SEM microscope, and .49 series digital camera, LCD camera are very popular in the world market.
