Waste PET bottle recycling washing line
- Category: Recycle Washing Line >>>
- Supplier: Zhangjiagang City Purui Plastics&Rubber Machinery Co. Ltd.
Share on (62399254039):
Product Overview
Description
PET bottle recycling washing line.
This set of equipment is mainly used for crushing and cleaning plastic bottles, plastic buckets, coke bottles and other hard plastics, but also can be used for crushing and cleaning very dirty soft materials, the complete set of equipment includes:de-label machine, feeder, crushing and washing machine, boiler, cleaning tank, dehydrator and storage bin.

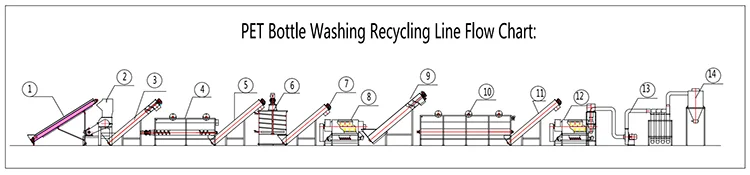

Main production process:
Destandard treatment -- single/multi-stage crushing treatment -- high/low speed cleaning and decontamination treatment -- high temperature glue treatment -- multi-stage treatment of rinsing machine -- dehydration/drying treatment -- material storage and packing treatment.
Destandard treatment -- single/multi-stage crushing treatment -- high/low speed cleaning and decontamination treatment -- high temperature glue treatment -- multi-stage treatment of rinsing machine -- dehydration/drying treatment -- material storage and packing treatment.
Products details

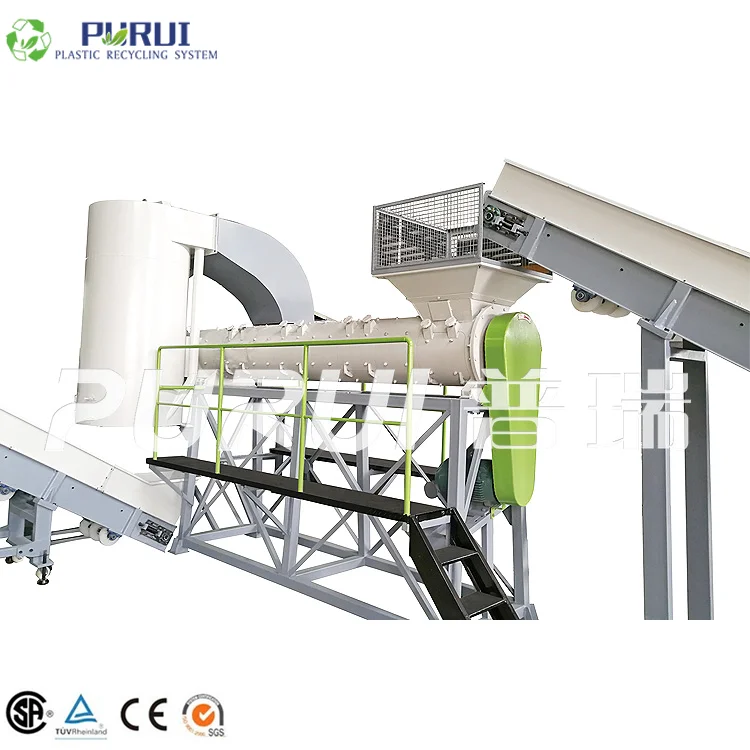

Screw feed.
Easy installation, such as multiple mixing machine using the same kind of material, only one platform feeding machine can be used for multiple mixing machine at the same time, free from the trouble of manual feeding, so that feeding work becomes more time saving, more effort.
Spiral drive feeding machine design is reasonable, easy to operate and maintain, compared with vacuum feeding machine, can avoid the trouble of cleaning the filter often.
Spiral drive feeding machine design is reasonable, easy to operate and maintain, compared with vacuum feeding machine, can avoid the trouble of cleaning the filter often.

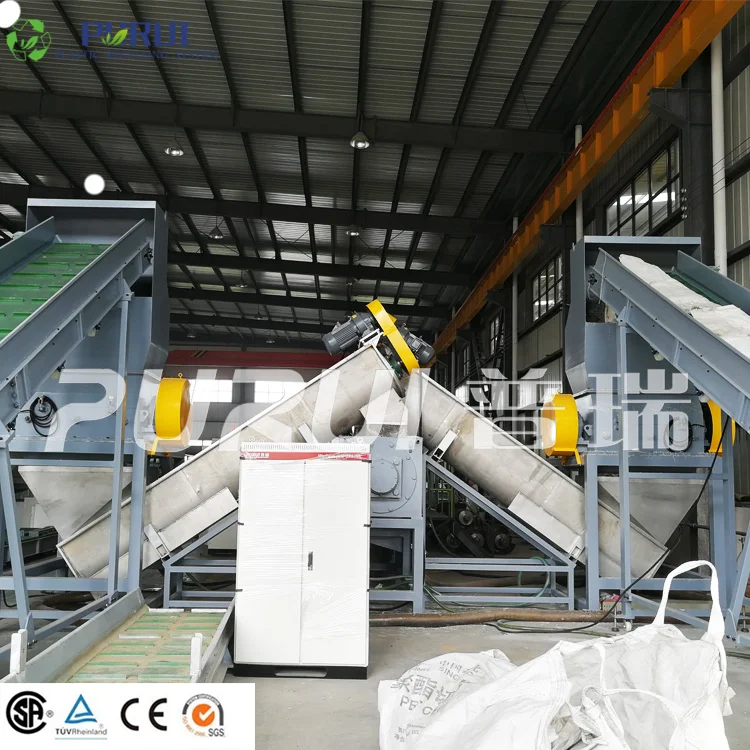

Friction cleaning machine.
It is also known as sink and float separation tank, used for sheet material, film cleaning, cleaning off sheet material, film in the silt.The separation of ABS and PS is commonly used, and the separation of PET bottles, PET bottles and caps is more thorough in the process of recycling and cleaning.

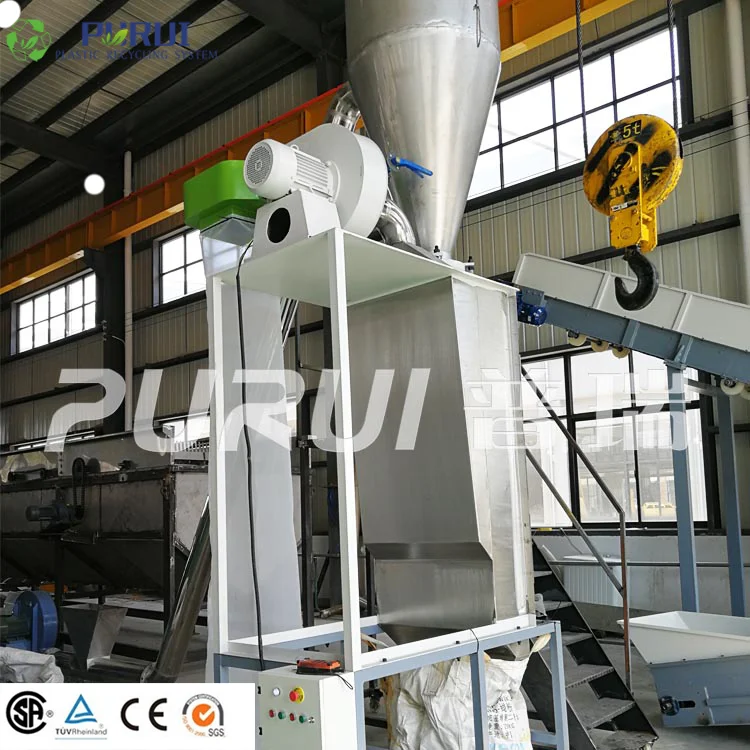

Silo.
After centrifugal dehydrator high-speed centrifugal rotation, remove most of the water, hot air drying system will be broken plastic bag material drying and into the silo storage, waiting for packaging or granulation, product processing, etc.
Product Paramenters
Production Line Parameter (for reference only, can be customized) | ||||||||||
Capacity (kg/h) | Total Power (kw) | Area Required (㎡） | Labour Required | Steam Consumption (kg/h) | Water Consumption (m³/h) | |||||
500 | 200 | 350 | 6-8 | 320 | 1 | |||||
1000 | 450 | 650 | 8-10 | 480 | 2 | |||||
2000 | 700 | 1000 | 10-12 | 830 | 4 | |||||
3000 | 900 | 1500 | 12-14 | 1100 | 6 | |||||
5000 | 1200 | 2400 | 14-16 | 1500 | 10 | |||||
Recommend Products
Waste plastic recycling washing line
PE PP Film recycling washing line
Why Choose Us
Zhangjiagang City Purui Plastics&Rubber Machinery Co., Ltd.
PURUI PLASTIC&RUBBER MACHINERY CO.,LTD was founded in 2006, the factory covers an area of 3000-5000 square meters.Specialized in plastic granulator, plastic washing, crushing and drying equipment production and research.Many years of experience and modern testing equipment ensure the quality of our customers' products.Puri meets all of these requirements with high quality, experienced and attentive service and achieves the successful development of the enterprise through sustainable profits.

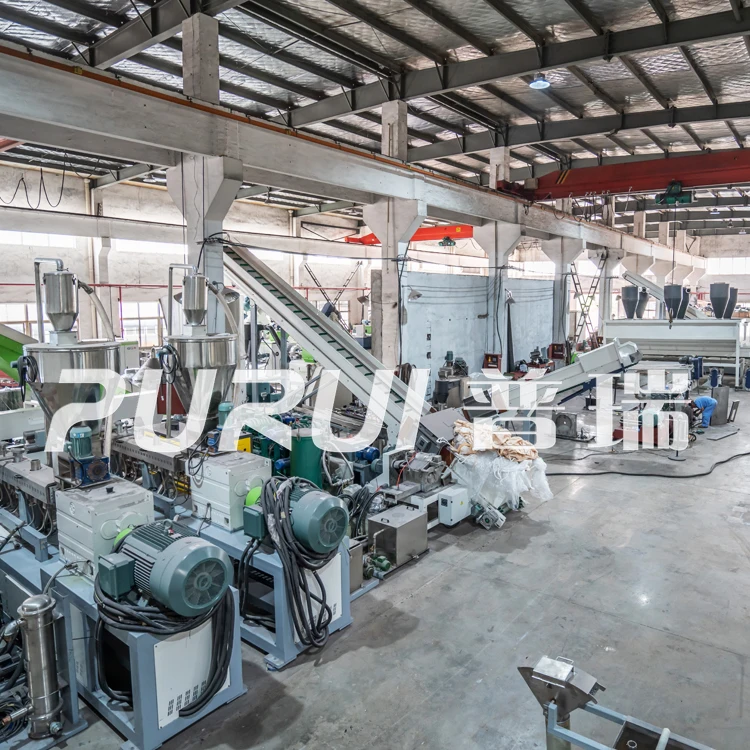

Workshop.
