Manufacture 13.3 inch Full HD panel 1920*1080 IPS LCD Screen TFT LCD module
- Category: >>>
- Supplier: Shenzhen Roof Electronics Co. Ltd.
Share on (62399282914):
Product Overview
Description
Product Description
Manufacture 13.3 inch Full HD panel 1920*1080 IPS LCD Screen TFT LCD module
LCD name | 13.3 inch Lcd Module |
Size | 13.3 inch |
Resolution | 1920*1080 |
Pixel pitch | 0.153(H)*0.153(V) |
Luminance | 400 cd/m2 |
Contrast Ratio | 1000:1 |
Active Area | 293.76(H)*165.24 (V) |

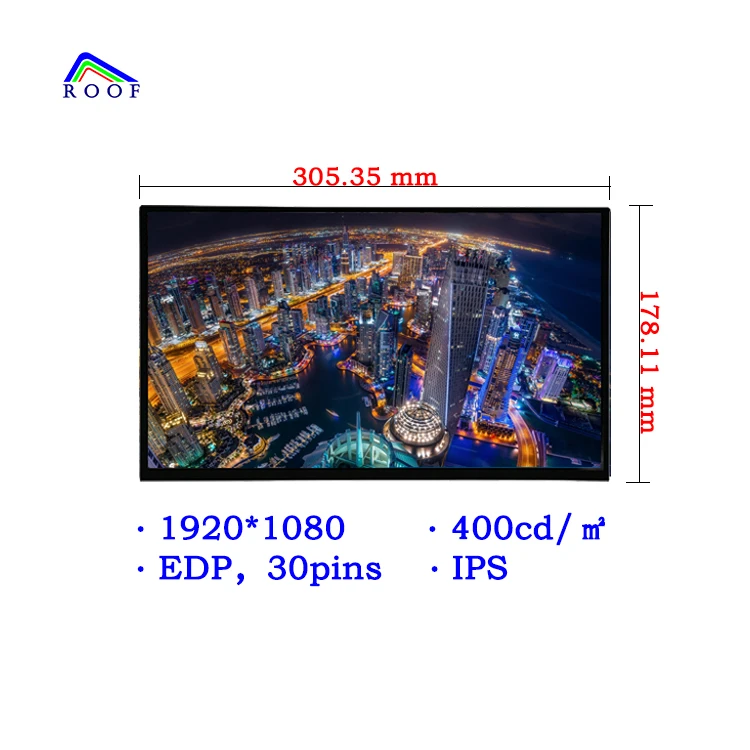

Outline Dimension | 305.35*178.11 |
Display mode | Normally black |
Viewing direction | 176° |
Interface | EDP, 30pins |
Touch panel | support customization |
Warranty | 1 year |
---
 | Product performance description This module is a color active matrix LCD module incorporating Oxide TFT(Thin Film Transistor). It is compose of a color TFT-LCD panel, driver ICs, a control circuit and power supply circuit. Garphics and texts can be displayed on a 1920×3×1080 dot panel with 16,777,216 colors by using eDP(Embedded Display Port) Ver1.3 interface and supplying +3.3V DC supply voltage for TFT-LCD panel driving. In this TFT-LCD panel, color filters for excellent color perfomance is incorporated to realize brighter and clearer picture, making this model optimum fro use in multi-media applications. |

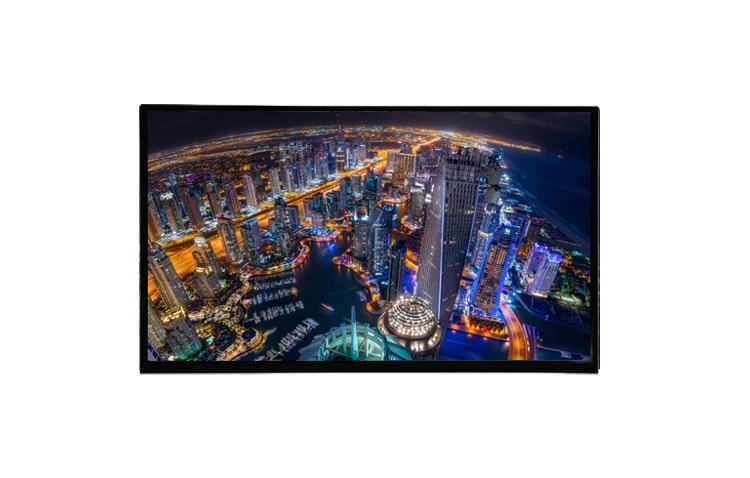

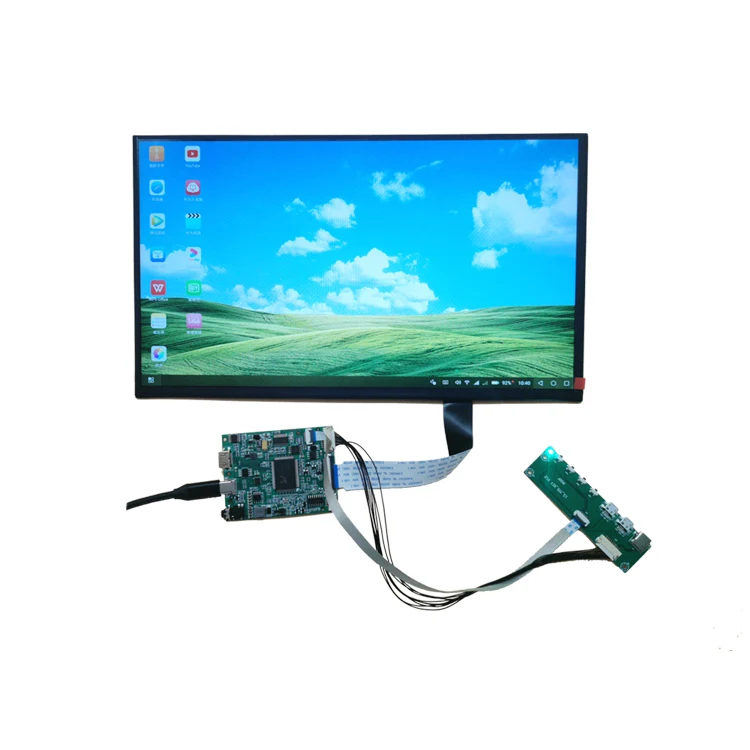

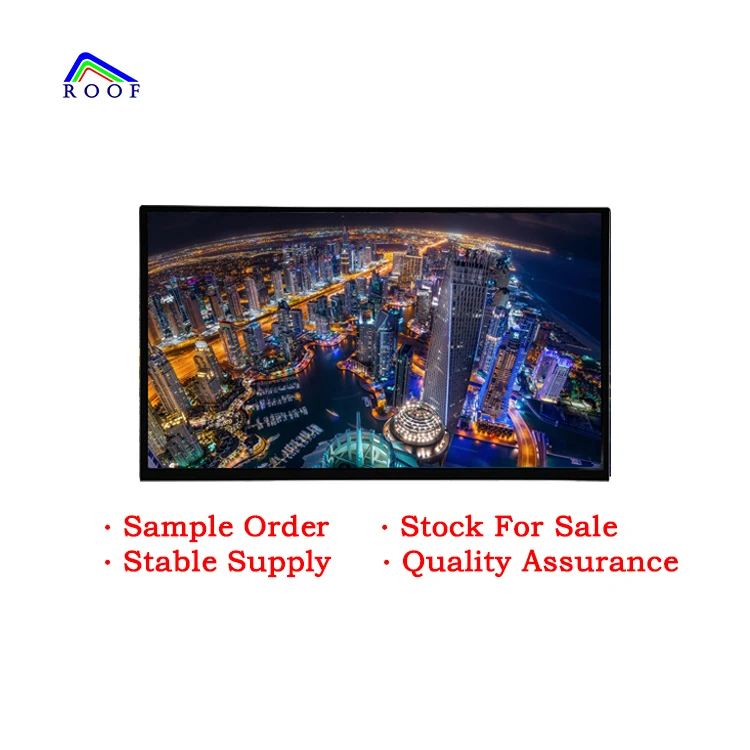

PIC 1: the front of the working LCD screen

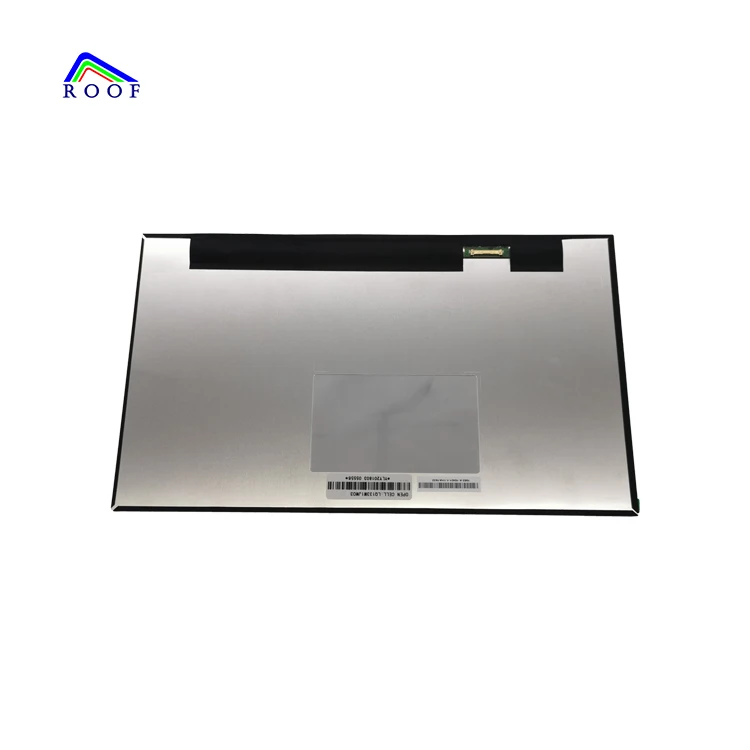

PIC 2: back of the LCD module

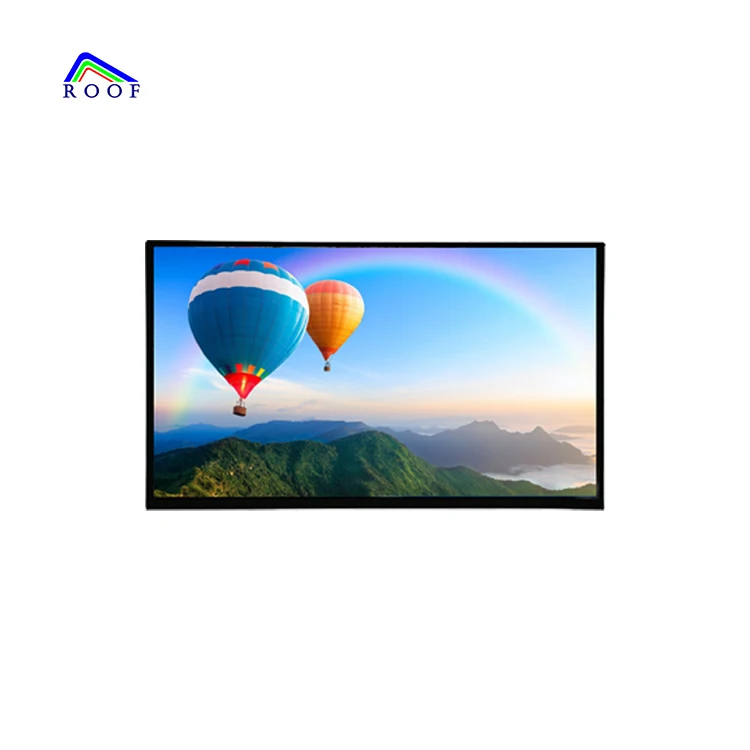

PIC 3: the front of the non-wroking LCD module
Detailed Images
 |
|

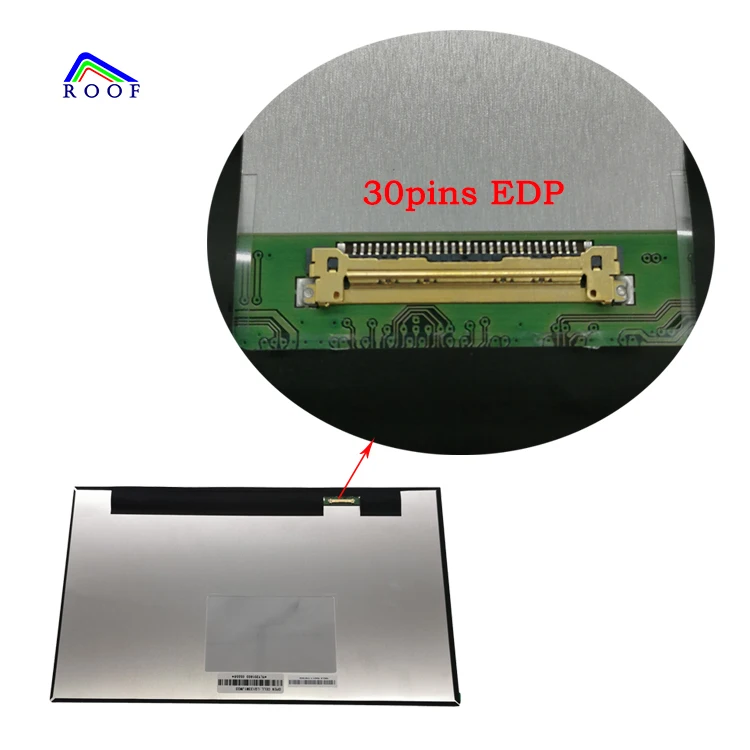

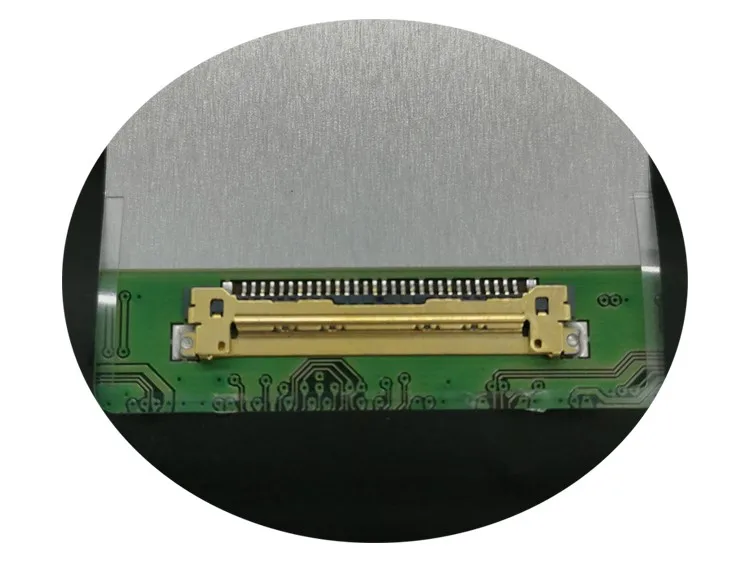

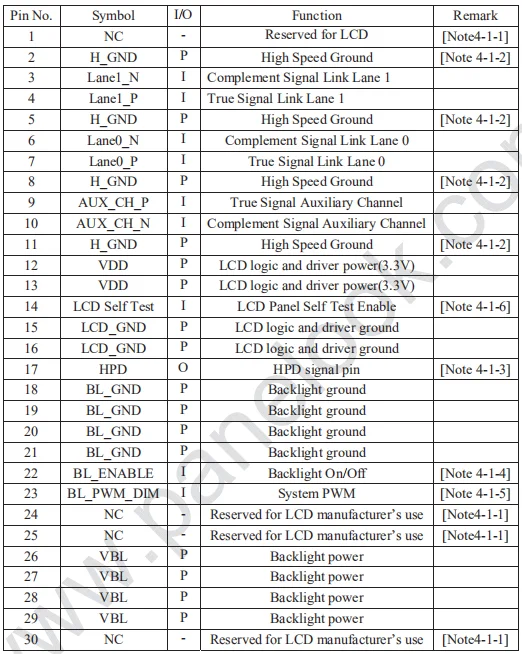

| 30pins EDP Interface |
Company Information
| ROOF Electronics Co., Ltd. is a growing corporation which is located in Shenzhen, founded in 2014. Our company covers a wide range of fields. Our products include electronic components, communication products, computer, computer peripheral accessories, mobile phones and accessories, mobile power supply. Our company is adhering to the service first, integrity management, product quality concept, at the same time has a competitive price in this industry. Our team is dedicated to meeting development and mass production schedules, delivering low cost and reliable products, and providing effective customer complaint handling and after-sales service, to allow our valued customers to feel confident and satisfied with our products and services. |
Packaging & Shipping
In order to ensure that the product will not be damaged during transportation, we have the default packaging and transportation method. Please contact us for details. If you have special requirements, please contact us.
