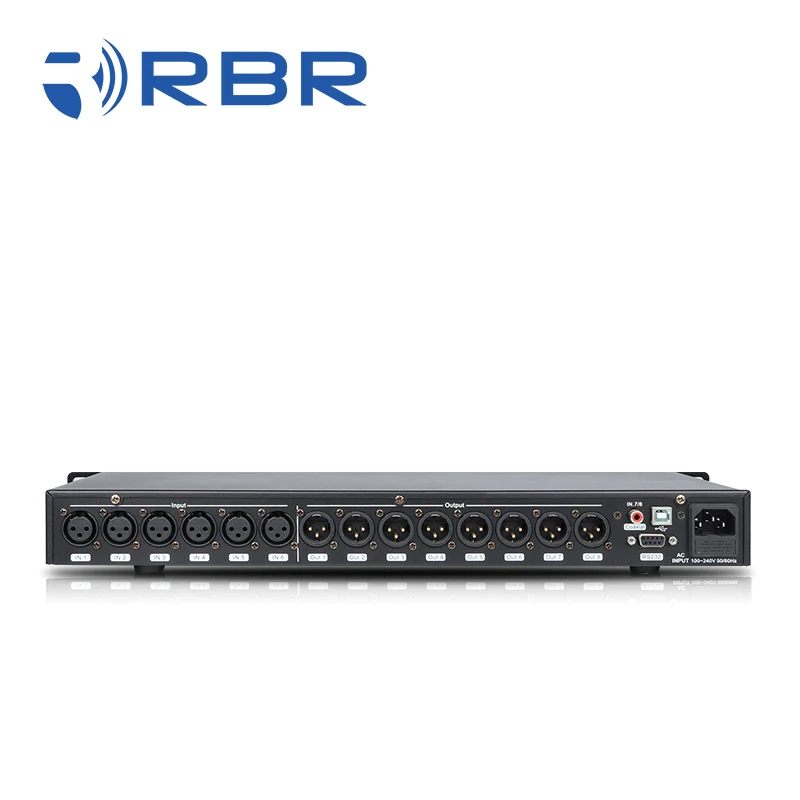

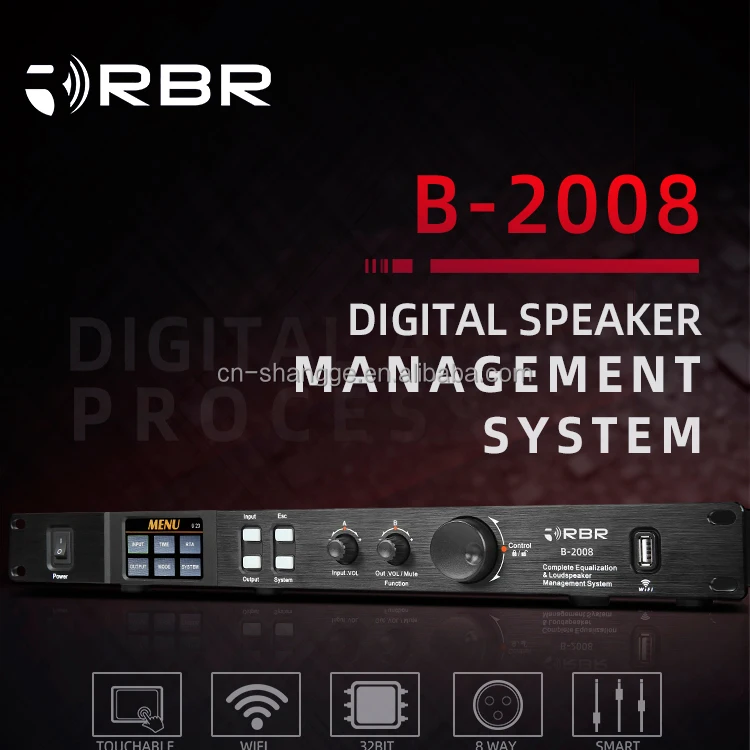

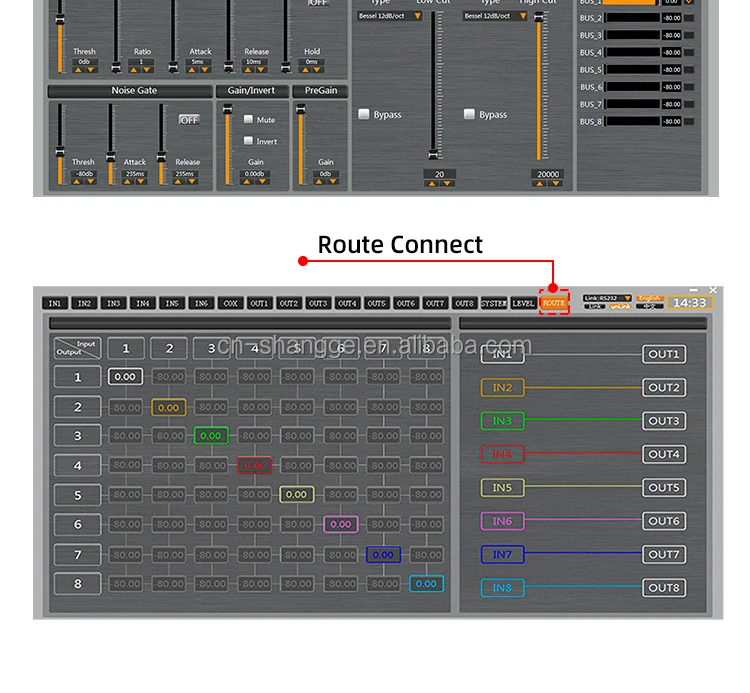

Touchable display design b2008 8in*8out digital speaker processor with Matrix connection

 Main Feature

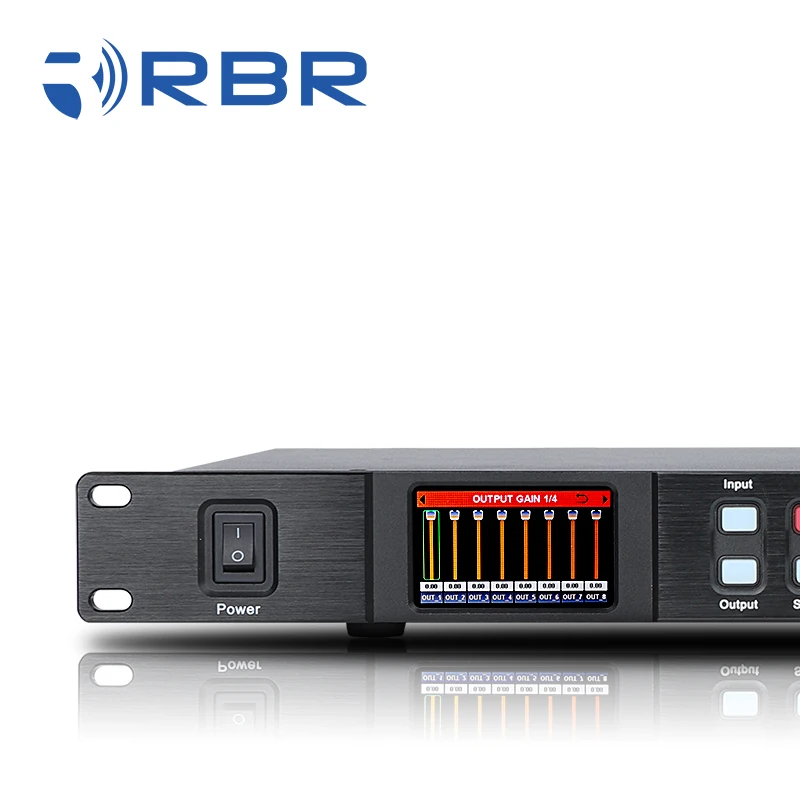

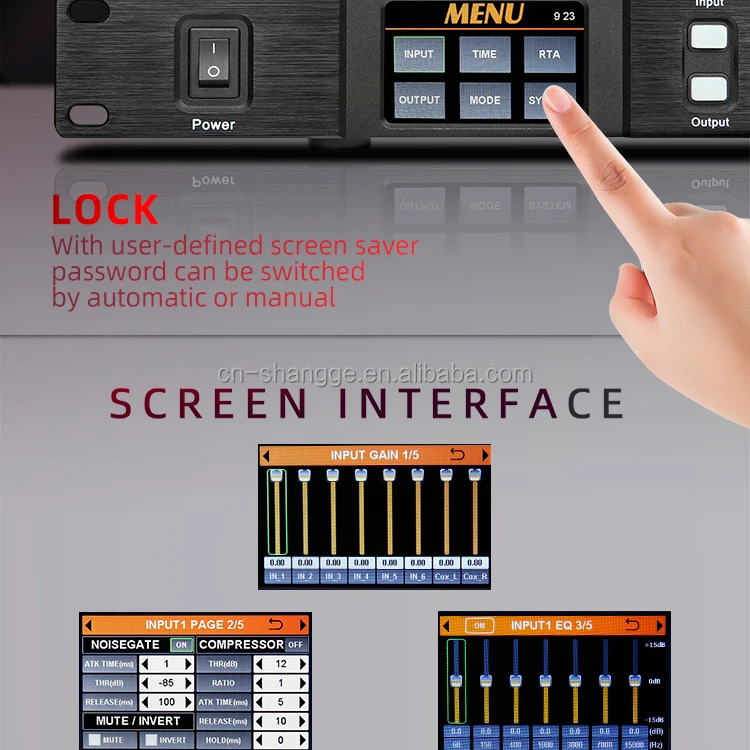

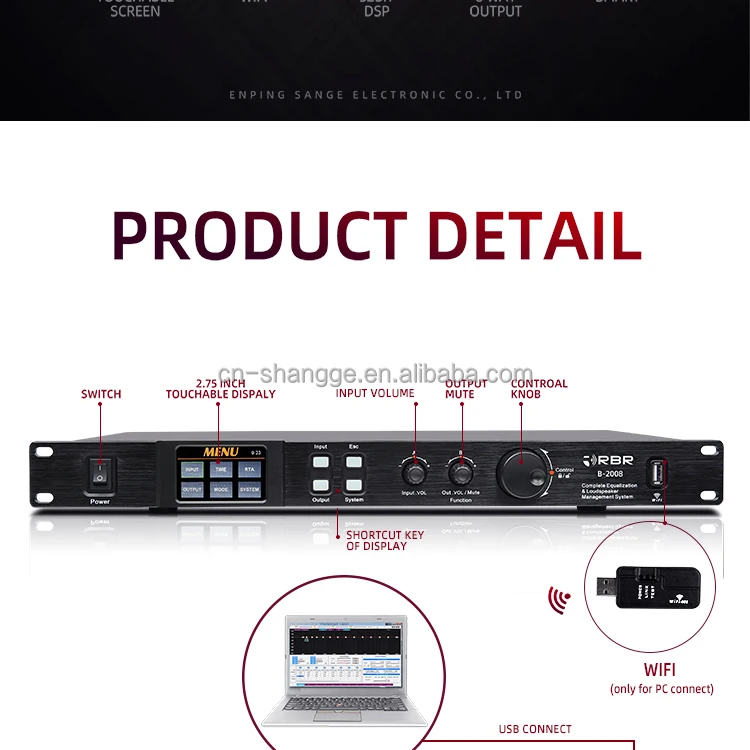

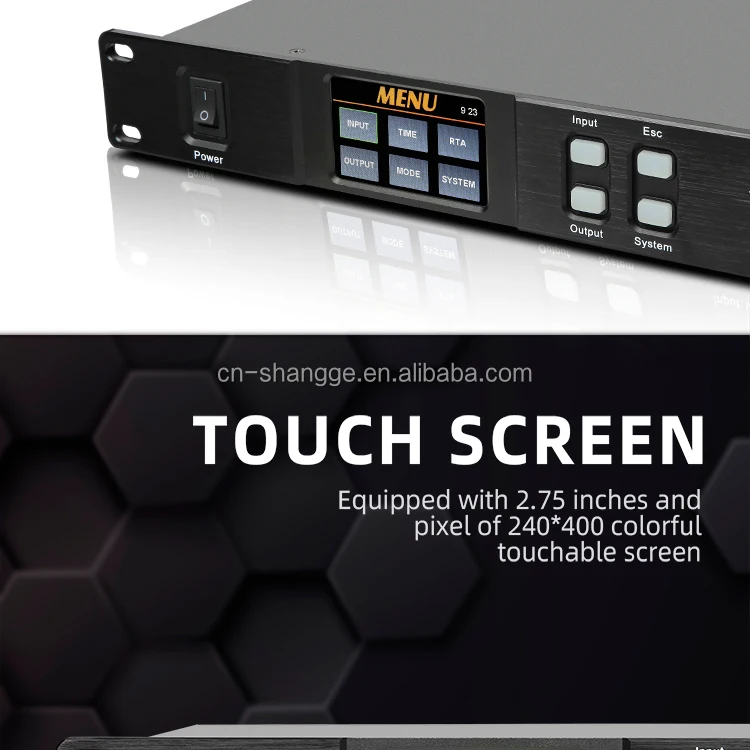

1. Equipped  with 2.75 inches and pixel of 240*400 touchable LCD.

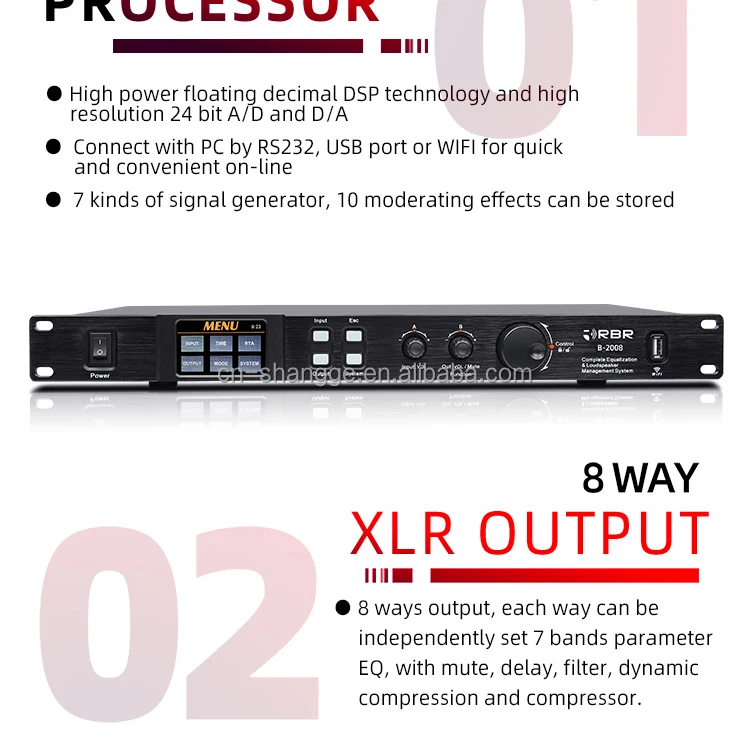

2.  High power floating decimal DSP technology and high resolution 24 bit A/D and D/A.

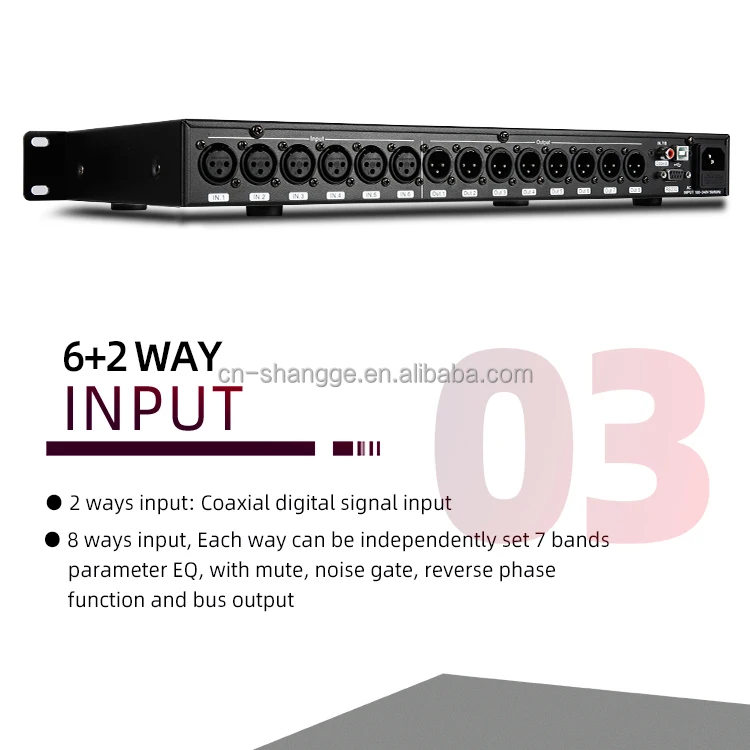

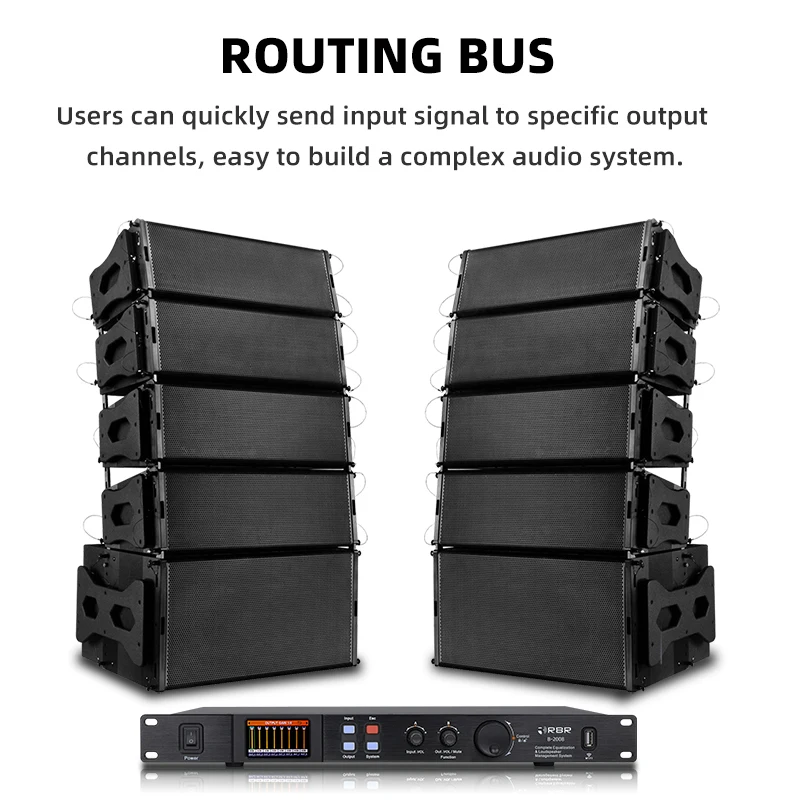

3. 8 ways input, Each way can be independently set 7 bands parameter EQ, with mute, noise gate, reverse

    phase function and bus output.

4. 8 ways output, each way can be independently set 7 bands parameter EQ, with mute, delay, filter,

    dynamic compression and compressor.

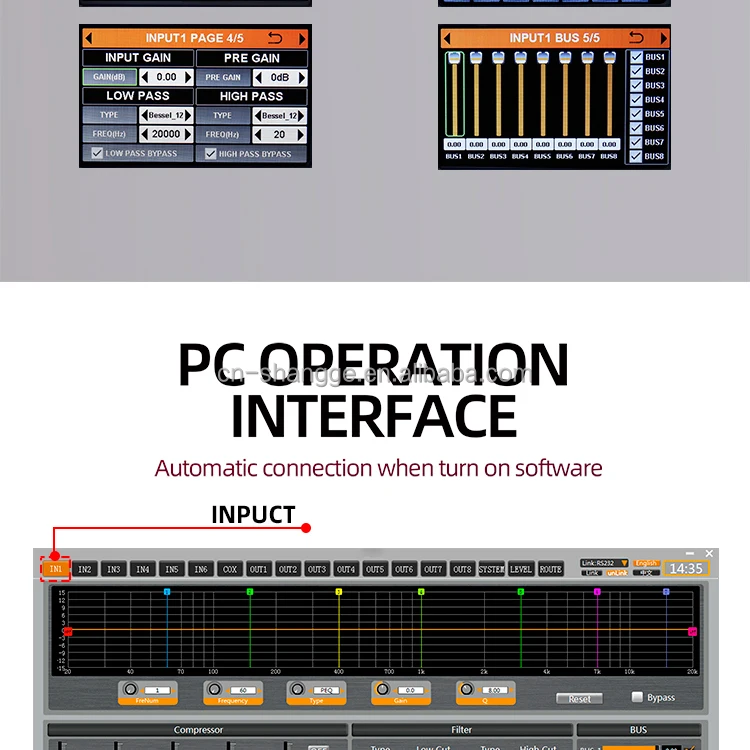

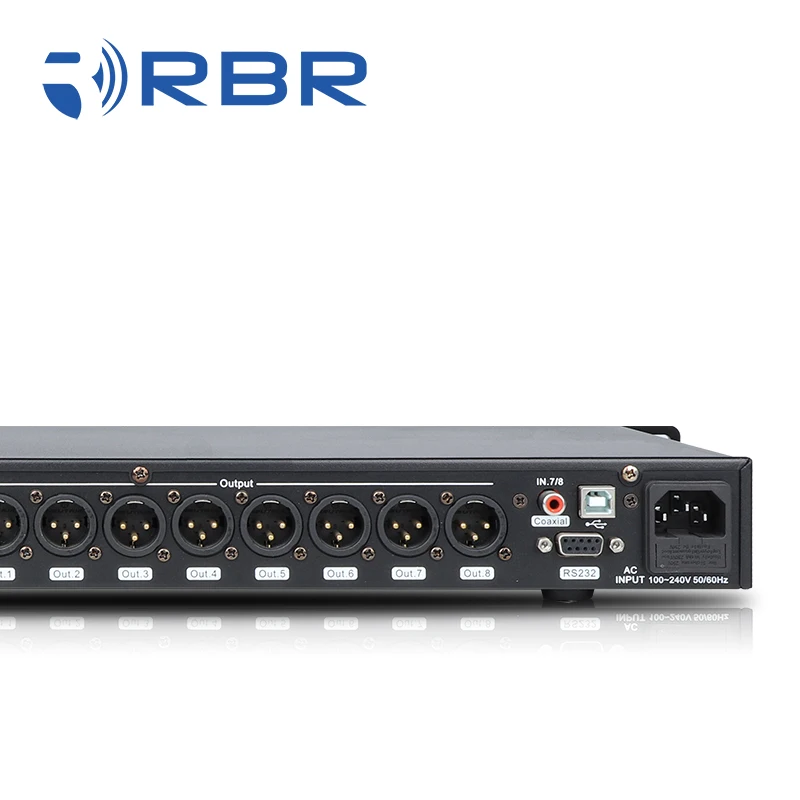

5. Connect with PC by RS232 port or USB port  or WIFI for quick and convenient on-line.

6. 7  kinds of signal generator.

7. 10 moderating effects can be stored.

8. Suitable for stages, pubs, large conference rooms and etc.

TECHNICAL  SPECIFICATIONS

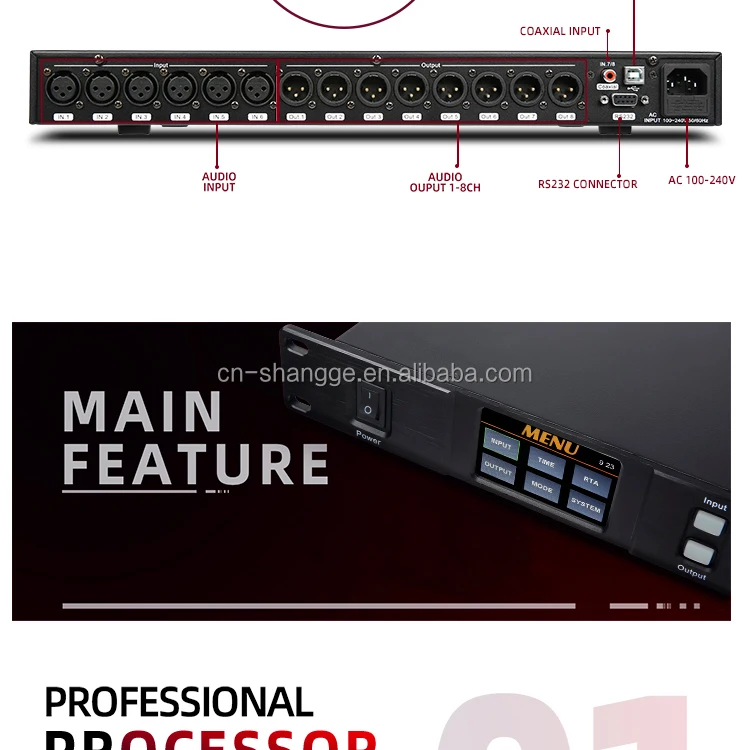

Analogue Input                                                                     Coaxial Input

SNR: 115dB                                                                                         SNR: 120dB

THD: ≤0.01%                                                                                       THD: ≤0.005%

Frequency response:20Hz~20KHz(±1dB)                                       Frequency response:20Hz~20KHz(±1dB)

Max input level:+7dbu                                                                      Max input level:+2dbu

Max output level:+12dbu                                                                 Max output level:+12dbu

Input impedance: 10K                                                                       Input impedance: 10K

Output impedance:300Ω                                                                  Output impedance:300Ω

AD/DA:192KHz 24bit                                                                         AD/DA:192KHz 24bit

Q: Are you manufacturer or trade company?
A: We are the manufacturer. since 1995, we have been specializing in wireless microphone and focus on research and development.

Q: Can you produce according to customer's design?
A: Yes we are professional manufacturer, your logo or company name can be printed on your ordered products or packing box, OEM and ODM are welcome!(depond on the quantity)

Q: May I buy sample from you?
A: Of course! Welcome to test our superior quality and service. But according to our company's rule,cost of sample and freight should to be paid by you. However,we will return the cost of sample to you when you place the first order with us.

Q: How much the transportation freight of samples?
A: The freight depends on the weight and packing size in your area.

Q: What is your terms of payment ?
A: We receive T/T,Western Union etc. Payment<=1000USD, 100% in advance.Payment>=1000USD, 30% T/T in advance ,balance before shippment.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.

Q: How to shipping?
A: We are make agreement with DHL, UPS, Fedex, TNT, EMS etc. 5-10 days for Express, 7-10 days for air cargo, 20-40 days for sea shipping.

Q: How to contact us?
A: Send your inquiry details below, click “ send ” now! If you want to learn more and get latest price or product, please contact us by Whatsapp, Wechat or send inquiry to me. It is my pleasure to service for you!
