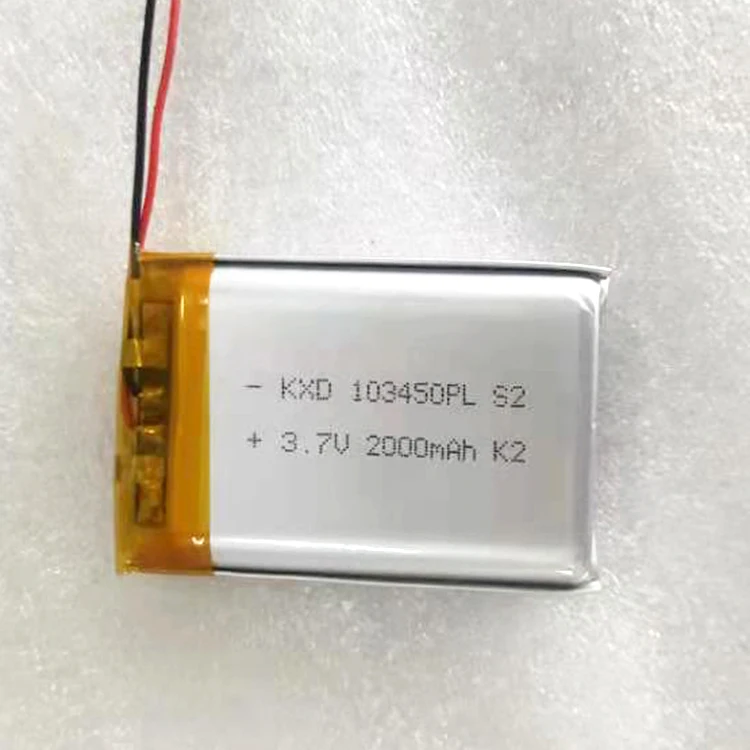

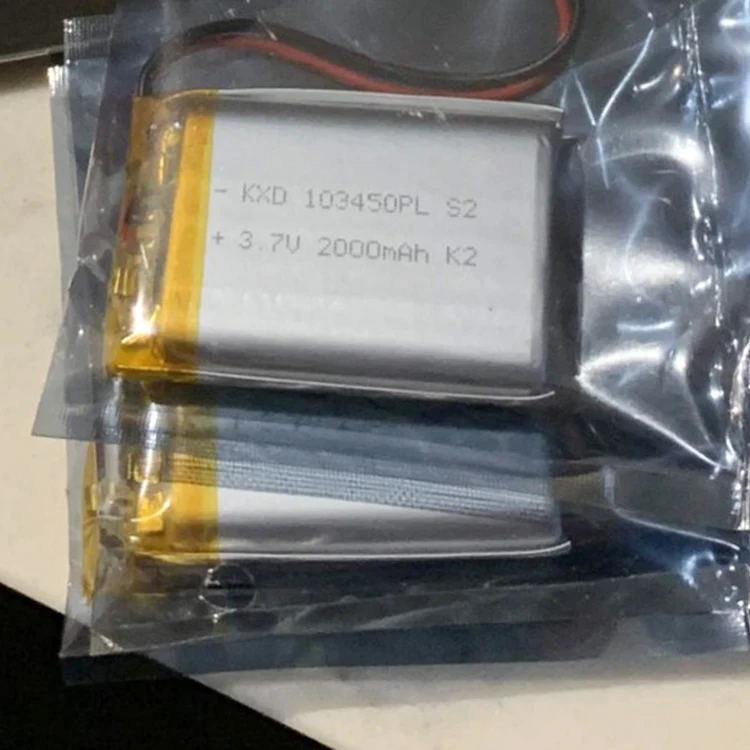

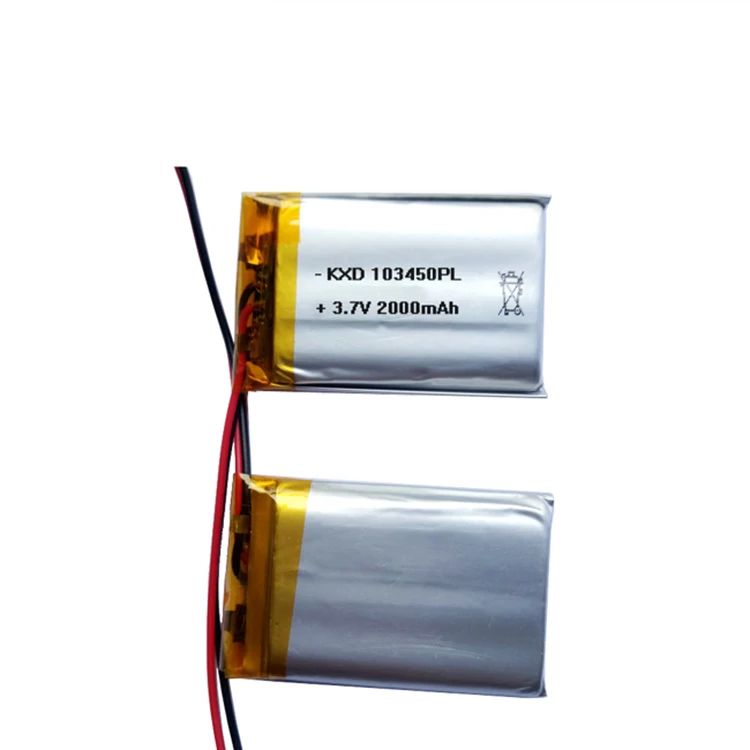

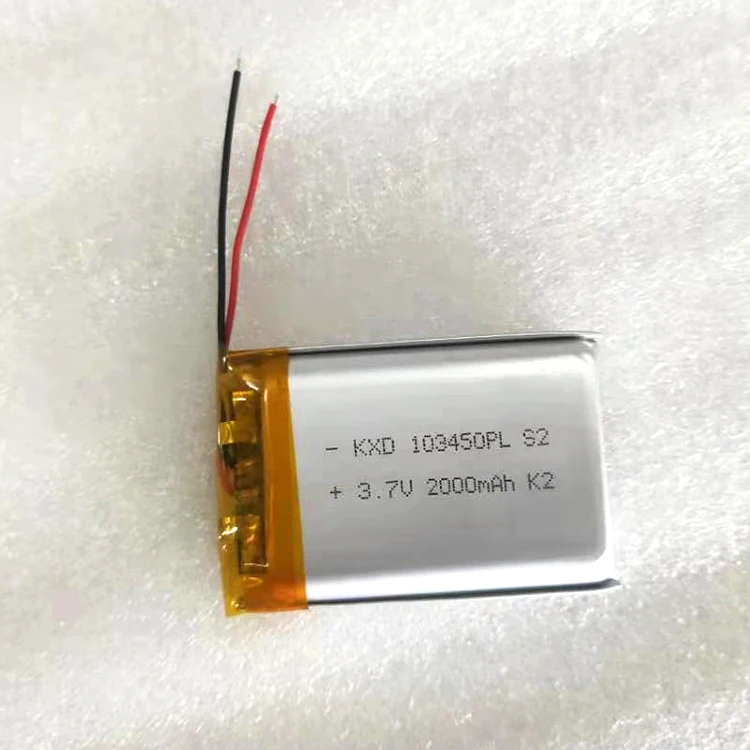

3.7v 2000mAh lithium ion prismatic rechargeable battery 103450
- Category: >>>
- Supplier: Shenzhen Kai Xinda Energy Technology Limited CompanyShenzhen Company
Share on (62399510445):
Product Overview
Description
Product Description
3.7v 2000mAh lithium ion prismatic rechargeable battery 103450
Main Features:
2. Use a grade cells. More than 500 cycle times.
3. Max discharge continuous current, 1C TO 3C 5C.
4. Maintenance free. Can connect in parallel and series.
5. Safer performance. batteries have passed different safety tests.
1. Lighter in weight, heavier on power than lead acid battery.
2. Use a grade cells. More than 500 cycle times.
3. Max discharge continuous current, 1C TO 3C 5C.
4. Maintenance free. Can connect in parallel and series.
5. Safer performance. batteries have passed different safety tests.
6. Optional: Lithium Battery built with BMS
Normal parameters | ||||
NO. | Item | General Parameter | ||
1 | Type | Lithium polymer Battery | ||
2 | Model | 3.7v 2000mah 103450PL | ||
3 | Color | Silver/as your requirement | ||
4 | Standard capacity(0.2C5A) | 2000mAH | ||
5 | Rated voltage | 3.7V | ||
6 | Max.charge voltage | 4.2V | ||
7 | Cut-off voltage | 2.75V | ||
8 | Standard charge current | < 0.5C/ customized | ||
9 | Max continuous discharge current | < 1C / customized | ||
10 | Peak discharge current | <3C/ customized | ||
11 | Battery dimension | 10*34*52mm with PCB | ||
12 | (Approx.)Total weight(Approx.) | about 36g | ||
13 | Standard charging temperature | 0℃~45℃ | ||
14 | Discharge temperature | -20℃~60℃ | ||
15 | Storage temperature | -20℃~45℃ | ||
16 | Cycle life | >500 times | ||
17 | Warranty | 12 month | ||
18 | Option | Connectors/other Capacity | ||
Optional: Built in BMS overall protection:
1.Over charged protection
2.Over discharged protection
3.Thermal protection
4.Over load protection
5.Over current protection
2.Over discharged protection
3.Thermal protection
4.Over load protection
5.Over current protection
Other recommended models: | ||||||
Model | Capacity | Size | Connector | |||
602535 | 550mAh | 6.0*25*37mm | Customized | |||
602045 | 500mAh | 6.0*20*47mm | Customized | |||
503035 | 580mAh | 5.0*30*37mm | Customized | |||
603030 | 500mAh | 6.0*30*32mm | Customized | |||
603040 | 750mAh | 6.0*30*42mm | Customized | |||
523450 | 1000mAh | 5.0*34*52mm | Customized | |||
804050 | 2000mAh | 8*40*52mm | Customized | |||
104050 | 2500mAh | 10*40*52mm | Customized | |||
955565 | 5000mAh | 9.5*55*67mm | Customized | |||
Customized | voltage , capacity, size , connector | |||||
Main Applications:
1.Energy Storage:Solar-Wind Power System / City Grid (On/Off) / Community and Family / RV Car /Golf Carts Battery / Boat Marine Yachts / Electric Skateboard .
2.Back-up System and UPS:Tel com Base / CCTV system / Computer Server Center / Medical Instrument /Equipment.
3.Security and Electronics / Mobile POS, Mining Light / Torch / LED Light / Emergency Light / LED Backup /Engine Starting Battery.
4.Other applications.
2.Back-up System and UPS:Tel com Base / CCTV system / Computer Server Center / Medical Instrument /Equipment.
3.Security and Electronics / Mobile POS, Mining Light / Torch / LED Light / Emergency Light / LED Backup /Engine Starting Battery.
4.Other applications.

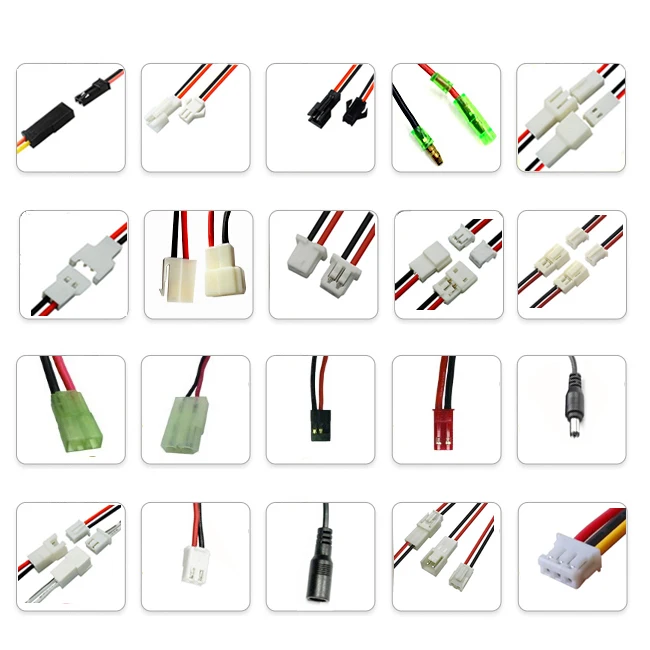

Customized connectors:
Related Products
Company Introduction
Shenzhen Kaixinda Energy Technology Co., Ltd.
KXD-BATTERY is a professional leading lithium ion battery producer with more than 15 years history in China.
KXD-BATTERY is a professional leading lithium ion battery producer with more than 15 years history in China.
The main productus are lithium battery packs, lithium polymer batteries, LiFePO4 battery packs, AGV car batteries, or any customized battery projects.
We’ve grown to a company with complete R&D team and quality inspection system. We focus on battery solutions for Energy Storage System, AGV robots Solar Street Lighting, Electric Vehicle, Telecom, Medical and UPS etc
ISO9001:2015, ISO14001:2015
CE, RoHs, IEC62133, CB, UL, KC,PSE, UN38.3 , MSDS
FAQ
Q: 1. Can I have a sample for customized specification?
A: Of course. please send us your specific requirement.
Q: 2. What is the lead time?
A: 3~7 days for sample, 10~25 days for bulk order.
Q: 3. Do you have any MOQ limit?
A: No MOQ for existent items, MOQ 1000pcs for modified ones.
Q: 4. How do you ship the goods and how long does it take arrive?
A: For small quantity, generally ship by DHL, EMS, UPS, or FedEx, usually take 4~7 days to arrive.
For large quantity, ship by airplane or ocean, shipping time will depend on destination port.
Q: 5. Do you offer guarantee for the products?
A: Of course, all our products are with One Year Warranty.
