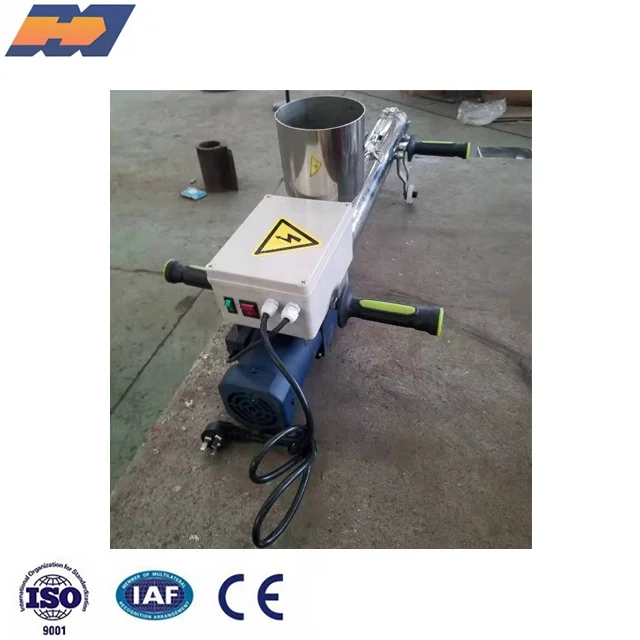

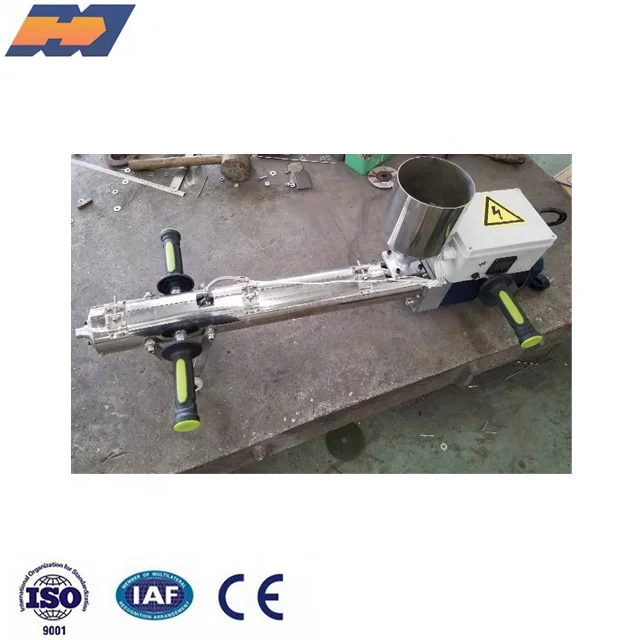

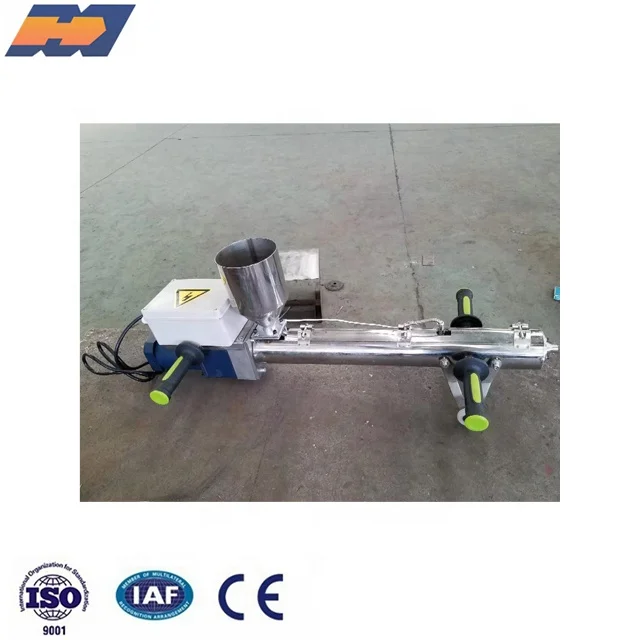

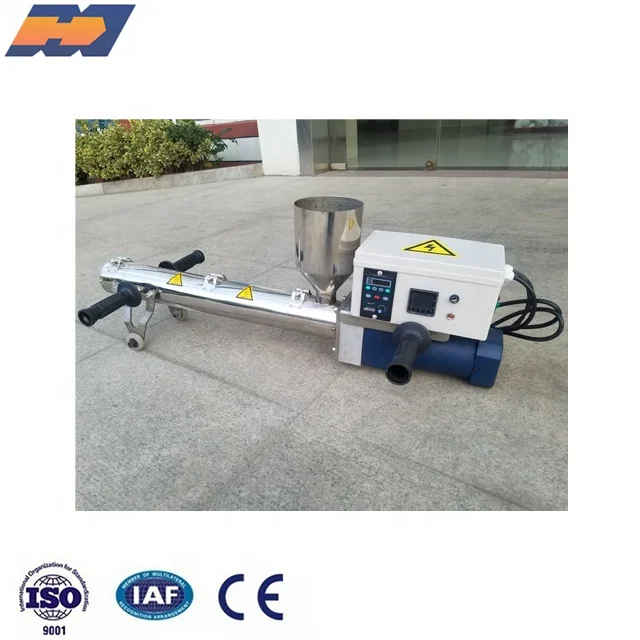

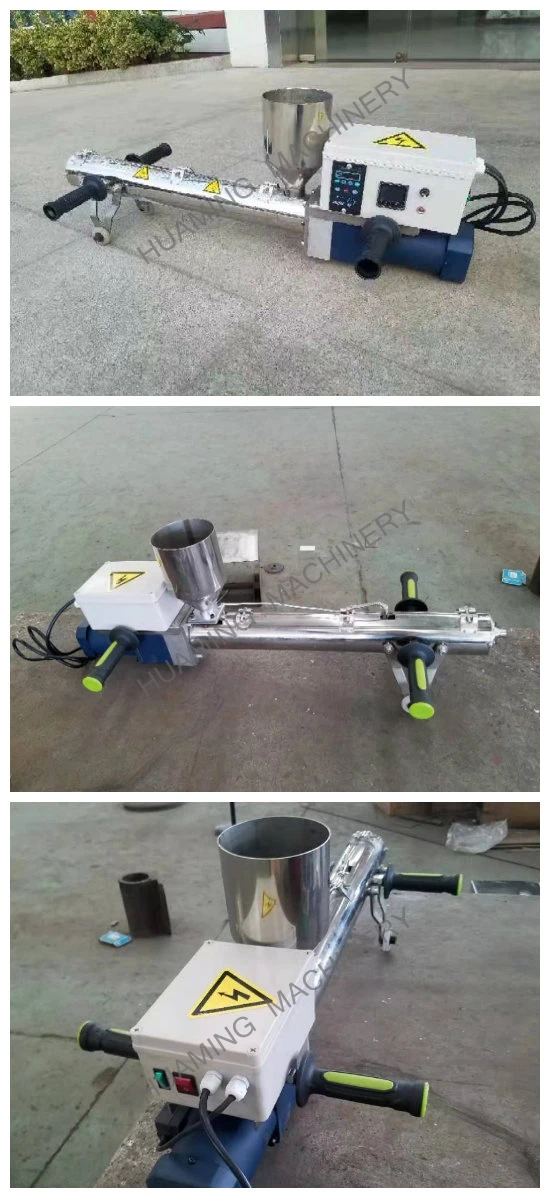

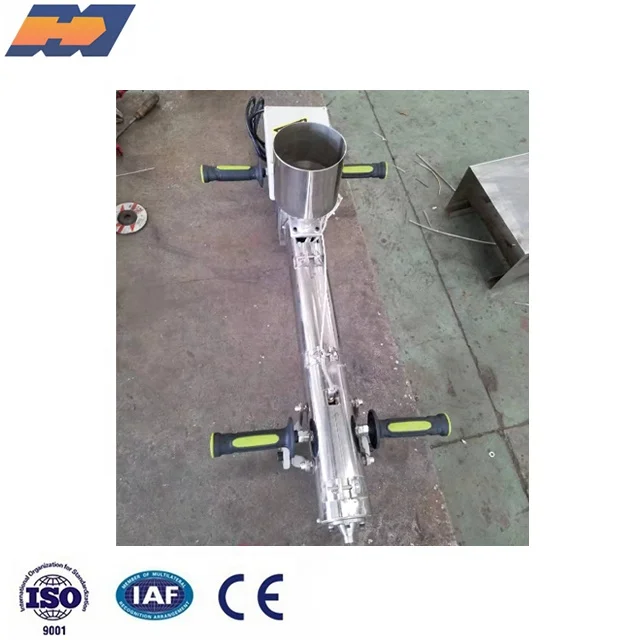

ZHANGJIAGANG Small Movable Easy carry Single screw mini hand held plastic extruder

Product Overview

Description

OUR HUAMING MACHINERY COMPANY WEBSITE:WWW.HUAMING.CN

Machine receiving customization

SJ Series Single Screw Plastic Extruder

Main Technical Standards

Model	Screw diameter (mm)	L/D	Motor power kW	Output Torque(N.M)	Screw speed (r/min)
SJ25/25	25	25:1	1.5	175	100
SJ30/25	30	25:1	5.5	410	125
SJ45/25	45	25:1	7.5	580	100
SJ45/30A	45	30:1	15	1000	145
SJ45/30C	45	30:1	30	1600	185
SJ65/25	65	25:1	22	1500	100
SJ65/30	65	30:1	30	3600	105
SJ65/30	65	30:1	45	4800	120
SJ75/32	75	32:1	90	7200	120
SJ90/25	90	25:1	55	4400	120
SJ90/30	90	30:1	90	9200	94
SJ90/32	90	32:1	160	13000	120
SJ120/25	120	25:1	90	9200	94
SJ120/30	120	30:1	110	16000	94
SJ120/33	120	33:1	250	25000	94
SJ150/25	150	25:1	110	35000	40
SJ150/30	150	30:1	132	36000	50
SJ150/34	150	34:1	315	32000	75
SJ200/25	200	25:1	160	50000	30
SJ200/30	200	30:1	200	60000	40
SJ200/34	200	34:1	400	55000	75

Application

The machine is mainly used in extruding soft and hard thermoplastics,such as polyviyl chloride (PVC),polyethylene and others.It is used with relevant auxiliary machine (including shaping machine head) to produce severalkinds of plastic products,for example:film,pipe,rod,plate,thread,cableinsulating layer,hollow product.It is also used for prilling.The machine has advantages,such as advanced design,high output,good plasticification,low energy consumption,involute gear transmission,lownoise,steady operation,large loading,long life and so on.
