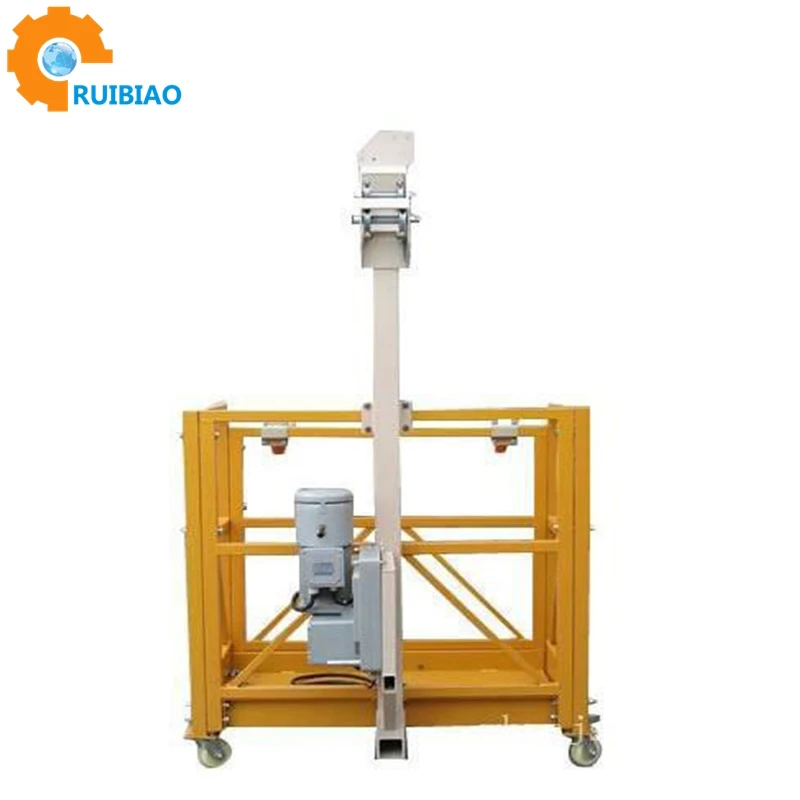

Wholesaler ZLP Mototized Scaffolding High Rise Window Cleaning Platform Facade Cleaning Robot Building Painting

Product Overview

Description

Wholesaler ZLP Mototized Scaffolding High Rise Window Cleaning Platform Facade Cleaning Robot Building Painting



The Suspended Platform is an aerial work device that carries personal safety and quality equals life. Our company has set up a special inspection department, full-time inspection post and inspection personnel, and designed and manufactured the inspection platform of Suspended Platform according to the national testing platform standard. Each hoist, safety lock and electric box ready for delivery will pass strict Testing to ensure that every Suspended Platform that reaches the customer's hands achieves a 100% yield

ZLP series electric baskets have passed the test of various complicated conditions with high-quality design concept and mature performance quality. Compared with similar products, they have the advantages of safety, economy, high efficiency and convenience.



A.Parameter of the suspended platform



Name		Technical parameter of  construction platform
Model		ZLP250	ZLP500	ZLP630	ZLP800	ZLP1000
Rated load		500kg	500KG	630KG	800KG	1000KG
Lifting speed		8-10m/min	8-10m/min	8-10m/min	8-10m/min	8-10m/min
Platform Dimension  L×W×H(mm)		2500(2.5m) ×690×1120	5000(2+3m) ×690×1120	6000(1+2+3m) ×690×1120	7500(2.5m*3) ×690×1120	7500(3*2.5) ×690×1120
Lifting Height		100M	100M	100M	100M	100M
Cable		100M	100M	100M	100M	100M
Steel rope		Dia:8.3mm	Dia:8.3mm	Dia:8.3mm	Dia:9.1mm	Dia:9.1mm
Hoist	Power	1.5KW*2	1.5KW*2	1.5KW*2	1.8KW*2	1.8KW*2
	Voltage	380V/220V	380V/220V	380V/220V	380V/220V	380V/220V
Safety lock	Permission force of	30KN	30KN	30KN	30KN	30KN
	impact	3°~8°	3°~8°	3°~8°	3°~8°	3°~8°
Counterweight		500kg	1000KG	1000KG	1000KG	1300KG-1500kg
Type		1/Hot galvanizing,Aluminum alloy 2/Cement weight,All-inclusive iron counterweight,Cast iron counterweight 3/Safety device: emergency stop device, speed limit protection, tilt protection, rope break protection, upper limit protection, manual release

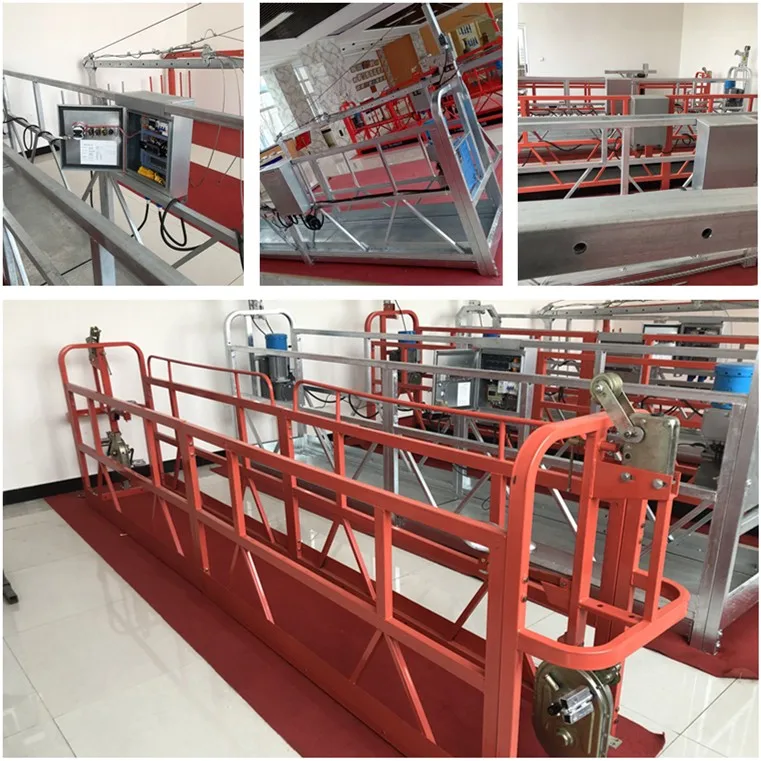

B.Pictures of the suspended platform

C.Advantages of hoist/distribution box/security lock

• Hoist-reinforcing box, internal gear plate, rope splitter and other important components truly solve the drawbacks of the traditional hoist, reducing costs, increasing service life and eliminating maintenance troubles.
• Distribution box - a variety of protection devices, all using Zhengtai electrical components. Waterproof, automatic limit, leakage protection, overheat protection, emergency braking, current overload protection, with thousands of tests, very high stability
• Safety lock - stainless steel lock core, more durable than ordinary cast steel lock core, the shell is treated with Dacromet process to avoid rust corrosion after prolonged use



D.Drawing of the suspended platform





.The main purposes of the suspended platform

• Exterior wall construction and decoration of high-rise building, installation of panel wall and structural members of exterior wall.
• Repair, maintenance and cleansing of exterior wall of high-rise building.
• Construction, inspection, repair and maintenance of large project, for instance: chimney, dam, bridge and head frame.
• Welding, cleansing and oil-painting of large ship.
• Fabrication and installation of bulletin board on buildings at heights.

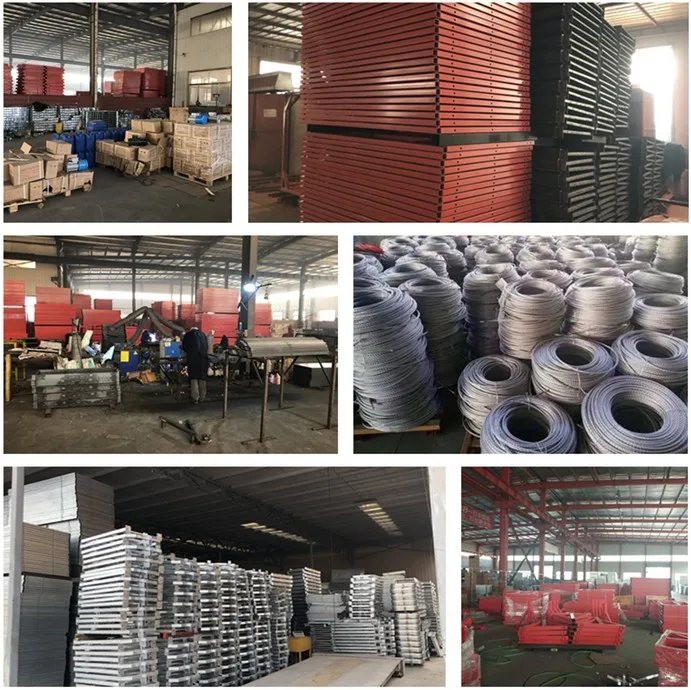

G.More show
