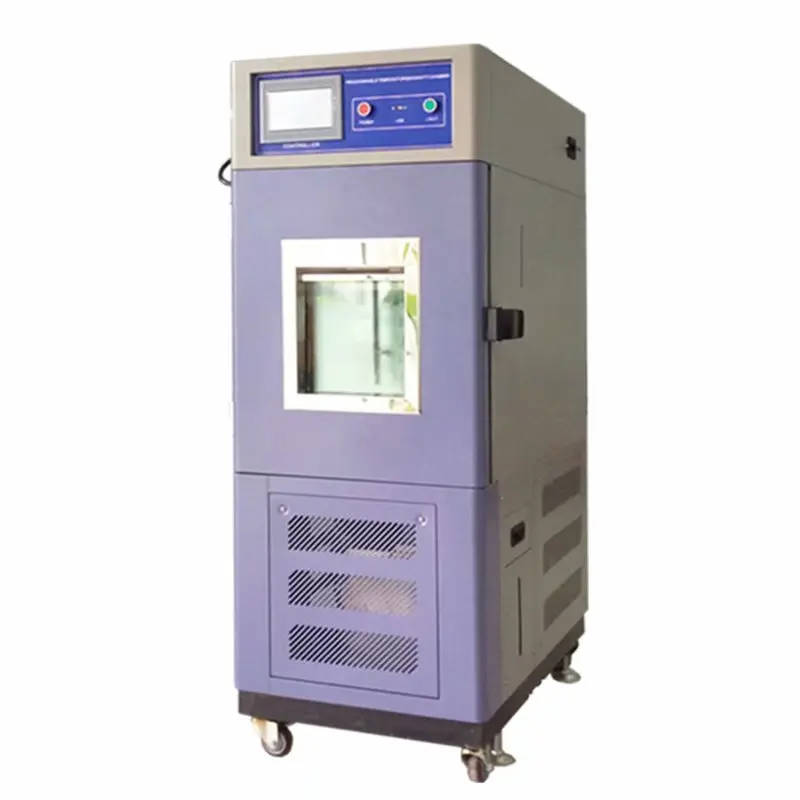

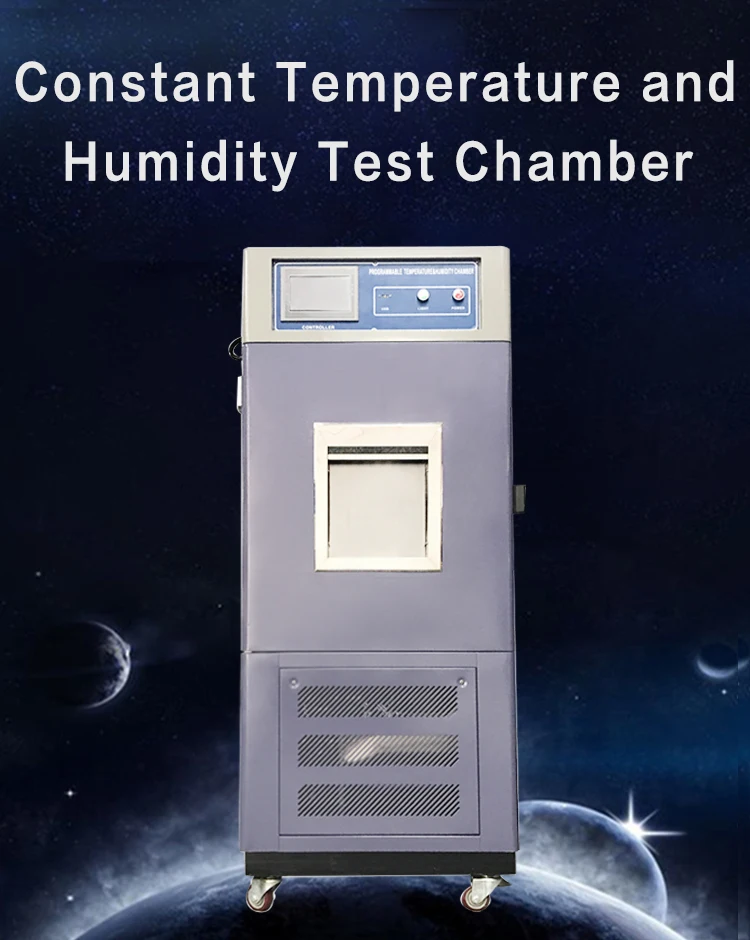

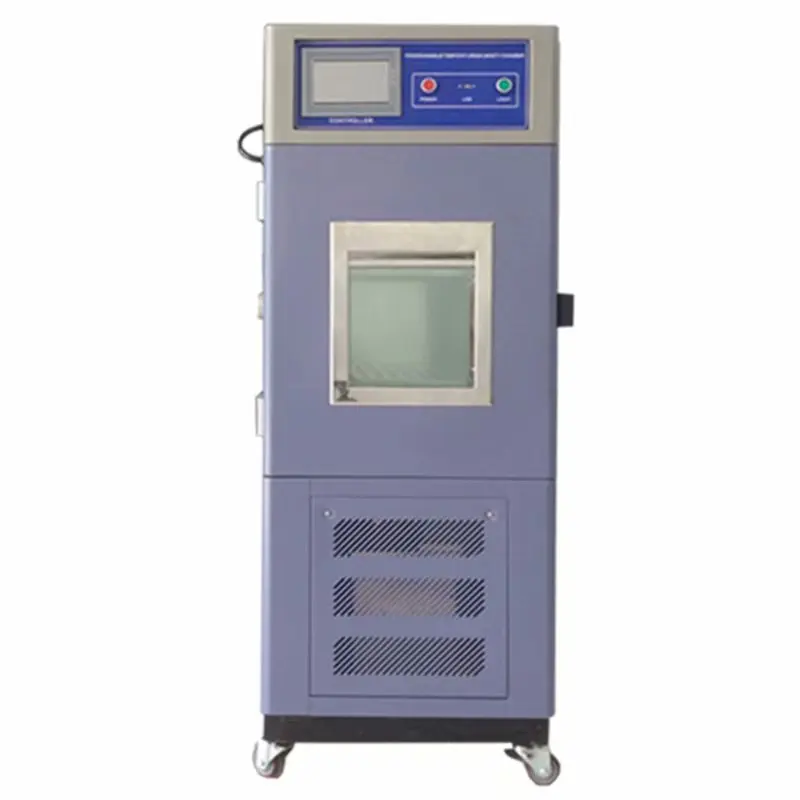

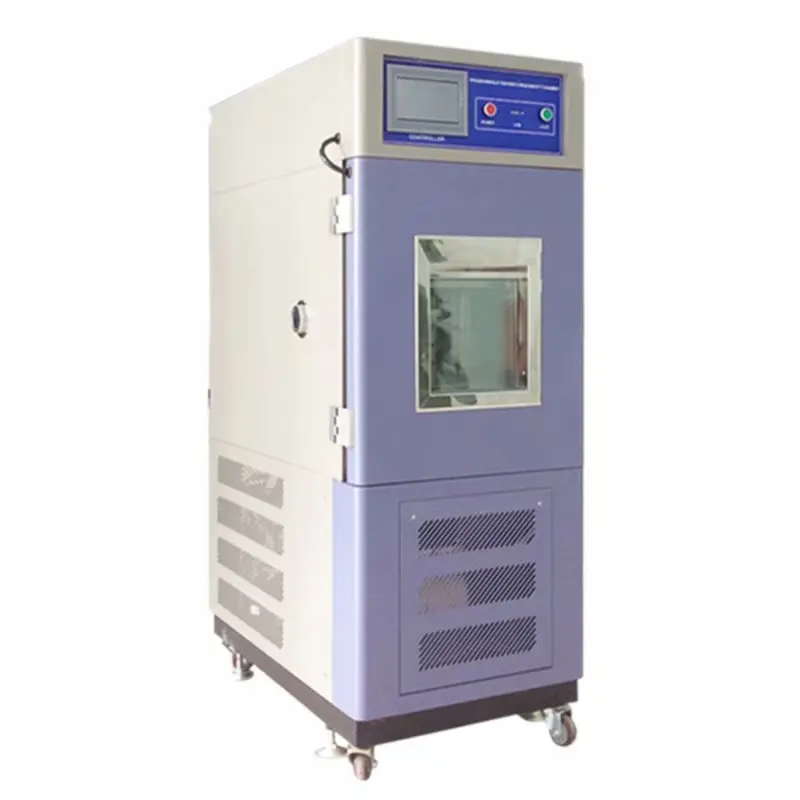

Environmental chamber Constant Temperature Humidity Test chamber Room
- Category: >>>
- Supplier: Shanghai Yiniu Network Technology Limited
Share on (62399573044):
Product Overview
Description
Product Usage
The simulated products are tested under the combination of temperature and humidity in the climatic environment (high and low temperature operation & storage, temperature cycle, high temperature and high humidity, low temperature and low humidity, condensation test, etc.) to check whether the adaptability and characteristics of the product itself change. Must meet the requirements of international standards (IEC, JIS, GB, MIL...) to achieve international measurement procedure consistency (including test procedures, conditions, methods)
Sample limit
This test equipment is suitable for:
Electrical, electronic products, components, components and materials are stored in high and low temperature environments
Adaptability tests for storage, transportation and use.
This test equipment is prohibited:
Testing or storage of flammable, explosive, volatile materials
Testing or storage of corrosive substance samples
Testing or storage of biological samples
Testing or storage of samples of strong electromagnetic emission sources
Technical Parameters
Model | HJ-80 (A~G) | HJ-150 (A~G) | HJ-225 (A~G) | HJ-408 (A~G) | HJ-608 (A~G) | HJ -800 (A~G) | HJ-1000 (A~G) |
Inside size WxHxD (cm) | 40x50*40 | 50x60x50 | 50x75x60 | 60x85x80 | 80x95x80 | 100x100x80 | 100x100x100 |
Outside size W*H*D (cm) | 90x136x94 | 100x146x104 | 100x161x117 | 110x171x137 | 130x181x137 | 150x186x137 | 150x186x157 |
Temperature range | -70 degree ~ +100(150) degree | ||||||
Humidity range | 20%~98%R.H.(10%-98%R.H / 5%~98%R.H is the specific condition ) | ||||||
Accuracy/ uniformly | ±0.1 degree ±0.1%R.H./ ±1.0 degree ±3.0%R.H. | ||||||
Accuracy / volatility | ±1.0 degree ±2.0%R.H. / ±0.5 degree ±2.0%R.H. | ||||||
Heating / cooling time | About 4.0/min(heat),about 1.0/min(cool) ( 5~10/mm is the specific condition ) | ||||||
Inside material | Stainless steel SUS 304 # | ||||||
Insulation material | High-temperature high-density amino acid ethyl ester foam insulation materials, | ||||||

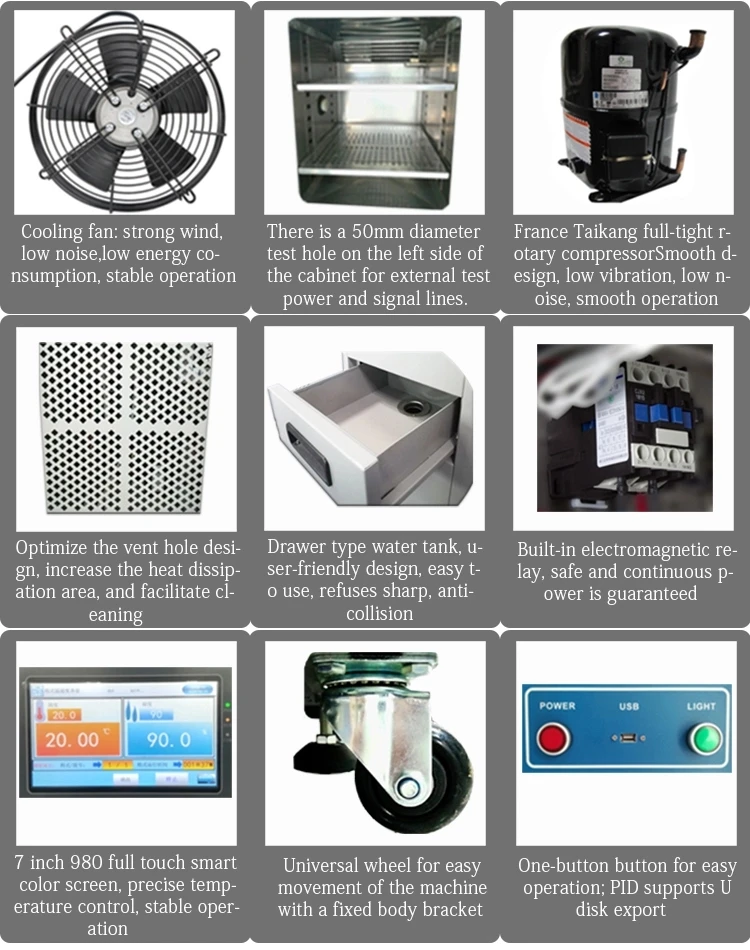

Cooling system | Air-cooled/ single-stage compressor(-20 degree) , wind, water cooled/two-stage compressor(-40~-70 degree) | ||||||
Protection | compressor overload switch, high and low pressure protection switch, over-humidity- temperature protection switches, fuses,warning system | ||||||
Accessories | recorder(purchase), view window, 50mm testing hole, PL lamp, clapboard, Dry and wet gauze ball | ||||||
Controller | TEMI300 digital controller from South Korea | ||||||
Compressor | France Taikang | ||||||
Power | 1Φ 220VAC±10% 50/60Hz & 3Φ 380VAC±10% 50/60Hz | ||||||
