CSJ coarse grinder for bread crumb
- Category: >>>
- Supplier: Changzhou Doing Machine Co. Ltd.
Share on (62399666905):
Product Overview
Description
Product Description
Main features
1. Fast particle size reduction from 300mm to 2mm in food and chemical industries
2. Product size: 0.5-20 mm
3. Process capacity: 80-1500 kg/h
4. Dust collector can be equipped
5. Product particle size is adjustable by changing sieves
Working principle

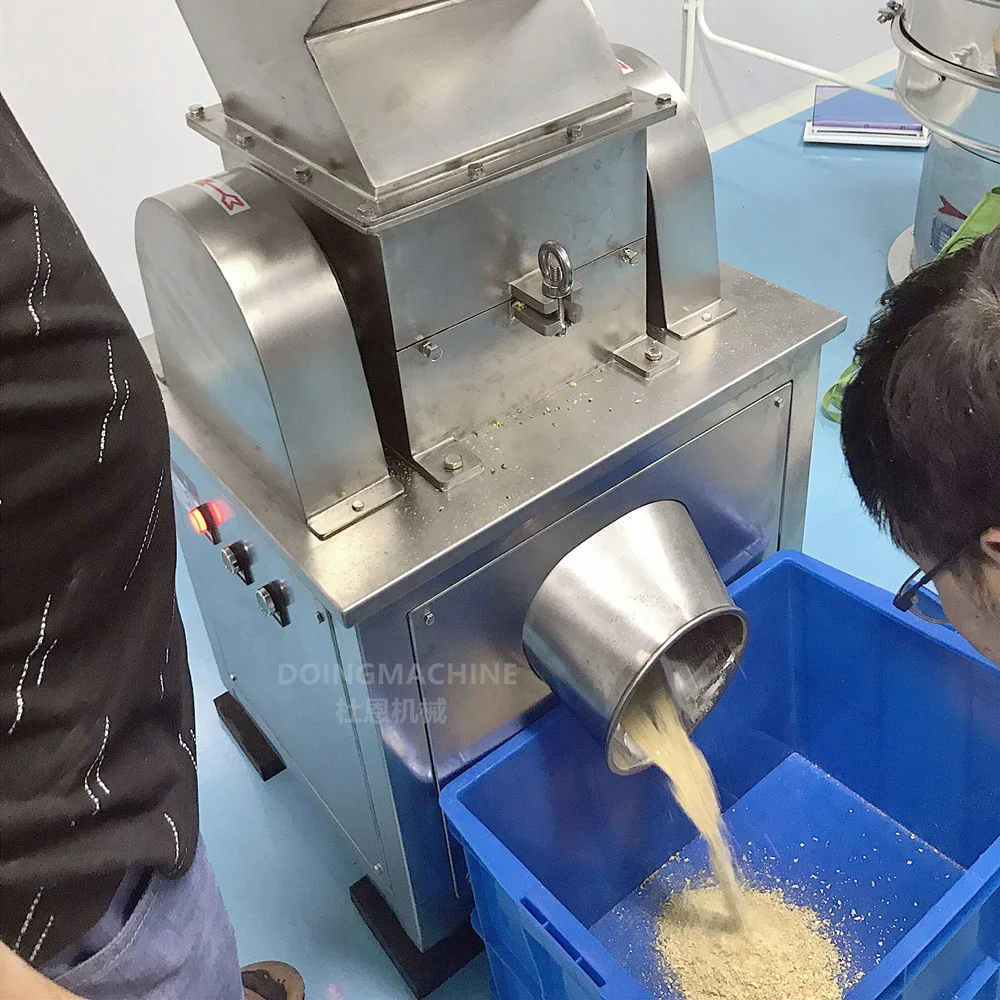

CSJ series rotary knife grinding machine, which consists of feed hopper, rotary and stator knives, bottom sieves and/or dust collector, is designed for fast particle size reduction from 300mm to 2mm mainly for food products. The material to be processed falls into the cutting chamber via a guide chute and is shredded by cutting between rotating and fixed knives until it passes an attached sieve as ground product. The sieve extends over the lower half of the grinding chamber and can be easily changed. Final particle size is determined by the hole size of sieves.
CSJ series rotary knife grinding machine is most often used for cut corn, spices, roots, dried herbs and other soft to middle-hard materials in food and chemical industry into accurately controlled size or before fine grinding.

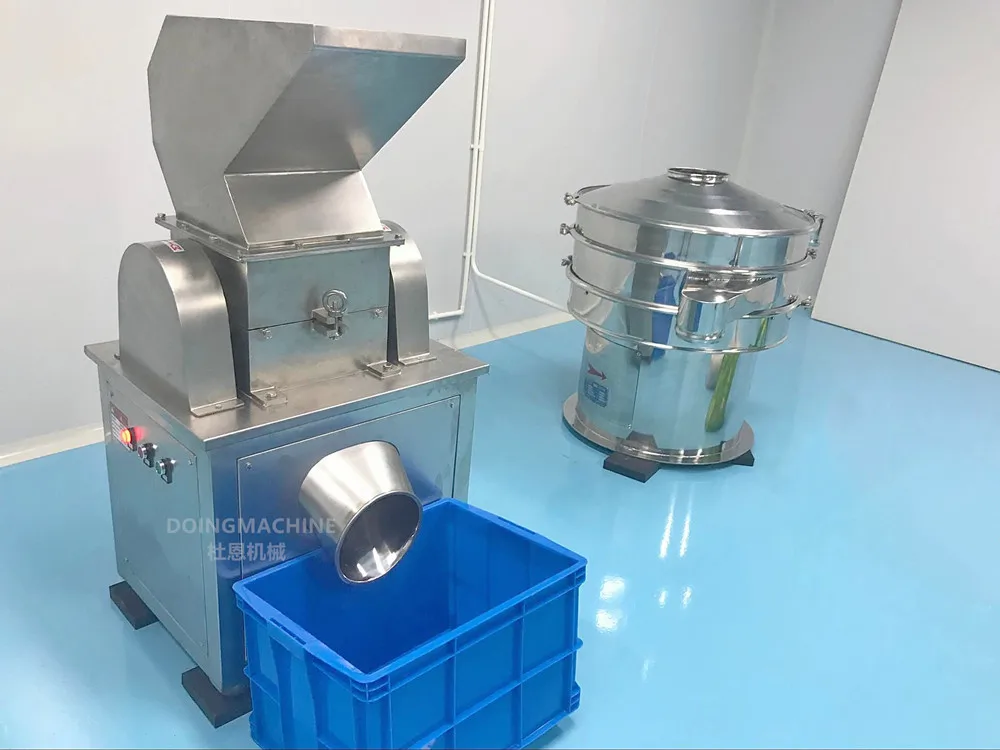

Single cutter mill

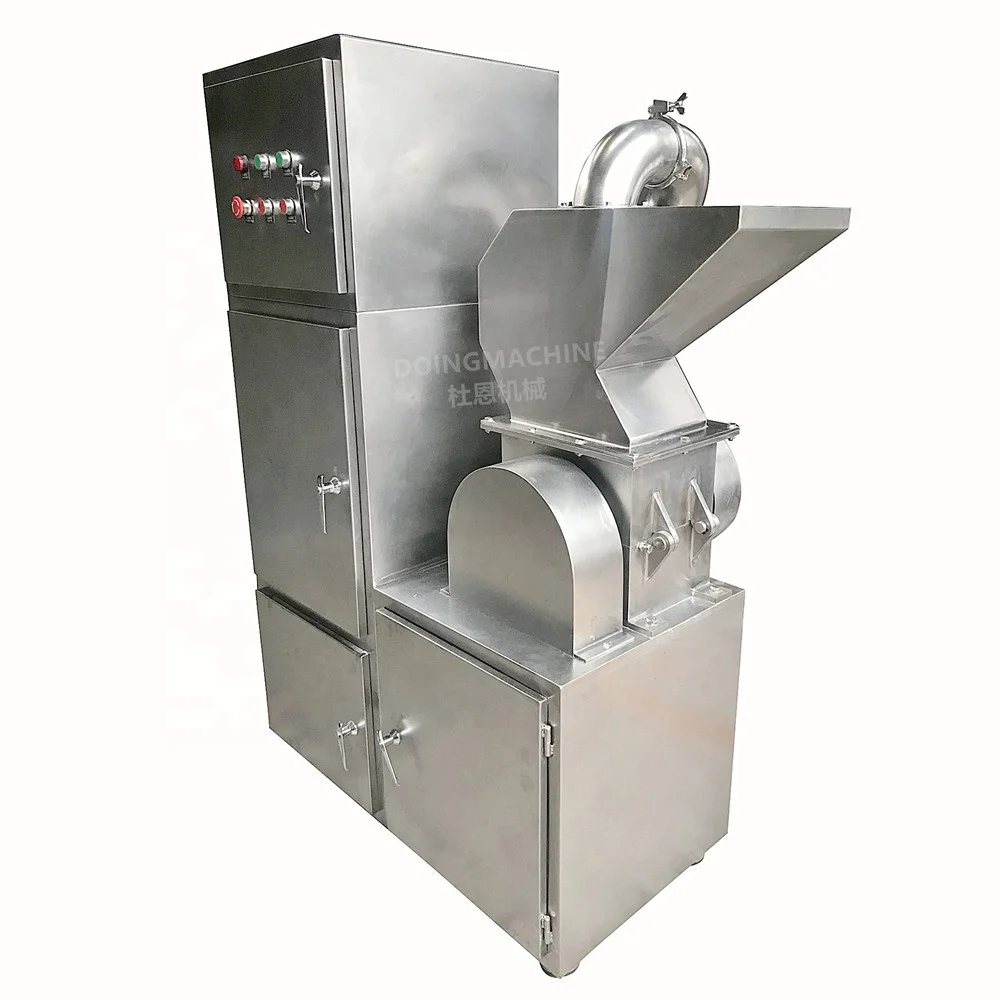

Cutter mill with dust collector
Table-type cutter mill
Technical advantages
1. Robust,simple and compact design requires minimum maintenance;
2. Made by SUS304 or SUS316 and mirror polished to meet GMP standards.
3. Alloy steel cutting knives.
4. Very easy and convinent for cleaning, changing sieve and cutting knives.
5. Different particle size can be achieved by changing sieve.
6. It is suitable for cutting wide range of products with little limilation on hardness, softness and fiber content etc.
7. Rotary knife speed is adjustable to get very gentle shredding process, which can considerably reduce fine paticles.
Main technical parameters
Model | CSJ-200 | CSJ-300 | CSJ-400 | CSJ-600 |
Capacity kg/h | 80-300 | 100-800 | 200-1000 | 500-1500 |
Feed size mm | ≤100 | ≤100 | ≤100 | ≤100 |
Product size mm | 0.5-20 | 0.5-20 | 0.5-20 | 0.5-20 |
Rotating speed RPM | 400 | 400 | 400 | 400 |
Motor power KW | 3 | 4 | 5.5 | 11 |
Dimension LxWxH mm | 900X600X1440 | 900X700X1440 | 900x800x1440 | 1000x900x1440 |
Weight KG | 200 | 300 | 380 | 500 |
Detailed Images

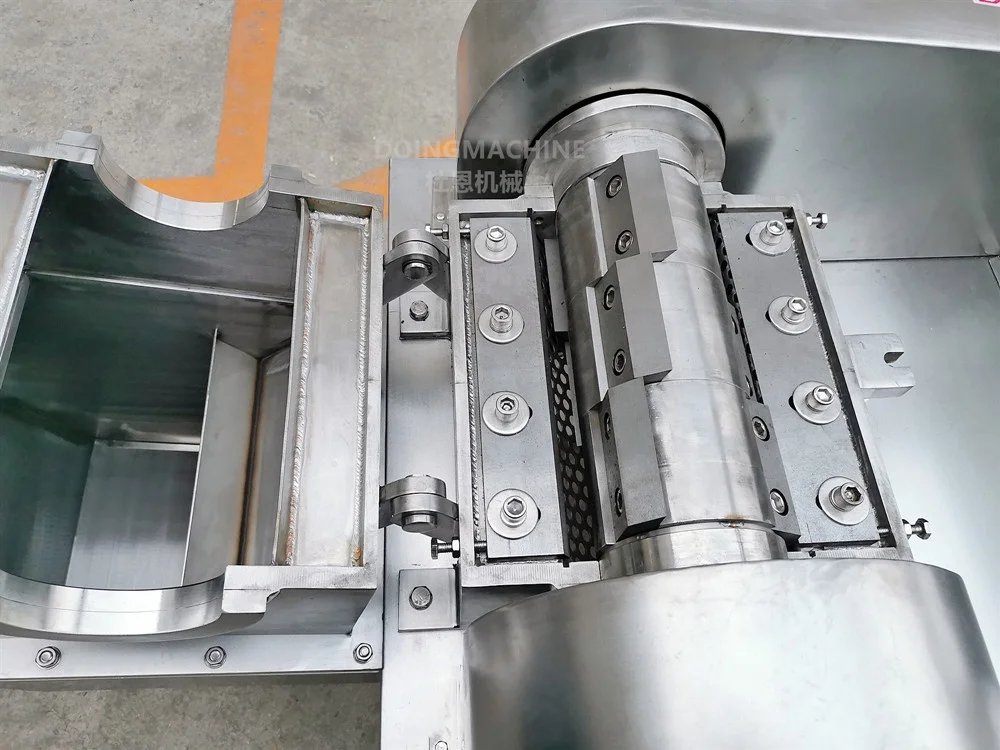

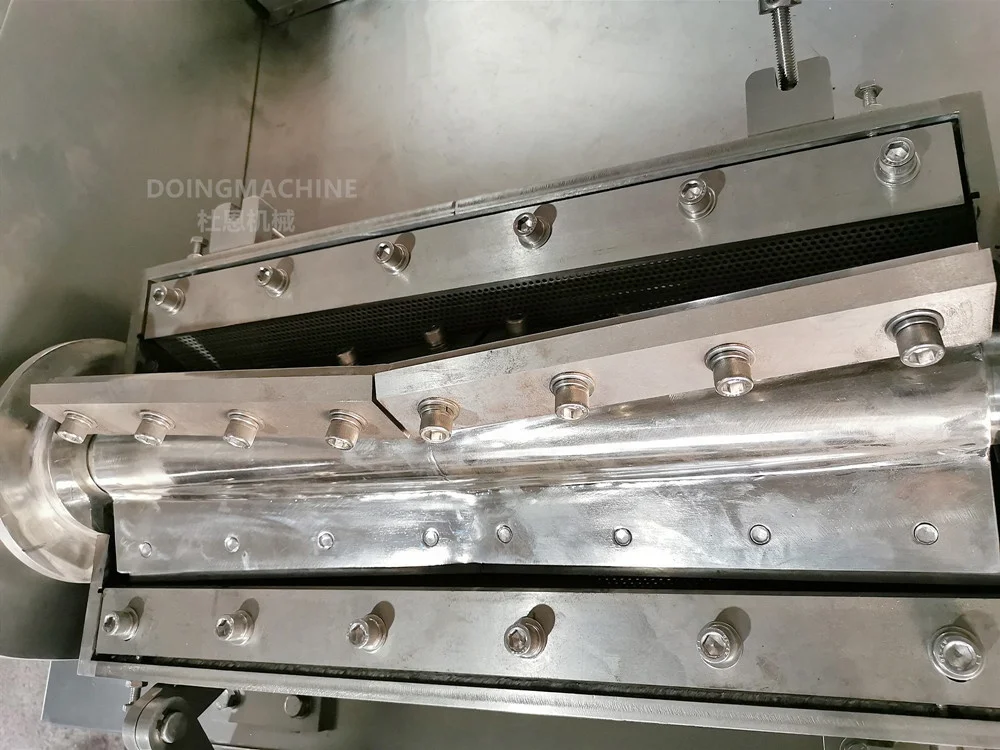

Alloy steel cutting knives
Well polished and easily dismantable
Perforated sieves
Hole size: 2-20mm
Milling hamber: Easy for cleaning
Dust collector: vacuum most dust
Typical applications
Dried herbs
Dried spices
Sugar/salt crystal
Our Factory
FAQ
Q: What information should be provided in order to get a proposal or quotation?
A: Our rotary knife grinding machine can be customerized. Before we can work out a detailed quotation, we have to know the following information:
1) What product you are going to process
2) Product size before cutting/milling
3) Required final product size
4) Process capacity in kg/h
Q: How the machine will be delivered ?
A: The granulator is packed in plywood box for shipping
