Product Overview

Description

This China PET Bottle Flakes Making Machine is mainly used to recycling the waste PET bottles ,mainly inclue conveyor
belt,de-baling machine, label remover, sorting system,crushing, floating washing tank, hot washing tank, frication washing,
dewatering &hot air drying system, label separator a,with the above machines and process can easily to remove the labels, caps, rings, glue, dirties and other impurities, finally you will produce to clean PET flakes。It can reach achieve request of "Bottle to Bottle" ,"Bottle to Fiber product" We can make recycling line according to different customize requirements!
Detailed Images

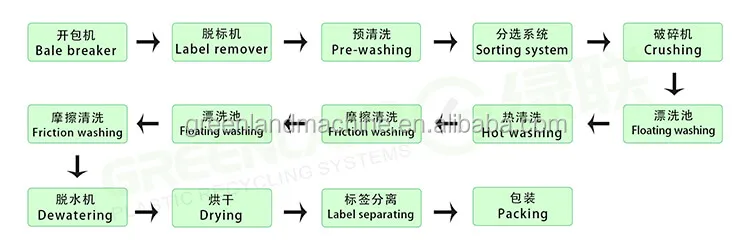

Flow chart:Shredding-Crushing-Washing-Drying-Pelletizing
China PET Bottle Flakes Making Machine
Bale breaker
To break compressed bottle balers,four shaft design
Trommel screen
to get rid of sands /grit

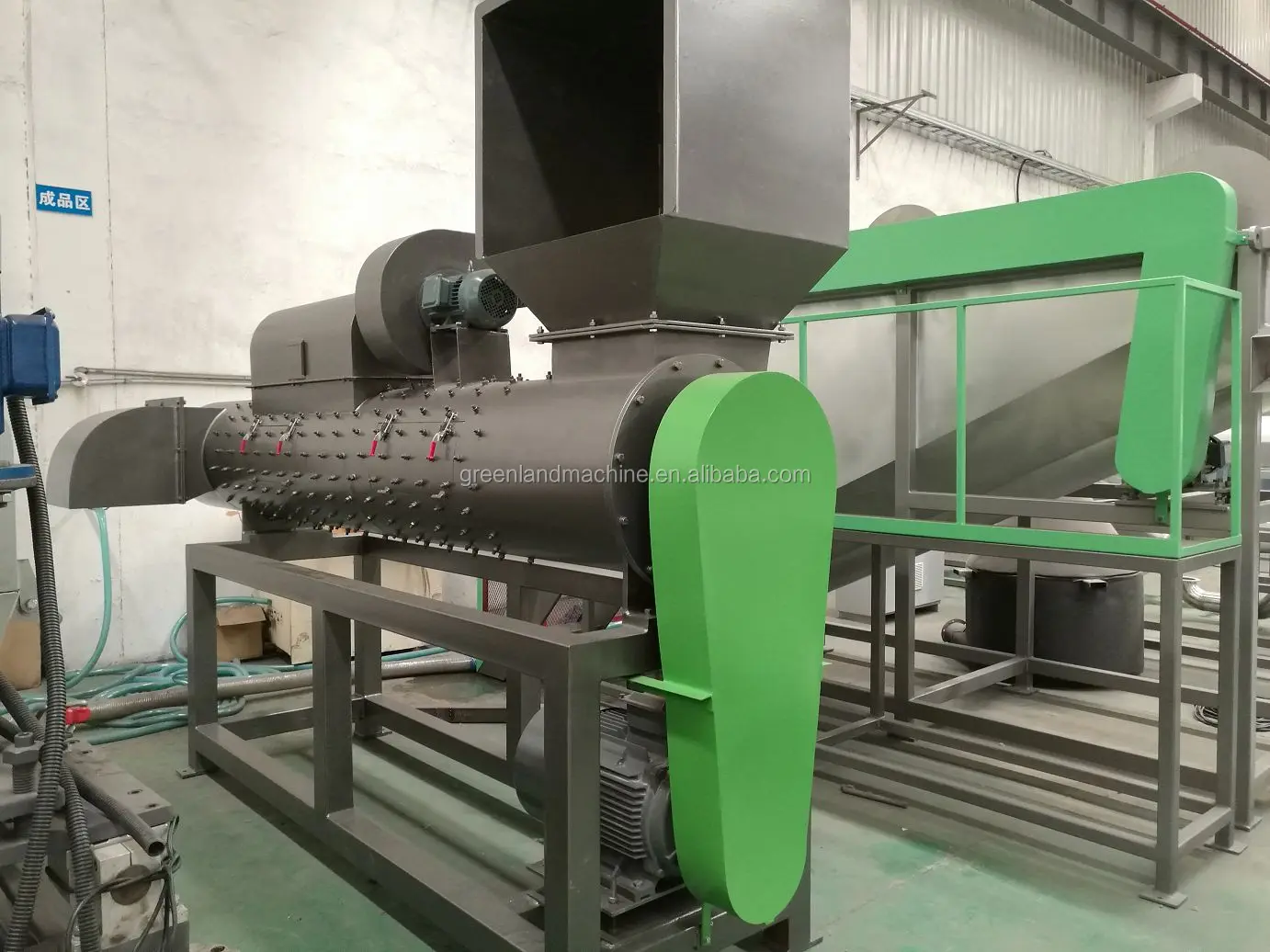

Label remover
To get rid of pvc label and cap &cap rings automatically ,high efficiency,reduce labor cost

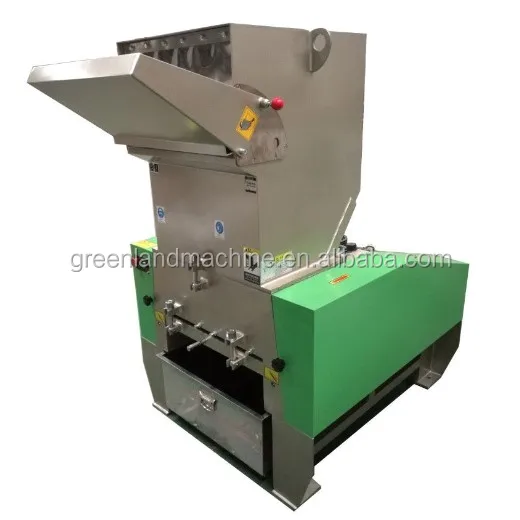

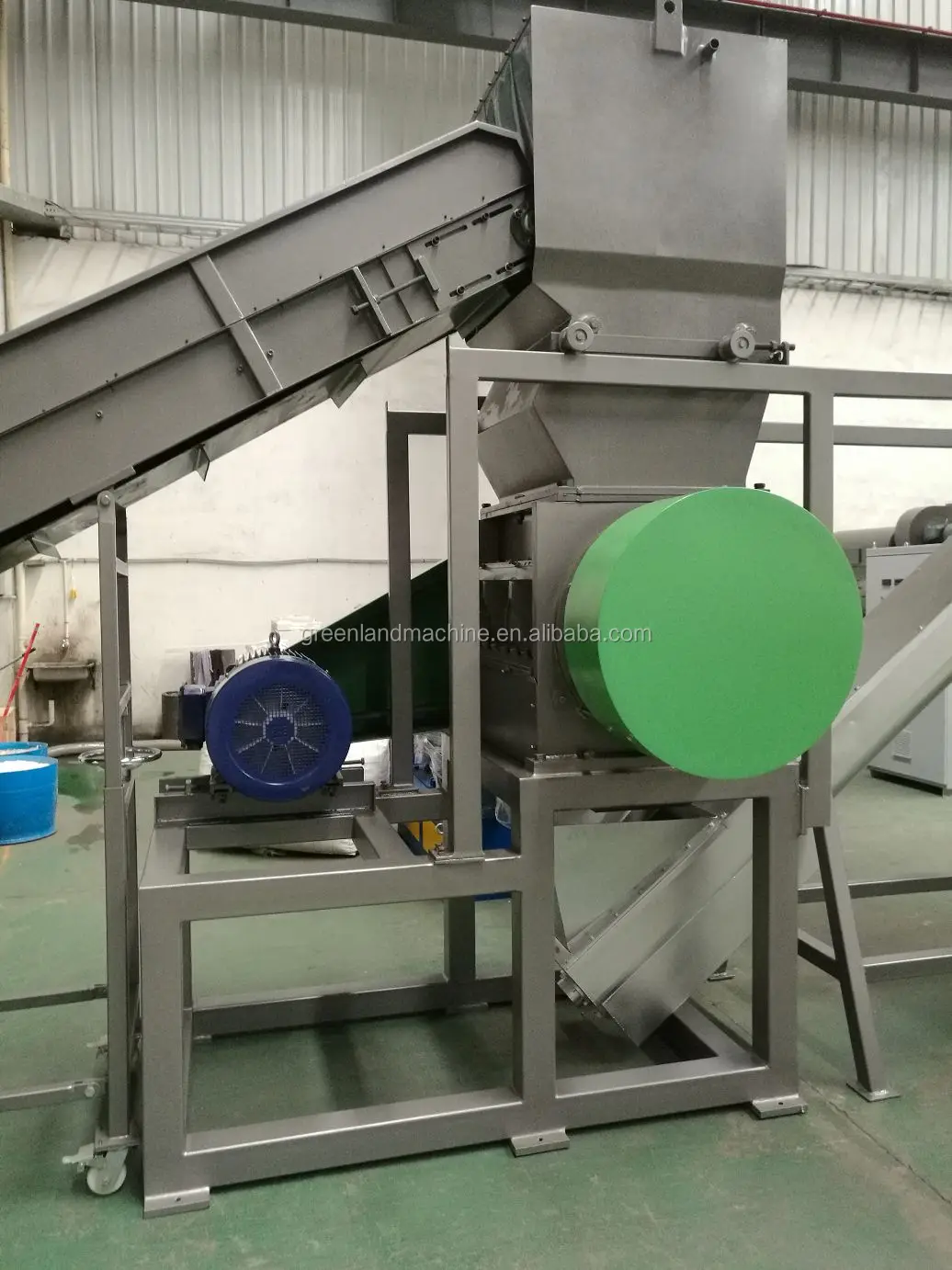

Heavy duty crusher
Strong design ,heavy duty typeSKD-11 high quality blade
Bearing external design
Thickened steel body

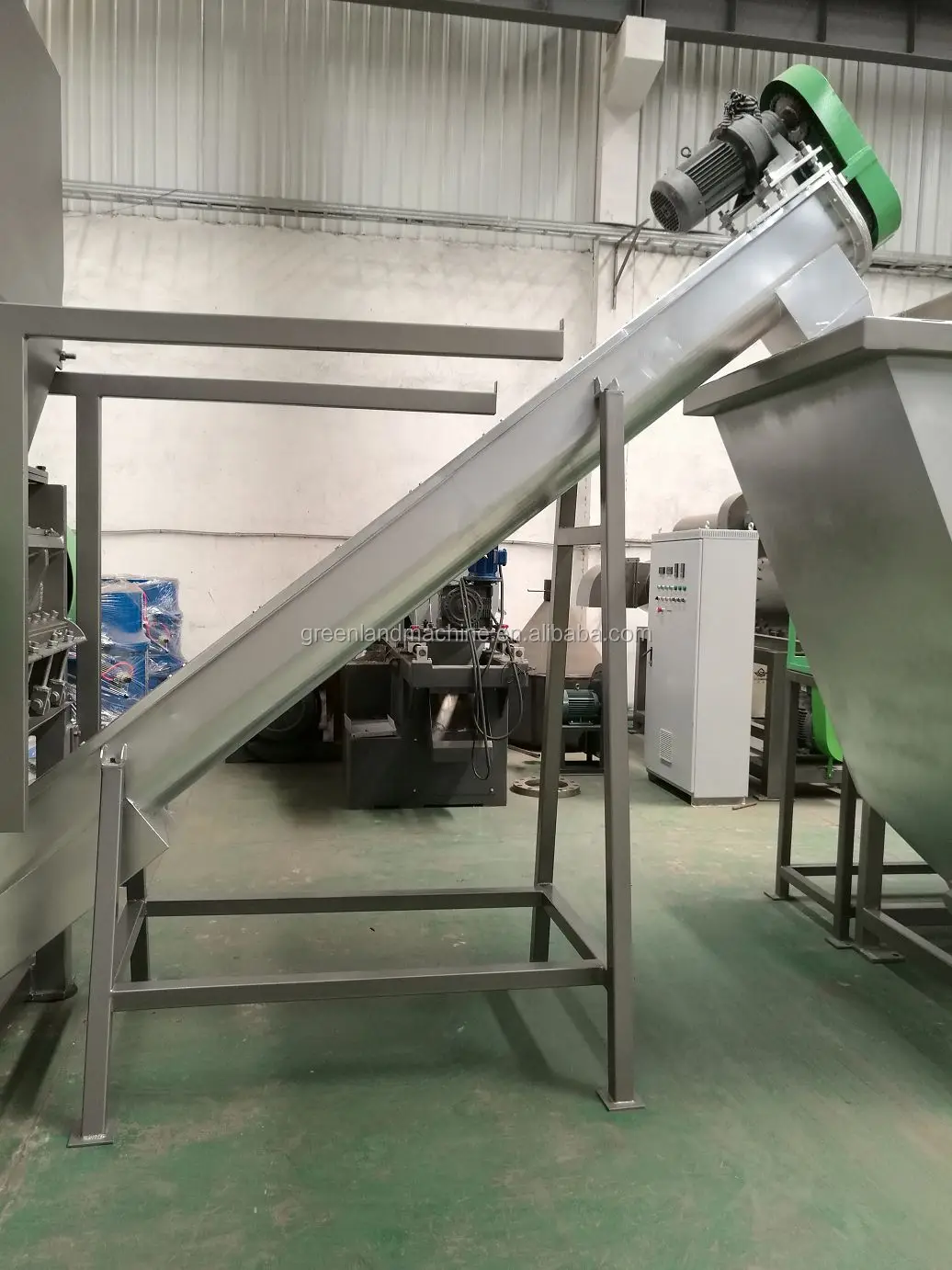

Screw loader
To convey crushed plastic flakes ,stainless 304 steel

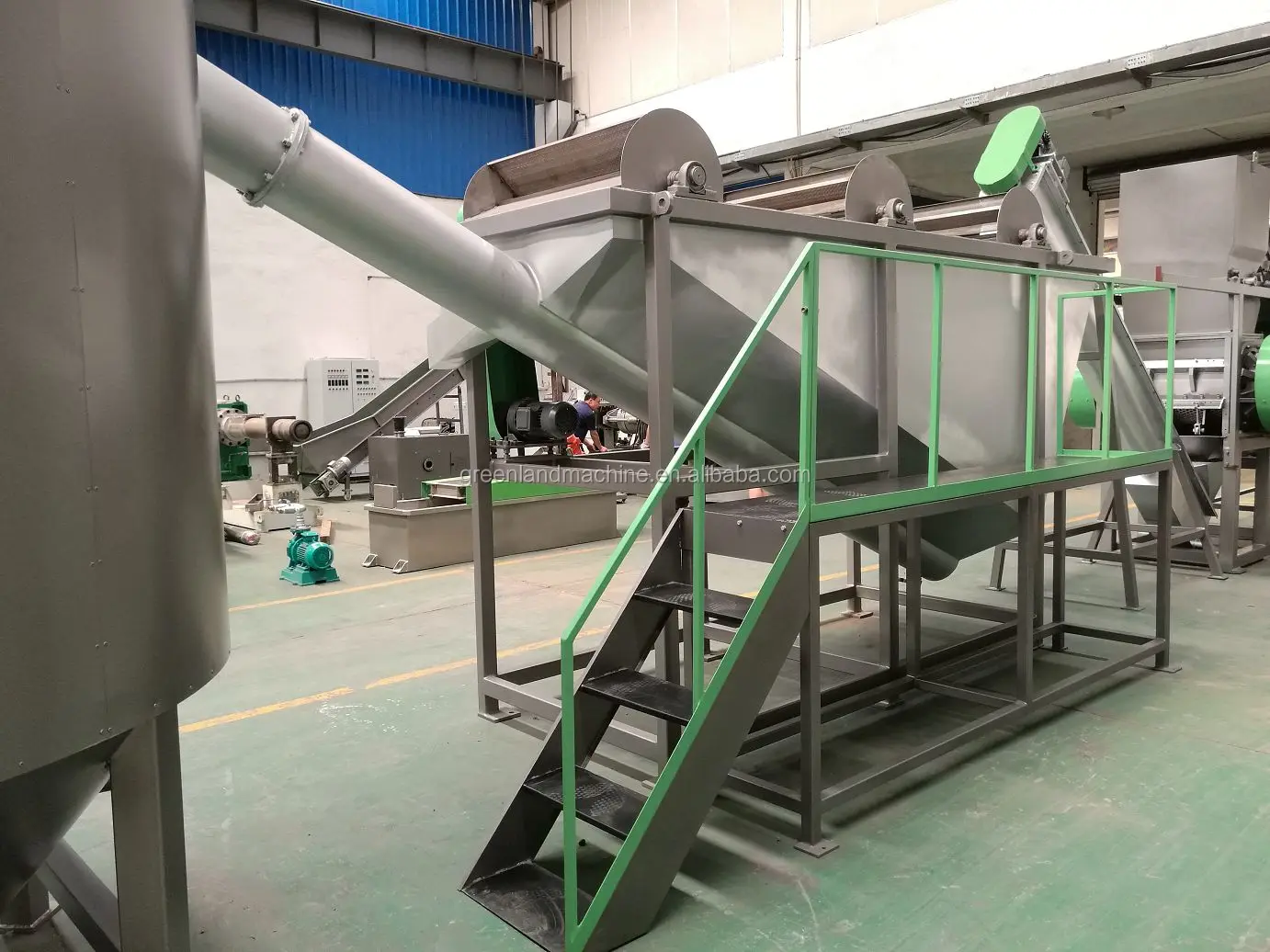

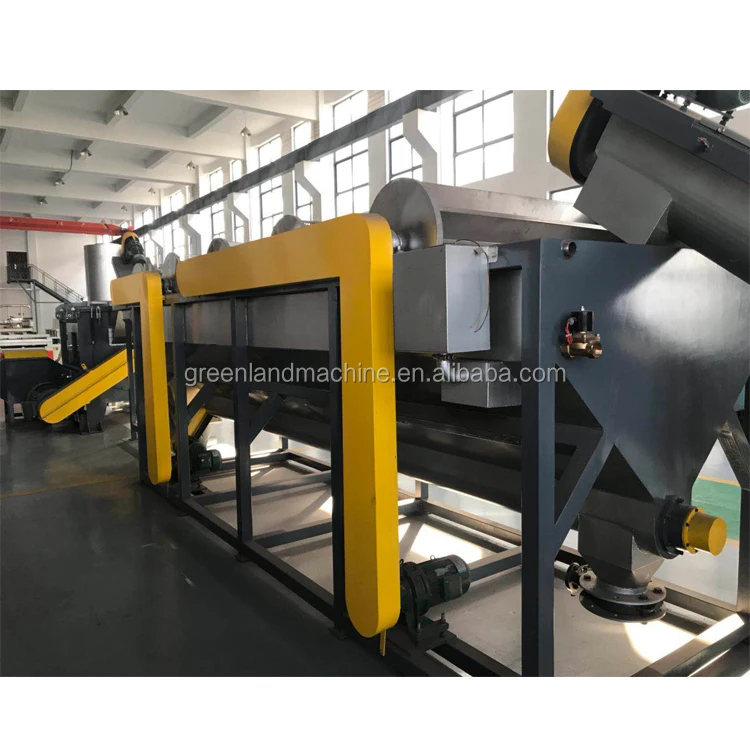

Floating washing tank
To wash PET flakes and get rid of pvc label flakes and hdpe cap chips ,stainless steel 304

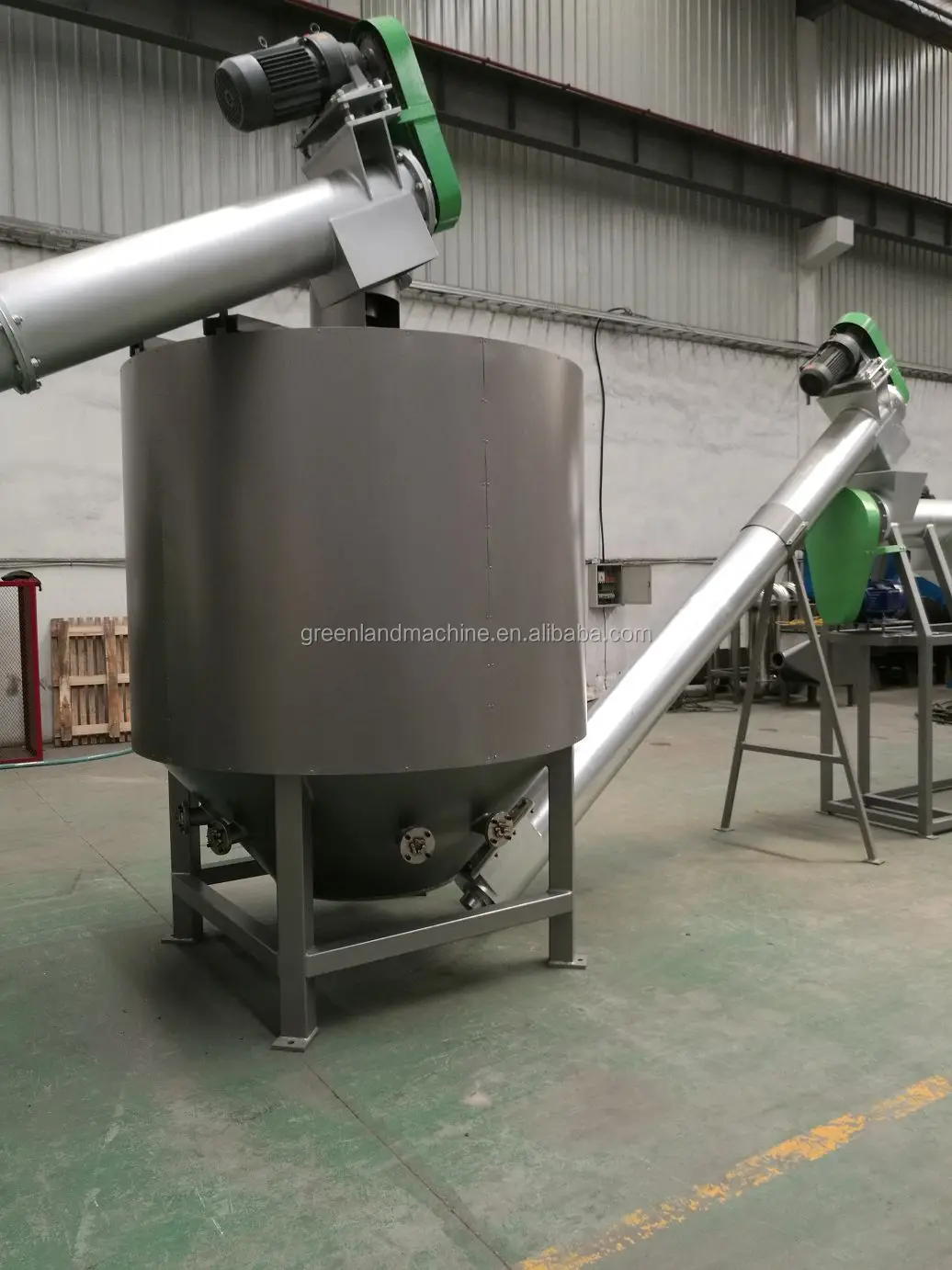

Hot washing tank
To wash PET flakes by hot water further step, it can ensure and improve PET flakes quality,made by stainless steel304
High speed friction washer
To wash and clean PET flake by high speed friction ,it is an important machine for PET flakes washing
Vertical dewatering machine
To dewater and dry PET flakes after washing,stainless steel 304

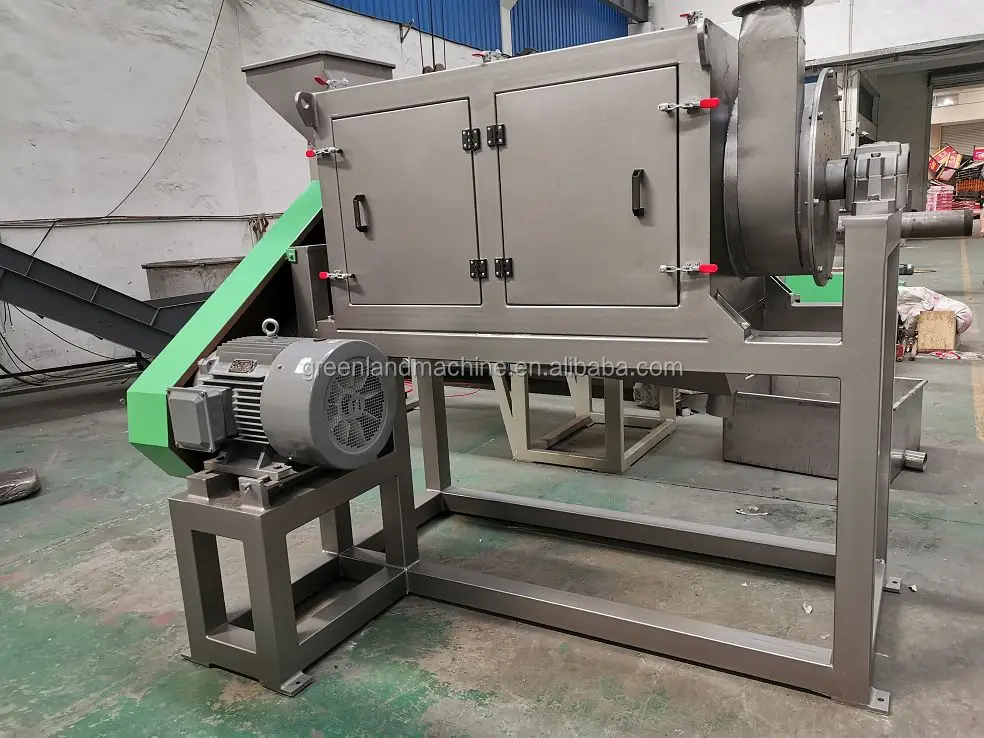

Label inhaling machine
to separate out small label chips and caps chips further step
Size Information
Size Chart of This Design China PET Bottle Flakes Making Machine
Model
Capacity demand
Total power
Water supply
Labor
Area required
GLPET500
500kgh

120kwh
5-6t/h
2-3
38*4.5*5m (L*W*H)
GLPET1000
1000kgh
160kwh
6-8t/h
4-6
38*4.5*5m (L*W*H)
GLPET2000
2000kgh
200kwh
8-10t/h
6-8
43*5*5m (L*W*H)
Related Products
Packing&Shipping
PET plastic bottle recycling machine container loading &delivery
After Sales Service
Commissioning &training
Accept commissoining and inspection before delivery ,and offer installation help and technical support ,and instruction after
delivery
Company Introduction

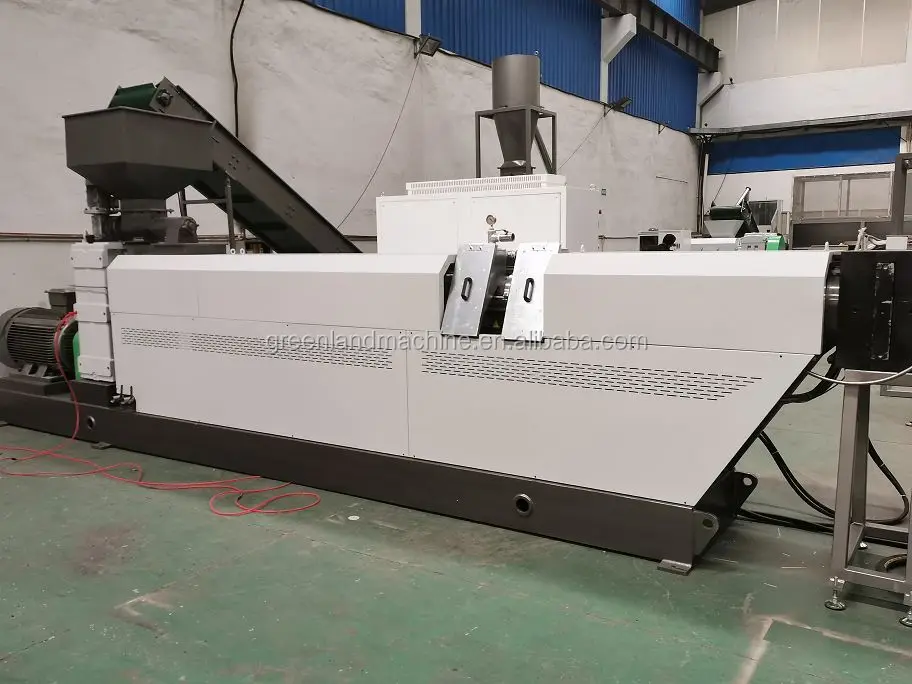

ZHANGJIAGANG GREENLAND MACHINERY CO, LTD is a professional plastic recycling machine and extrusion machine manufacturer. We are dedicated to designing and developing the high technology plastic machinery. We have more than 10 years experiences in the plastic machinery manufacturing. We have full processing equipment,skillful and experienced production process . We are always keeping improve our products by the feedbacks and communication from our customers which makes our products better and better. Our products mainly include PET bottle washing recycling line, PE/PP film bags washing recycling line, PP/PE bottle,drum washing recycling line, HDPE/ABS/ PVC recycling line, PE/PP recycling pelletizing line, PET ,ABS and etc material pelletizing line!

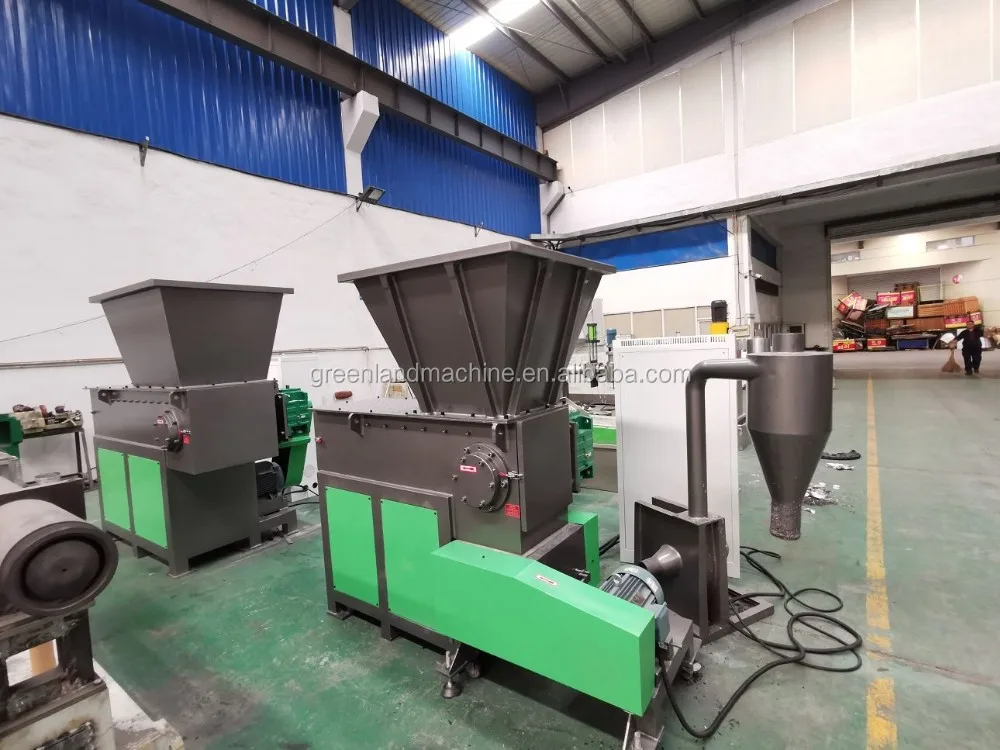

Plastic shredder series include single shaft shredder ,double shaft shredder ,plastic crusher/granulator.
At the same time, our company is also the leading EPS foam recycling machine manufacturer in China, manufacturing high quality EPS foam cold compression machine, hot melt machine, and EPS foam granulation equipment, fill the gap of domestic EPS foam high-end recycling equipment!
FAQ
TECHNICAL INNOVATION ,QUALITY FIRST
Greenland Machinery pays attention to technology research & development and product quality. Based on the company's mature R&D design team, we carry out technical reforms on traditional plastic recycling equipment. It insists on high-quality configuration for each component and detail of the equipment, compared with traditional recycling equipment ,more stable, high performance and efficiency, increase the economic benefits of recycling manufacturers!

OFFER DIFFERENT CUSTOMERS CUSTOMIZED SOLUTIONS OF PLASTIC RECYCLING
Greenland Machinery provides customized and integrated crushing washing and pelletizing solutions according to different recycling materials and capacity requirements of customers, which can help customers recycle various of materials and different pollution levels.Includ PET bottles, PP/PE Films/plastic bags/bottle, waste plastic packages agricultural film greenhouse film, jumpo bag, home appliance plastic, etc.

ONE-STOP TURNKEY PROJECT CONCEPT
Since the customer consider setting up recycling project, we will design the most suitable production line process and
installation plan according to the customer's capacity demand, workshop condition, etc. Our design and engineering team will provide customers with one-stop turnkey plastic recycling project.With complete pre-sale and after-sales service

INSTALLATION ,TRAINING & GOOD AFTER-SALES SERVICE
We have professional technicians who can come to customer's factory provide installation and commissioning, train operators, so that ensure the correct operation and maintenance of the equipment! We have dedicated after-sales personnel and spare parts warehouse to ensure the timely supply of some conventional accessories parts!
