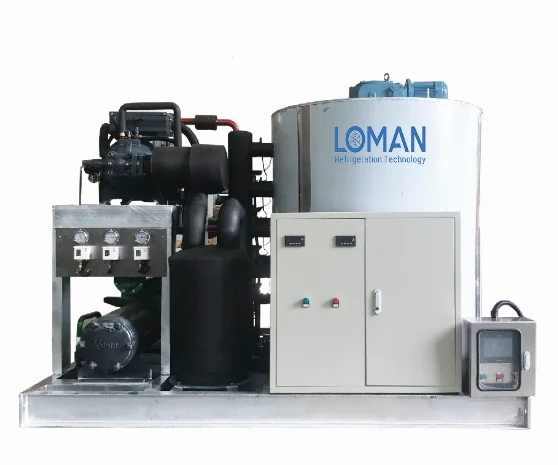

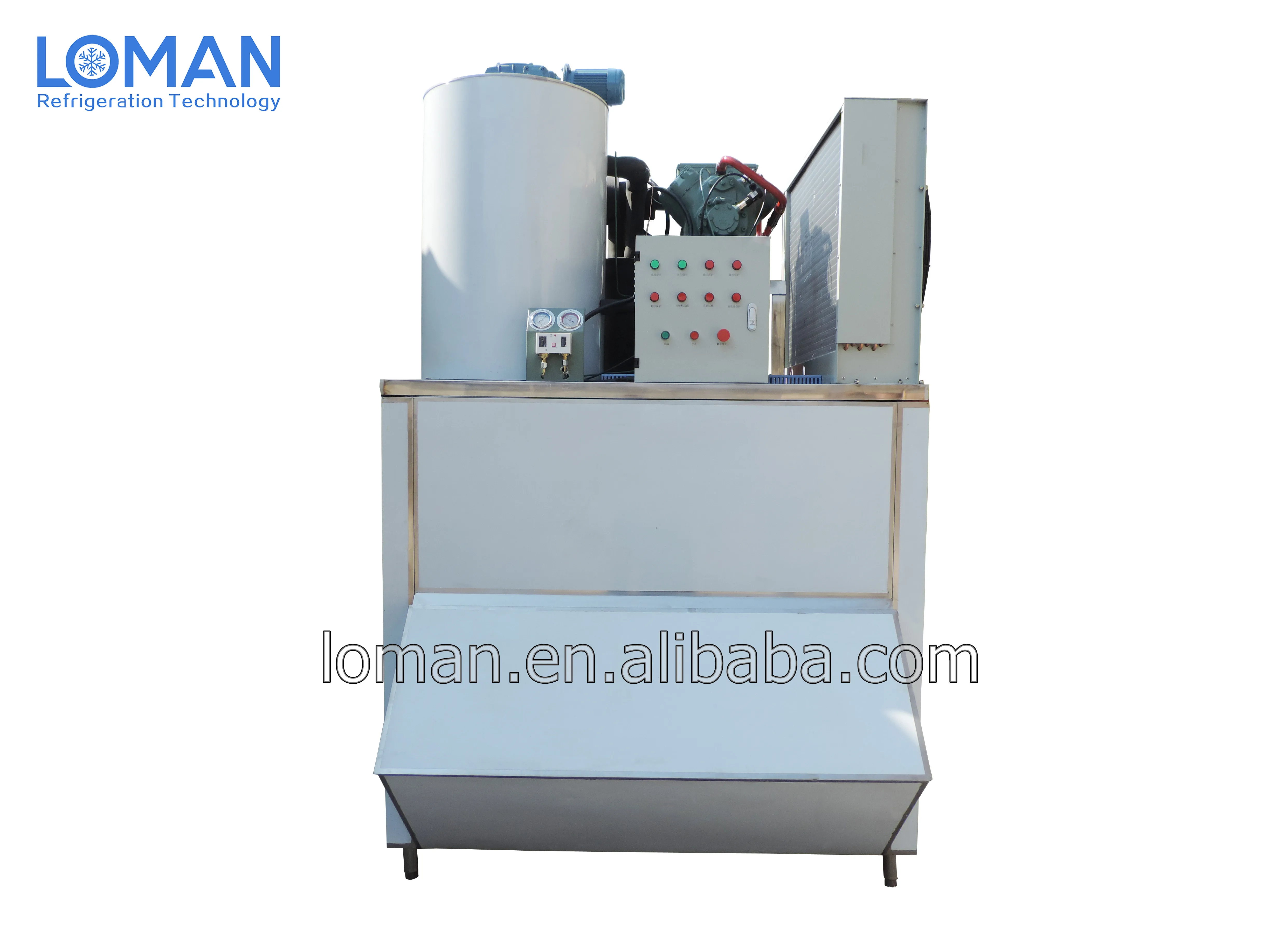

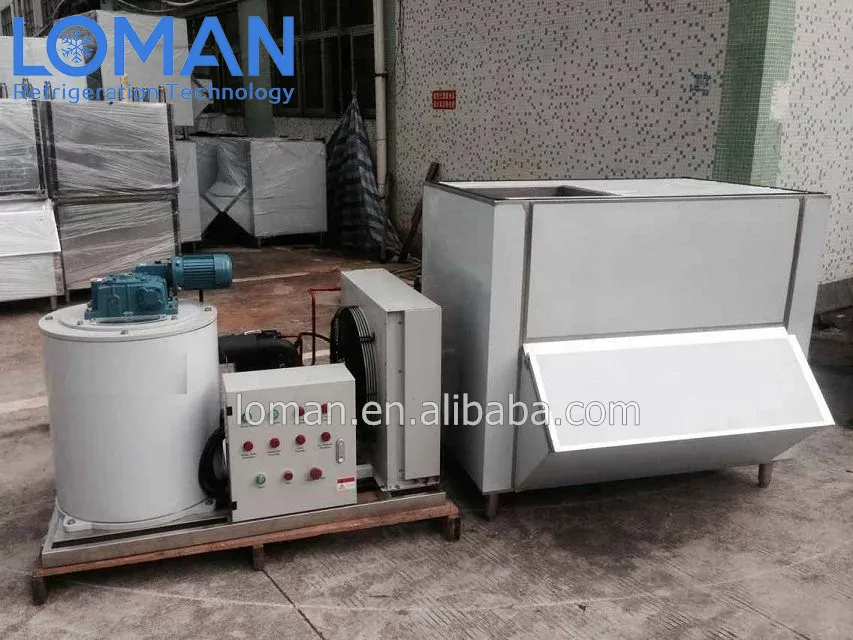

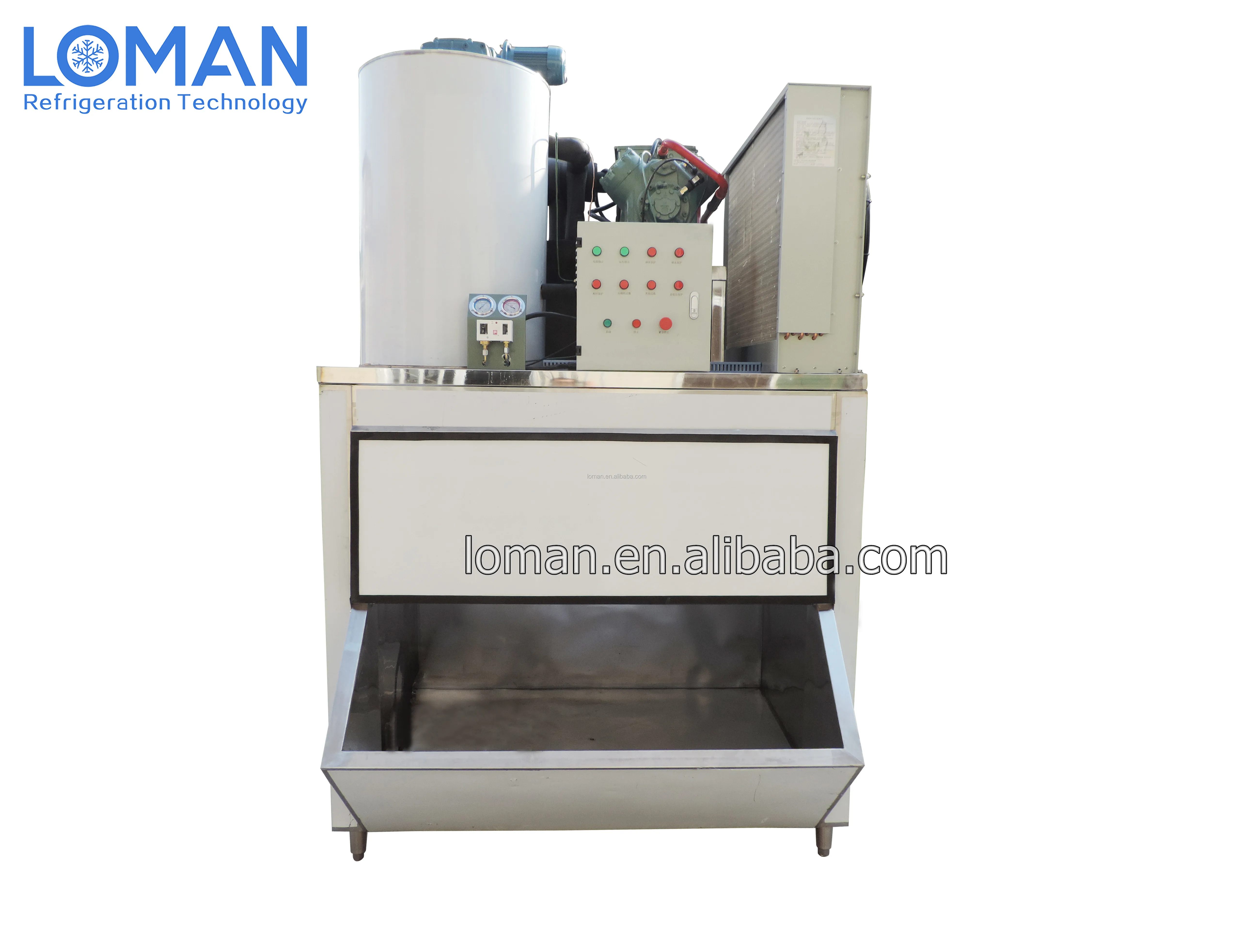

mini flake ice machine for fish seafood 1t 2t 3t
- Category: >>>
- Supplier: Changzhou Loman Refrigeration Technology Co. Ltd.
Share on (62399705320):
Product Overview
Description
Product Description
● Large supermarket
● Seafood Buffet
● Bar and KTV
● Meat processing
● Aquatic food processing
● Fowl slaughtering
● Leather industry
● Dye chamical industry
● Temp.Reduction of time
● Bio-pharmacy
● Laboratories
● Medical facilities
● Ocea-going fishing
● Concrete construction project
══Commercial Range══
▶ The technical data based on 25℃
ambient temp.20℃ water inlet temp.
▶ The evaporating temperature: -20℃
▶ The condensing temperature: 40℃
▶ Power supply: 3P/380V/50Hz
▶ The ice thickness: 1.6-2.3mm
▶ Refrigerant: R404A
Model | MIF0.35T-R4A | MIF0.5T-R4A | MIF1T-R4A | MIF1.2T-R4A |
Daily Output(Ton/24hrs) | 0.35t | 0.5t | 1t | 1.2t |
Cooling Capacity(kw) | 2 | 3.3 | 5.6 | 6.6 |
General Power(kw) | 1.95 | 2.49 | 4.22 | 4.72 |
Compressor Input(kw) | 1.59 | 2.2 | 3.8 | 4.3 |
Reductor Power(kw) | 0.25 | 0.18 | 0.18 | 0.18 |
Cooling Mode | Air cooling | Air cooling | Air cooling | Air cooling |
Water Inlet/Drain Pipe | 1/2〞 | 1/2〞 | 1/2〞 | 1/2〞 |
Weight(kg) | 190kg | 300kg | 450kg | 460kg |
Dimension(mm) | 1050*650*700 | 1050*700*800 | 1320*900*900 | 1320*900*900 |
Dimension(with ice bin) | 1050*800*1550 | 1050*850*1650 | 1320*1185*2100 | 1320*1185*2100 |
Model | MIF1.6T-R4A | MIF2T-R4A | MIF2.5T-R4A | MIF3T-R4A |
Daily Output(Ton/24hrs) | 1.6t | 2t | 2.5t | 3t |
Cooling Capacity(kw) | 9.8 | 11.6 | 15.5 | 17.2 |
General Power(kw) | 6.75 | 8.11 | 9.75 | 10.88 |
Compressor Input(kw) | 6.33 | 7.2 | 8.83 | 9.97 |
Reductor Power(kw) | 0.18 | 0.37 | 0.37 | 0.37 |
Cooling Mode | Air cooling | Air cooling | Air cooling | Air cooling |
Water Inlet/Drain Pipe | 1/2〞 | 1/2〞 | 1/2〞 | 1/2〞 |
Weight(kg) | 480kg | 500kg | 550kg | 600kg |
Dimension(mm) | 1400*950*1000 | 1500*1100*1200 | 1500*1100*1200 | 1700*1200*1320 |
Dimension(with ice bin) | 1500*1420*2300 | 1735*1420*2500 | 1735*1520*2840 | 1875*1520*3050 |
Note:
You can also choose the Water-cooled mode and Refrigerant R22 to meet your request. ALL the parameter will be changed subject to technical innovation without further novice.

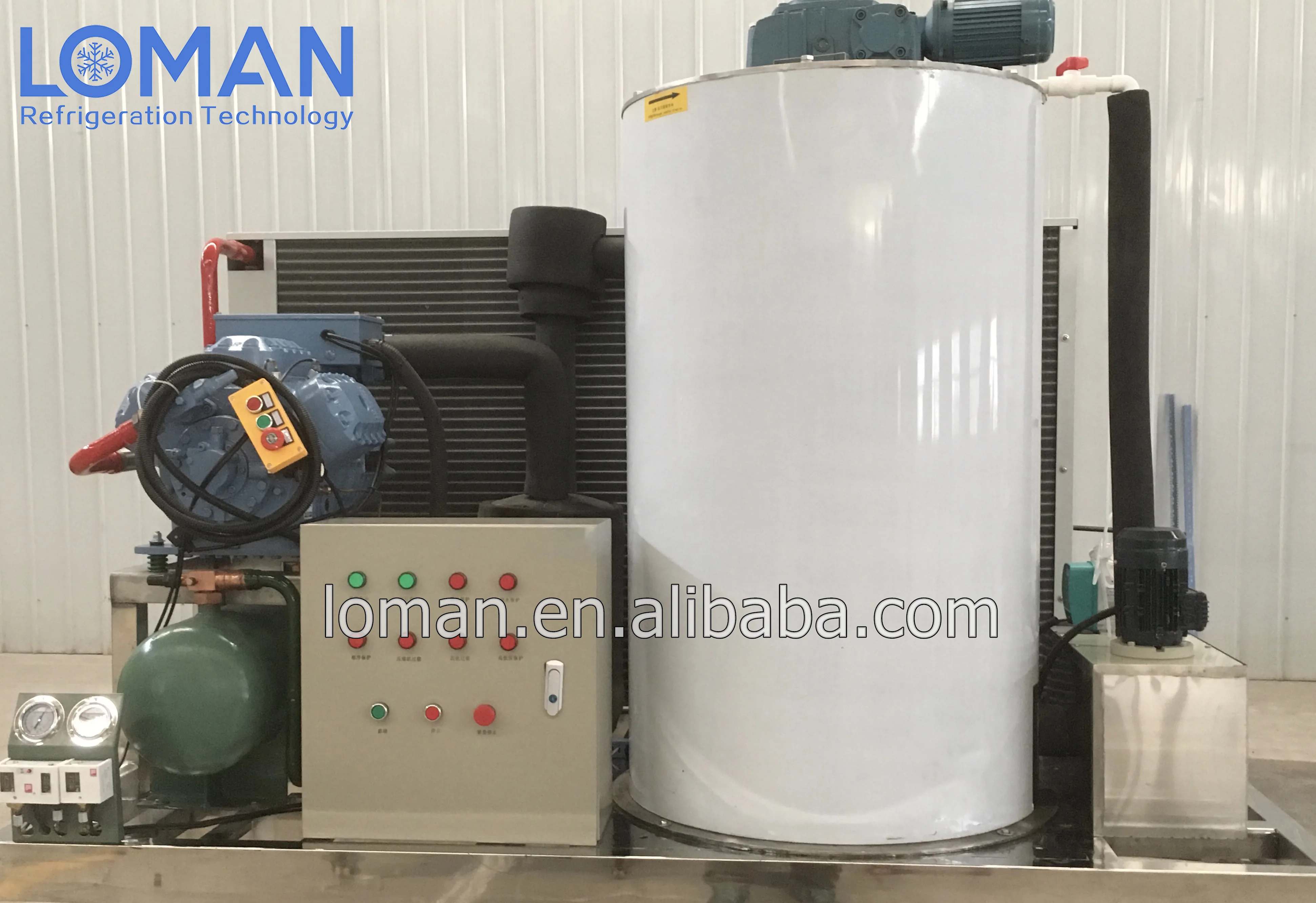

Details Images
Product advantages

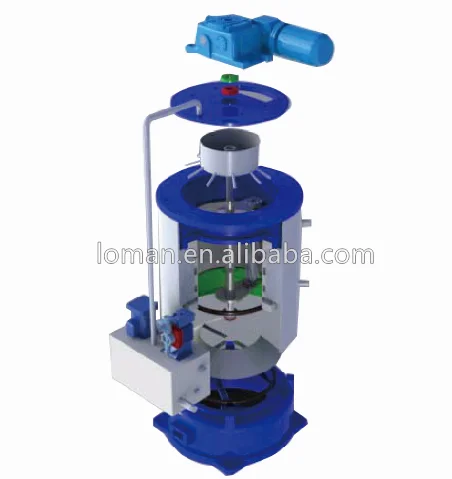

Adopting German technology,the evaporator is welded of low temp steel alloy 16MnR,whose thermal conductivity is close to Aluminum.This high quality evaporator has made our output 3-5％higher than our peer products for the same configulation.The evaporator is annealed and coated with hard chrom plating layer,which makes its life time as long as 10-13years.

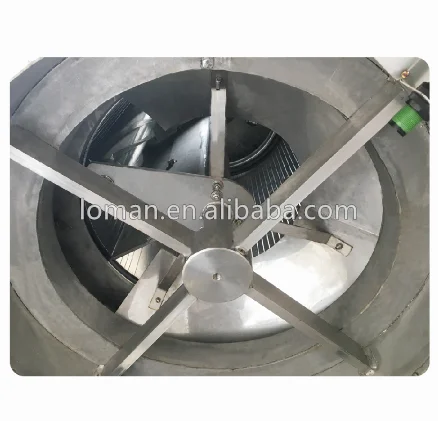

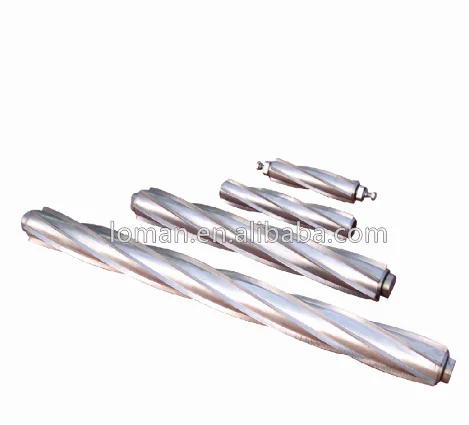

The ice scraper and shalf are made of stainless steel 304.The ice scraper is a molded part instead of welded part.Its service life is extended and in the same time,the structure eliminate the possibility of wobbing,abrasion and corrosion that may be caused to the inner freezing surface of the evaporator.

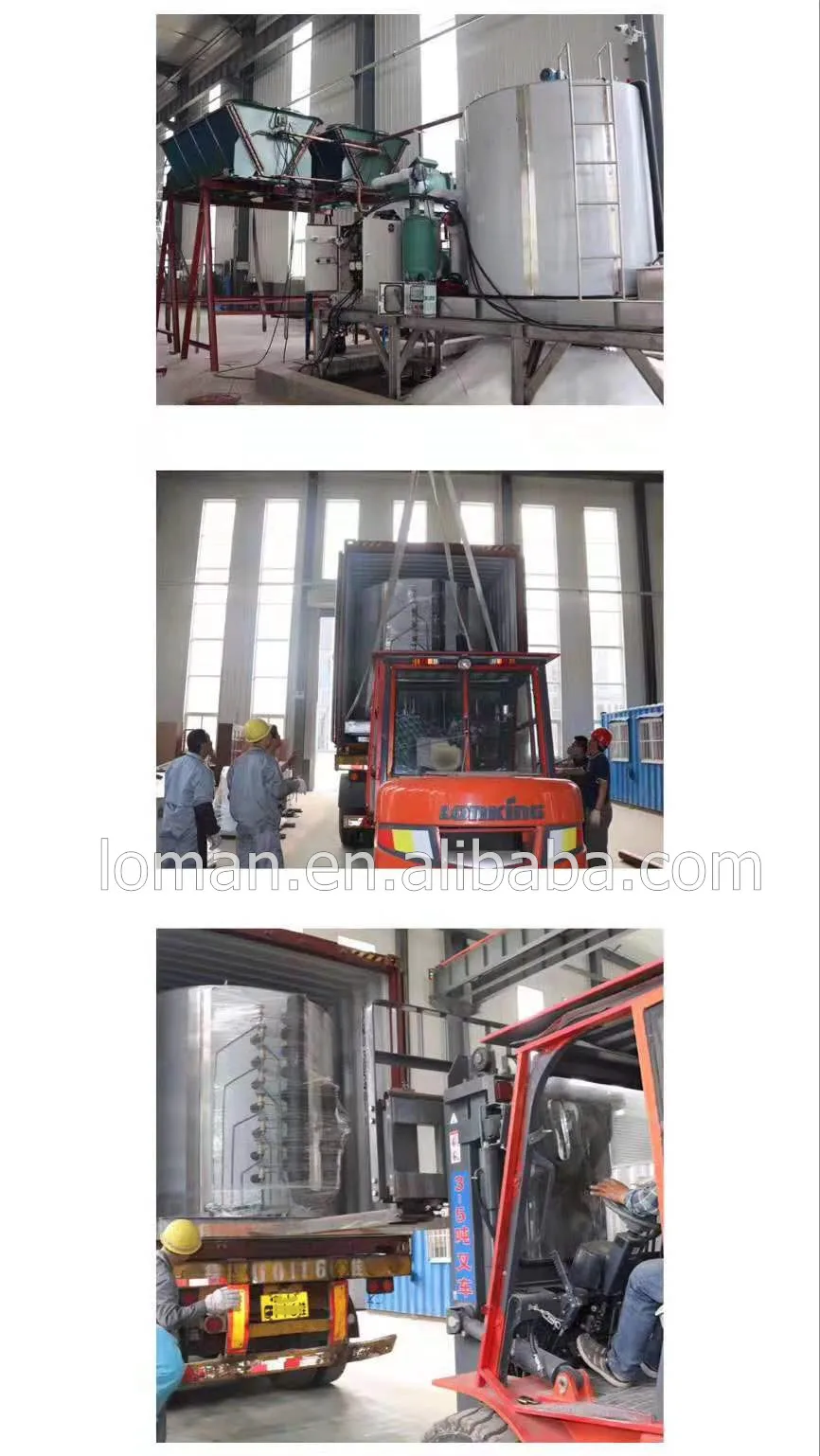

Packing&Shipping
Related Products

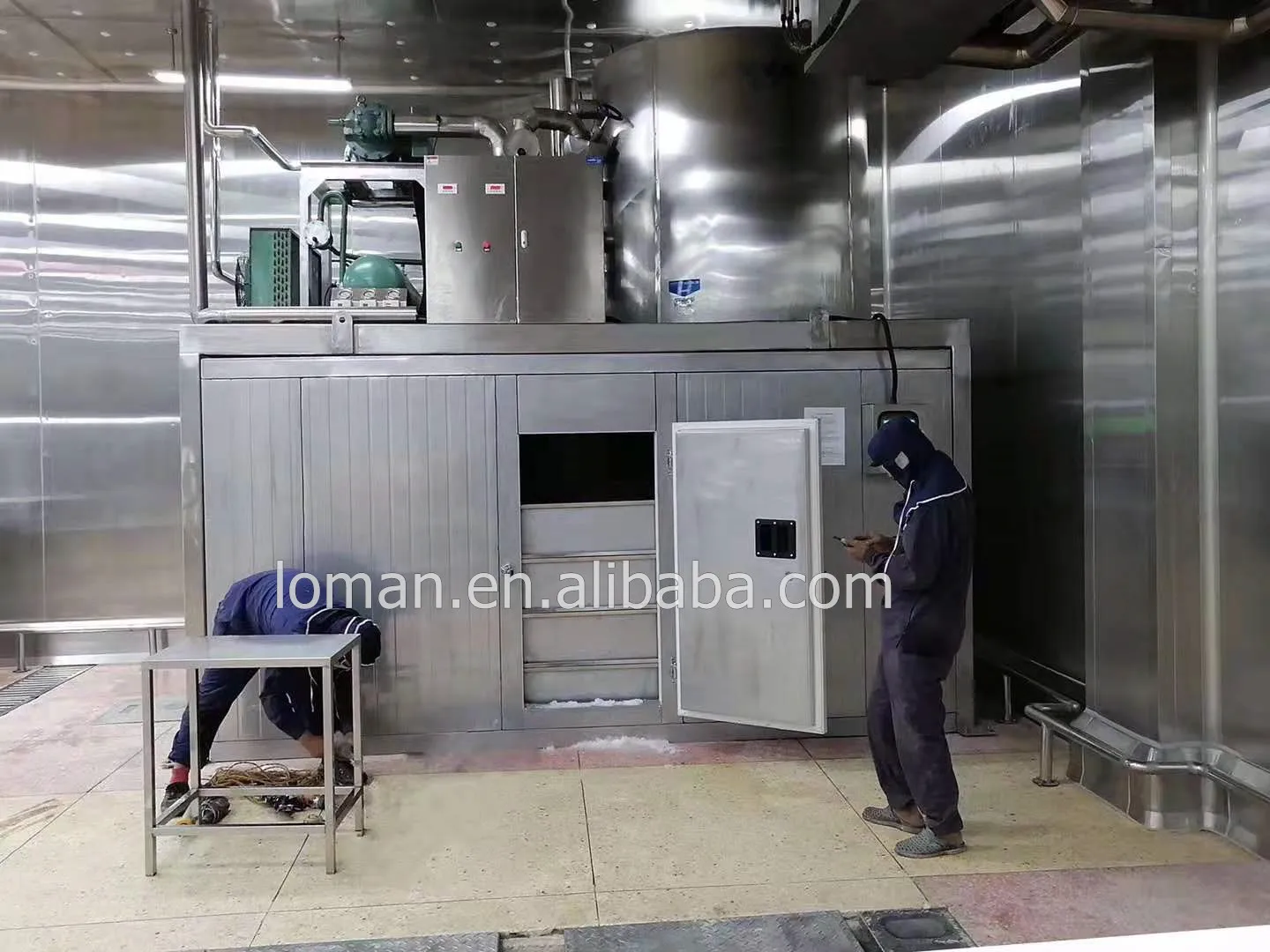

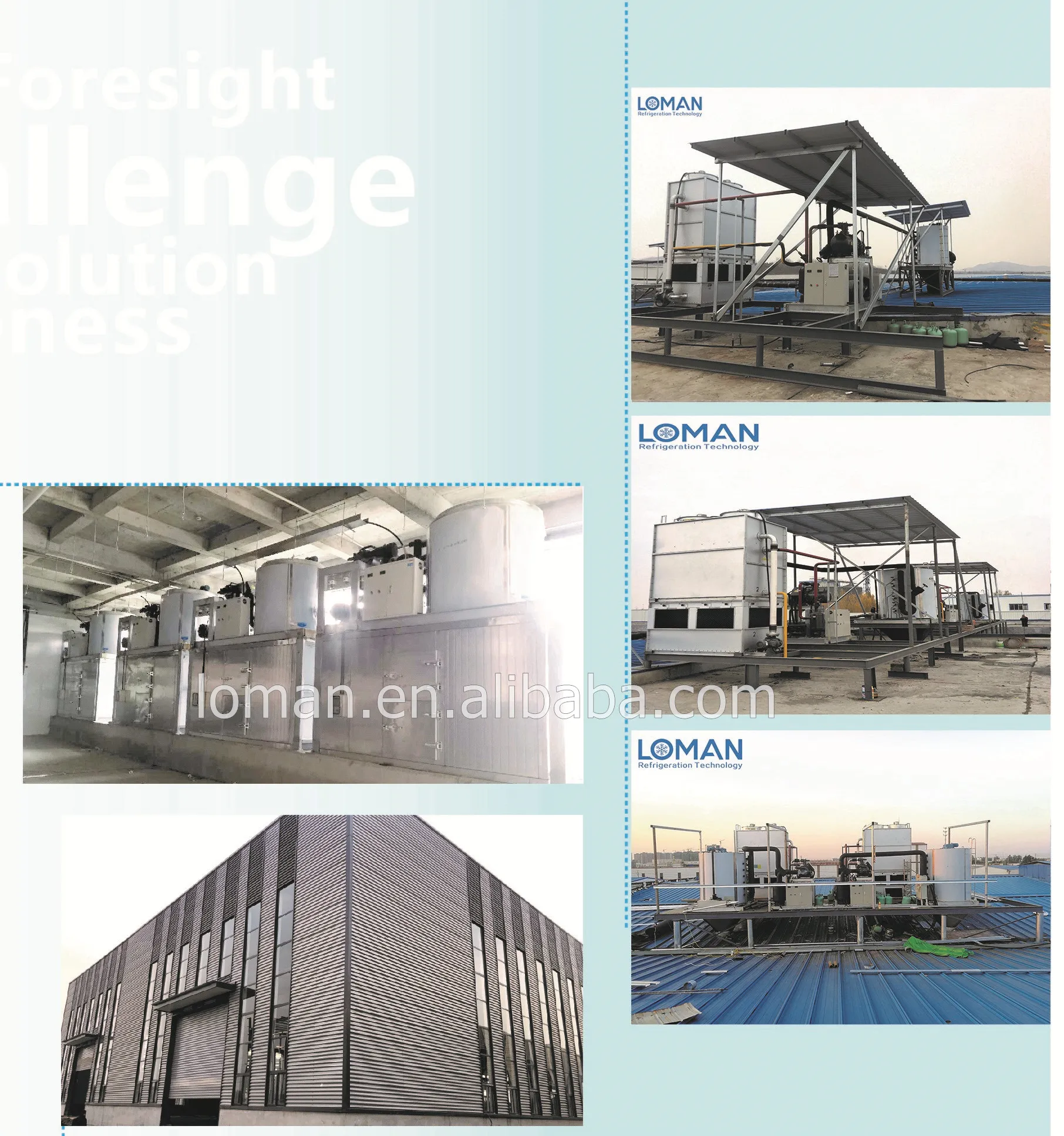

Customer Case
